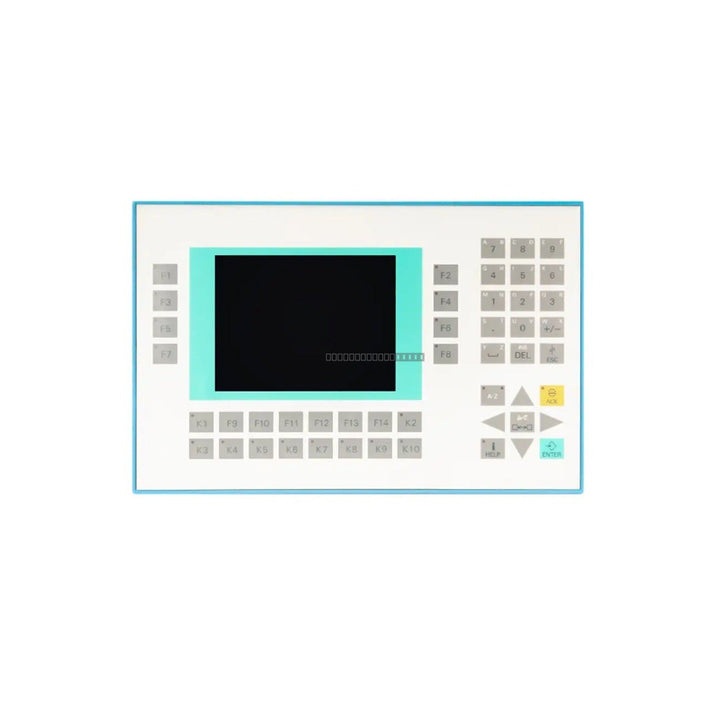

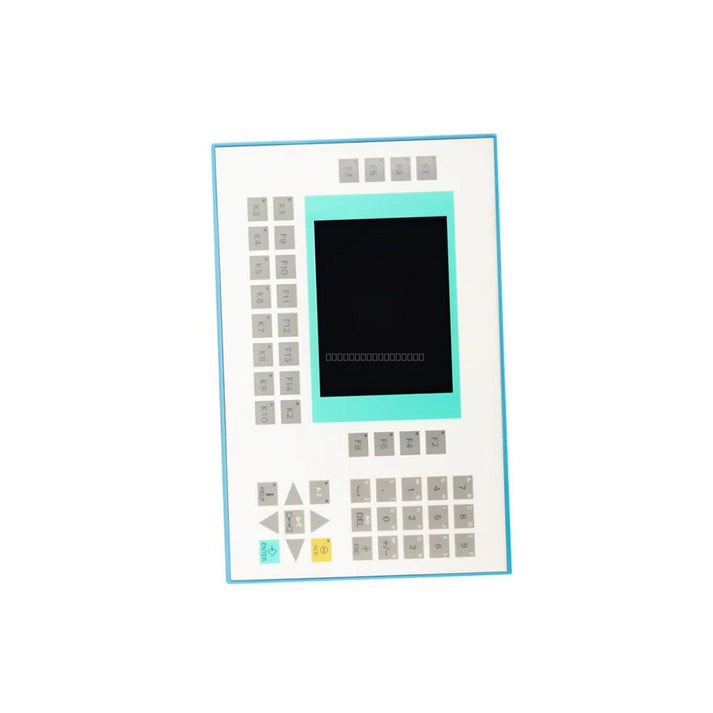

Siemens Simatic OP25 HMI Replacement LCD Panel 6AV3525-4EA01-0AX0-ZA03-SUB-LCD

Siemens Simatic OP25 HMI Replacement LCD Panel 6AV3525-4EA01-0AX0-ZA03-SUB-LCD

Description

The 6AV3525-4EA01-0AX0-ZA03-SUB-LCD is a high-grade engineered replacement LCD flat panel module designed specifically for the Siemens Simatic OP25 human-machine interface (HMI). This display component restores graphic visualization capabilities on the...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 6ES5245-1AB11
Proveedora: Siemens
tipo: HMI Replacement Display
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

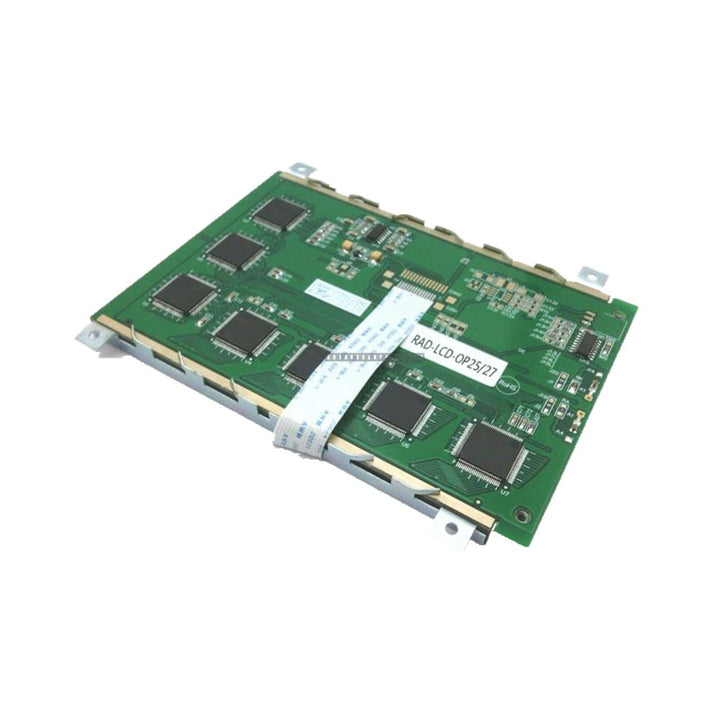

The 6AV3525-4EA01-0AX0-ZA03-SUB-LCD is a high-grade engineered replacement LCD flat panel module designed specifically for the Siemens Simatic OP25 human-machine interface (HMI). This display component restores graphic visualization capabilities on the factory floor, enabling operators to monitor and interact with real-time machine data. It is suitable for use in heavy industrial sectors, including water treatment, chemical processing, and automotive manufacturing, where maintaining clear operator visibility is critical for process control.

Features

  • Direct replacement for the original Simatic OP25 HMI display assembly.
  • 5.7-inch monochrome active matrix LCD panel.
  • Native resolution of 320 x 240 pixels for sharp text and vector graphics.
  • High-efficiency backlighting circuitry for consistent luminance in industrial environments.
  • Integrated flex-cable interface for seamless connection to existing legacy controller boards.
  • Passive installation design requires no custom firmware or structural modifications to the operator console.

Applications

This replacement panel is intended for the maintenance and repair of legacy Siemens Simatic OP25 operator terminals. It is ideal for facilities looking to extend the service life of existing HMI hardware without the need for complete system migration or expensive console retrofits.

Technical Specifications

Model 6AV3525-4EA01-0AX0-ZA03-SUB-LCD
Brand Siemens
Target System Simatic OP25 HMI
Display Size 5.7 inch
Resolution 320 x 240 Pixels
Display Type Monochrome LCD
Power Consumption 2.5 W
Operating Temperature 0 to 50 deg C

Installation Guidelines

  • Ensure the HMI terminal is fully powered down and disconnected from the main power supply before attempting to open the chassis.
  • Use appropriate ESD (Electrostatic Discharge) protection when handling the display module to prevent damage to sensitive internal circuitry.
  • Carefully remove the legacy display assembly, noting the orientation of the flex-cable connection.
  • Install the replacement panel into the existing metal chassis, ensuring all mounting points are aligned and secured.
  • Connect the flex-cable interface to the controller board, ensuring the connector is fully seated and locked.
  • Verify the display operation upon power-up before closing the terminal enclosure.

FAQ

Is this a genuine Siemens factory part?

This module is an engineered replacement component designed to be fully compatible with the Siemens Simatic OP25 HMI. It is designed to match the form, fit, and function of the original hardware to ensure seamless integration.

Does this replacement require any software changes?

No, this is a passive hardware replacement. The module is designed to interface with the existing controller drive boards without requiring firmware updates or configuration changes.
