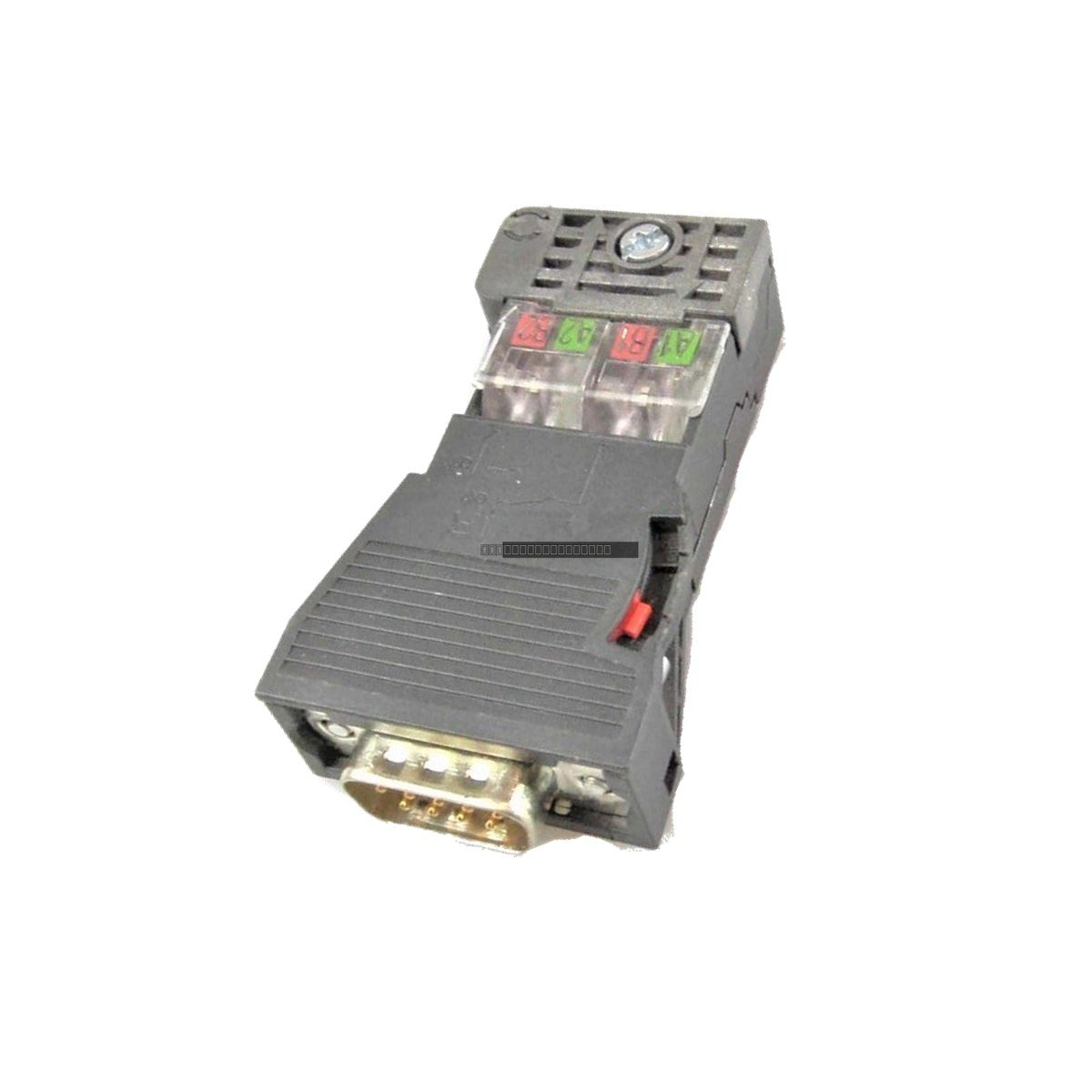

Siemens 6GK1500-0FC00 Profibus Bus Connector

Siemens 6GK1500-0FC00 Profibus Bus Connector

Description

The Siemens 6GK1500-0FC00 is a high-performance industrial bus connector designed for reliable node connection within Profibus DP and MPI network topologies. Engineered as part of the Simatic Net FastConnect series,...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 6GK1500-0FC00
Proveedora: Siemens
tipo: Profibus Connector
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6GK1500-0FC00 is a high-performance industrial bus connector designed for reliable node connection within Profibus DP and MPI network topologies. Engineered as part of the Simatic Net FastConnect series, this unit facilitates rapid, error-free field installation for automated control systems. It is specifically built to support high-speed data transmission, maintaining signal integrity in demanding industrial environments such as automotive manufacturing, chemical processing, and infrastructure automation.

Features

  • FastConnect Technology: Integrated insulation-displacement contacts eliminate the need for manual wire stripping, reducing installation time and preventing common wiring errors.
  • Axial Cable Exit: The 180-degree cable outlet design allows for parallel routing, making it an ideal choice for space-constrained control cabinets and shallow terminal enclosures.
  • Signal Integrity: Features an optimized internal PCB layout to support transmission speeds up to 12 Mbps, ensuring stable communication without waveform distortion.
  • Robust Construction: Housed in a durable industrial plastic shell, providing reliable protection for the internal connection points.
  • Standard Interface: Equipped with a 9-pin Sub-D connector compatible with standard Profibus DP and MPI interfaces.

Technical Specifications

Model 6GK1500-0FC00
Brand Siemens Simatic Net
Transmission Rate 9.6 Kbps to 12 Mbps
Interface 9-Pin Sub-D Male
Cable Exit 180-Degree Axial
Connection Method FastConnect (IDC)
Operating Temperature -25 to 60 deg C
Power Consumption Passive (0 W)

Installation Guidelines

  • Ensure the Profibus cable is cut cleanly before insertion into the FastConnect housing.
  • Verify that the cable insulation is not damaged before seating it into the IDC terminals.
  • Snap the housing shut firmly to ensure the insulation-displacement contacts fully penetrate the wire conductors for a gas-tight connection.
  • Maintain proper cable bending radii when routing cables to avoid strain on the connector housing.
  • For end-of-segment nodes, ensure that the bus termination switches (if applicable to the specific network setup) are configured correctly to prevent signal reflections.

FAQ

Does this connector require a specific tool for installation?
No, the FastConnect system is designed to be installed without specialized stripping tools. The internal IDC mechanism handles the connection automatically when the housing is closed.

Is this connector suitable for high-speed Profibus networks?
Yes, the 6GK1500-0FC00 is rated for speeds up to 12 Mbps, making it fully compatible with high-speed Profibus DP network requirements.
