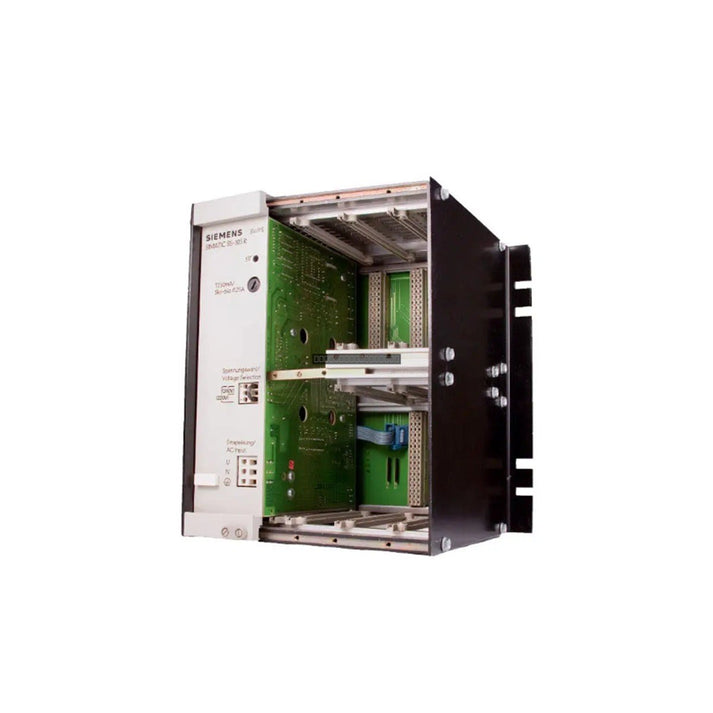

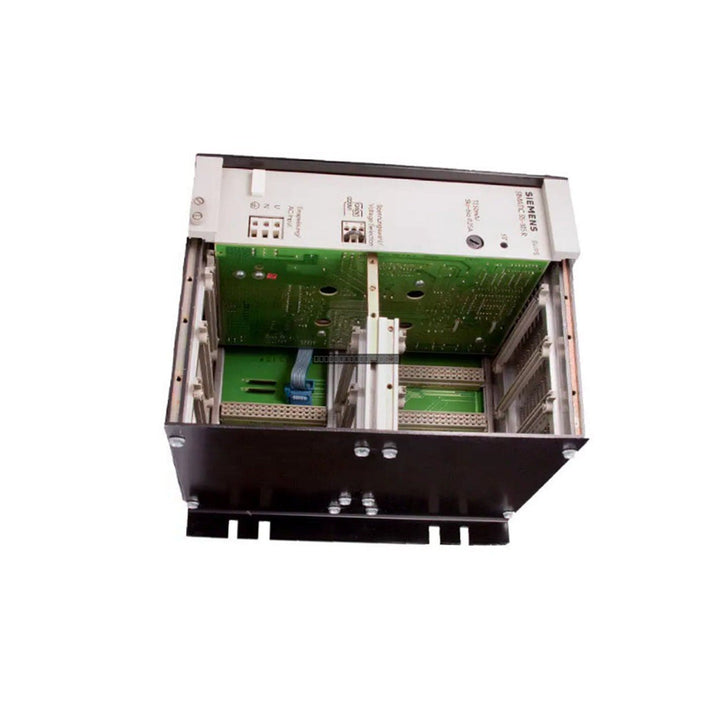

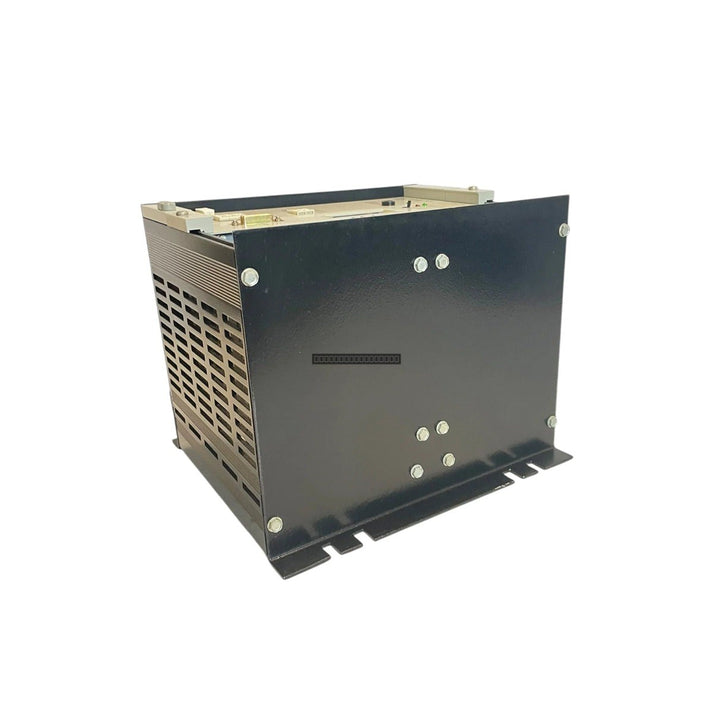

Siemens 6ES5105-3RA11 Simatic S5-105 Central Controller

Siemens 6ES5105-3RA11 Simatic S5-105 Central Controller

Description

The Siemens Simatic S5-105 6ES5105-3RA11 is a robust central controller unit engineered for small-to-medium scale industrial automation tasks. This processing unit is designed to execute up to 500 program elements,...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 6ES5105-3RA11
Proveedora: Siemens
tipo: PLC Central Controller
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens Simatic S5-105 6ES5105-3RA11 is a robust central controller unit engineered for small-to-medium scale industrial automation tasks. This processing unit is designed to execute up to 500 program elements, providing reliable logic control for manufacturing, material handling, and automated assembly systems. The unit features an integrated power supply that accepts 220/240 VAC line power, eliminating the need for external transformers and simplifying installation within industrial control cabinets.

Features

  • Integrated Processing: Deterministic CPU architecture capable of managing up to 500 program lines for discrete control.
  • Modular Expansion: Includes 4 dedicated slots for S5-105 series I/O modules, allowing for flexible configuration of digital inputs and outputs.
  • Self-Contained Power: Internal power supply unit supports direct connection to 220/240 VAC mains.
  • Compact Design: Optimized for space-constrained environments, suitable for standard control cabinet mounting.
  • System Compatibility: Designed for integration with S5-105 series sub-modules, including 6ES5 905-3RA11 and 6ES5 488-3LA31 units.

Technical Specifications

Model 6ES5105-3RA11
Series Simatic S5-105
Supply Voltage 220/240 VAC
Program Capacity 500 Elements
I/O Slots 4
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C
Relative Humidity 95 percent non-condensing

Installation Guidelines

  • Mounting: Ensure the unit is installed in a grounded metal control cabinet. It can be mounted vertically or horizontally depending on cabinet layout.
  • Power Safety: Always disconnect the main power supply before inserting or removing any I/O modules or performing maintenance on the controller.
  • Environment: Maintain the operating temperature between 0 and 60 deg C. Ensure adequate ventilation around the unit to prevent overheating.
  • Grounding: Proper grounding of the cabinet and the controller chassis is essential to minimize EMI and ensure signal integrity.
  • Handling: Use ESD-safe practices when handling the module to prevent damage to internal electronic components.

FAQ

Is the power supply included in this unit?
Yes, the 6ES5105-3RA11 features an integrated power supply unit that accepts 220/240 VAC directly.

How many I/O modules can be added to this controller?
The unit provides 4 integrated slots for S5-105 series I/O modules.

What is the primary application for this controller?
It is designed for small-to-medium industrial automation, such as discrete logic control in manufacturing and assembly lines.
