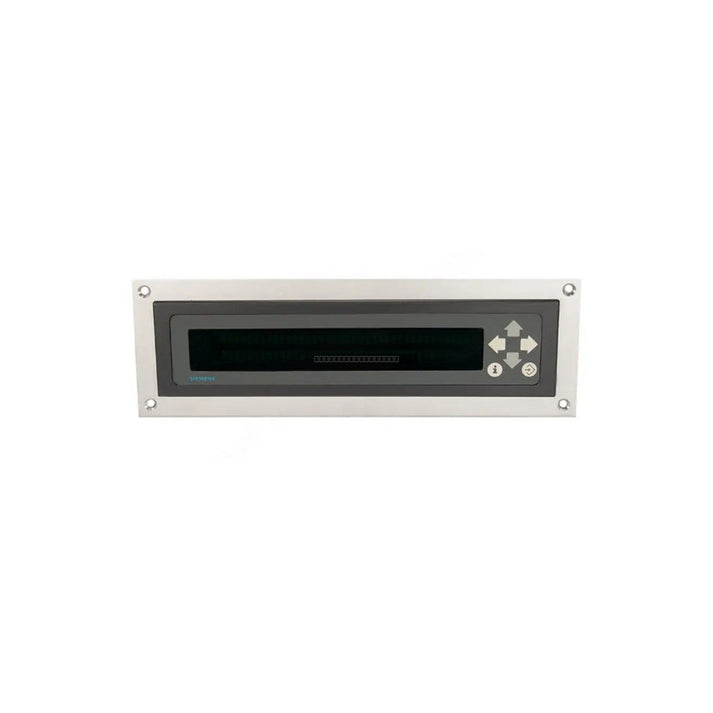

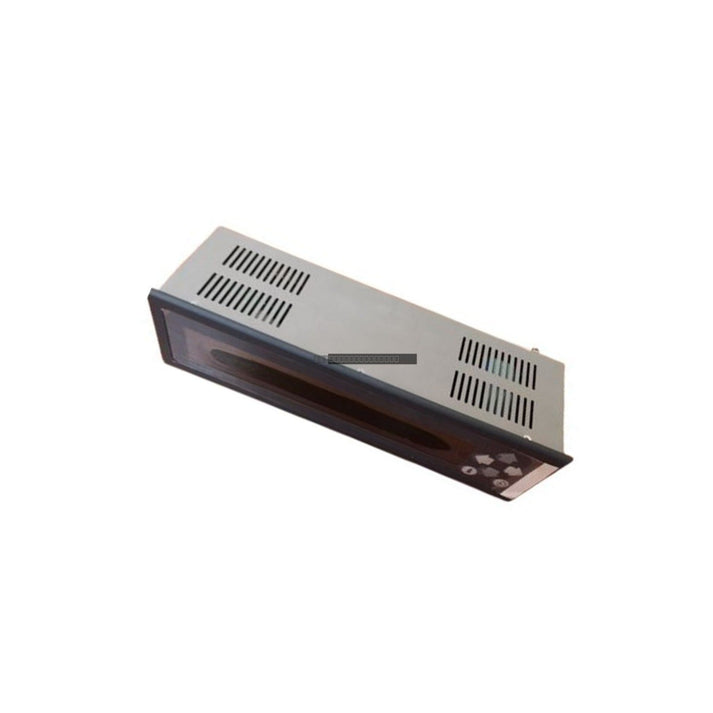

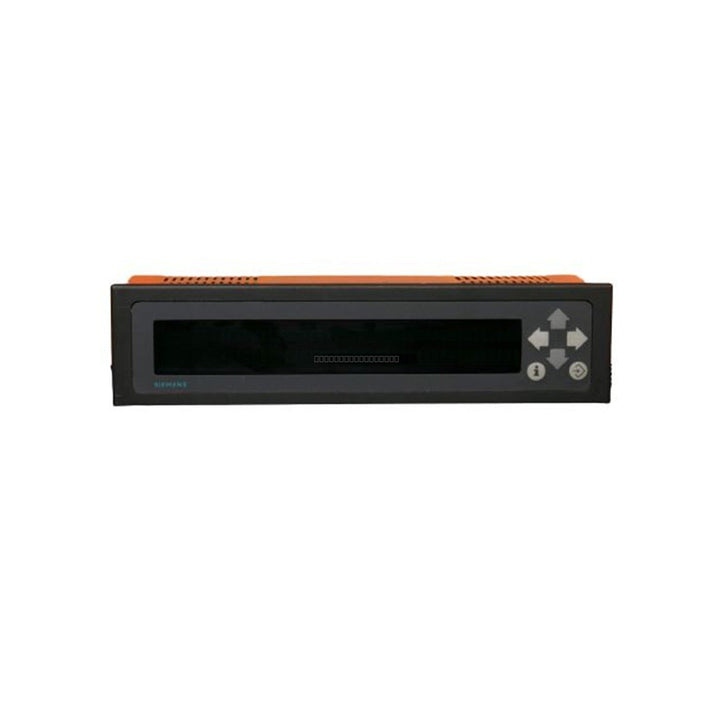

Siemens 6AV1142-1DA10 Simatic S5 TD2-240-5 Text Display

Siemens 6AV1142-1DA10 Simatic S5 TD2-240-5 Text Display

Description

The Siemens 6AV1142-1DA10, also known as the TD2-240-5, is a specialized operator interface designed for integration with legacy Simatic S5 programmable logic controller systems. This text display unit provides machine-level...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 6AV1142-1DA10
Proveedora: Siemens
tipo: Operator Interface Text Display
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6AV1142-1DA10, also known as the TD2-240-5, is a specialized operator interface designed for integration with legacy Simatic S5 programmable logic controller systems. This text display unit provides machine-level visualization, allowing operators to monitor process variables, system statuses, and diagnostic alarms directly at the point of operation. By providing clear, text-based feedback, the unit assists in rapid fault identification and troubleshooting, which helps minimize downtime in demanding industrial environments.

Features

  • Direct Interface: Optimized for seamless communication with Simatic S5 processor racks, including S5-115U, S5-135U, and S5-155U series.
  • Rugged Design: Features a durable membrane keypad engineered to withstand moisture, chemical exposure, and frequent mechanical actuation.
  • Efficient Data Handling: Integrated firmware manages character mapping, reducing the processing load on the host PLC.
  • Serial Connectivity: Supports TTY (20 mA current loop) and RS232/RS485 communication standards for reliable data exchange.

Applications

This operator interface is suitable for heavy industrial applications where legacy S5 automation systems remain in service, including metals processing, mining, water treatment facilities, and manufacturing assembly lines.

Technical Specifications

Model 6AV1142-1DA10 (TD2-240-5)
Brand Siemens
Series Simatic S5 HMI
Display Type Alphanumeric Text Display
Communication Interface TTY / 20 mA Current Loop / Serial
Power Requirements 24 VDC (0.3 A nominal)
Operating Temperature 0 to 50 deg C
Storage Temperature -20 to 70 deg C

Installation Guidelines

  • Ensure the unit is mounted in a location that protects the display from direct high-pressure washdowns or excessive vibration.
  • Verify that the 24 VDC power supply is stable and properly grounded before connecting to the unit.
  • Use shielded communication cables for the TTY/serial connection to minimize electromagnetic interference (EMI) from high-voltage equipment.
  • Always power down the PLC rack and the display unit before connecting or disconnecting communication cables to prevent electrical damage to the interface ports.
  • Ensure the membrane keypad is kept free of debris and chemical buildup to maintain tactile responsiveness.

FAQ

What communication protocols does the 6AV1142-1DA10 support?

The unit supports standard Siemens TTY (20 mA current loop) and RS232/RS485 serial communication, which are native to the S5-115U, S5-135U, and S5-155U processor ports.

Is this unit suitable for outdoor use?

The unit is designed for machine-level factory floor environments. It is not rated for direct outdoor exposure; it should be installed within an appropriate NEMA or IP-rated enclosure if used in harsh or exposed conditions.
