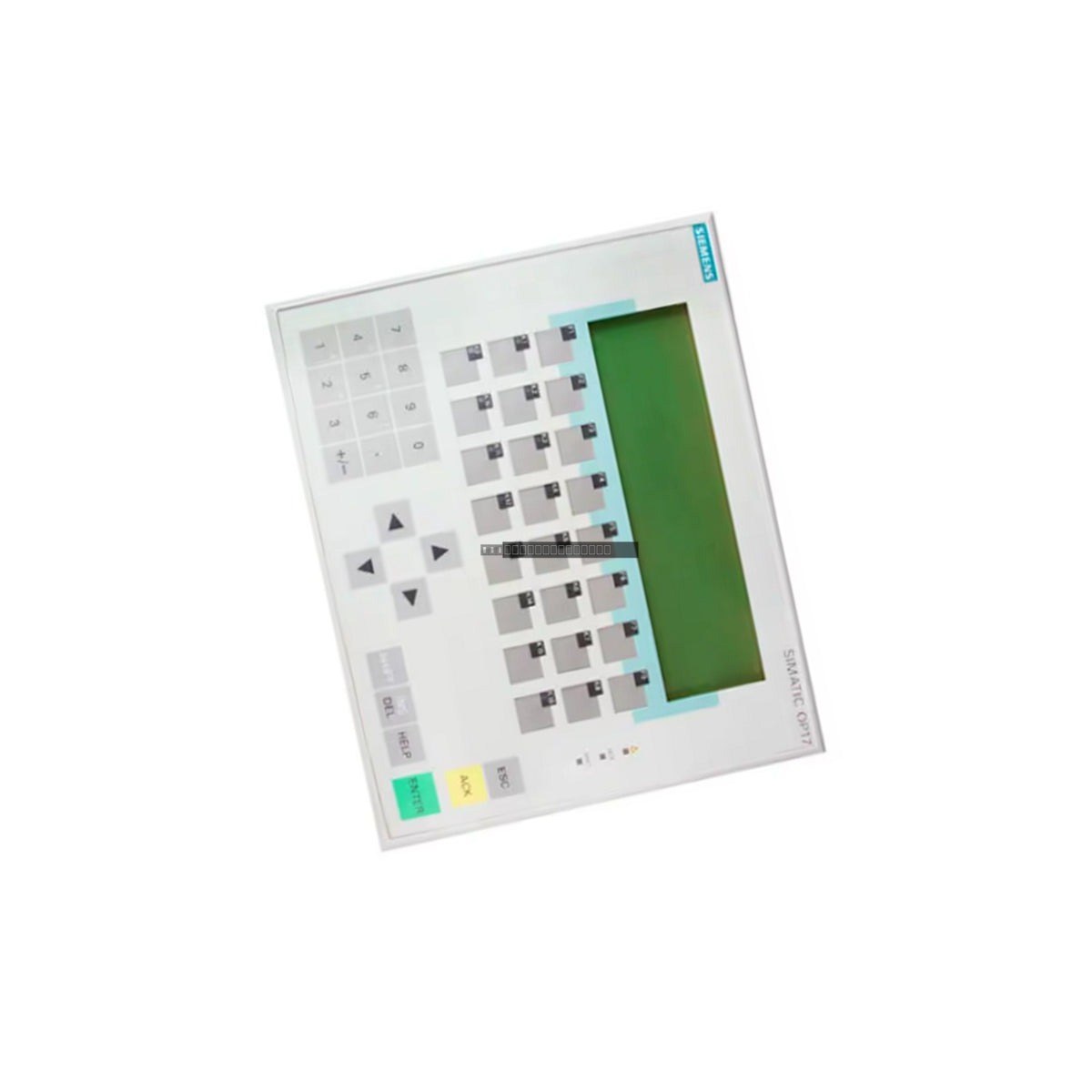

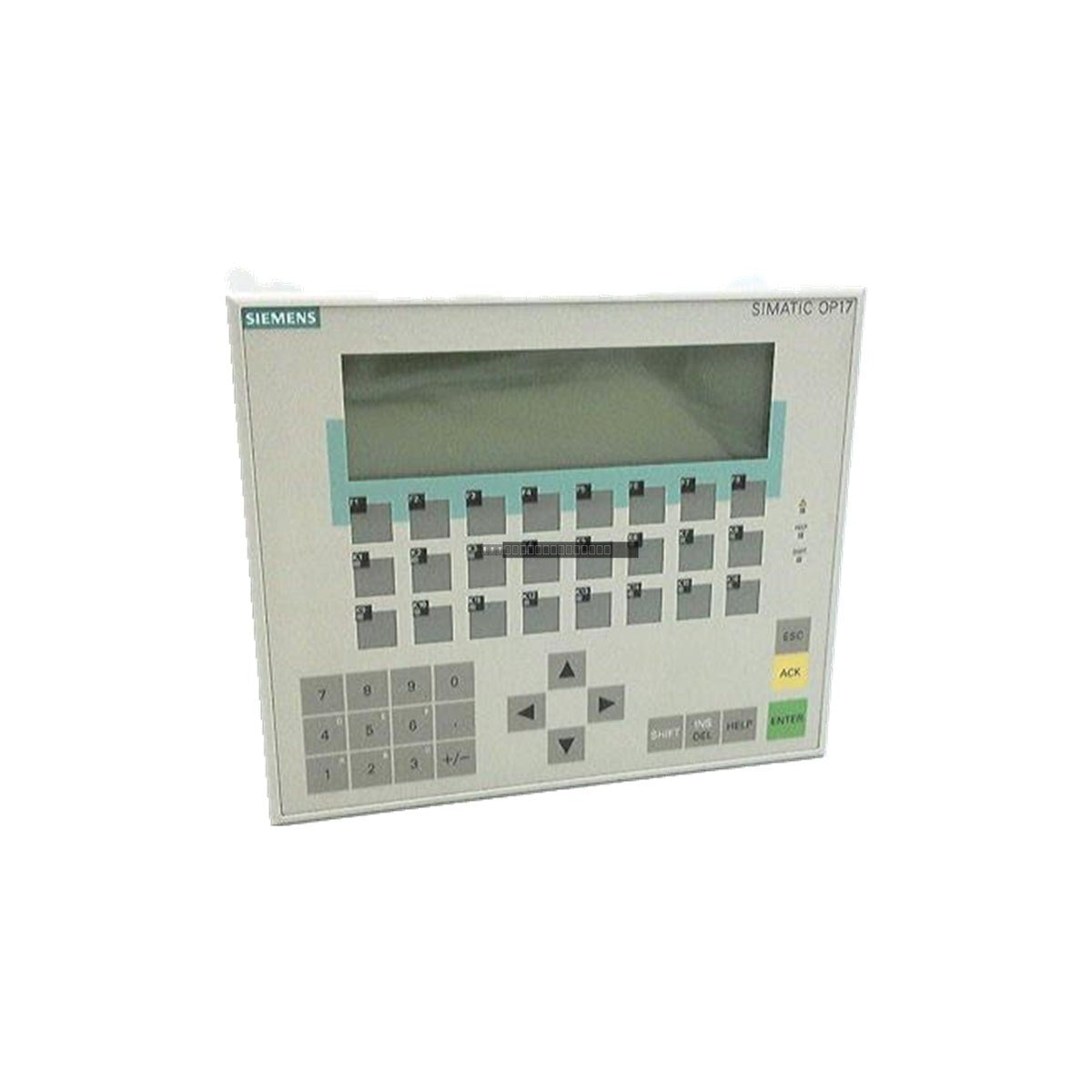

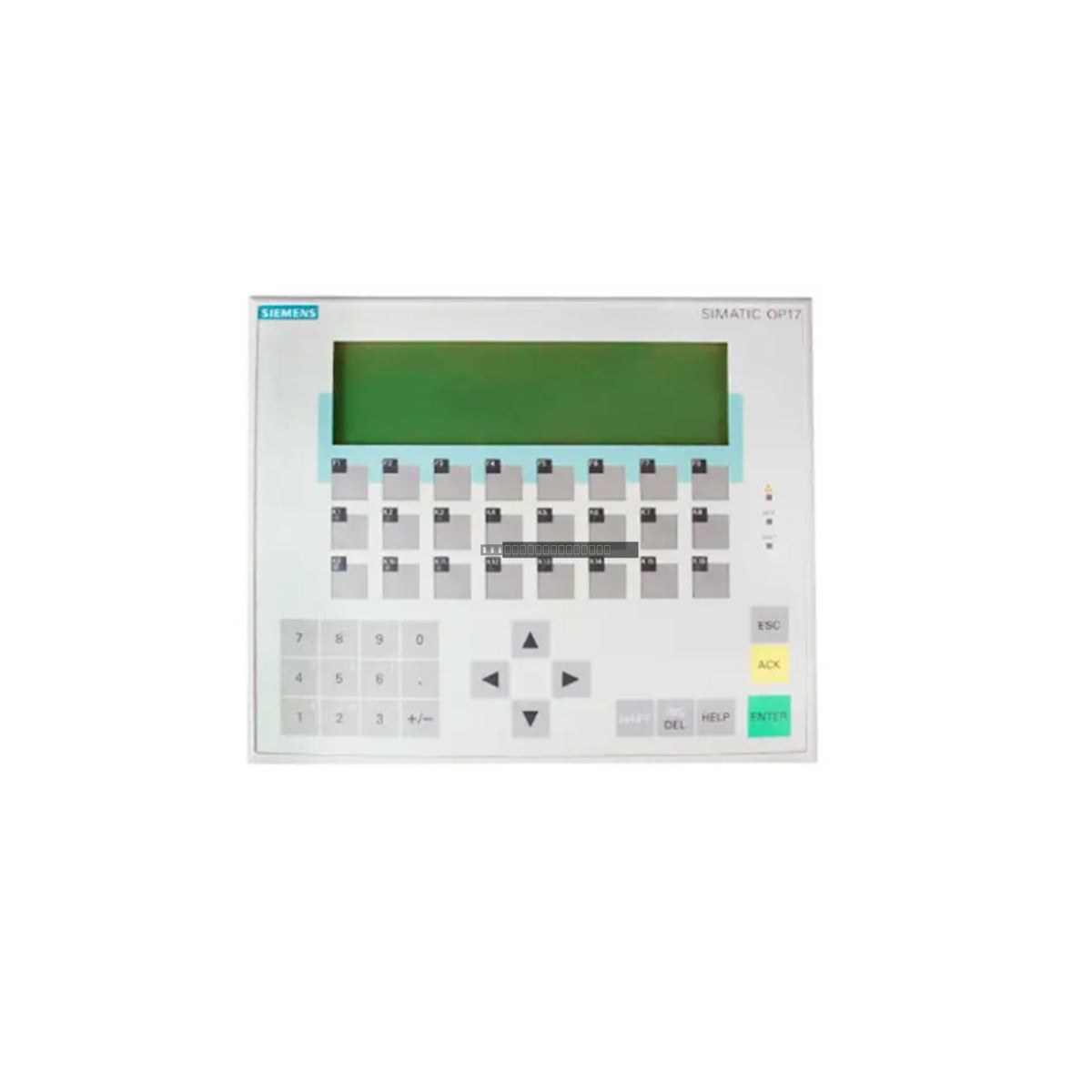

Siemens 6AV3617-1JC00-0AX2 Simatic S5 OP17 Operator Panel

Siemens 6AV3617-1JC00-0AX2 Simatic S5 OP17 Operator Panel

Description

The Siemens 6AV3617-1JC00-0AX2 is an OP17/PP operator panel designed for human-machine interface (HMI) tasks within Simatic S5 automation systems. This unit provides essential visualization, status monitoring, and parameter adjustment capabilities...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 6AV3617-1JC00-0AX2
Proveedora: Siemens
tipo: Operator Panel
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6AV3617-1JC00-0AX2 is an OP17/PP operator panel designed for human-machine interface (HMI) tasks within Simatic S5 automation systems. This unit provides essential visualization, status monitoring, and parameter adjustment capabilities directly at the machine level. It is built to withstand demanding industrial environments, offering reliable performance for alarm management, recipe handling, and manual system overrides in sectors such as chemical processing, power generation, and mining.

Features

  • Integrated LC display with LED backlighting for high-contrast visibility and extended service life.
  • Tactile function and system keys engineered for high-frequency use, including operation while wearing industrial gloves.
  • Supports serial communication via TTY, RS232, and RS485 interfaces.
  • Compatible with Simatic S5 AS511 protocol and Profibus network integration.
  • Onboard microprocessor for localized menu rendering and alarm evaluation, minimizing the communication load on the connected PLC.
  • Rugged front enclosure designed to protect internal electronics from dust and moisture ingress.

Technical Specifications

Model 6AV3 617-1JC00-0AX2 (OP17)
Brand Siemens
Product Family Simatic S5 HMI
Display Type LC Display with LED Backlight
Communication TTY / RS232 / RS485 (AS511 Protocol)
Operating Temperature 0 to 50 deg C
Input Voltage 24 VDC
Power Consumption 10 W

Installation Guidelines

  • Ensure the control cabinet provides adequate ventilation to maintain operating temperatures within the 0 to 50 deg C range.
  • Mount the panel in a cutout that meets the manufacturer's specified dimensions to ensure the front seal maintains its ingress protection rating.
  • Use shielded cables for serial communication (RS232/RS485) to minimize electromagnetic interference (EMI) from high-voltage lines or variable frequency drives.
  • Always disconnect power before performing any wiring changes or removing the module from the mounting surface.
  • Ensure the unit is properly grounded according to local electrical safety standards to prevent static discharge damage.

FAQ

Is this operator panel compatible with modern S7 PLCs?

The 6AV3617-1JC00-0AX2 is specifically designed for the Simatic S5 series and utilizes the AS511 protocol. While it is a robust HMI for legacy S5 architectures, it is not natively designed for modern S7-series communication protocols without specific gateway hardware.

What type of maintenance does the OP17 require?

The unit is largely maintenance-free. However, it is recommended to periodically inspect the front seal for signs of degradation and ensure the ventilation paths around the cabinet are clear of debris to prevent overheating.
