Description

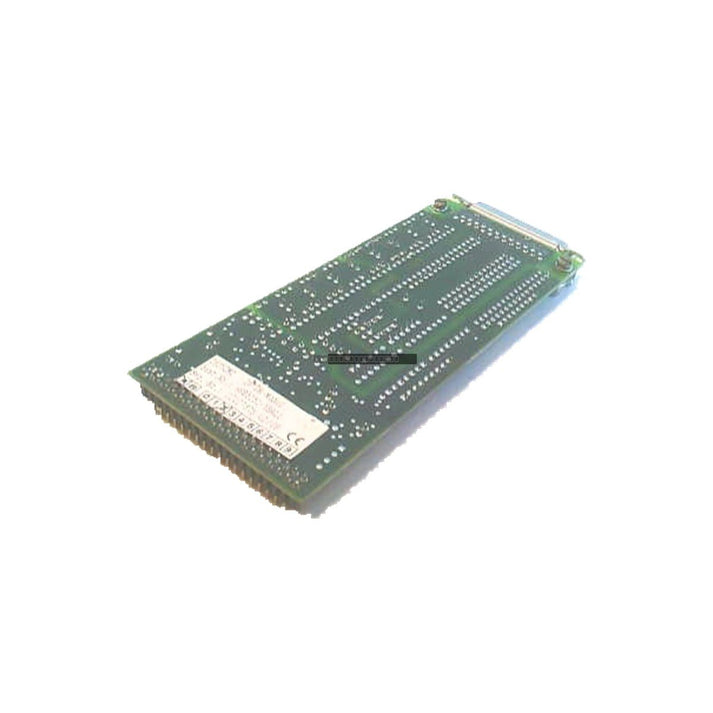

The Siemens 6ES5252-5BA11 is an IP 252 MC intelligent processing module designed for integration within the Simatic S5 PLC architecture. This module functions as a specialized synchronizing unit, incorporating digital I/O to perform high-speed signal processing tasks independently of the main CPU. By managing complex motion matching, phase synchronization, and rapid positional alignment, it ensures high-precision control in multi-axis automated systems. Its ability to execute time-critical logic directly on the module reduces central processor load and minimizes control latency, which is essential for maintaining operational stability in continuous industrial production environments.

Features

• Dedicated intelligent processing for high-speed synchronization tasks.
• Integrated digital I/O for rapid feedback acquisition and actuation.
• Reduces central CPU overhead by handling time-critical algorithms locally.
• Designed for seamless integration into standard Simatic S5 backplane racks.
• Supports deterministic processing cycles for critical drive control loops.
• Robust construction suitable for demanding industrial applications including steel mills and chemical processing.

Applications

This module is primarily utilized in industrial automation scenarios requiring high-speed synchronization, such as multi-axis motion control, web handling, continuous material processing, and high-speed positioning systems where mechanical binding or control lag must be strictly avoided.

Technical Specifications

Installation Guidelines

• Ensure the Simatic S5 rack power is fully disconnected before inserting or removing the module to prevent electrical damage.
• Verify that the module is correctly seated in the designated S5 expansion slot and that the backplane connector is fully engaged.
• Maintain proper ventilation in the control cabinet to ensure the ambient temperature remains within the 0 to 60 deg C operating range.
• Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Ensure proper grounding of the S5 rack system to mitigate noise and protect sensitive internal circuitry.

FAQ

What is the primary function of the 6ES5252-5BA11?
It is an intelligent processing module used for high-speed synchronization and motion control within the Simatic S5 PLC system, handling tasks locally to reduce CPU load.

Can this module be used in any S5 rack?
The module is designed for standard Simatic S5 rack systems; however, ensure your specific rack configuration supports the IP 252 MC module requirements.
