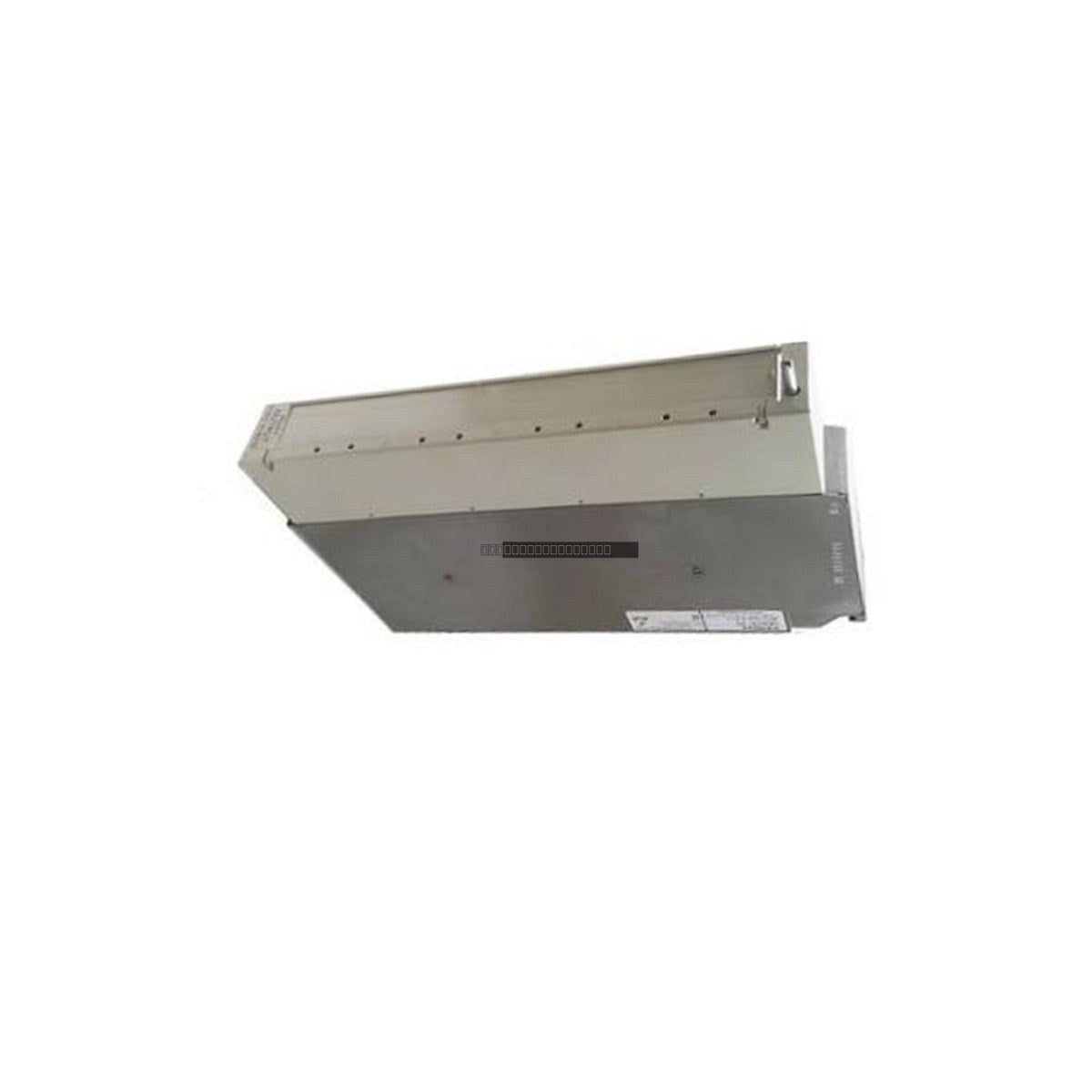

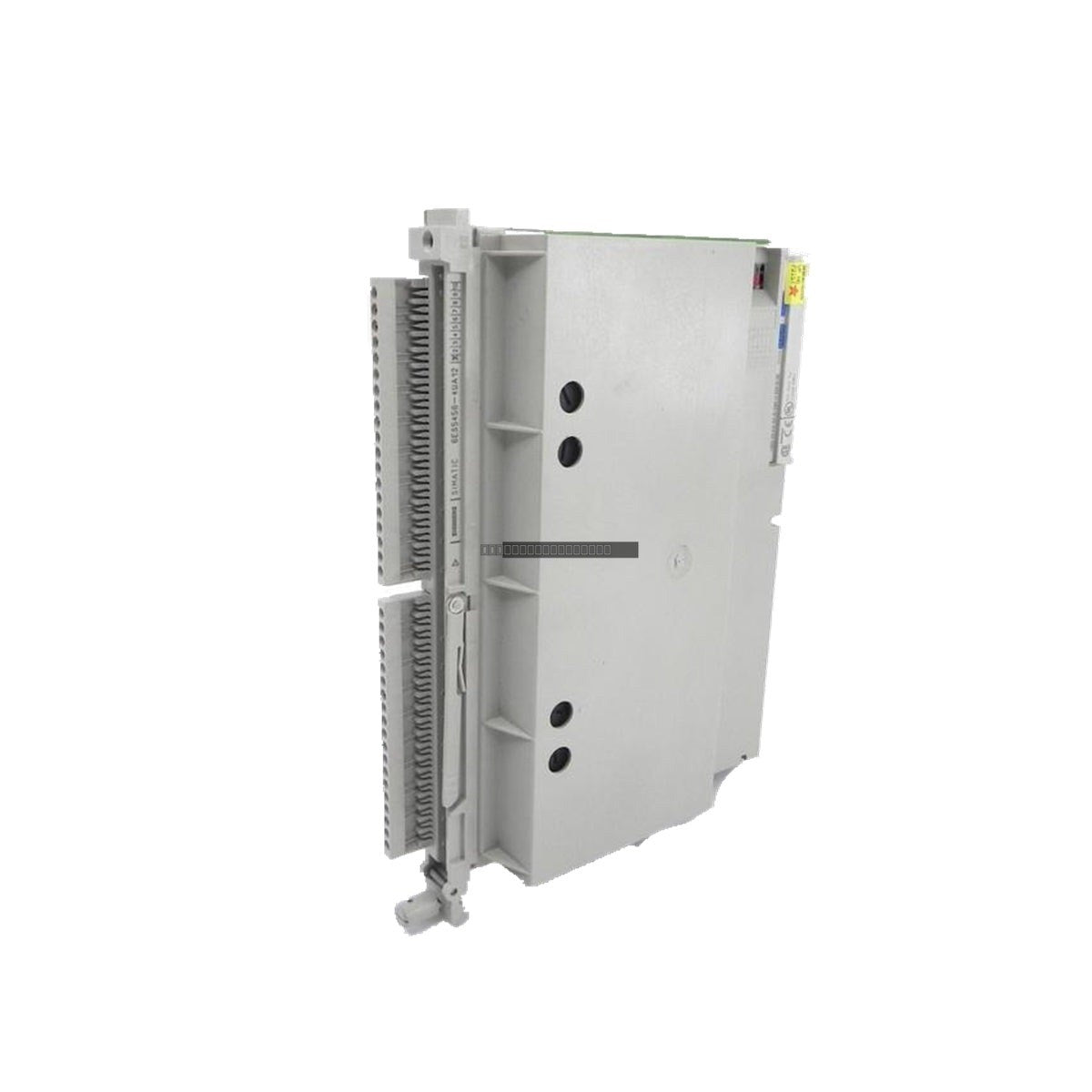

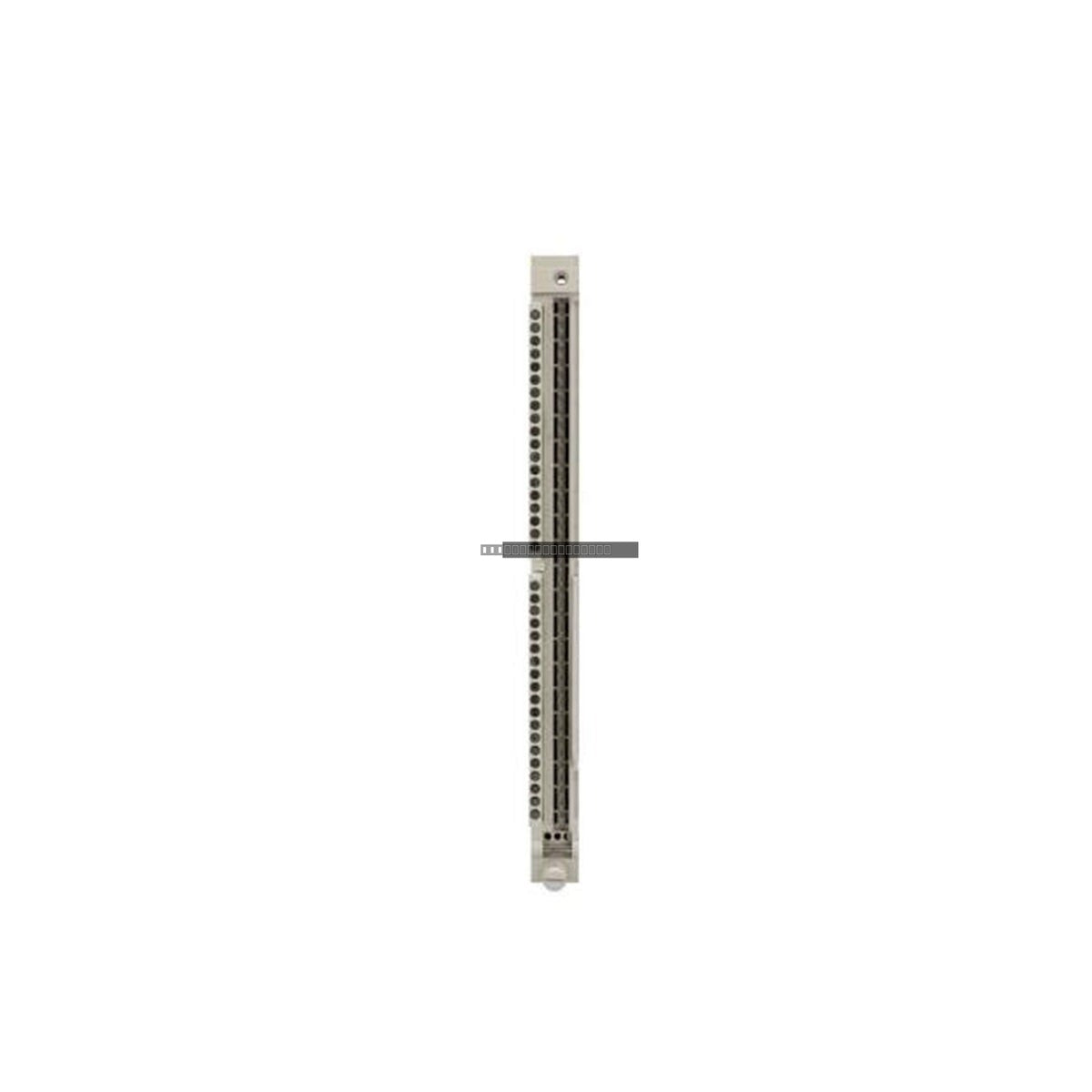

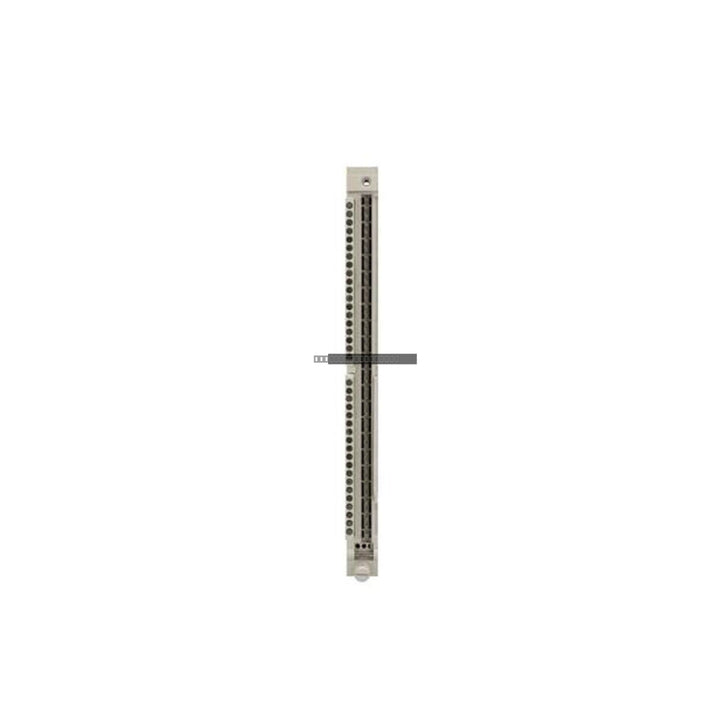

Siemens 6ES5458-4UA13 Simatic S5 Digital Output Module

Siemens 6ES5458-4UA13 Simatic S5 Digital Output Module

Description

The Siemens 6ES5458-4UA13 is a high-density digital output module designed for the SIMATIC S5-135U and S5-155U programmable logic controller systems. This module provides 16 electrically isolated relay outputs, allowing for...

16 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 6ES5458-4UA13
Proveedora: Siemens
tipo: Digital Output Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6ES5458-4UA13 is a high-density digital output module designed for the SIMATIC S5-135U and S5-155U programmable logic controller systems. This module provides 16 electrically isolated relay outputs, allowing for the reliable switching of field-side loads up to 60 VDC. It is specifically engineered to provide robust galvanic isolation between the PLC backplane and external field devices, protecting sensitive control logic from electrical noise, transients, and potential short-circuit propagation in demanding industrial environments.

Features

  • High Channel Density: Features 16 independent relay output channels within a single standard S5 module footprint.
  • Galvanic Isolation: Integrated isolation barriers prevent field-side electrical faults from impacting the internal S5 bus.
  • Flexible Switching: Dry-contact relay outputs support versatile control of external actuators and signaling devices.
  • Industrial Durability: Designed for reliable operation in harsh environments, including power generation and process automation facilities.

Technical Specifications

Model 6ES5458-4UA13
Product Family SIMATIC S5-135/155U
Output Type Relay (Dry Contact)
Number of Channels 16
Max Switching Voltage 60 VDC
Max Current per Channel 0.5 A
Power Consumption 3.5 W (Internal Backplane)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C

Installation Guidelines

  • Power Down: Always disconnect power from the S5 rack and field terminal blocks before inserting or removing the module.
  • ESD Precautions: Use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal components.
  • Wiring: Ensure field wiring is properly routed and secured to terminal blocks. Use shielded cables for field signals to minimize EMI interference.
  • Mounting: Ensure the module is fully seated in the designated S5 rack slot and that the locking mechanism is engaged to maintain proper backplane connection.
  • Ventilation: Maintain adequate clearance around the PLC rack to ensure proper airflow and heat dissipation, keeping within the 0 to 60 deg C operating range.

FAQ

What is the primary function of the 6ES5458-4UA13?

This module acts as a digital output interface for the Siemens S5-135/155U PLC, providing 16 isolated relay contacts to switch external loads up to 60 VDC.

Is this module compatible with other S5 series PLCs?

The 6ES5458-4UA13 is specifically designed for the S5-135U and S5-155U platforms. Please verify your specific rack and CPU configuration before installation.

Does this module require external power for the relays?

The relay contacts are dry-contact outputs; however, the field-side load circuit must be powered according to the voltage and current specifications provided in the technical data.
