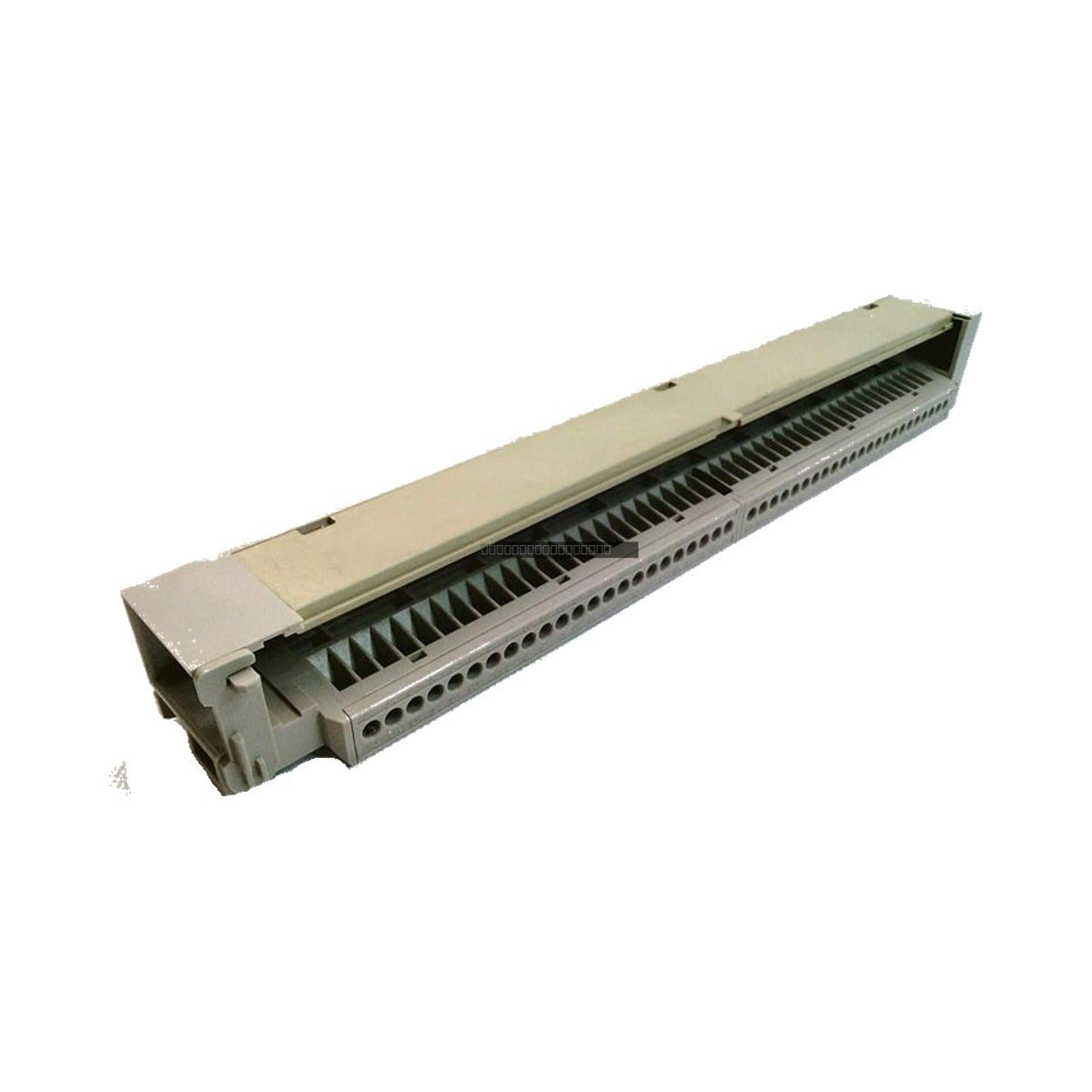

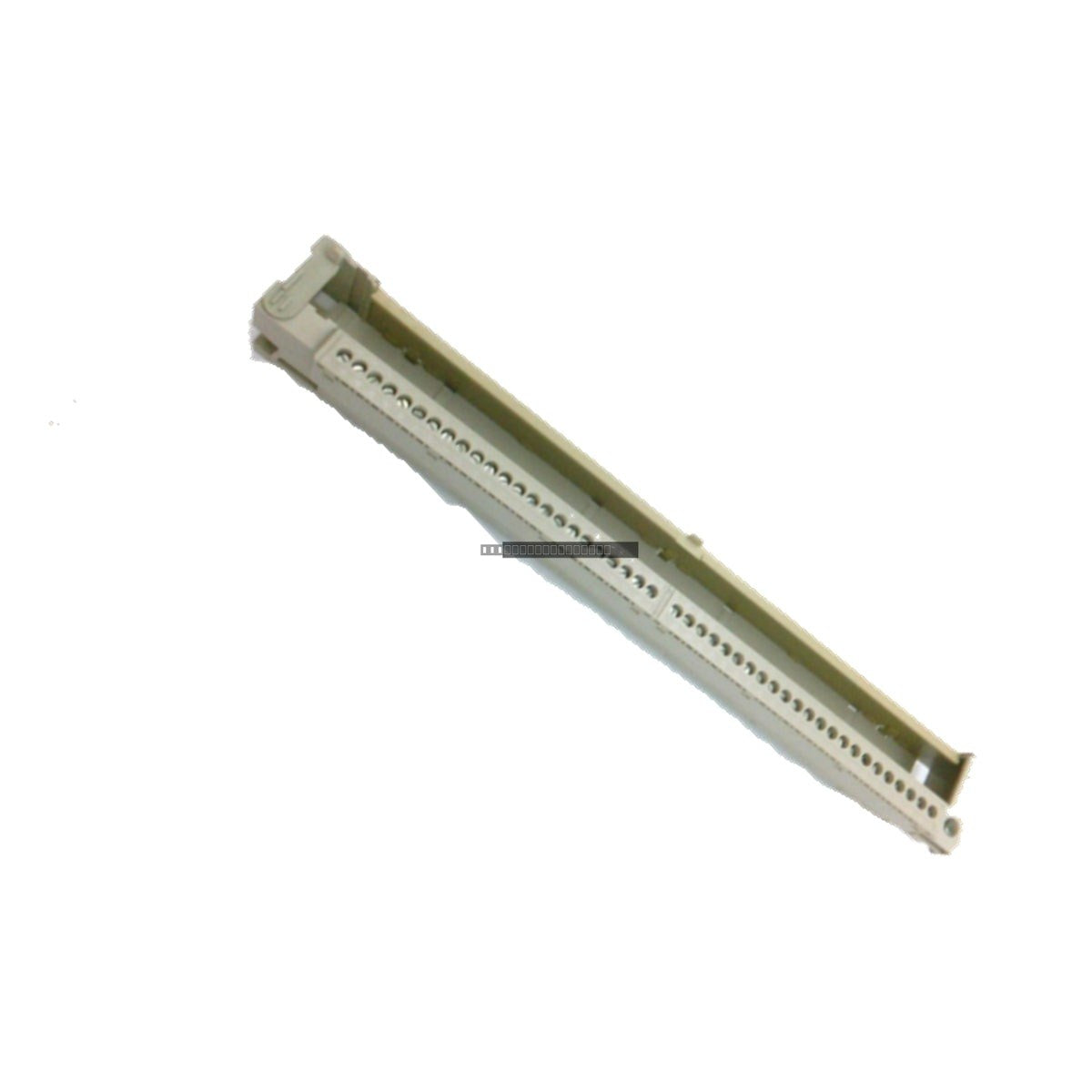

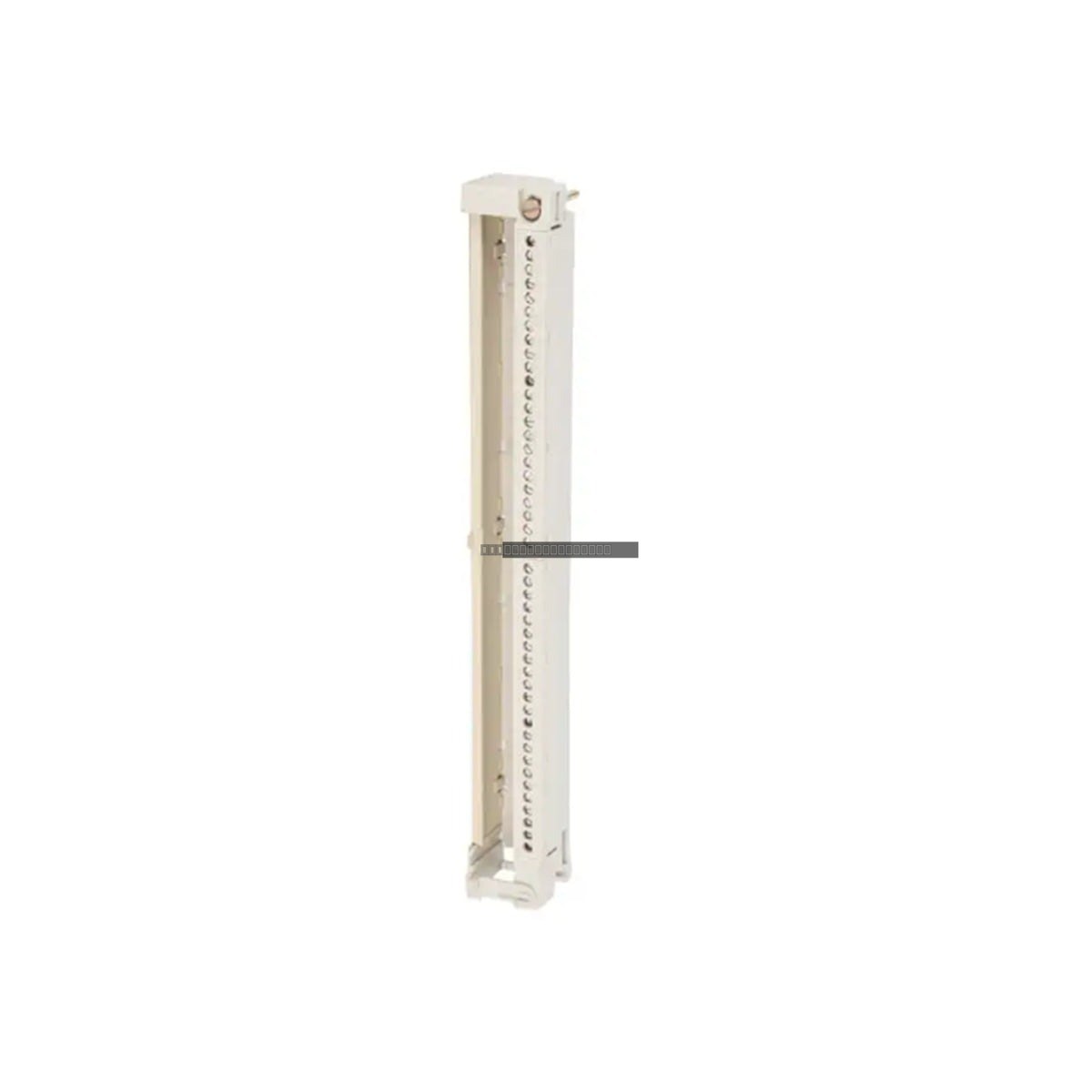

Siemens 6ES5490-7LB21 Simatic S5 46-Pin Front Connector

Siemens 6ES5490-7LB21 Simatic S5 46-Pin Front Connector

Description

The Siemens 6ES5 490-7LB21 is a 46-pin front connector engineered for the Simatic S5-115U modular automation system. This interface component serves as the primary physical connection point between field-level instrumentation...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: 6ES5490-7LB21
Proveedora: Siemens
tipo: PLC Connector
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6ES5 490-7LB21 is a 46-pin front connector engineered for the Simatic S5-115U modular automation system. This interface component serves as the primary physical connection point between field-level instrumentation wiring and the PLC I/O modules. By providing a standardized, secure termination point, it facilitates rapid installation, efficient maintenance, and reliable signal transmission in industrial control environments, including power plant instrumentation and automated manufacturing.

Features

  • 46-pin high-density configuration for S5-115U I/O modules.
  • Robust screw-terminal design ensures high vibration resistance and secure electrical contact.
  • Enables module replacement without disconnecting individual field wires, reducing maintenance downtime.
  • Rugged, non-conductive housing designed for industrial cabinet environments.
  • Supports organized cable management and reliable signal integrity.

Applications

This connector is specifically designed for use with the Siemens Simatic S5-115U PLC series. It is widely employed in process control systems, automated production lines, and industrial machinery where stable, long-term electrical connectivity is required for I/O signal processing.

Technical Specifications

Model 6ES5 490-7LB21
Brand Siemens Simatic S5
Pin Count 46-pin
Termination Type Screw terminal
Operating Temperature 0 to 60 degC
Power Consumption Passive (none)
Compatibility Siemens Simatic S5-115U series

Installation Guidelines

  • Ensure the PLC system is powered down before attempting to attach or remove the front connector from the I/O module.
  • Align the connector pins carefully with the module interface to prevent bending or damage to the pins.
  • Verify that all field wires are securely tightened in the screw terminals to prevent intermittent signals due to mechanical vibration.
  • Ensure the connector is fully seated and locked into the module housing to maintain proper electrical contact.
  • Maintain proper cable routing to avoid strain on the connector housing and to ensure adequate airflow within the control cabinet.

FAQ

Is this connector compatible with other S5 series modules?

The 6ES5 490-7LB21 is specifically designed for the Simatic S5-115U series. Please verify your specific I/O module part number to ensure mechanical and electrical compatibility.

Does this component require external power?

No, this is a passive interface component used for routing signals between field wiring and the PLC module; it does not consume electrical power.
