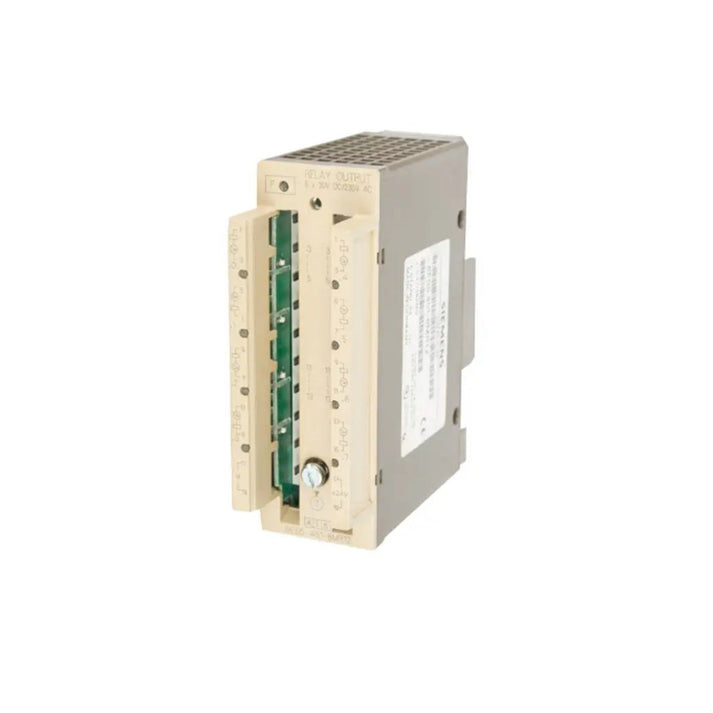

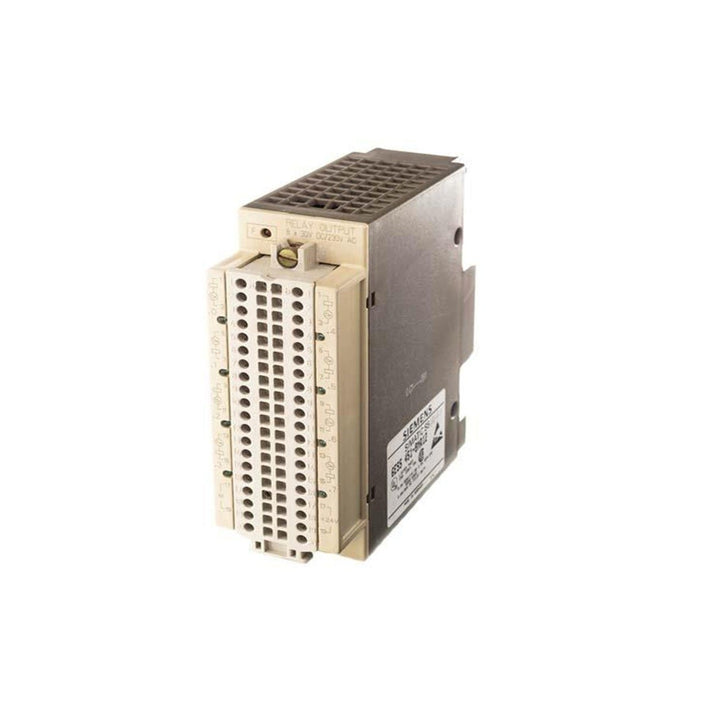

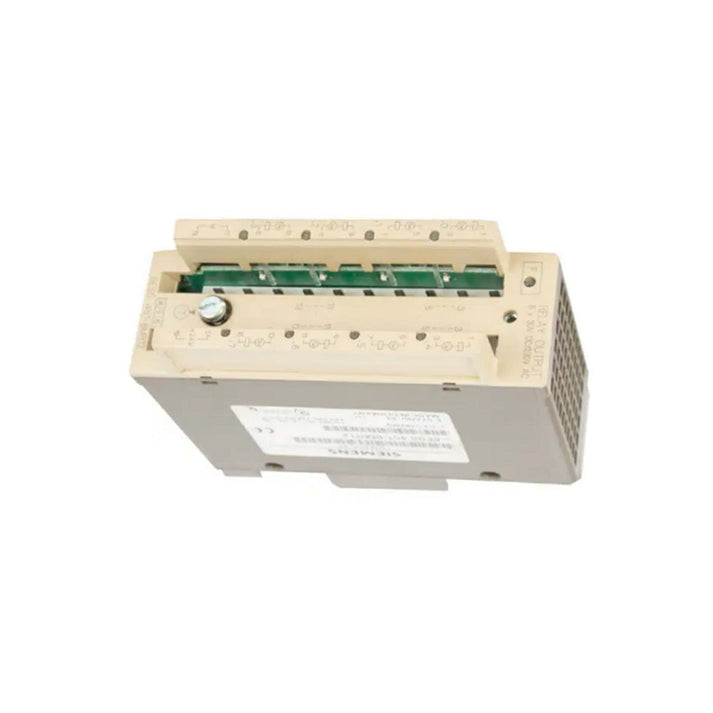

Siemens 6ES5451-8MR12 Simatic S5 Digital Relay Output Module

Siemens 6ES5451-8MR12 Simatic S5 Digital Relay Output Module

The Siemens Simatic S5 6ES5451-8MR12 is a high-reliability digital output module designed for the S5 programmable logic controller series. It provides 8 isolated relay output channels, enabling the control of...

19 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 6ES5451-8MR12
Proveedora: Siemens
tipo: Digital Output Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Siemens Simatic S5 6ES5451-8MR12 is a high-reliability digital output module designed for the S5 programmable logic controller series. It provides 8 isolated relay output channels, enabling the control of various field devices such as solenoid valves, motor starters, and contactors. Engineered for industrial environments, this module provides essential galvanic isolation between the PLC backplane and field-side electrical loads, protecting sensitive control logic from transient voltage spikes.

Features

  • 8 independent electromechanical relay output channels.
  • Galvanic isolation ensures protection against high-voltage transients.
  • Integrated RC snubber networks on each channel to suppress arcing and extend contact life when switching inductive loads.
  • Front-panel LED indicators for real-time status monitoring of each output channel.
  • Compatible with standard Simatic S5 expansion racks.
  • Supports switching of both 30 VDC and 230 VAC load potentials.

Applications

This module is widely deployed in legacy automation systems, including oil and gas refineries, water treatment plants, and automotive manufacturing lines. It is ideal for applications requiring the direct switching of high-capacity field actuators from low-voltage PLC logic.

Technical Specifications

Model 6ES5451-8MR12
Product Line Simatic S5
Number of Channels 8 Relay Outputs
Max Switching Voltage 30 VDC / 230 VAC
Max Continuous Current 2 A (resistive load)
Internal Current Consumption 120 mA (from 5 VDC backplane)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C

Installation Guidelines

  • Ensure the PLC power supply is disconnected before inserting or removing the module from the rack.
  • Verify that the module is properly seated in the backplane connector to ensure reliable bus communication.
  • Use shielded cabling for field wiring to minimize electromagnetic interference (EMI).
  • Maintain adequate clearance around the module to facilitate proper airflow and cooling within the cabinet.
  • Ensure that the load current does not exceed the 2 A rating per channel to prevent relay contact degradation.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Can this module switch both AC and DC loads? Yes, the 6ES5451-8MR12 is designed to handle both 30 VDC and 230 VAC, making it versatile for mixed-voltage control applications.

Does this module require external power for the relays? The relay contacts themselves are dry contacts; however, the module draws 120 mA from the 5 VDC backplane to power its internal logic and coil-driving circuitry.
