Description

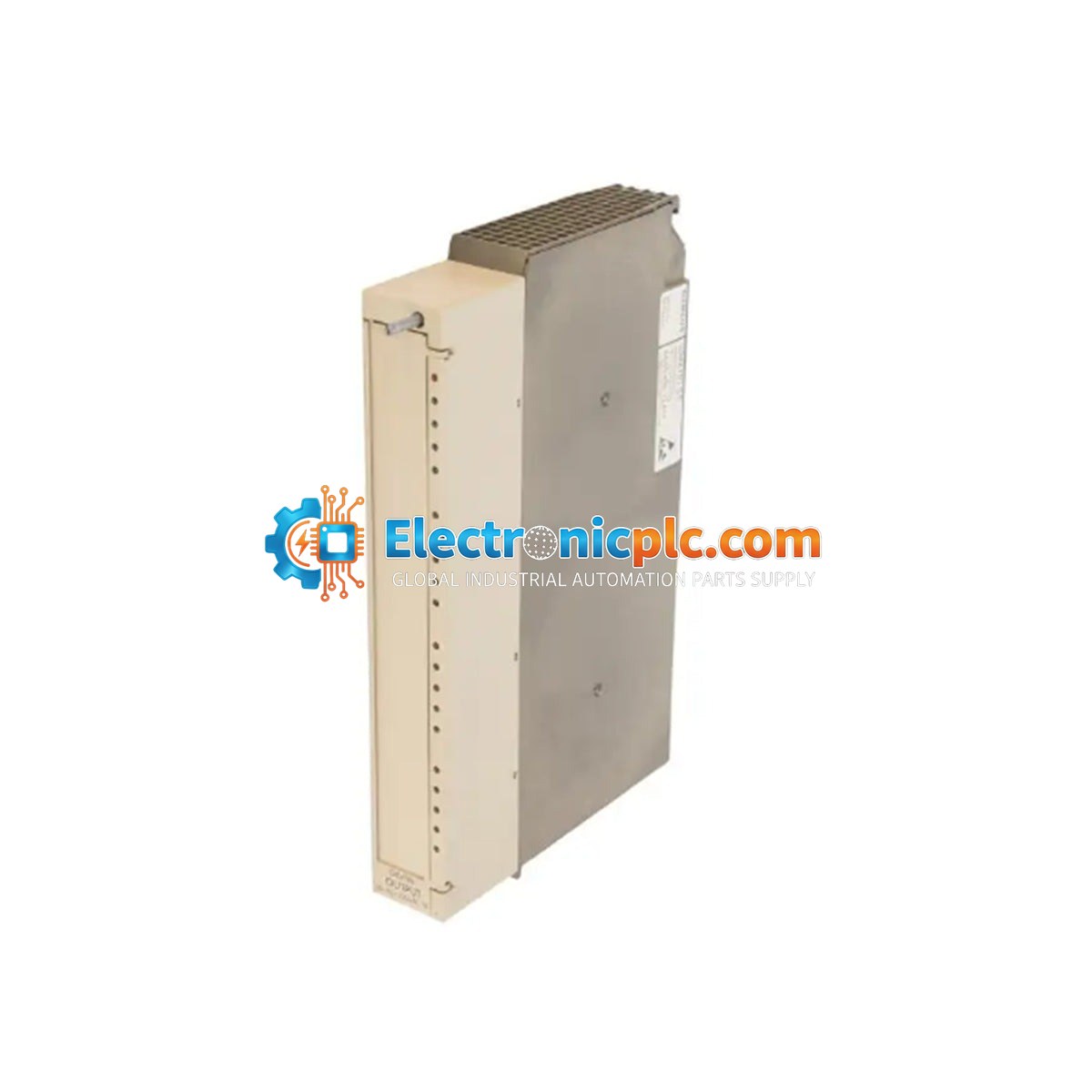

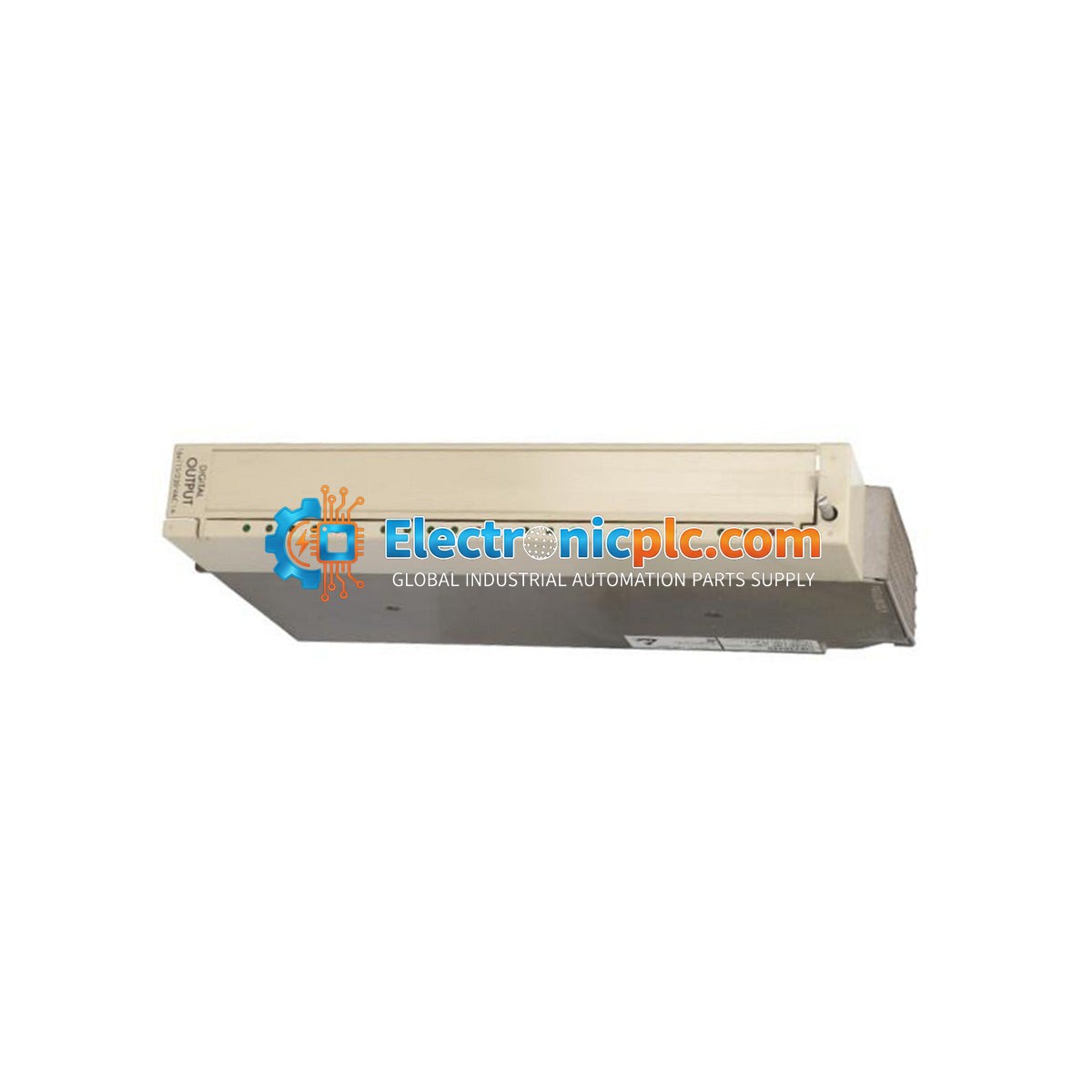

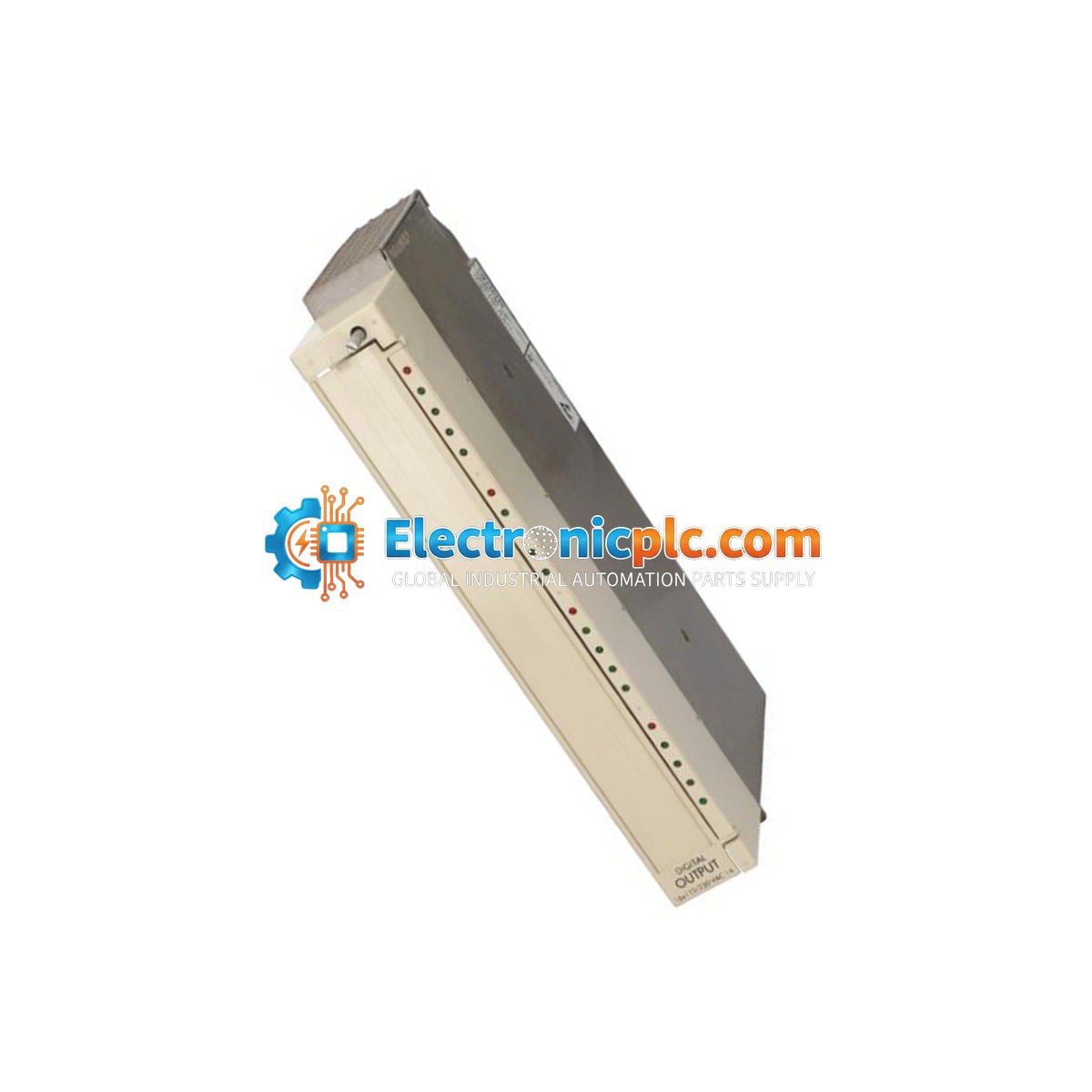

The Siemens 6ES5456-7LA11 is a high-voltage digital output module designed for the Simatic S5 automation system. This 16-point digital actuator interface is engineered to manage physical switching operations for high-voltage AC loads in demanding industrial environments. It is commonly used to control solenoid valves, motor starters, and large-scale industrial warning beacons, providing robust performance in applications such as oil refining, thermal power generation, and mineral processing.

Features

• 16-channel digital output configuration.
• Supports high-voltage AC loads ranging from 115 VAC to 230 VAC.
• Maximum switching current of 1 Amp per channel.
• Galvanic isolation via high-frequency optocouplers for backplane protection.
• Integrated RC snubber networks to suppress inductive voltage spikes (dv/dt).
• Solid-state triac design optimized for continuous AC commutation and inductive inrush current handling.
• Floating contact architecture allows for independent power phase management across channels.

Applications

This module is designed for heavy-duty industrial automation tasks where reliable AC load switching is required. Typical applications include:

• Control of solenoid valves and actuators.
• Interfacing with motor starters and contactors.
• Activation of high-voltage alarm systems and beacons.
• General-purpose AC load switching in S5-based control racks.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
• Handle the module using ESD-safe practices to protect sensitive internal components.
• Verify that field wiring is routed away from high-EMI sources to maintain signal integrity.
• Ensure proper grounding of the S5 rack chassis to minimize electrical noise.
• Check that the load current does not exceed the 1 Amp per channel rating to prevent triac failure.
• Use shielded cables for field connections where high-frequency noise is present.

FAQ

Is this module compatible with all Simatic S5 racks?

The 6ES5456-7LA11 is designed for standard Simatic S5 backplanes. Please verify your specific CPU and rack configuration to ensure physical and electrical compatibility before installation.

Can I mix different AC phases on this module?

Yes, because the module features floating, galvanically isolated channels, it is possible to connect different power phases to individual output groups, provided the voltage ratings are strictly observed.

Does this module require external surge protection?

The module includes internal RC snubber networks to handle standard inductive spikes. However, for extremely large inductive loads, additional external suppression may be recommended to extend the service life of the internal triacs.
