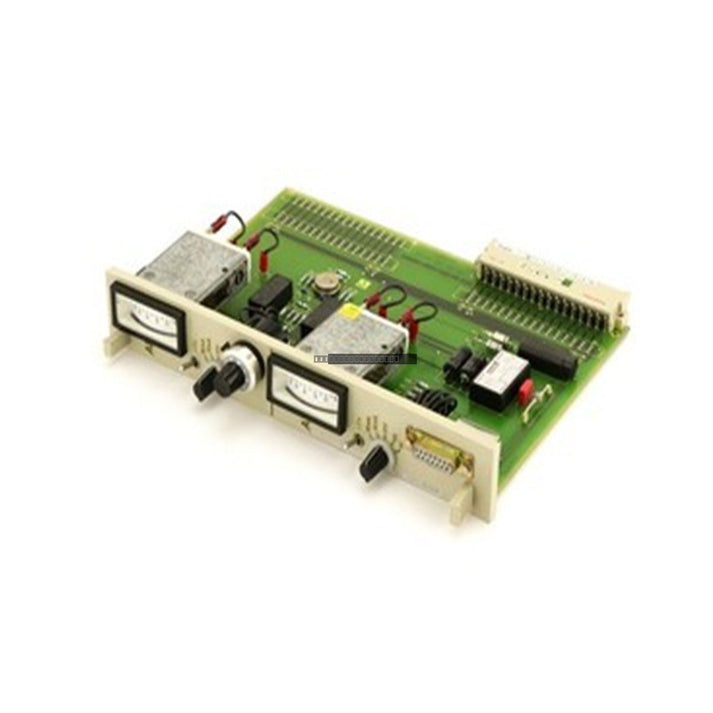

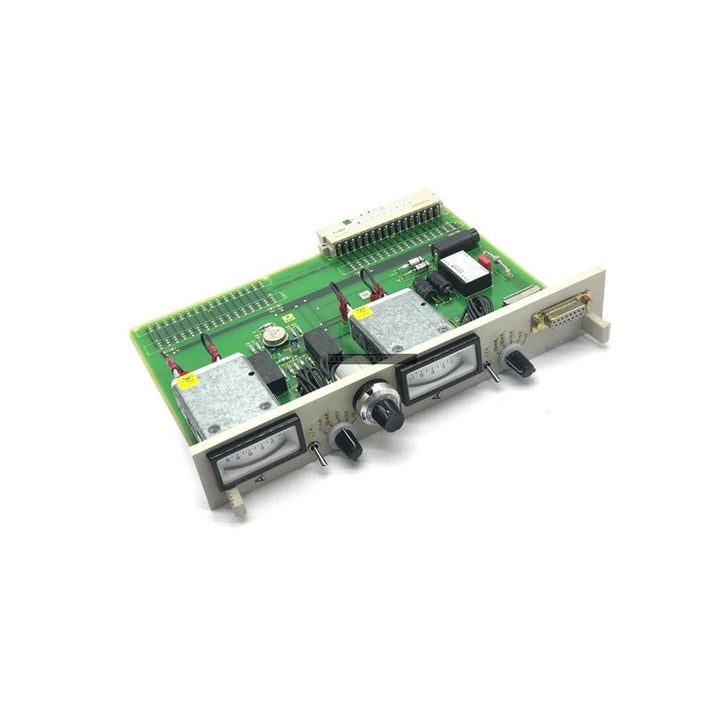

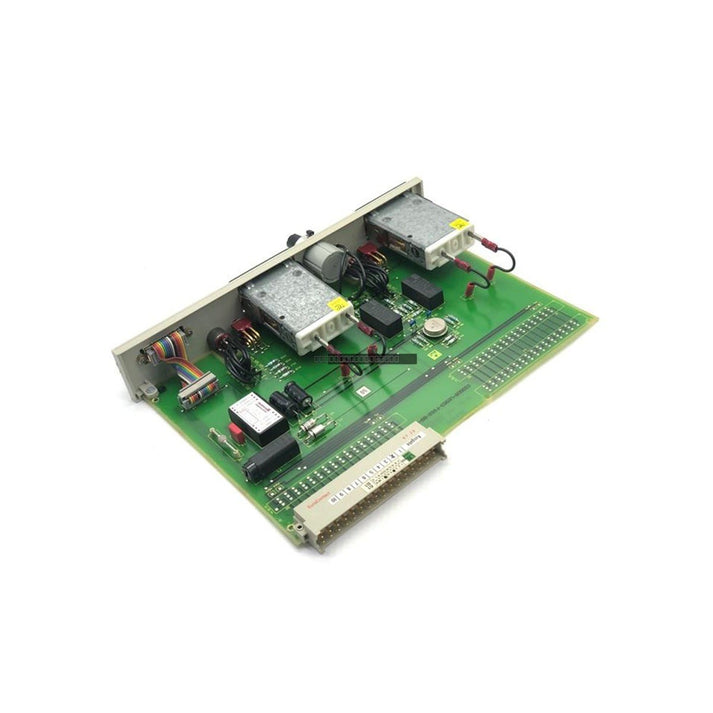

Siemens 6ES5788-7LB11 Simatic S5 Simulation Module

Siemens 6ES5788-7LB11 Simatic S5 Simulation Module

Description

The Siemens 6ES5788-7LB11 is a dedicated simulation module engineered for the Simatic S5-115U programmable controller environment. This unit provides a controlled method for testing and validating analog control loops by...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 6ES5788-7LB11
Proveedora: Siemens
tipo: Simulation Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6ES5788-7LB11 is a dedicated simulation module engineered for the Simatic S5-115U programmable controller environment. This unit provides a controlled method for testing and validating analog control loops by simulating one analog input (AI) and one analog output (AO) channel. By mimicking real-world field signals, it enables engineers to verify PLC software logic, signal scaling, and response times without requiring live field devices, which minimizes the risk of hardware damage and accelerates system commissioning.

Features

  • Designed specifically for the Siemens Simatic S5-115U PLC system architecture.
  • Provides one analog input and one analog output simulation channel for comprehensive loop testing.
  • Facilitates offline software verification and hardware diagnostic procedures.
  • Reduces commissioning time by eliminating the need for external signal generators.
  • Robust industrial design suitable for standard control cabinet mounting.

Applications

This module is primarily utilized in industrial automation environments, including chemical processing, manufacturing assembly lines, and power distribution systems. It is an essential tool for control engineers and maintenance technicians during the initial system setup, routine software upgrades, or troubleshooting of analog control loops within the S5-115U platform.

Technical Specifications

Model 6ES5788-7LB11
System Compatibility Simatic S5-115U
Channels 1 Analog Input, 1 Analog Output
Operating Temperature 0 to 60 degC
Power Supply Derived from S5 backplane

Installation Guidelines

  • Ensure the PLC system is powered down before inserting or removing the simulation module from the rack.
  • Verify that the module is correctly seated in the designated slot to ensure proper backplane contact.
  • Handle the module with standard ESD precautions to prevent damage to sensitive internal components.
  • Ensure the control cabinet environment is within the specified operating temperature range of 0 to 60 degC.
  • Keep signal wiring clear of high-voltage lines or high-EMI sources to maintain signal integrity during simulation.

FAQ

What is the primary purpose of the 6ES5788-7LB11 module?

This module is used to simulate analog input and output signals for the Siemens S5-115U PLC, allowing for the testing of control logic and loop functionality without needing actual sensors or actuators connected to the system.

Is this module compatible with other Simatic S5 series PLCs?

The 6ES5788-7LB11 is specifically engineered for the S5-115U system. Compatibility with other S5 series variants should be verified against the specific technical documentation for those controllers.
