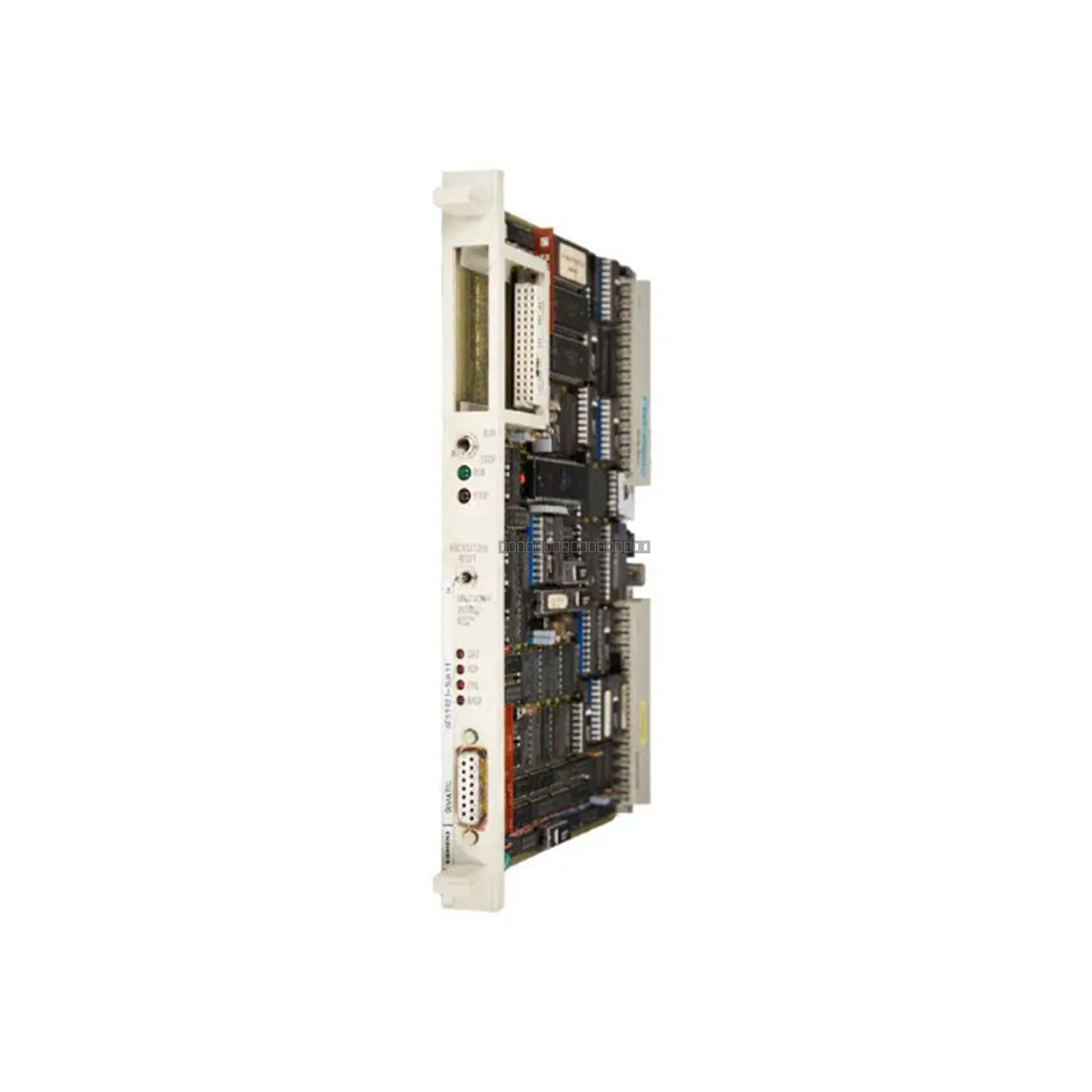

Siemens 6ES5921-3UA11 Simatic S5 CPU Control Board

Siemens 6ES5921-3UA11 Simatic S5 CPU Control Board

Description

The Siemens 6ES5921-3UA11 is a central processing unit board designed for legacy Simatic S5 programmable logic controller systems. This module serves as the core control processor, executing industrial runtime logic,...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 6ES5921-3UA11
Proveedora: Siemens
tipo: CPU Control Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6ES5921-3UA11 is a central processing unit board designed for legacy Simatic S5 programmable logic controller systems. This module serves as the core control processor, executing industrial runtime logic, managing arithmetic algorithms, and coordinating signal synchronization between local and remote I/O subracks. It is engineered for use in demanding industrial environments, including petrochemical plants, steel manufacturing, and power generation, where it maintains time-critical process loops and ensures system stability.

Features

  • Core processing unit for Simatic S5 automation systems.
  • High-efficiency execution of ladder logic instruction sets.
  • Integrated diagnostic indicators on the front faceplate for monitoring hardware faults, cycle states, and power stability.
  • Optocoupled isolation barriers to protect the internal processing bus from transient voltage induction.
  • Direct backplane bus integration for reliable data and address allocation.

Applications

This CPU board is primarily utilized in legacy factory automation networks to manage complex control tasks. It is suitable for process control, machine automation, and synchronized signal routing where reliable, long-term operation of the S5 platform is required.

Technical Specifications

Model 6ES5921-3UA11
Brand Siemens
System Series Simatic S5
Module Type CPU Control Board
Operating Temperature 0 to 60 deg C
Power Consumption 5.2 W
Replacement Model 6ES5921-3UA12

Installation Guidelines

  • Ensure the PLC system is powered down before inserting or removing the CPU board from the backplane.
  • Handle the module by the edges to prevent electrostatic discharge (ESD) damage to the integrated circuits.
  • Verify that the module is fully seated in the rack slot to ensure proper contact with the backplane bus.
  • Maintain adequate ventilation within the cabinet to keep the operating temperature within the specified 0 to 60 deg C range.
  • Check the front faceplate LEDs after installation to confirm the module has successfully initialized and is in the correct operating state.

FAQ

Is the 6ES5921-3UA11 compatible with all Simatic S5 racks?

This module is designed for standard Simatic S5 backplane architectures. Please verify your specific rack configuration and CPU compatibility requirements before installation.

Can this module be replaced by a newer version?

Yes, the 6ES5921-3UA12 is recognized as a direct replacement model for the 6ES5921-3UA11.

What should I do if the diagnostic LEDs indicate a fault?

Refer to your specific Simatic S5 system manual to interpret the fault codes displayed on the front faceplate. Ensure power supply stability and check for proper backplane seating before troubleshooting further.
