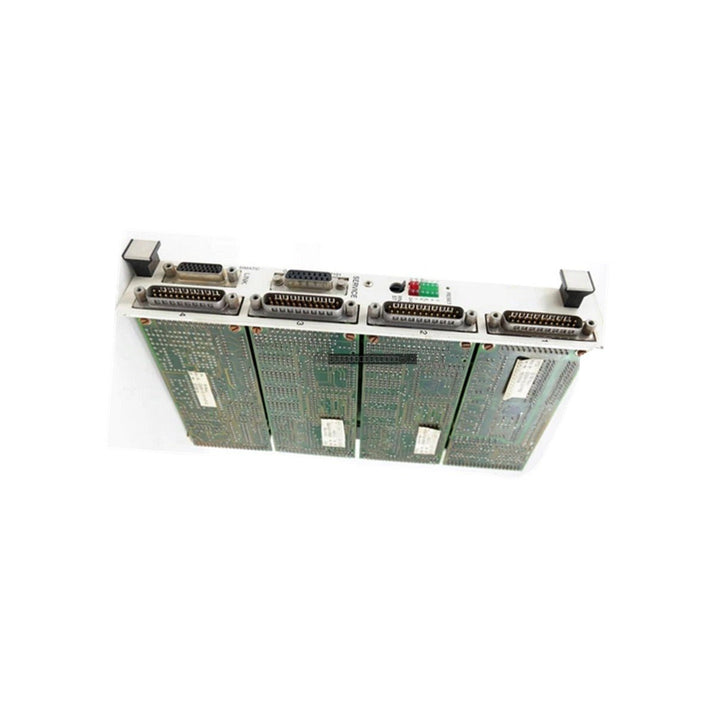

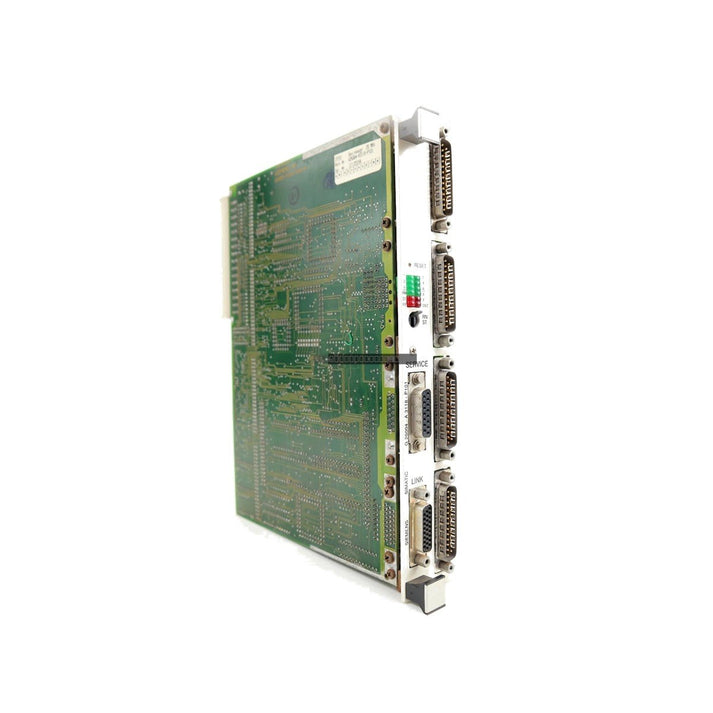

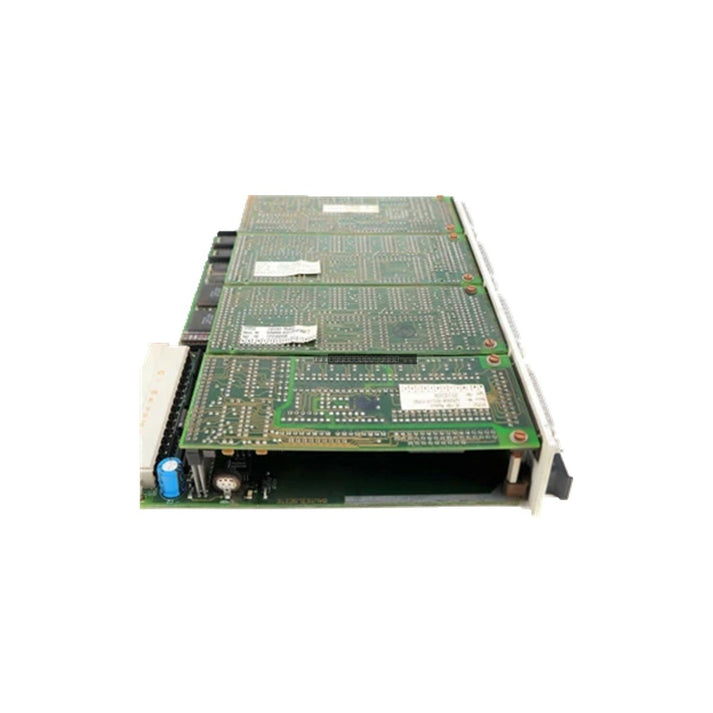

Siemens G26004-A3118-P200 Simatic S5 IP252 Counter Module

Siemens G26004-A3118-P200 Simatic S5 IP252 Counter Module

Description

The Siemens G26004-A3118-P200 is a specialized IP252 counter sub-module engineered for the Simatic S5 intelligent processor series. This module provides high-speed pulse acquisition and signal processing, enabling precise control over...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: G26004-A3118-P200
Proveedora: Siemens
tipo: Counter Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens G26004-A3118-P200 is a specialized IP252 counter sub-module engineered for the Simatic S5 intelligent processor series. This module provides high-speed pulse acquisition and signal processing, enabling precise control over rapid industrial events. By offloading complex counting tasks from the central processor, it ensures accurate data acquisition for applications requiring high-frequency monitoring, such as flow measurement, rotary encoder feedback, and batch processing.

Features

  • Dedicated hardware-level pulse counting and frequency measurement.
  • High-speed processing capability up to 500 kHz.
  • Optical isolation on input channels to mitigate electromagnetic interference and common-mode noise.
  • Supports diverse input configurations including differential and single-ended pulse signals.
  • Direct backplane communication for low-latency interrupt triggering.

Applications

This counter module is widely utilized in legacy Simatic S5 automation environments, particularly in sectors such as power generation for turbine flow monitoring, paper manufacturing for high-speed web handling, and chemical processing for precise batch dosing and flow control.

Technical Specifications

Model G26004-A3118-P200
Product Family Simatic S5 Intelligent Processors
Module Type IP252 Counter Module
Max Counting Frequency 500 kHz
Power Consumption 2.5 W
Operating Temperature 0 to 60 degC
Storage Temperature -40 to 70 degC
Relative Humidity 5 to 95 percent (non-condensing)

Installation Guidelines

  • Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
  • Handle the module by the edges to avoid electrostatic discharge (ESD) damage to sensitive internal components.
  • Verify that the module is firmly seated in the designated S5 rack slot and that all backplane connectors are aligned.
  • Route signal cables away from high-voltage power lines and variable frequency drive (VFD) cabling to minimize EMI.
  • Ensure proper ventilation within the cabinet to maintain operating temperatures below 60 degC.

FAQ

What is the primary function of the IP252 module?

The IP252 is designed to perform high-speed pulse counting and frequency measurement independently of the main PLC scan cycle, allowing for real-time monitoring of fast-moving processes.

Is this module compatible with standard S5 racks?

Yes, this module is designed for integration into Siemens Simatic S5 intelligent processor systems. Please verify your specific rack configuration and power supply capacity before installation.
