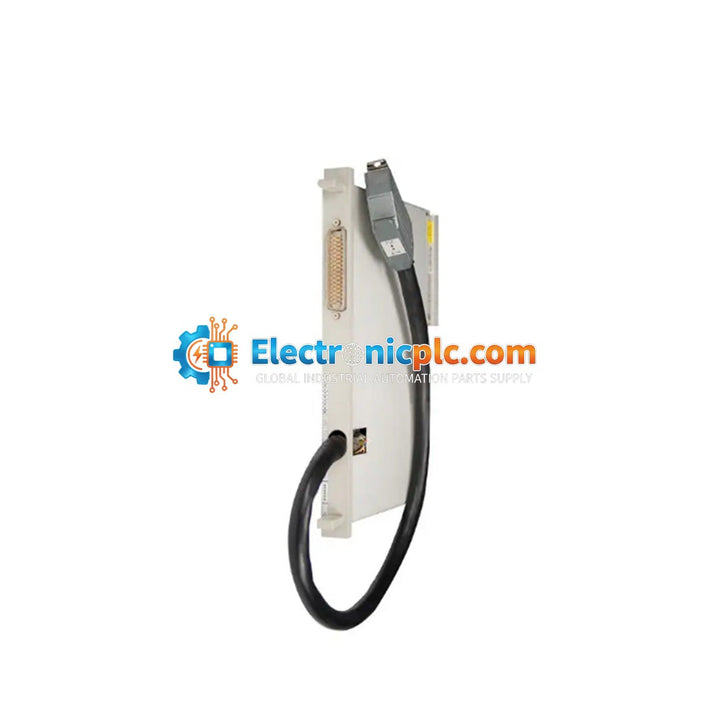

Siemens Simatic S5 IM312 Interface Module 6ES5312-5CA12

Siemens Simatic S5 IM312 Interface Module 6ES5312-5CA12

Description

The Siemens Simatic S5 IM312 (6ES5312-5CA12) is a specialized interface module designed for the Siemens Simatic S5-135 and S5-155 automation platforms. This module functions as a high-speed expansion interface, providing...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: 6ES5433-6BA11
Proveedora: Siemens
tipo: Interface Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens Simatic S5 IM312 (6ES5312-5CA12) is a specialized interface module designed for the Siemens Simatic S5-135 and S5-155 automation platforms. This module functions as a high-speed expansion interface, providing a reliable, deterministic communication link between the central controller and expansion racks. It is engineered to maintain systemic throughput by offloading inter-rack data transfer tasks, ensuring that remote I/O configurations remain synchronized with the central processor.

Features

  • High-speed parallel bus extension for S5-135 and S5-155 series.
  • Supports expansion rack connectivity up to 0.5 meters.
  • Internal buffer circuitry and differential line drivers for noise immunity.
  • Transparent addressing allows direct mapping of remote I/O to the CPU image.
  • Rugged aluminum faceplate with secure connector locking mechanism.

Applications

This module is typically deployed in legacy industrial automation environments, including power generation facilities, steel mills, and mining operations. It is essential for maintaining large-scale, high-density I/O architectures where centralized control of distributed sub-racks is required.

Technical Specifications

Model 6ES5312-5CA12 (IM312)
Brand Siemens Simatic S5
Operating Temperature 0 to 60 deg C
Power Supply 5 VDC (via S5 backplane)
Max Expansion Distance 0.5 meters
Compatibility S5-135 and S5-155 platforms

Installation Guidelines

  • Ensure the PLC system is powered down before inserting or removing the module from the backplane.
  • Verify that the expansion cable is securely seated and locked to prevent intermittent signal loss due to vibration.
  • Route expansion cables away from high-voltage power lines and sources of electromagnetic interference (EMI).
  • Handle the module using standard ESD precautions to protect internal electronic components.
  • Ensure the module is fully seated in the rack slot to maintain proper backplane contact.

FAQ

What is the primary function of the IM312 module?

The IM312 acts as an interface bridge that allows the S5-135 or S5-155 CPU to communicate with peripheral expansion racks, effectively extending the system bus while maintaining high-speed data synchronization.

Can this module be used with other S5 series PLCs?

This specific model is engineered for the S5-135 and S5-155 platforms. Compatibility with other S5 series controllers should be verified against the specific system documentation for those models.
