Siemens 6ES5605-0UA11 Simatic S5 PG 605U Programming Terminal

Siemens 6ES5605-0UA11 Simatic S5 PG 605U Programming Terminal

Description

The Siemens 6ES5605-0UA11, also known as the PG 605U, is a specialized handheld programming terminal engineered for the Simatic S5 automation family. This portable device serves as a field-level tool...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 6ES5605-0UA11
Proveedora: Siemens
tipo: Programming Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

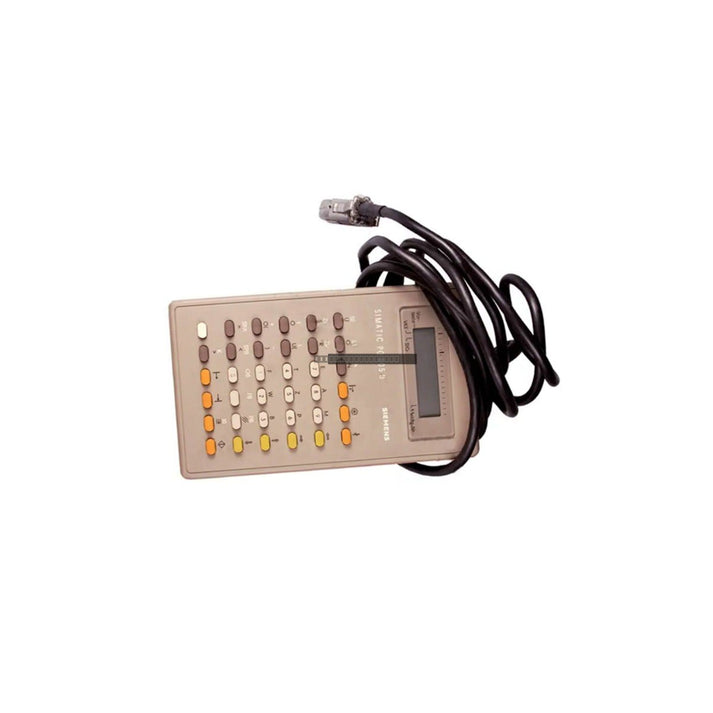

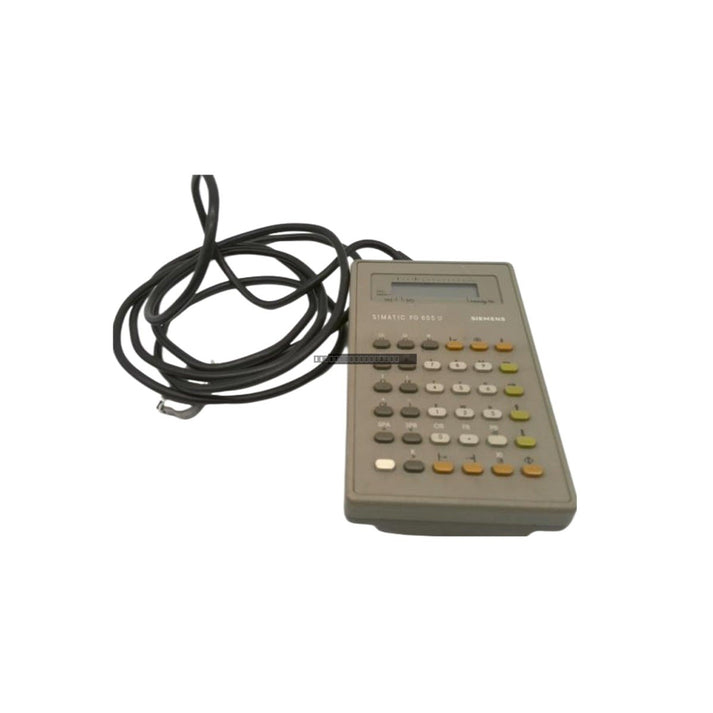

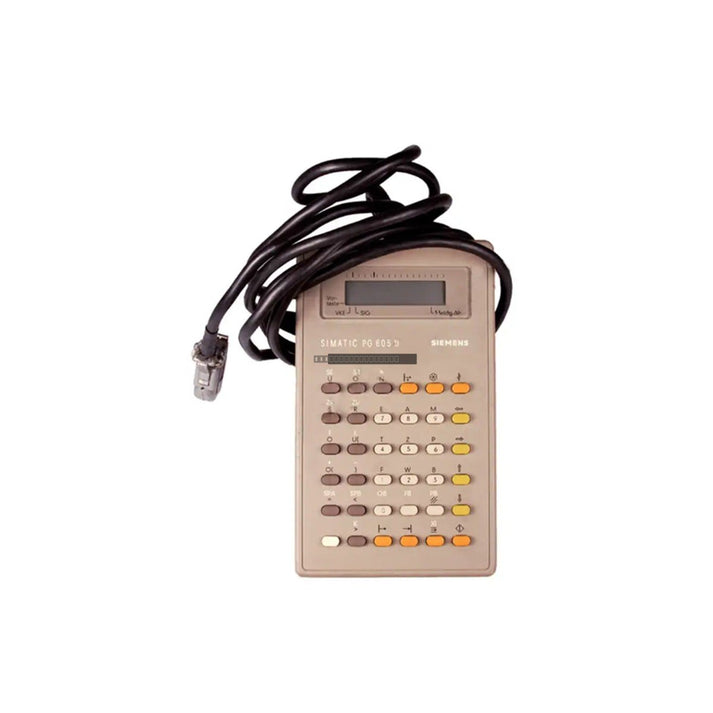

The Siemens 6ES5605-0UA11, also known as the PG 605U, is a specialized handheld programming terminal engineered for the Simatic S5 automation family. This portable device serves as a field-level tool for maintenance and commissioning, allowing technicians to perform direct diagnostics, logic monitoring, and parameter adjustments on S5 controllers. By connecting directly to the TTY (20 mA) current loop interface, it enables real-time interaction with PLC memory, timer values, and statement list logic, facilitating rapid fault isolation and system troubleshooting in industrial environments.

Features

  • Portable handheld design for efficient onsite field diagnostics and maintenance.
  • Integrated TTY (20 mA) current loop interface for robust communication with Simatic S5 CPUs.
  • High-contrast 2-line liquid crystal display for clear viewing of addresses, instructions, and register status.
  • Tactile keypad layout optimized for direct memory manipulation and program execution control.
  • Ruggedized enclosure designed for industrial environments with IP50 protection.
  • German language interface configuration.

Applications

This programming terminal is designed for use in legacy automation environments where Simatic S5 controllers remain in operation. It is frequently employed in power generation, automotive manufacturing, and heavy process industries for tasks such as modifying control logic, forcing I/O states, and performing memory read/write operations during system maintenance or emergency recovery.

Technical Specifications

Model 6ES5 605-0UA11 (PG 605U)
Brand Siemens
Product Family Simatic S5
Display 2-Line LCD
Interface TTY Current Loop (20 mA)
Enclosure Rating IP50
Power Consumption 3.0 W
Operating Temperature 0 to 50 deg C
Storage Temperature -20 to 60 deg C

Installation Guidelines

  • Ensure the PLC is powered down or in a safe state before connecting the programming cable to the TTY port.
  • Verify that the TTY interface cable is securely seated to prevent intermittent communication errors caused by vibration.
  • Handle the device with care; while designed for industrial use, the screen and keypad are sensitive components.
  • Maintain the unit in a clean, dry environment to comply with IP50 ratings; avoid direct exposure to liquids or conductive dust.
  • When not in use, store the terminal in a protective case to prevent damage to the display and interface connectors.

FAQ

Is this terminal compatible with modern Siemens S7 controllers?

No, the 6ES5605-0UA11 is specifically designed for the legacy Simatic S5 architecture and utilizes a TTY current loop interface, which is not compatible with the communication protocols used in modern S7-300, S7-400, or S7-1500 systems.

Does this unit require an external power supply?

The PG 605U is designed to operate within the constraints of the Simatic S5 programming port environment. Please refer to the specific PLC CPU manual to ensure the port provides the necessary power requirements for the terminal.
