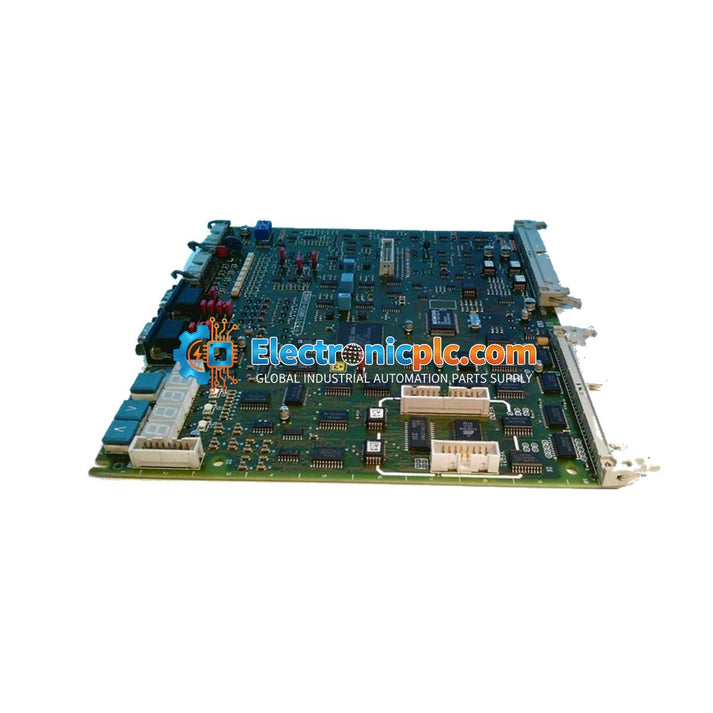

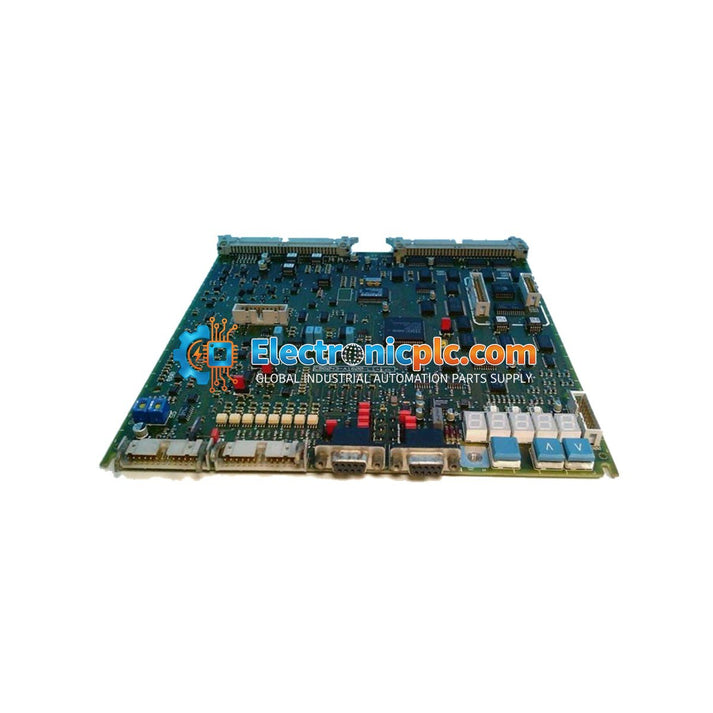

Siemens C98043-A1600-L1-17 SIMOREG K Control Board

Siemens C98043-A1600-L1-17 SIMOREG K Control Board

Description

The Siemens C98043-A1600-L1-17 (also identified as C98043A1600L117) is a high-performance control and inverter power board designed for the SIMOREG K series DC converters. This 32-bit microcontroller-based module manages critical switching...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: C98043-A1600-L1
Proveedora: Siemens
tipo: Control Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens C98043-A1600-L1-17 (also identified as C98043A1600L117) is a high-performance control and inverter power board designed for the SIMOREG K series DC converters. This 32-bit microcontroller-based module manages critical switching logic and power distribution for large-scale industrial drives. It is engineered for demanding applications such as steel rolling mills, mining hoists, and harbor crane systems, where precise torque control and reliable high-current management are required. By maintaining DC link integrity and providing rapid signal processing, this board serves as a core component in legacy motor control architectures.

Features

  • Advanced 32-bit microcontroller-based control logic for high-speed processing.
  • Integrated gate-drive circuitry for power section management of SIMOREG K converters.
  • Multi-layer PCB design for optimized heat dissipation and signal isolation.
  • Robust construction designed to withstand industrial electromagnetic interference and high-vibration environments.
  • Supports rated currents up to 1,600 A.

Applications

This control board is intended for use in heavy-duty industrial drive systems, specifically within the SIMOREG K series. Typical applications include:

  • Steel and metal processing plants (rolling mills).
  • Mining and material handling (hoists and conveyors).
  • Large-scale harbor crane systems.
  • Legacy DC motor control and power conversion systems.

Technical Specifications

Model C98043-A1600-L1-17
Series SIMOREG K
Input Voltage 380 V to 500 VAC, 50/60 Hz
DC Link Voltage 400 V to 560 VDC
Rated Current 1,600 A
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C
Humidity Max 95 percent non-condensing
Vibration Resistance 5 to 150 Hz

Installation Guidelines

  • ESD Protection: Always use an anti-static wrist strap and handle the board by its edges to prevent electrostatic discharge damage to sensitive components.
  • Power Down: Ensure all power to the SIMOREG K drive is completely disconnected and the DC link capacitors are fully discharged before attempting to install or remove the board.
  • Mounting: Ensure the board is securely seated in the designated slot within the drive housing. Verify that all connector pins are aligned correctly to prevent bending or short-circuiting.
  • Environment: Ensure the installation area is free from conductive dust and excessive moisture. Maintain adequate clearance for airflow to prevent overheating.
  • Grounding: Verify that the drive chassis is properly grounded according to local electrical codes to mitigate EMI effects.

FAQ

Is this board compatible with all SIMOREG K converters?

This board is specific to the C98043-A1600-L1-17 configuration. Please verify your existing part number and drive model to ensure full compatibility with your specific SIMOREG K system.

What should I do if the board displays a fault?

Check the diagnostic LEDs on the drive interface and consult the SIMOREG K technical manual for the specific error code. Ensure all cable connections to the board are tight and free from corrosion.
