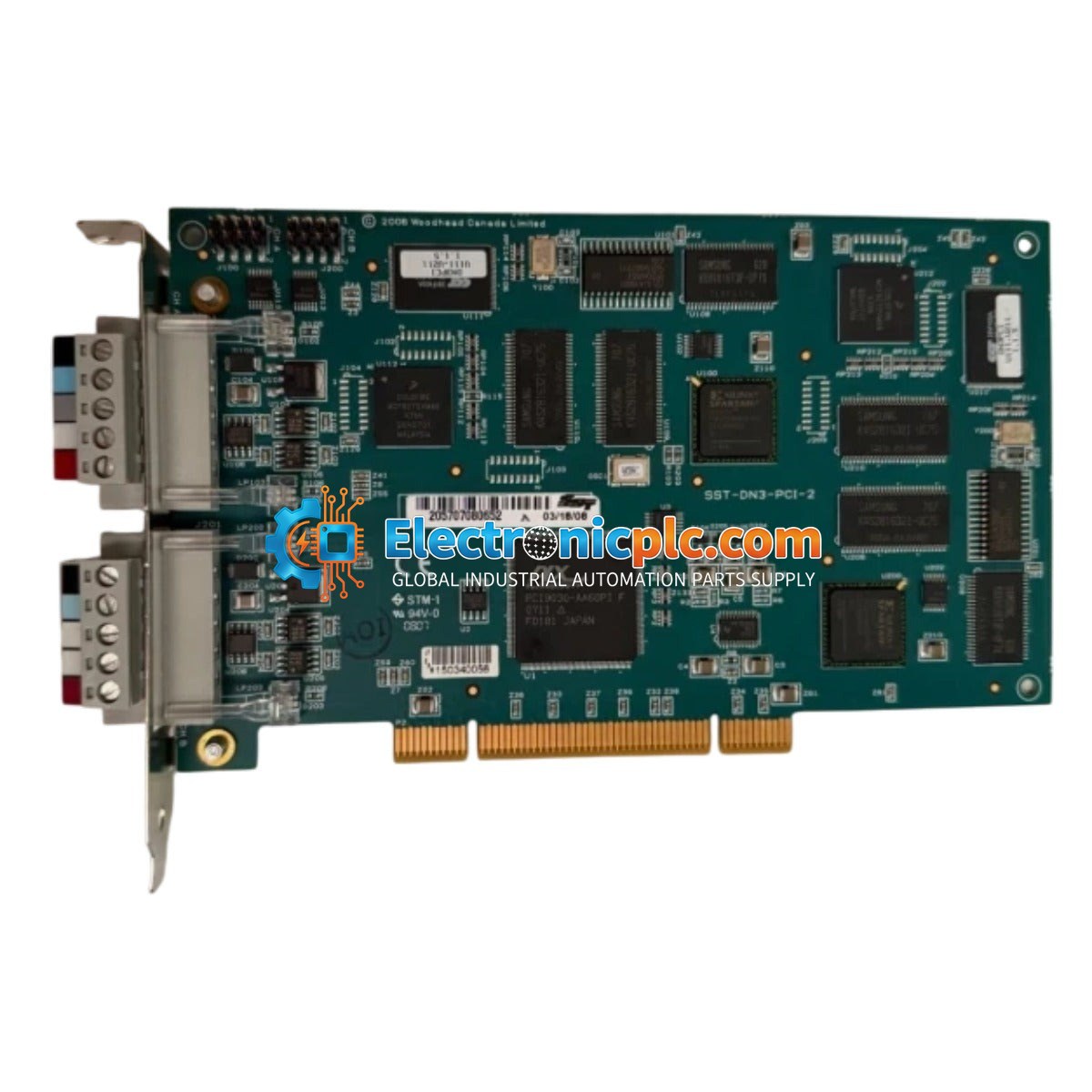

Woodward SST-DN3-PCU-2-E DeviceNet PCI Interface Card

Woodward SST-DN3-PCU-2-E DeviceNet PCI Interface Card

Description

The Woodward SST-DN3-PCU-2-E is a high-performance, dual-channel DeviceNet communication interface card designed for seamless integration between industrial PCs and field-level devices. Utilizing a universal PCI bus architecture, this module provides...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: SST-DN3-PCU-2-E
Proveedora: Woodward
tipo: Communication Interface Card
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Woodward SST-DN3-PCU-2-E is a high-performance, dual-channel DeviceNet communication interface card designed for seamless integration between industrial PCs and field-level devices. Utilizing a universal PCI bus architecture, this module provides reliable, deterministic communication for complex automation environments. By offloading protocol processing from the host computer to its onboard processor, the card ensures rapid data throughput and minimizes system-level bottlenecks, making it an ideal solution for high-density I/O control applications.

Features

  • Dual-channel architecture for managing two independent DeviceNet networks simultaneously.
  • Universal PCI bus compatibility (supports both 3.3 V and 5 V signaling).
  • Configurable as a Master/Scanner or Slave on either channel.
  • Supports standard DeviceNet baud rates: 125, 250, and 500 kbps.
  • Integrated isolation circuitry to protect the host PC from network-side electrical surges.
  • Enhanced firmware support for integration with OPC servers and custom DLL-based software environments.

Applications

This interface card is widely utilized in industrial automation, material handling systems, and food processing plants where robust, high-speed fieldbus communication is required. Its dual-channel capability allows for network segmentation or redundant communication paths, improving overall system availability and maintenance efficiency.

Technical Specifications

Model SST-DN3-PCU-2-E
Brand Woodward (SST/Woodhead)
Module Type PCI Interface Card
Number of Channels 2
Bus Interface Universal PCI (3.3 V / 5 V)
Protocol DeviceNet
Baud Rates 125, 250, 500 kbps
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the host computer is powered down and disconnected from the AC power source before installing or removing the PCI card.
  • Handle the card by its edges; avoid touching the gold-plated edge connector pins to prevent oxidation or contamination.
  • Ensure the card is firmly seated in a compatible PCI slot and secured with the mounting screw to prevent vibration-induced disconnection.
  • Use shielded twisted-pair cabling for DeviceNet connections to minimize EMI interference.
  • Ensure proper grounding of the DeviceNet network shield at the designated point to maintain signal integrity.
  • Verify that the host PC BIOS/OS recognizes the card before initializing communication software.

FAQ

Is the SST-DN3-PCU-2-E compatible with both 3.3V and 5V PCI slots?

Yes, the card features a universal PCI bus architecture that supports both 3.3 V and 5 V signaling environments.

Can this card operate as a Master and a Slave simultaneously?

Yes, the dual-channel configuration allows for independent channel operation, meaning you can configure one channel as a Master/Scanner and the other as a Slave, or both as Masters/Slaves depending on your network requirements.
