Description

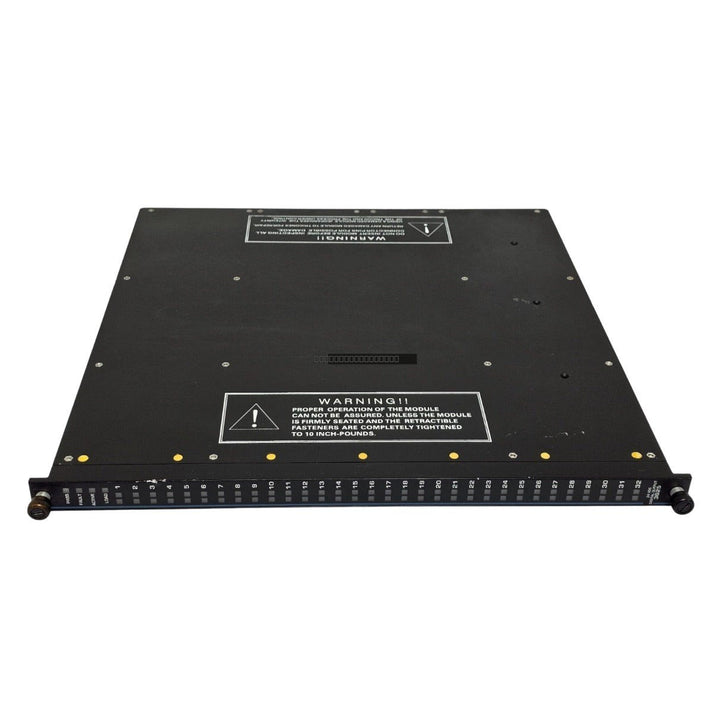

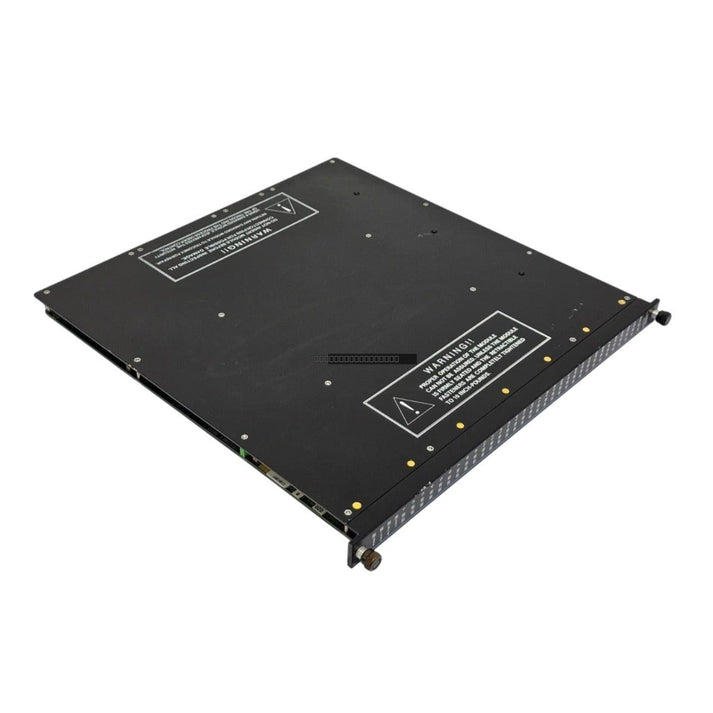

The Triconex 3625 is a high-density, TMR (Triple Modular Redundant) digital output module engineered for deployment in safety instrumented systems (SIS). Designed to meet the rigorous demands of industrial automation in sectors such as power generation, petrochemical processing, and oil and gas refining, this module provides a fault-tolerant solution for critical switching operations. By utilizing TMR architecture, the 3625 effectively eliminates single points of failure, ensuring that process control and safety shutdown functions remain operational even in the event of internal component faults.

Features

• Triple Modular Redundant (TMR) architecture for high-availability performance.

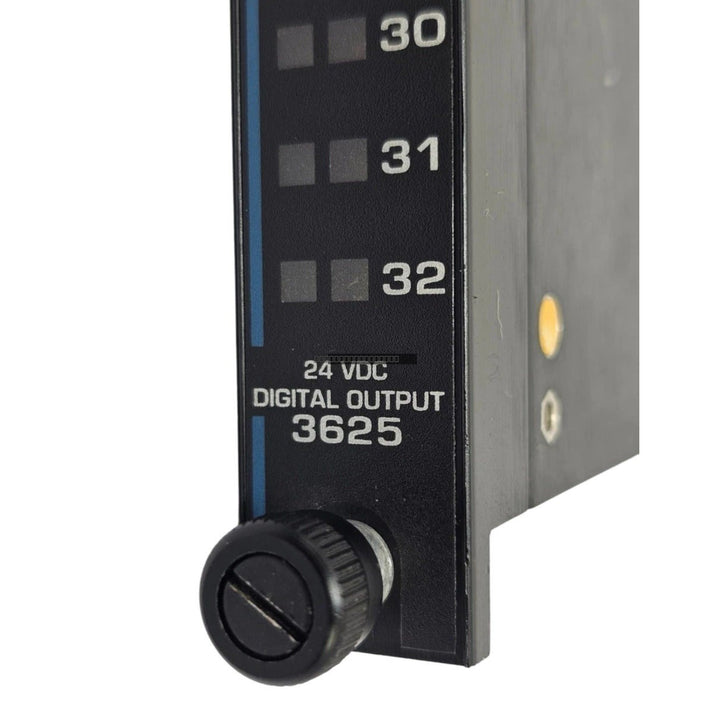

• 24 VDC output configuration for direct field device interfacing.
• Real-time diagnostic capabilities with continuous cross-channel output state monitoring.
• Automatic bypass of faulty paths to ensure uninterrupted process load maintenance.
• Optimized for safety-critical applications including Emergency Shutdown (ESD) and Fire and Gas (F&G) systems.

Applications

The 3625 module is primarily utilized in safety-critical control environments requiring high levels of reliability. It is frequently integrated into ESD systems, burner management systems, and critical alarm monitoring loops where signal integrity and fail-safe operation are mandatory.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the chassis.
• The module must be installed in a clean, dry, and non-corrosive environment within the specified temperature range.
• Verify that the backplane connectors are clear of debris to prevent poor contact or short circuits.
• Use shielded cabling for field connections to minimize the impact of electromagnetic interference (EMI) on output signals.
• Adhere to standard ESD (Electrostatic Discharge) precautions during handling to protect sensitive internal circuitry.
• Ensure the module is fully seated and the retention mechanisms are engaged to maintain structural integrity under vibration.

FAQ

What is the primary function of the Triconex 3625?
The 3625 is a digital output module used to provide reliable, redundant switching signals to field devices in critical safety systems.

Does this module support hot-swapping?
Yes, Triconex TMR modules are generally designed to be hot-swappable; however, please consult your specific system manual for the exact procedure to ensure safe extraction and insertion during live operation.

What does TMR mean in this context?
TMR stands for Triple Modular Redundant. It means the module processes data through three independent channels and uses a voting circuit to determine the final output, ensuring that a single hardware failure does not cause a system trip or loss of control.
