Description

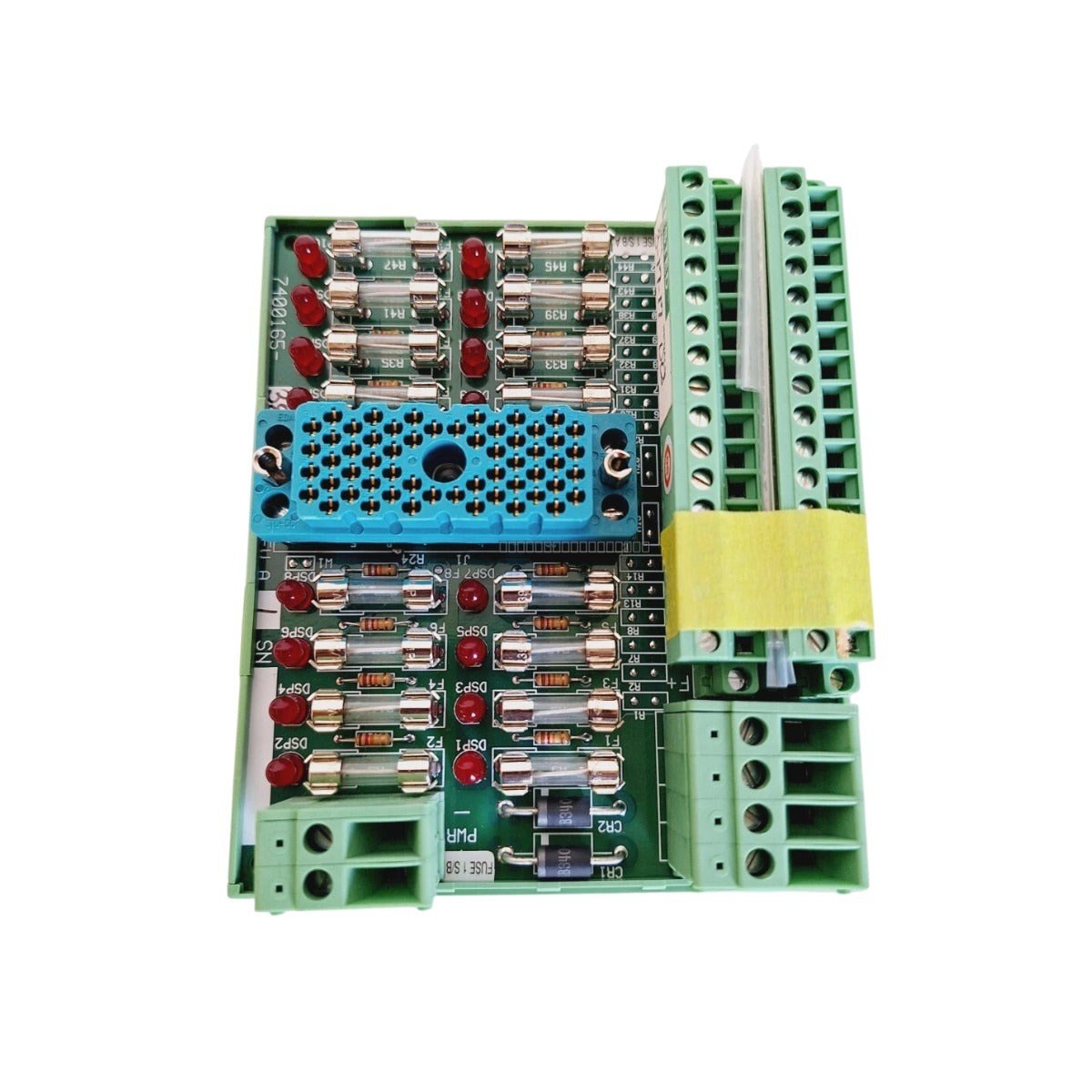

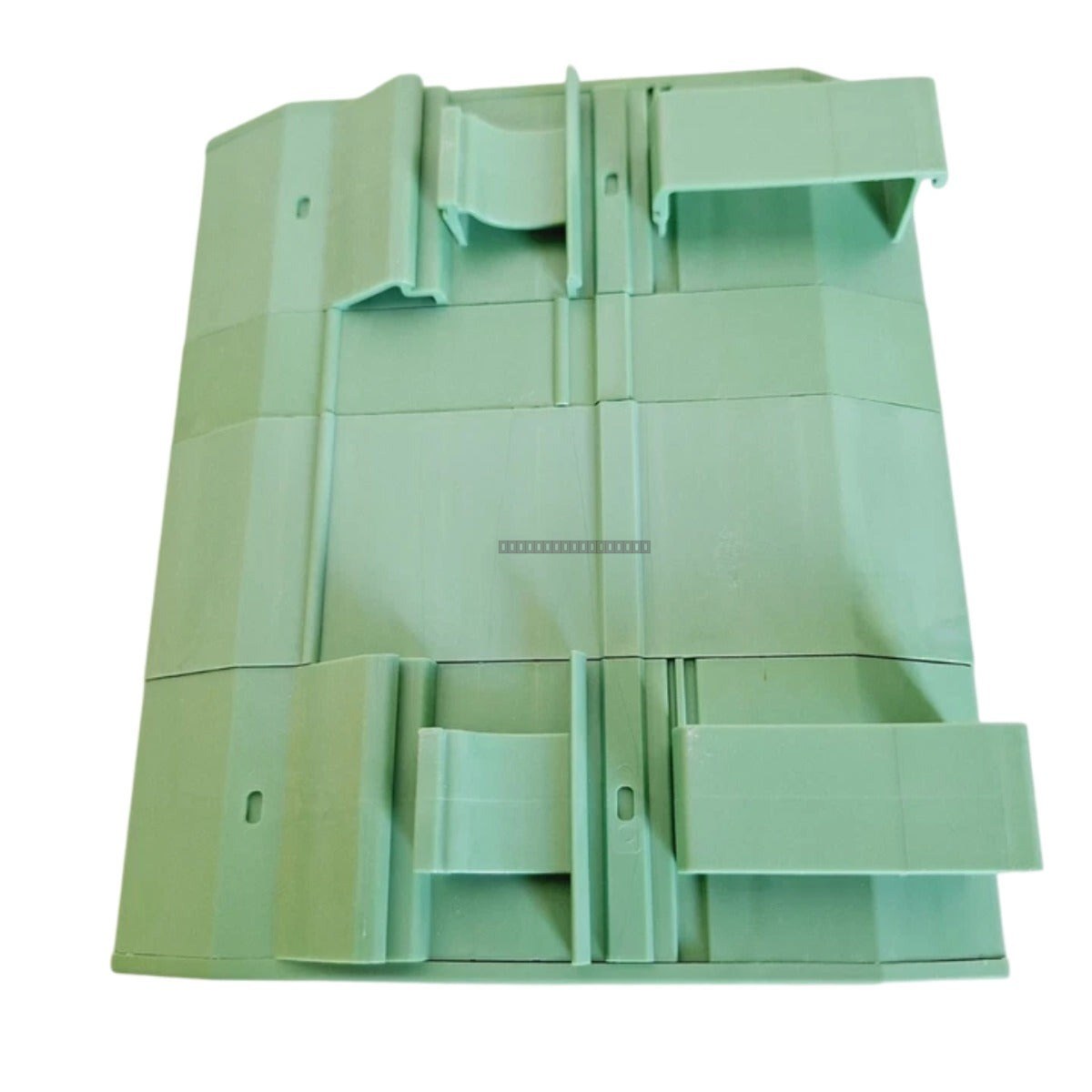

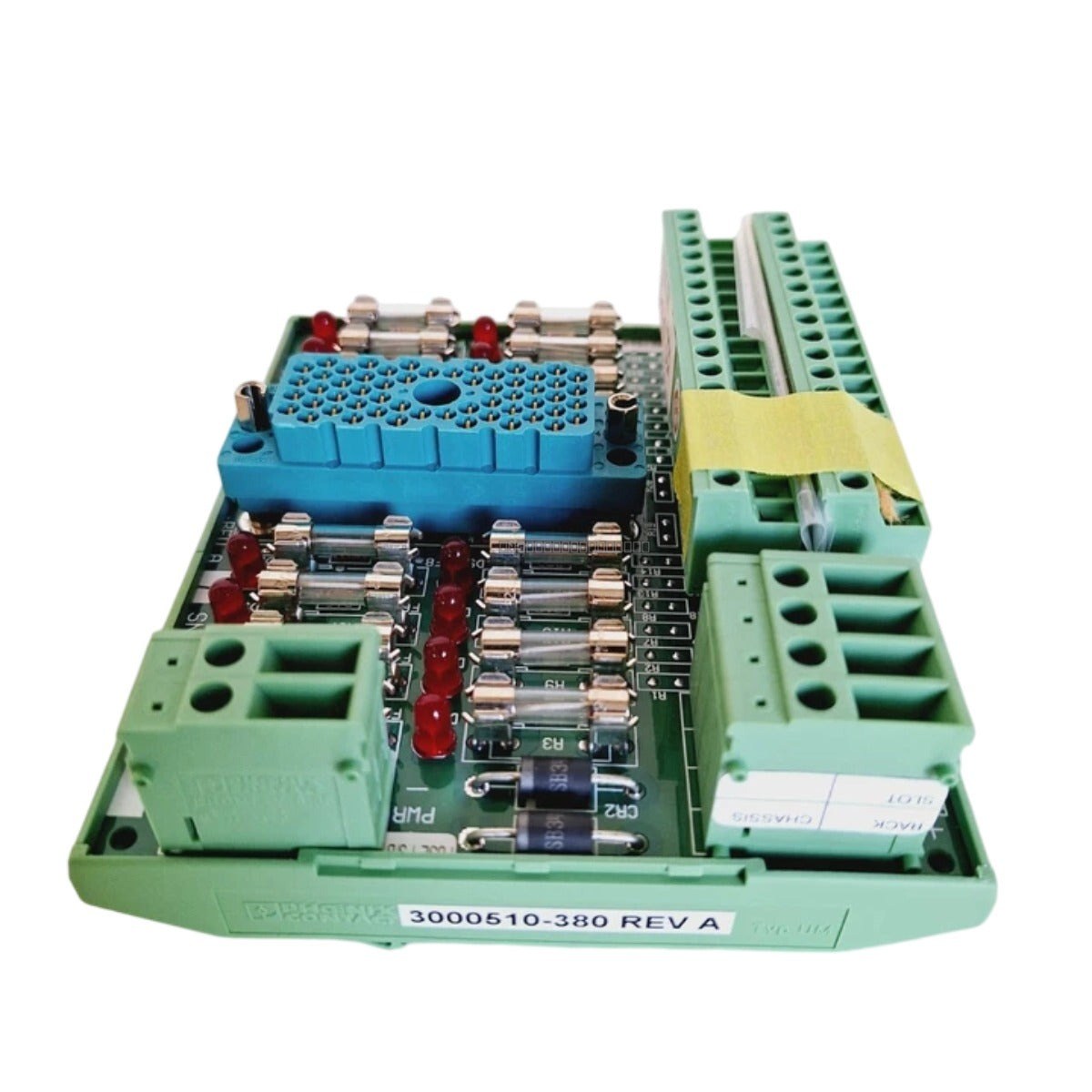

The Invensys Triconex 9563 is a high-density Digital Input Termination Panel engineered for use within Triconex Safety Instrumented Systems (SIS). This component is designed to condition and route discrete signals from field infrastructure into the safety control architecture, ensuring reliable signal conversion for emergency shutdown (ESD) and critical process monitoring applications. It is suitable for deployment in high-risk industrial environments, including oil and gas refineries, chemical production facilities, thermal power stations, and mining operations.

Features

• 32 discrete input channels for high-density signal management.
• Supports both single-ended and differential wiring topologies.
• Integrated circuitry for electrical noise filtering and signal conditioning.
• High-speed solid-state signal paths to minimize latency.
• Optimized layout designed to prevent signal crosstalk between adjacent channels.
• Robust construction for reliable operation in demanding safety-critical environments.

Applications

The 9563 termination panel is primarily utilized in safety-critical loops where deterministic signal processing is required. It is essential for interfacing field-mounted sensors and switches with the main Triconex controller, facilitating rapid response to hazardous process conditions while minimizing spurious trips.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the termination panel.
• Mount the panel in a clean, dry, and vibration-free environment, typically within an industrial enclosure.
• Use shielded cabling for all field inputs to maintain high noise immunity and signal integrity.
• Ensure proper grounding of the panel chassis to the cabinet ground bus to mitigate EMI/RFI.
• Verify that all field wiring is correctly terminated according to the specific loop requirements (single-ended vs. differential).
• Maintain adequate clearance around the module to ensure proper ventilation and prevent overheating.

FAQ

Is the Triconex 9563 compatible with all Triconex SIS controllers?

The 9563 is designed for specific Triconex SIS architectures. Please verify your system documentation or the specific controller compatibility list to ensure this termination panel meets your system's requirements.

What is the primary function of this panel?

The 9563 acts as an interface between raw field instrumentation and the safety controller, providing signal conditioning, noise filtering, and efficient routing of 32 discrete input channels.
