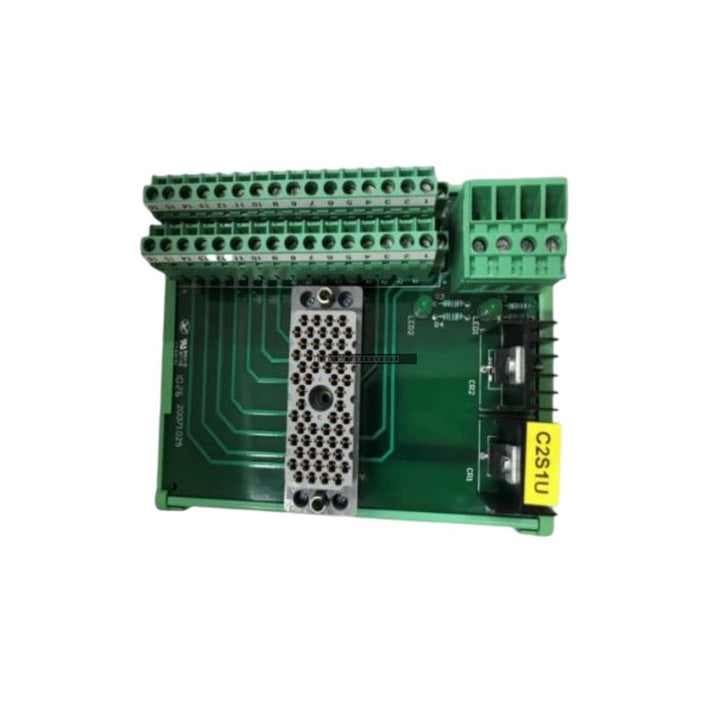

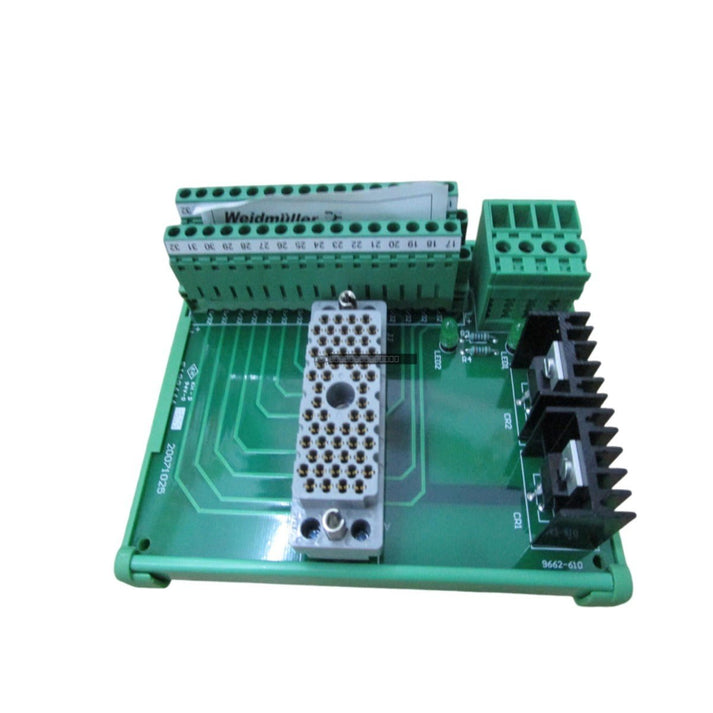

Triconex 9662-610 Termination Board

Triconex 9662-610 Termination Board

Description

The Triconex 9662-610 is a specialized termination board engineered for high-availability safety-instrumented systems. It acts as the primary interface between field-side instrumentation and the safety controller, providing a stable, organized,...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 9662-610
Proveedora: Triconex
tipo: Termination Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Triconex 9662-610 is a specialized termination board engineered for high-availability safety-instrumented systems. It acts as the primary interface between field-side instrumentation and the safety controller, providing a stable, organized, and reliable connection point. By streamlining the transition from field cabling to system-level I/O, the 9662-610 helps maintain signal integrity and reduces the likelihood of connection-related faults in mission-critical industrial environments.

Features

  • Designed for secure field wiring termination within safety-critical control loops.
  • Passive architecture minimizes potential points of failure, supporting high system availability.
  • Robust construction designed to withstand thermal cycling and vibration typical of industrial plant environments.
  • Optimized layout to facilitate efficient signal mapping and simplified diagnostic troubleshooting.
  • Supports high-density I/O configurations to reduce cabinet space requirements.

Applications

This termination board is widely utilized in safety-instrumented systems across various process industries, including:

  • Oil and gas refining and distribution.
  • Power generation and utility management.
  • Chemical and petrochemical processing plants.
  • Emergency shutdown (ESD) and fire and gas monitoring systems.

Technical Specifications

Model 9662-610
Brand Triconex
Operating Temperature 0 to 60 degC
Weight 0.3 kg

Installation Guidelines

  • Ensure all power to the I/O rack is disconnected before installing or removing the termination board.
  • Verify that field wiring is properly labeled and secured to the terminals to prevent intermittent signals.
  • Maintain proper cable routing practices to separate power lines from low-voltage signal paths to minimize EMI.
  • Ensure the board is seated correctly within the designated cabinet slot to maintain proper grounding and backplane connectivity.
  • Regularly inspect terminal connections for signs of oxidation or loosening due to thermal expansion and vibration.

FAQ

What is the primary function of the 9662-610?
The 9662-610 serves as a field termination interface, providing a structured, reliable connection point for field sensors to interface with the Triconex safety controller.

Is this board an active electronic device?
No, the 9662-610 is a passive termination component, which enhances overall system reliability by reducing the number of active components in the signal path.

What is the operating temperature range for this module?
The unit is rated for operation between 0 and 60 degC.
