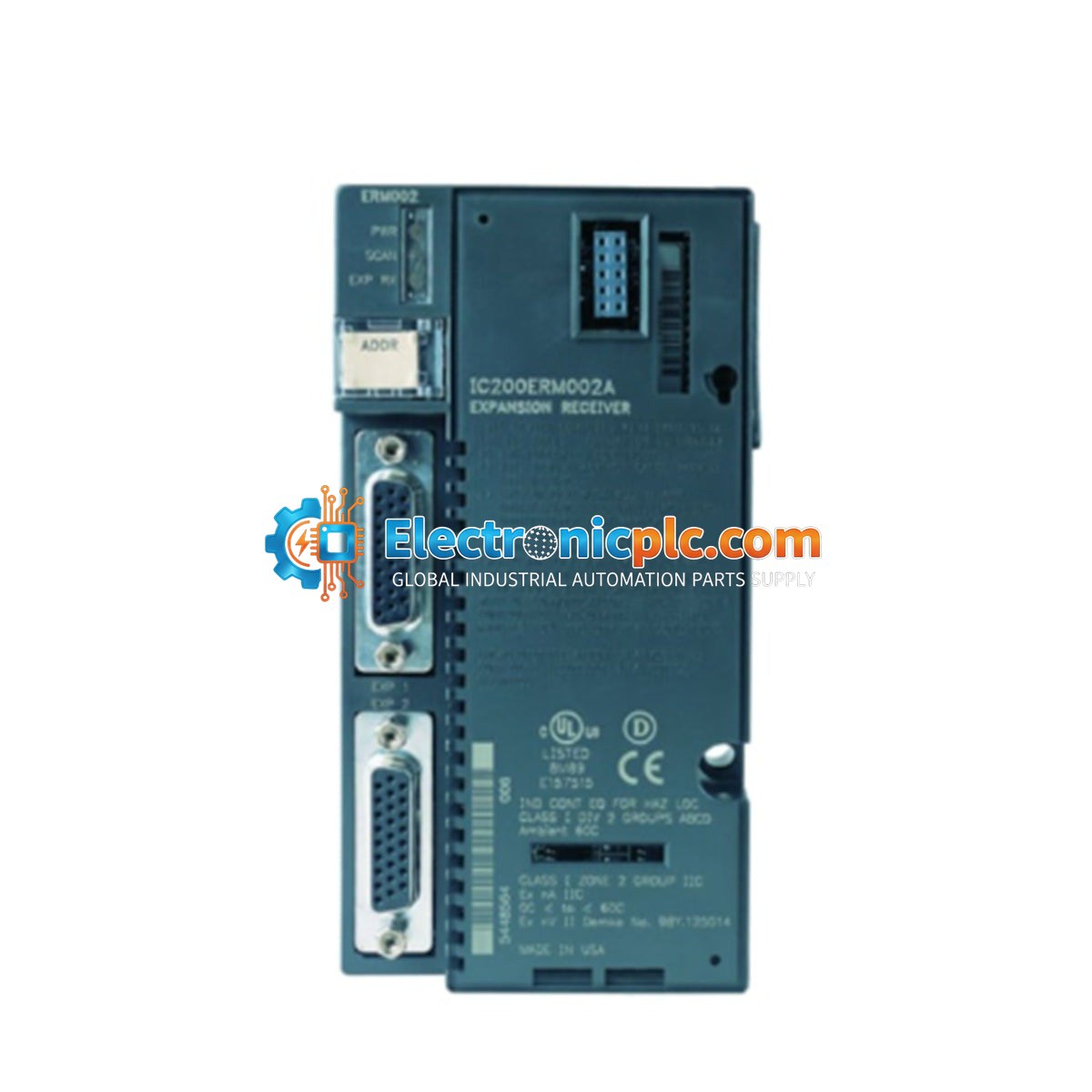

General Electric IC200ERM002 VersaMax Expansion Receiver

General Electric IC200ERM002 VersaMax Expansion Receiver

Description

The General Electric IC200ERM002 is a non-isolated expansion receiver module designed for the VersaMax PLC and I/O system. This module facilitates the expansion of a VersaMax control system by connecting...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: IC200ERM002
Proveedora: General Electric
tipo: Expansion Receiver Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IC200ERM002 is a non-isolated expansion receiver module designed for the VersaMax PLC and I/O system. This module facilitates the expansion of a VersaMax control system by connecting an expansion rack to a CPU or Network Interface Unit (NIU). It supports both multi-rack and single-ended expansion configurations, allowing for increased I/O density and system flexibility in distributed control applications.

Features

  • Non-isolated expansion receiver for VersaMax systems.
  • Supports up to 7 expansion racks, with each rack accommodating up to 8 I/O or special purpose modules.
  • Dual 26-pin female D-shell ports for flexible daisy-chaining or single-ended connections.
  • Integrated LED indicators for 5 VDC power status and expansion bus communications.
  • Supports a maximum expansion bus length of 15 meters (50 feet).

Technical Specifications

Parameter Specification
Model IC200ERM002
Type Non-isolated Expansion Receiver
Backplane Current (5 V) 70 mA
Backplane Current (3.3 V) 20 mA
Expansion Ports 2 x 26-pin female D-shell
Max Cable Length 15 meters (50 feet)
Max Expansion Capacity 7 racks (8 modules per rack)

Installation Guidelines

  • Positioning: The IC200ERM002 must always be installed in the leftmost position (slot 0) of the expansion rack.
  • Termination: In multi-rack configurations, the final expansion receiver in the daisy-chain must be fitted with an ACC201 terminator plug in the lower port.
  • Single-Ended Mode: When connecting a single rack directly to a CPU/NIU without a transmitter (max distance 1 meter), use the CBL600 cable; no terminator is required in this specific configuration.
  • Powering: Ensure a compatible power supply is mounted on the expansion receiver to provide power to the modules within the rack.
  • Handling: Observe standard ESD precautions when handling the module. Ensure the system is powered down before inserting or removing the module from the rack.

Applications

  • Automotive manufacturing and paint shop control systems.
  • Oil and gas distributed control and machinery monitoring.
  • Petrochemical reactor shutdown and critical control loops.
  • Fire and gas detection systems.
  • Power transmission and steam turbine control.
  • Municipal water treatment and environmental projects.

FAQs

What is the IC200ERM002?

The GE IC200ERM002 is a VersaMax non-isolated expansion receiver module designed to extend the I/O capabilities of VersaMax PLC or Network Interface Unit (NIU) stations.

What is the maximum expansion capacity?

It supports up to 7 expansion racks, each accommodating up to 8 I/O modules or dedicated modules.

What are the expansion port details?

The module features two 26-pin female D-shell connectors. The upper port is for the inbound expansion cable, while the lower port is for daisy-chaining to the next rack or attaching a terminator plug.

What is the maximum cable length?

The maximum cable length for the expansion bus when using the IC200ERM002 is 15 meters (50 feet).

What is the difference between IC200ERM001 and IC200ERM002?

The IC200ERM001 is an isolated expansion receiver, whereas the IC200ERM002 is a non-isolated version.
