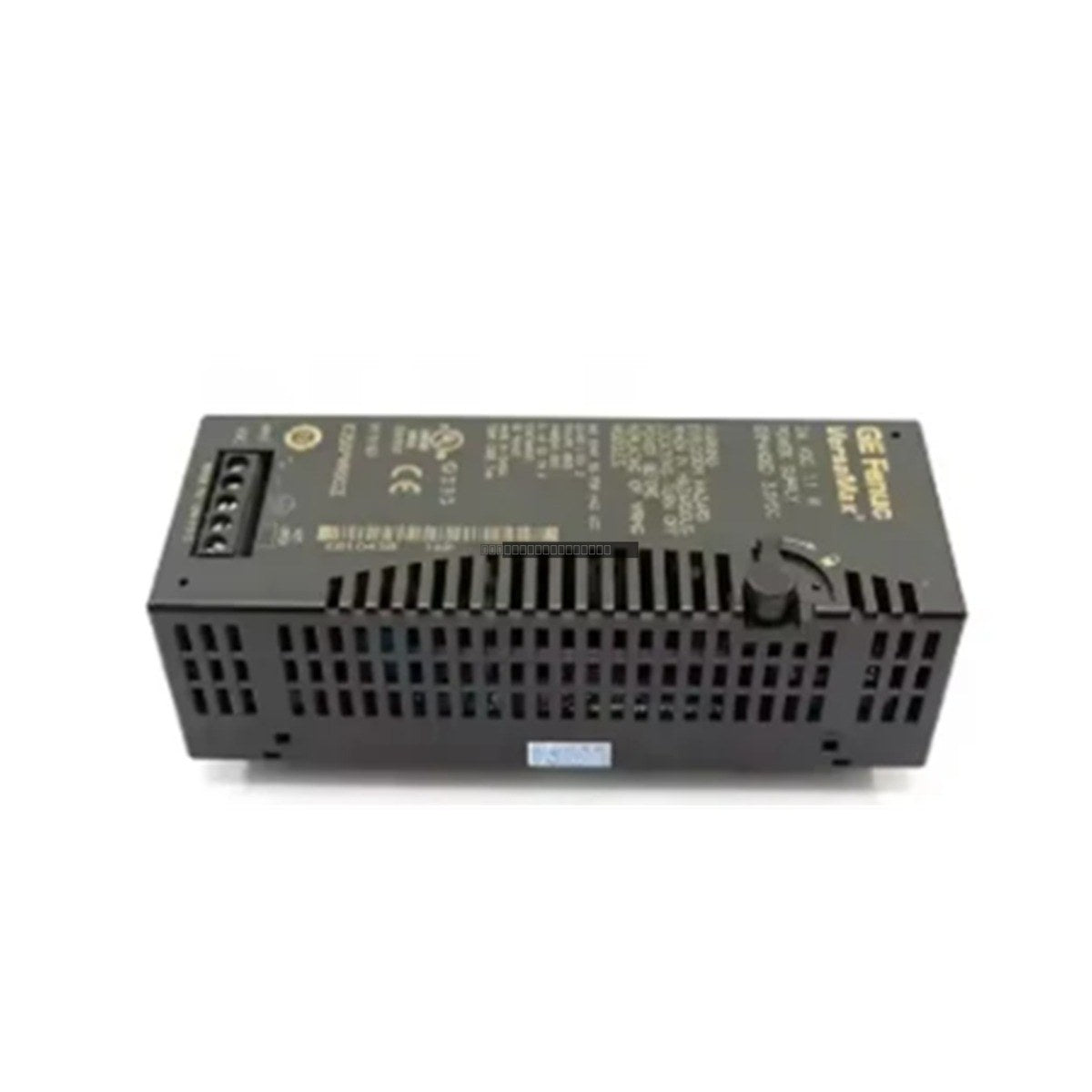

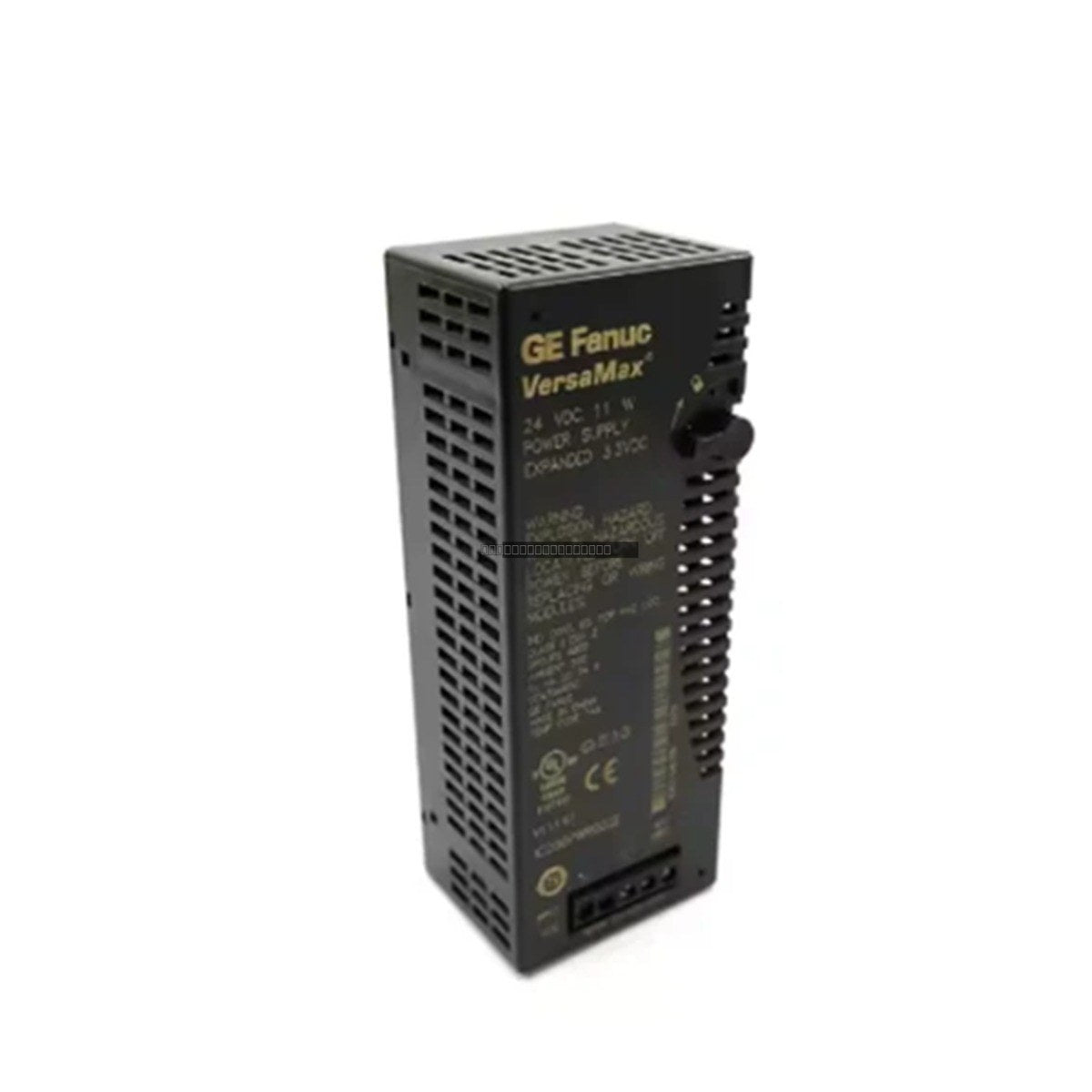

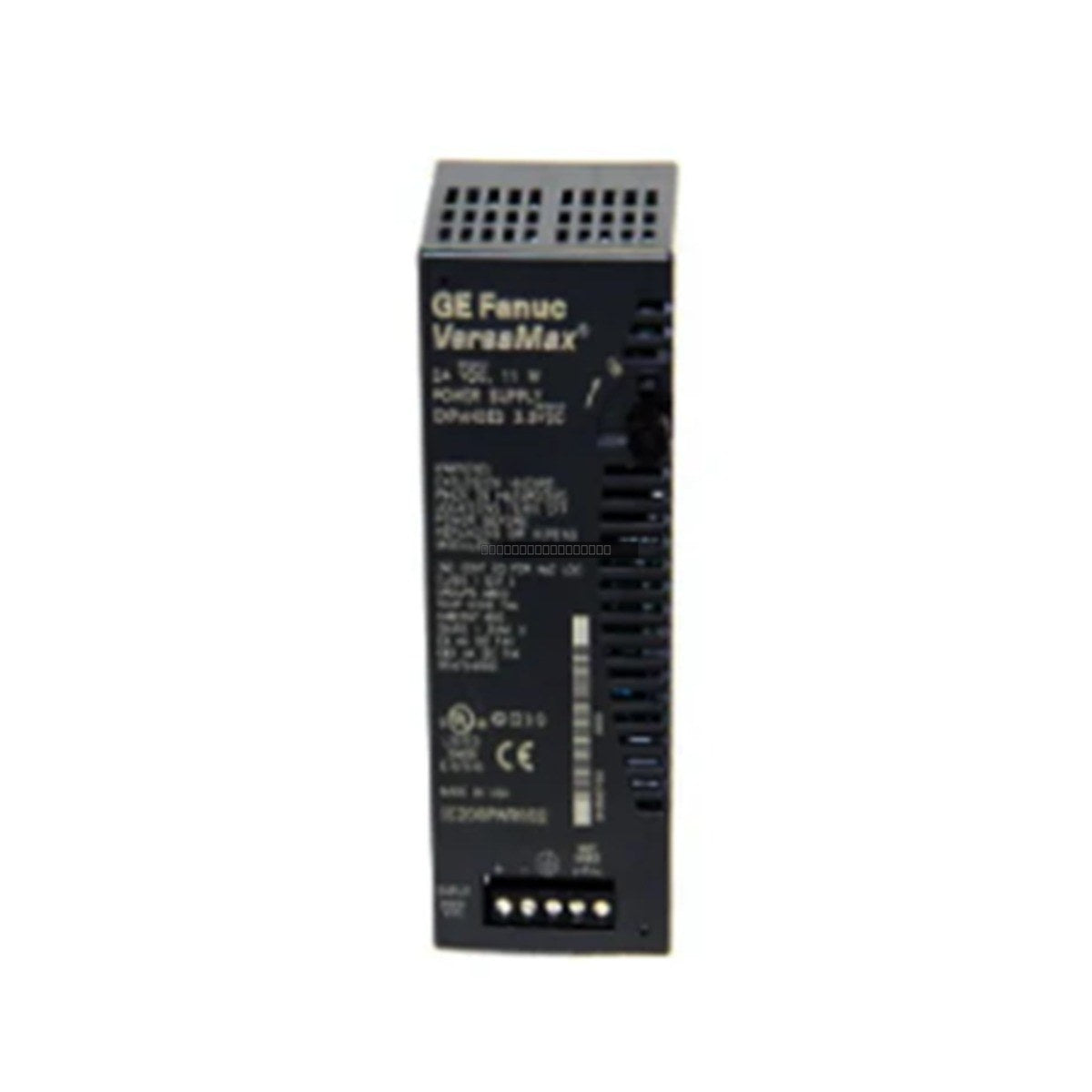

General Electric IC200PWR002 VersaMax Power Supply Module

General Electric IC200PWR002 VersaMax Power Supply Module

The General Electric IC200PWR002 is a 24 VDC expanded power supply module designed for the VersaMax PLC system. This unit provides essential backplane power to CPUs, Network Interface Units (NIUs),...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: IC200PWR002
Proveedora: General Electric
tipo: Power Supply Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC200PWR002 is a 24 VDC expanded power supply module designed for the VersaMax PLC system. This unit provides essential backplane power to CPUs, Network Interface Units (NIUs), and various I/O modules. It is engineered to function either as a primary power source when mounted directly to a CPU/NIU or as a supplemental power booster when installed on a dedicated booster carrier.

Features

  • Input voltage range of 18-30 VDC (24 VDC nominal).
  • Dual output voltage: 5 VDC and 3.3 VDC.
  • Total output current capacity of 1.5 A.
  • Integrated protection against short circuits, overloads, and reverse polarity.
  • Supports modular expansion for complex VersaMax configurations.
  • Holdup time of 10 ms during power fluctuations.

Applications

  • Industrial automation and production line synchronization.
  • Material handling systems, including large-scale conveyors.
  • Automotive manufacturing for high-speed discrete I/O and robotics.
  • Distributed process control for water treatment and light chemical applications.

Technical Specifications

Model IC200PWR002
Input Voltage 18-30 VDC
Input Power 11 Watts
Output Voltage 5 VDC and 3.3 VDC
Max Output Current 1.5 A (Total)
Max 3.3V Output 1.0 A
Inrush Current 20 A (at 24 VDC), 25 A (at 30 VDC)
Weight 0.12 kg

Installation Guidelines

  • Power Down: Always disconnect all power sources before installing, removing, or wiring the module to prevent electrical hazards.
  • Mounting: Mount directly to the CPU or NIU for primary power functionality, or use a Power Supply Booster Carrier for supplemental power.
  • Grounding: The DC- terminal must be connected to both the frame ground and earth ground. Note that the unit is internally grounded to the frame, which precludes floating power supply configurations.
  • Wiring: Utilize the five screw-type terminals on the front panel. Ensure correct polarity for the +DC and -DC connections.
  • Environment: Ensure adequate ventilation to maintain operating temperature within specified limits.

FAQs

What is the primary function of the IC200PWR002?

This module serves as a 24 VDC expanded power supply for the VersaMax series, providing the necessary 3.3 VDC and 5 VDC backplane power for CPUs, NIUs, and I/O modules.

Can this module be used as a booster?

Yes, the IC200PWR002 can be installed on a booster carrier to act as a supplemental power supply for the system backplane.

What protection features are included?

The module is equipped with internal circuitry to protect against short circuits, overloads, and reverse polarity conditions.

Is this module compatible with newer versions?

This unit is often superseded by the IC200PWR002J; please verify your system requirements when selecting replacement parts.
