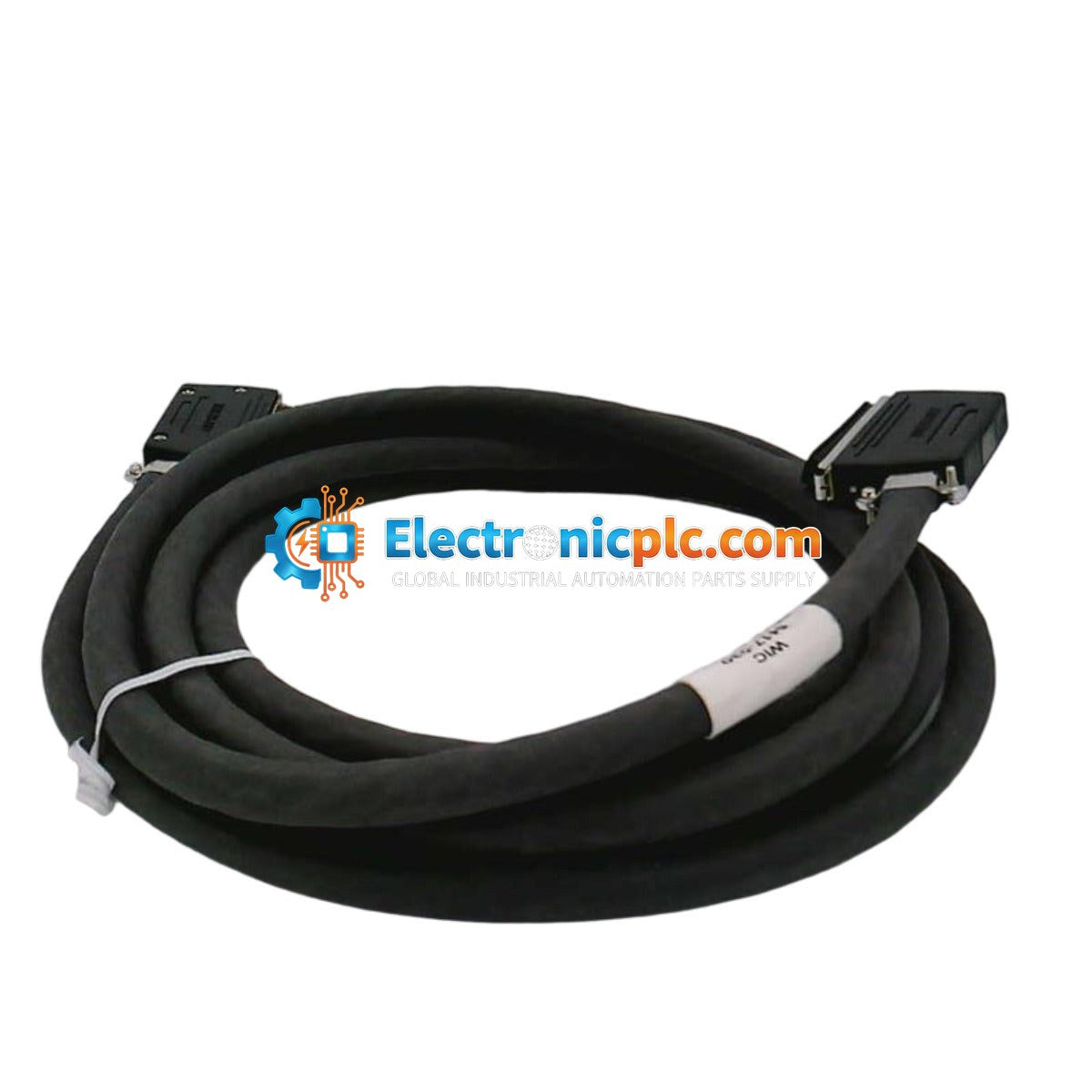

Woodward 5417-028 Cable Assembly

Woodward 5417-028 Cable Assembly

Description

The Woodward 5417-028 is a precision-engineered cable assembly designed for high-reliability signal transmission within industrial control systems. This component provides critical connectivity for MicroNet and 723plus control platforms, ensuring seamless...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 5417-028
Proveedora: Woodward
tipo: Cable Assembly
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Woodward 5417-028 is a precision-engineered cable assembly designed for high-reliability signal transmission within industrial control systems. This component provides critical connectivity for MicroNet and 723plus control platforms, ensuring seamless data flow between modules and field devices. Optimized for harsh environments such as power generation and oil refineries, it utilizes high-grade shielding to eliminate electromagnetic interference, which is vital for maintaining system uptime and preventing control logic failures in mission-critical applications.

Features

  • Designed for seamless integration with Woodward MicroNet and 723plus control platforms.
  • Industrial-grade connectors featuring gold-plated contacts for low contact resistance and long-term durability.
  • High-grade EMI/RFI shielding to ensure signal integrity in electrically noisy environments.
  • Rugged outer jacket resistant to oil, heat, and mechanical stress.
  • Supports high-speed serial or I/O data links within Woodward chassis architectures.

Applications

This cable assembly is primarily used in industrial automation environments, including power generation, turbine control, and oil and gas processing facilities where reliable signal transmission between control modules and field instrumentation is required.

Technical Specifications

Model 5417-028
Brand Woodward
Component Type Cable Assembly
Shielding Industrial Grade EMI/RFI
Operating Temperature -40 to +85 deg C

Installation Guidelines

  • Ensure the system is powered down before connecting or disconnecting the cable assembly to prevent electrical surges or damage to module ports.
  • Route the cable away from high-voltage power lines and high-EMI sources to maintain signal integrity.
  • Ensure connectors are fully seated and locked to prevent intermittent connections due to vibration.
  • Avoid sharp bends or excessive mechanical tension on the cable during installation to maintain the integrity of the internal shielding and conductors.
  • Inspect the gold-plated contacts for debris or oxidation before installation to ensure optimal conductivity.

FAQ

What control systems is the 5417-028 compatible with?

The 5417-028 is specifically designed for use with Woodward MicroNet and 723plus control platforms.

Is this cable suitable for high-temperature environments?

Yes, this cable assembly is rated for an operating temperature range of -40 to +85 deg C, making it suitable for most industrial control cabinet environments.

Does this cable require special grounding?

The cable features integrated shielding designed to provide noise immunity. Ensure that the associated chassis or module grounding points are properly connected to the system earth to maximize the effectiveness of the EMI/RFI shielding.
