Woodward 5417-040 Netcon Analog Cable Assembly

Woodward 5417-040 Netcon Analog Cable Assembly

Description

The Woodward 5417-040 is a high-integrity 10-foot analog interface cable designed specifically for Netcon 4700 series control systems. This low-density cable assembly provides the critical physical link between analog I/O...

19 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 5417-040
Proveedora: Woodward
tipo: Interface Cable
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

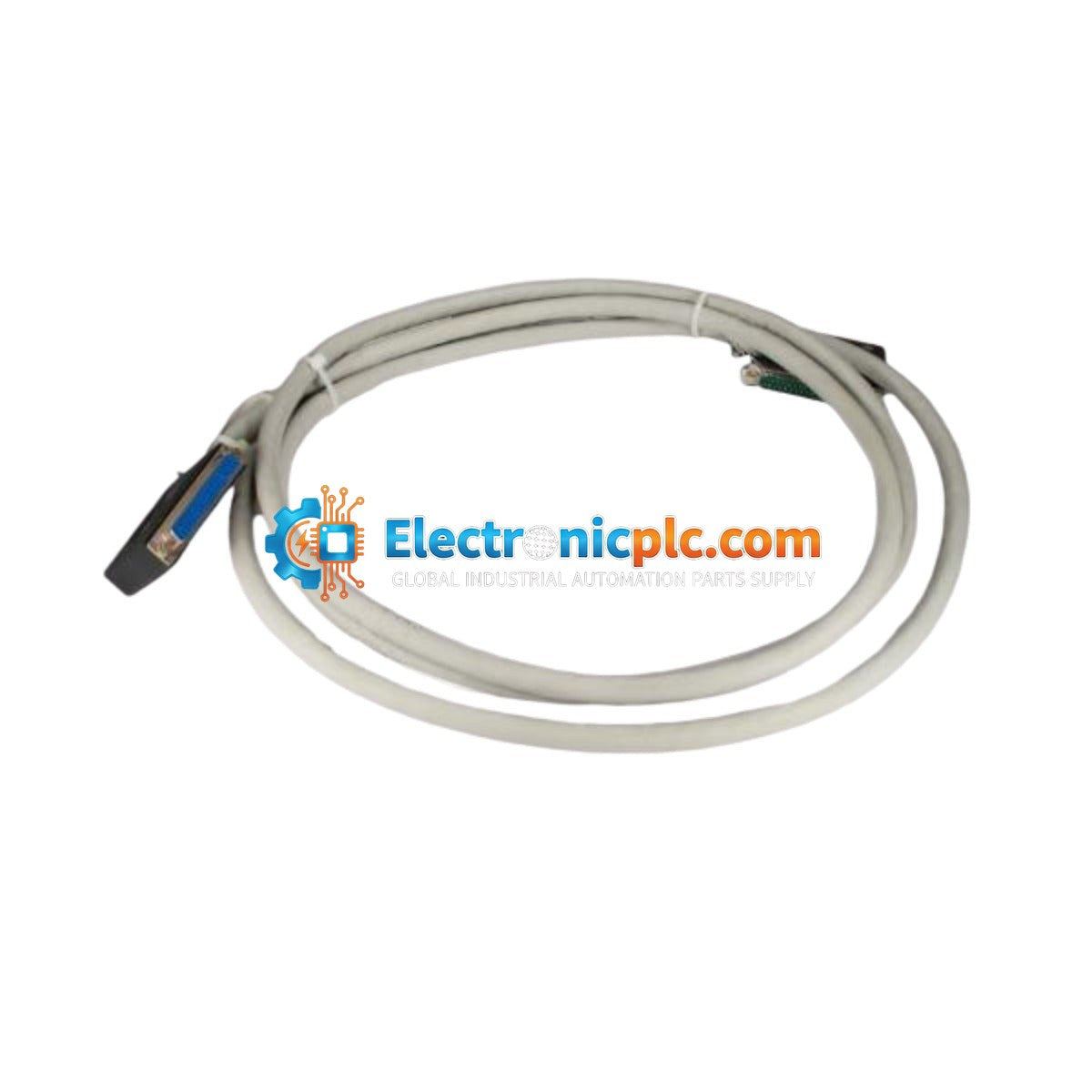

The Woodward 5417-040 is a high-integrity 10-foot analog interface cable designed specifically for Netcon 4700 series control systems. This low-density cable assembly provides the critical physical link between analog I/O modules and field termination blocks. Engineered for precision signal transmission in demanding industrial environments such as gas turbine power plants and petrochemical refineries, the 5417-040 ensures minimal signal attenuation and high noise rejection. Proper utilization of this standardized cabling solution is vital for maintaining sensor accuracy and reducing system troubleshooting time, thereby ensuring continuous operation of mission-critical machinery.

Interconnect Architecture

This cable features a specialized low-density pin configuration optimized for analog voltage and current signals. The assembly utilizes high-grade shielded twisted-pair wiring to protect sensitive low-level signals from electromagnetic interference (EMI). Robust strain relief at the connector headers prevents mechanical failure caused by vibration or improper routing within the control cabinet. The 10-foot length is standardized for typical chassis-to-terminal-strip distances, ensuring a clean and manageable cable path that simplifies system maintenance and module replacement.

Technical Specifications

Model 5417-040
Brand Woodward
Series Netcon 4700
Cable Type Low Density Analog Cable
Length 10 ft (3.05 m)
Connector Type Netcon Compatible Header
Signal Support Analog I/O (Voltage/Current)
Operating Temperature -40 to +85 deg C

Installation Guidelines

  • Ensure the control system is powered down before connecting or disconnecting the cable assembly to prevent electrical damage to I/O modules.
  • Route the cable away from high-voltage power lines and high-EMI sources to maintain signal integrity.
  • Utilize the integrated strain relief to secure the cable at both connection points, preventing mechanical stress on the connector pins.
  • Ensure that the cable is not bent beyond its minimum bend radius during installation to avoid internal conductor damage.
  • Verify that all connector pins are aligned correctly before seating the header to prevent bent or broken pins.

FAQ

What is the primary function of the Woodward 5417-040 cable?

The 5417-040 is an analog interface cable designed to connect analog I/O modules to field termination blocks within the Woodward Netcon 4700 control system architecture.

Is this cable shielded?

Yes, the assembly utilizes high-grade shielded twisted-pair wiring to minimize electromagnetic interference (EMI) and ensure accurate transmission of sensitive analog voltage and current signals.
