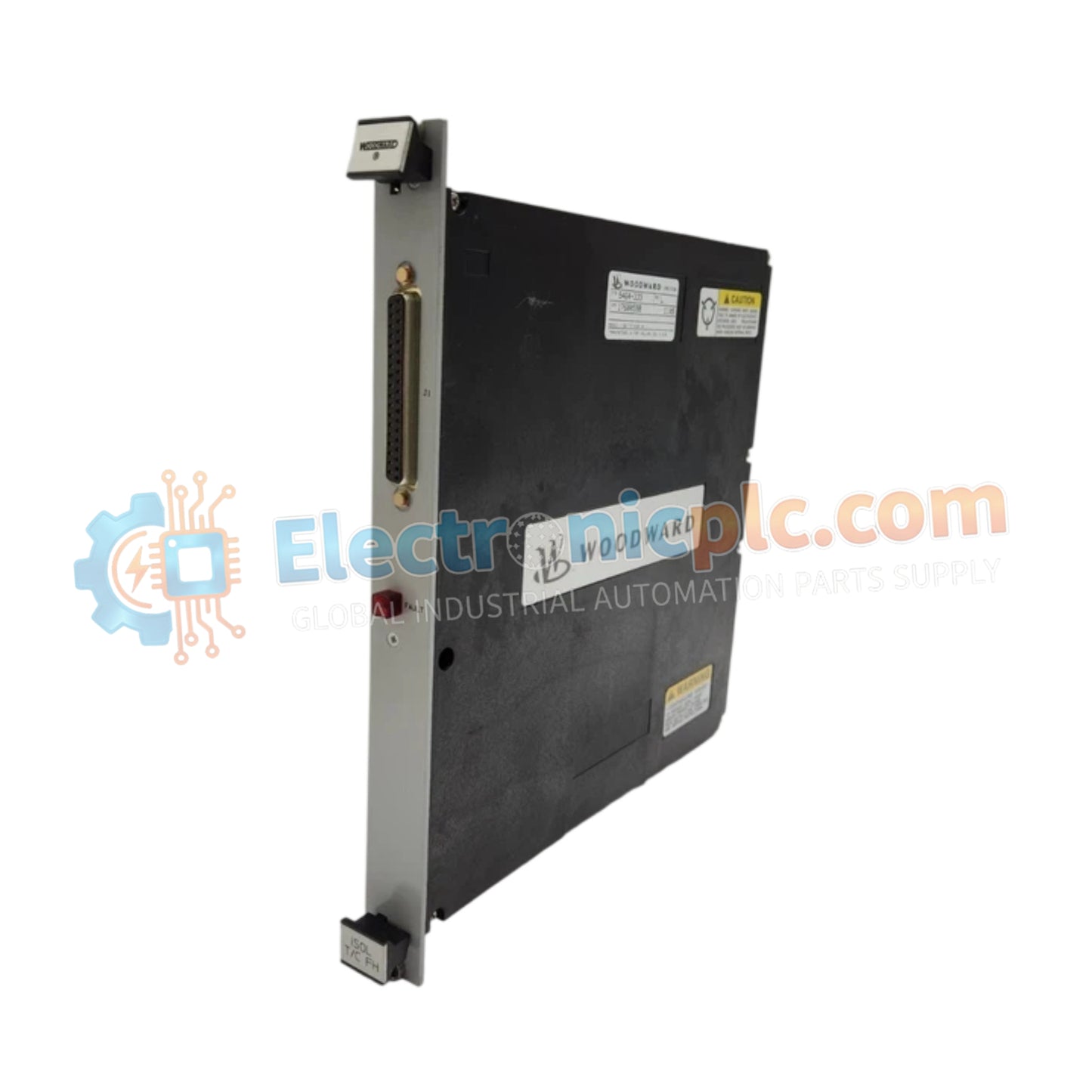

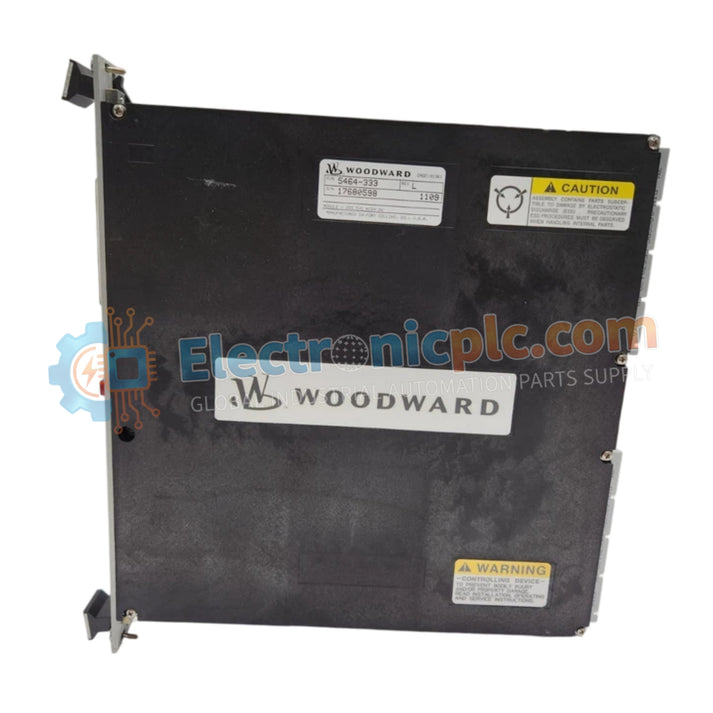

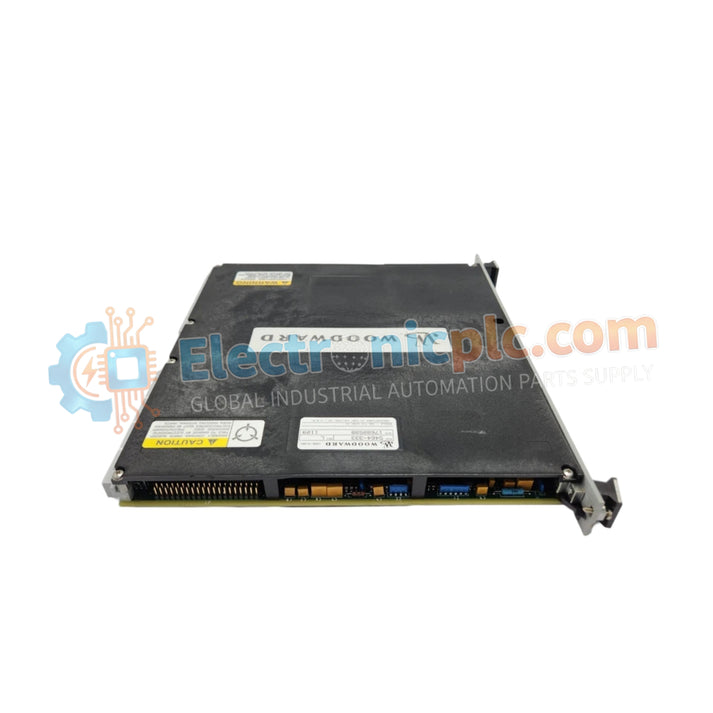

The Woodward 5464-333, also cataloged as the 5464-333 Thermocouple Input Module, operates as a dedicated hardware component for temperature sensor signal acquisition and conditioning within MicroNet control platforms.
Disponibilidad: Bajas existencias: quedan 3
Entrega confiable a nivel mundial
Garantía de devolución de dinero de 30 días
¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.
The Woodward 5464-333, also cataloged as the 5464-333 Thermocouple Input Module, operates as a dedicated hardware component for temperature sensor signal acquisition and conditioning within MicroNet control platforms.
| Parameter | Specification |
|---|---|
| Model | 5464-333 |
| Brand | Woodward |
| Origin | USA |
| Weight | 1.88 kg |
| Dimensions | 2.5 x 24.8 x 26.2 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Standard MicroNet Backplane Power |
| Input Signal | Thermocouple sensor inputs |
The 5463-333 / 5464-333 module conditions high-density millivolt thermocouple inputs to support real-time thermal monitoring across turbine and governor control circuits. The onboard signal processing circuitry manages thermal heat sink dissipation profiles to stabilize cold junction reference points during rapid ambient temperature shifts. By maintaining tight analog-to-digital processing cycles, the hardware provides deterministic input values to maintain accurate actuator loop feedback response in turbine speed and load regulation systems.
Q: What physical system architecture is compatible with the 5464-333 module?
A: The module is designed for direct installation into standard Woodward MicroNet chassis backplane slots.
Q: How does the module maintain measurement accuracy under field temperature fluctuations?
A: Internal compensation circuits stabilize cold junction drift across the chassis operating temperature profile to ensure linear millivolt conversion.
Q: Are special grounding considerations required for thermocouple wiring on the 5464-333 card?
A: Yes, all thermocouple lead extension wires must utilize shielded cable grounded at a single point on the chassis earth bar to prevent common-mode noise interference.
