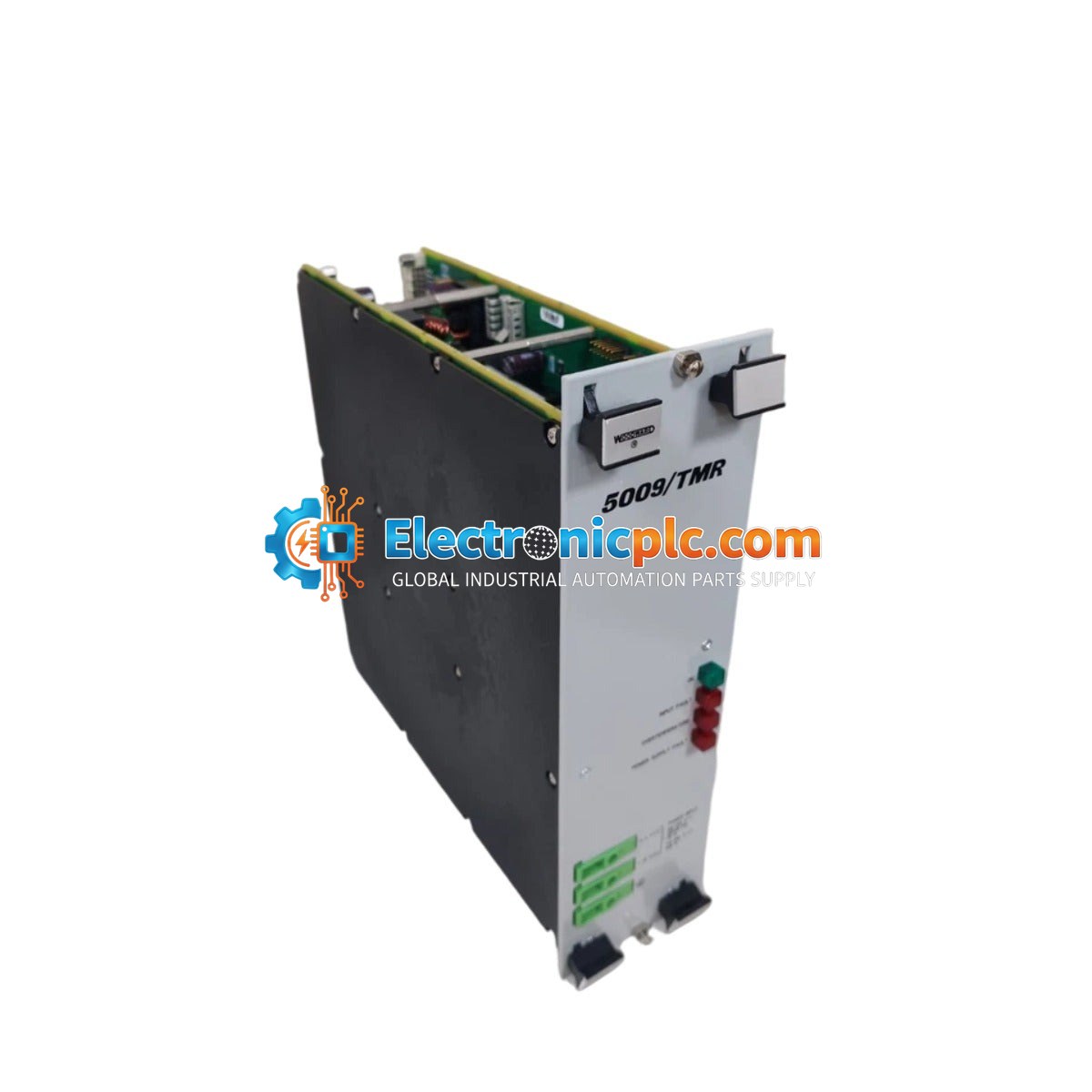

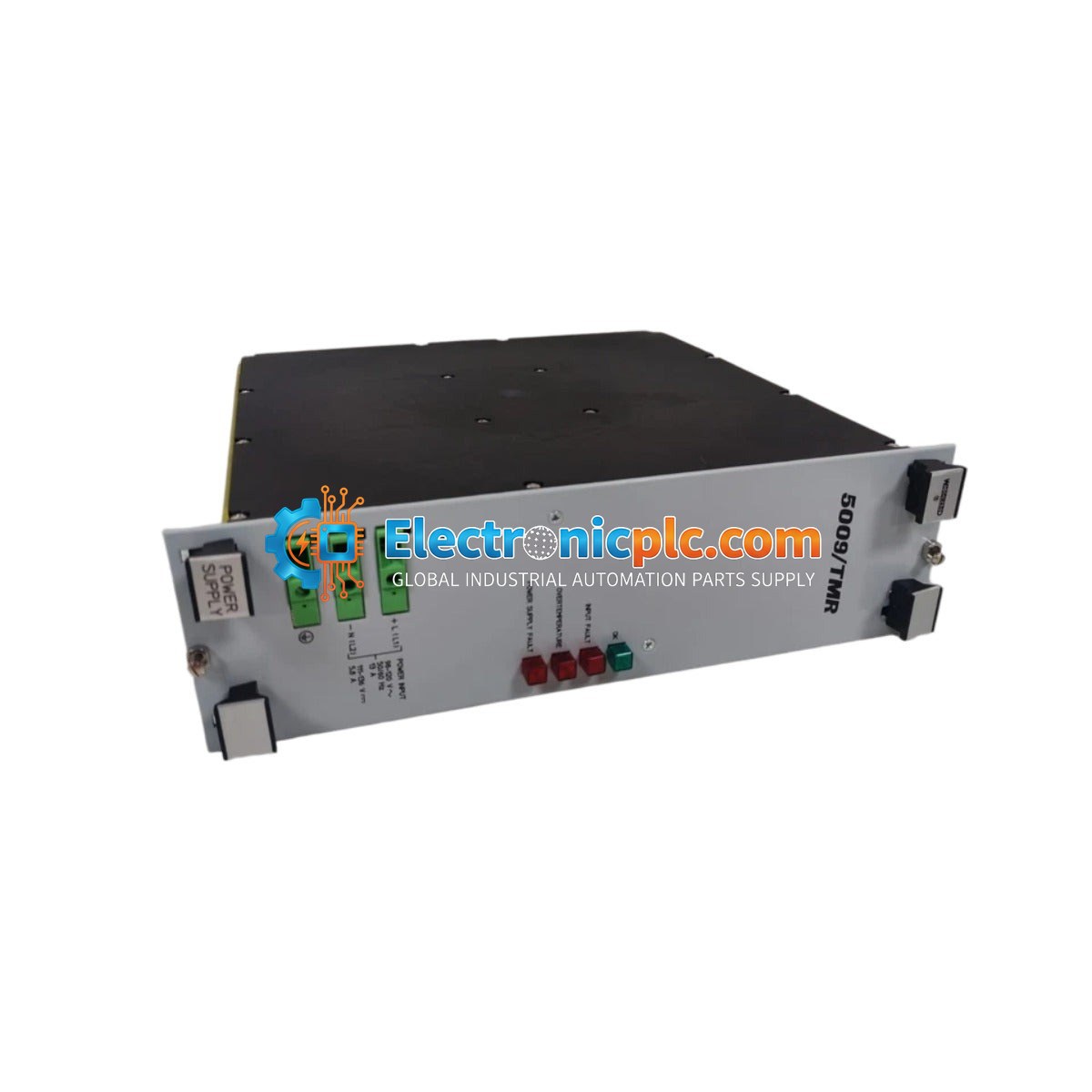

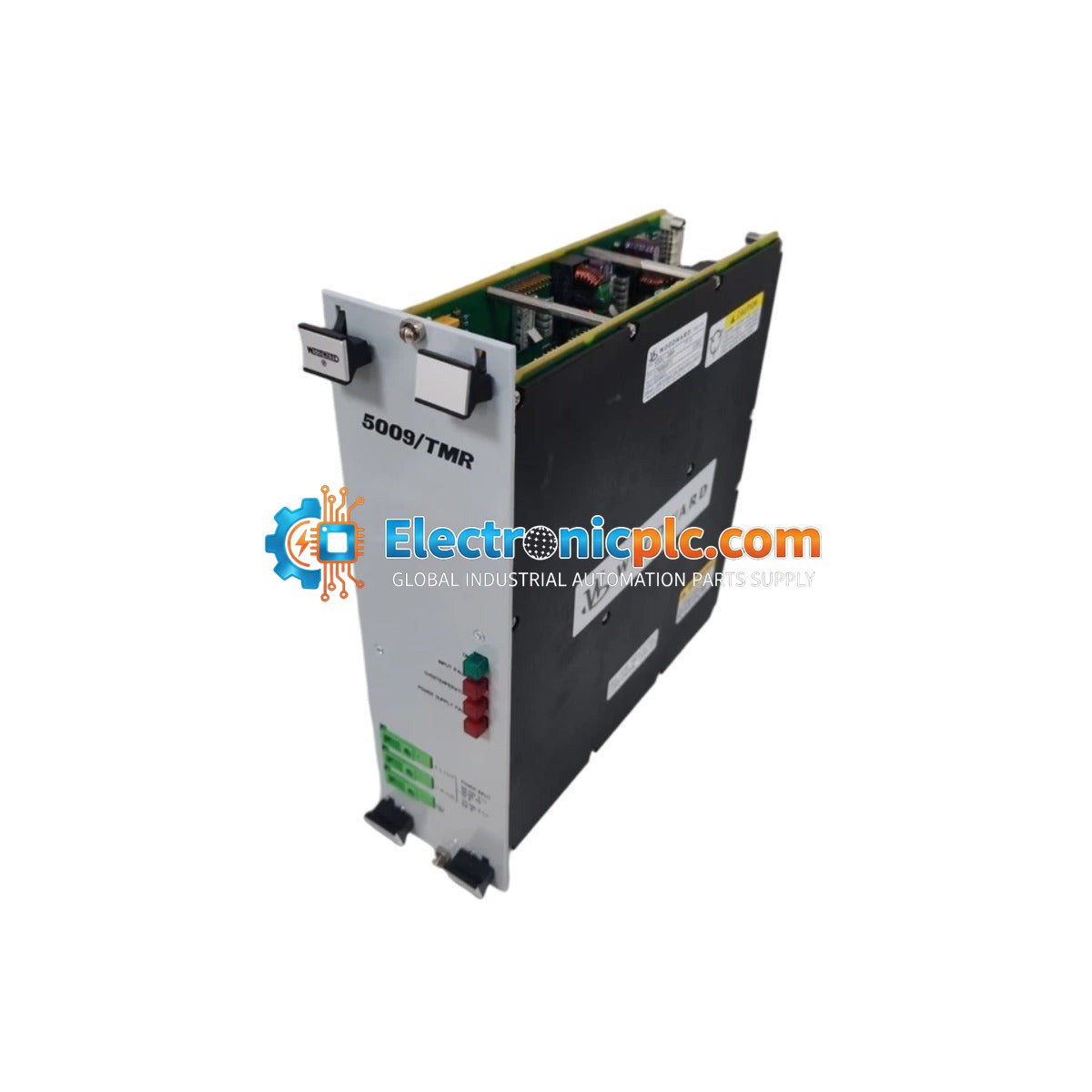

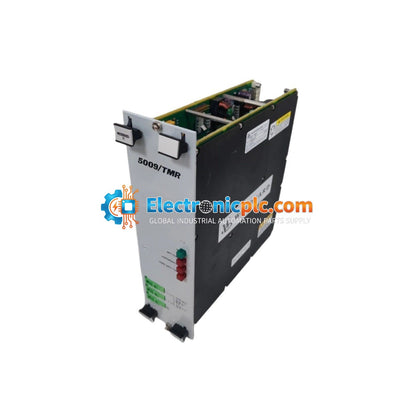

Woodward 5501-380 MicroNet PLC Power Supply Module

Woodward 5501-380 MicroNet PLC Power Supply Module

Description

The Woodward 5501-380 is a robust AC-input power supply module designed specifically for the MicroNet control system architecture. This panel-mount unit converts standard 120 VAC utility power into the regulated...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 5501-380
Proveedora: Woodward
tipo: PLC Power Supply
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Woodward 5501-380 is a robust AC-input power supply module designed specifically for the MicroNet control system architecture. This panel-mount unit converts standard 120 VAC utility power into the regulated DC voltages required by the MicroNet backplane and its associated I/O modules. Engineered for high-availability environments such as steam turbine control, gas compression stations, and large-scale power plants, the 5501-380 provides stable energy delivery even under fluctuating load conditions. Its heavy-duty construction and high MTBF rating make it a critical component for reducing unscheduled downtime and ensuring the long-term reliability of industrial control racks.

Features

  • Designed for seamless integration with the Woodward MicroNet control system.
  • High-efficiency switching topology to minimize heat dissipation and improve system longevity.
  • Integrated protection circuitry including over-voltage, over-current, and short-circuit safeguards.
  • Internal filtering circuits to suppress electromagnetic interference (EMI) and line transients.
  • Front-panel status indicators for real-time power health monitoring and diagnostic troubleshooting.
  • Rugged panel-mount chassis engineered for industrial thermal convection.

Applications

The 5501-380 power supply is utilized in mission-critical industrial automation applications, including:

  • Steam and gas turbine control systems.
  • Gas compression station control.
  • Large-scale power generation and distribution plants.
  • Industrial process control racks requiring high-reliability DC power.

Technical Specifications

Model 5501-380
Brand Woodward
Series MicroNet
Module Type PLC Power Supply
Mounting Type Panel Mount
Input Voltage 120 VAC (nominal)
Input Frequency 47 to 63 Hz
Output Type Multi-rail DC (Backplane Optimized)
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the control cabinet provides adequate ventilation to maintain operating temperatures within the 0 to 60 deg C range.
  • Verify that the input power source is within the specified 120 VAC nominal range before connection.
  • Always power down the MicroNet rack before inserting or removing the power supply module to prevent electrical arcing or damage to backplane pins.
  • Ensure the chassis is securely mounted and properly grounded to the cabinet backplane to maintain EMI shielding effectiveness.
  • Route high-voltage AC input wiring away from low-voltage signal cables to minimize potential noise coupling.

FAQ

Is the 5501-380 compatible with all MicroNet systems?

The 5501-380 is designed for the MicroNet architecture; however, always verify your specific system configuration and backplane requirements against the module's output specifications before installation.

What do the status indicators on the front panel signify?

The status indicators provide visual confirmation of the power supply's operational health. If an indicator is off or flashing, it typically signals an over-voltage, over-current, or internal fault condition requiring immediate inspection.
