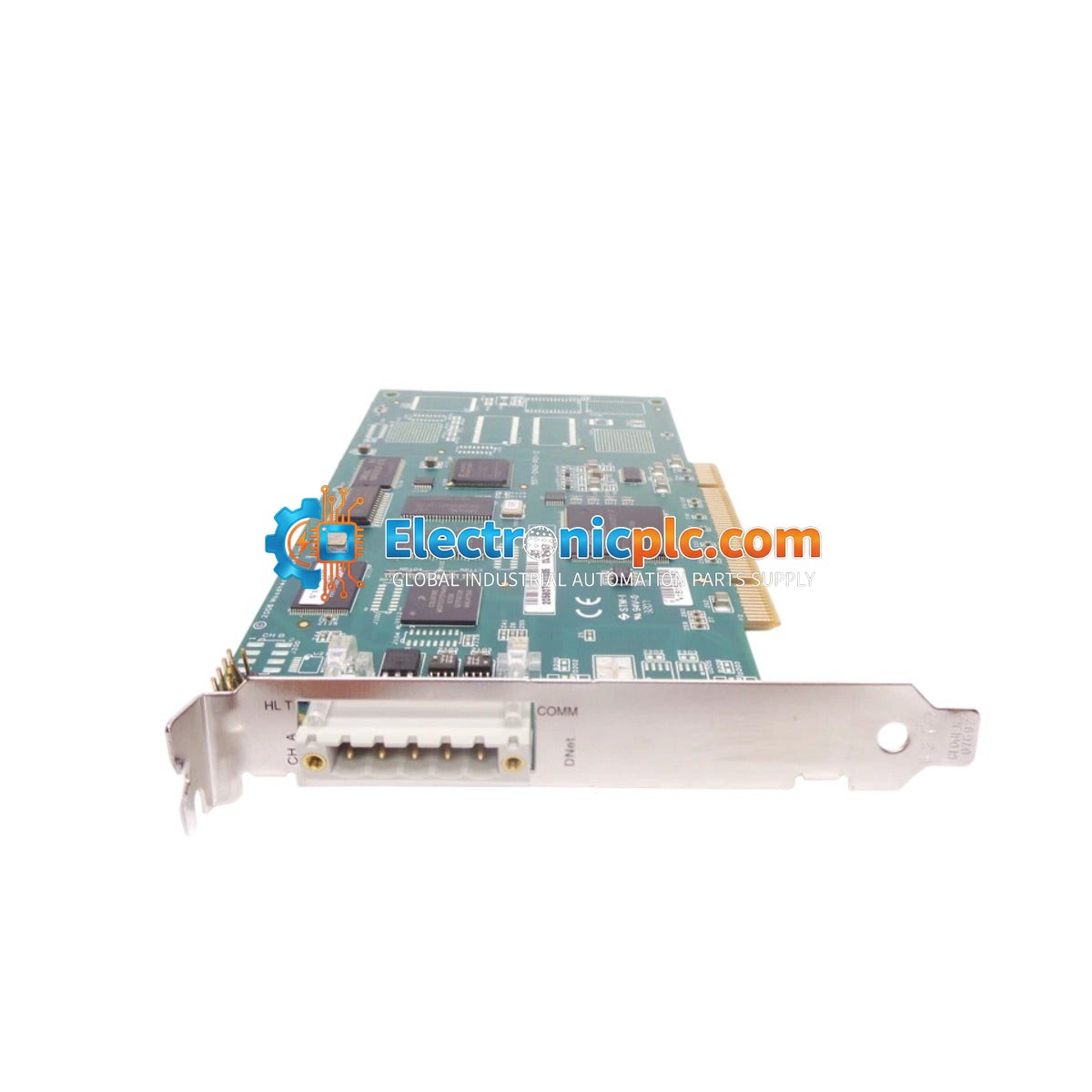

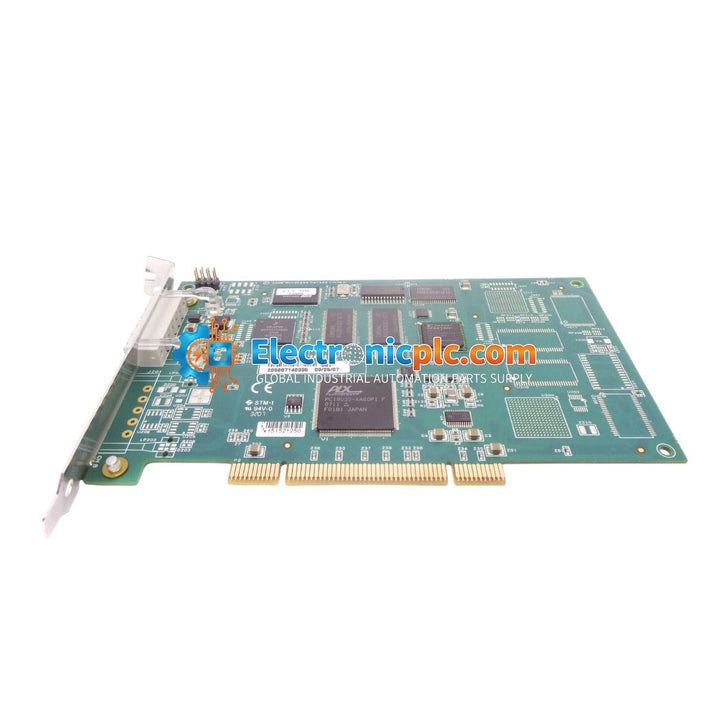

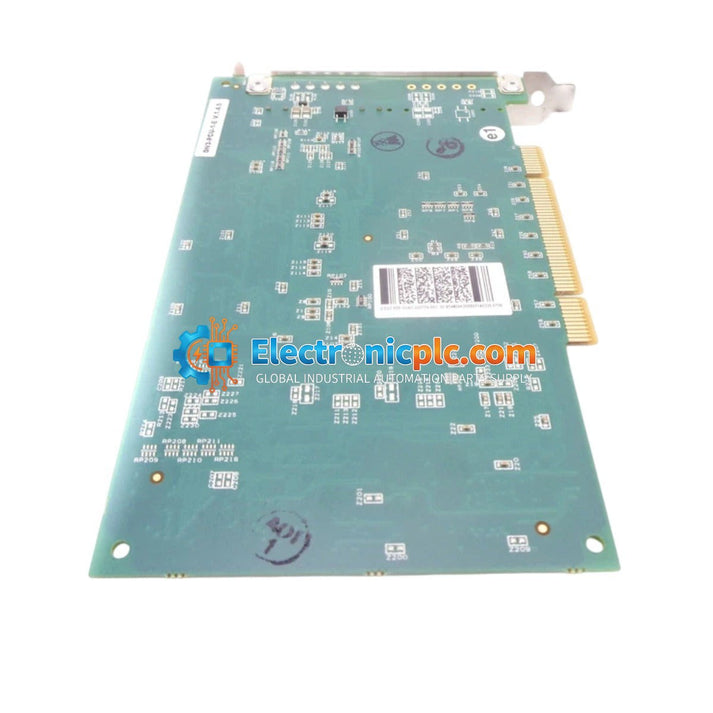

Woodward SST-DN3-PCI-2 PCI DeviceNet Communication Card

Woodward SST-DN3-PCI-2 PCI DeviceNet Communication Card

Description

The Woodward SST-DN3-PCI-2 is a high-performance PCI-based DeviceNet interface card designed to provide reliable, deterministic connectivity between industrial PCs and DeviceNet fieldbus networks. By offloading the protocol stack processing from...

24 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: SST-DN3-PCI-2
Proveedora: Woodward
tipo: Communication Interface Card
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Woodward SST-DN3-PCI-2 is a high-performance PCI-based DeviceNet interface card designed to provide reliable, deterministic connectivity between industrial PCs and DeviceNet fieldbus networks. By offloading the protocol stack processing from the host CPU, this module ensures efficient, real-time data acquisition and control, making it a critical component for power generation, oil and gas, and complex automation systems.

Features

  • Dedicated Onboard Processing: Manages the DeviceNet protocol stack to reduce host CPU load and ensure deterministic communication.
  • Flexible Configuration: Supports Master/Slave, Peer-to-Peer, and Multi-Master network configurations.
  • Advanced Messaging: Compatible with Polled, Cyclic, and Change-of-State (COS) messaging modes for optimized bandwidth.
  • Robust Isolation: Features optical isolation to protect the PCI backplane from electrical noise and field-side transients.
  • Industrial Reliability: Engineered for stability in high-vibration environments with high electromagnetic compatibility (EMC).

Applications

This communication card is typically utilized in industrial control environments requiring high-speed, reliable fieldbus integration. Common applications include turbine control systems, power plant monitoring, oil and gas process automation, and high-speed manufacturing lines where deterministic I/O updates are required.

Technical Specifications

Model SST-DN3-PCI-2
Brand Woodward
Operating Temperature 0 to 60 deg C
Weight 0.34 kg

Installation Guidelines

  • ESD Protection: Always handle the card by its edges and use a grounded wrist strap to prevent electrostatic discharge damage to internal components.
  • Power Down: Ensure the host industrial PC is completely powered down and disconnected from the AC source before inserting or removing the PCI card.
  • Seating: Ensure the card is firmly seated in a compatible PCI slot and secured with the mounting screw to maintain proper grounding and vibration resistance.
  • Cable Routing: Route DeviceNet network cables away from high-voltage power lines and sources of significant electromagnetic interference (EMI) to maintain signal integrity.
  • Cooling: Ensure the host PC chassis has adequate airflow to maintain the operating temperature within the specified 0 to 60 deg C range.

FAQ

What messaging modes does the SST-DN3-PCI-2 support?
The card supports Polled, Cyclic, and Change-of-State (COS) messaging modes to allow for flexible and efficient network bandwidth utilization.

Does this card require special drivers?
Yes, the SST-DN3-PCI-2 requires specific Woodward/SST software drivers compatible with your host operating system to interface correctly with the DeviceNet protocol stack.
