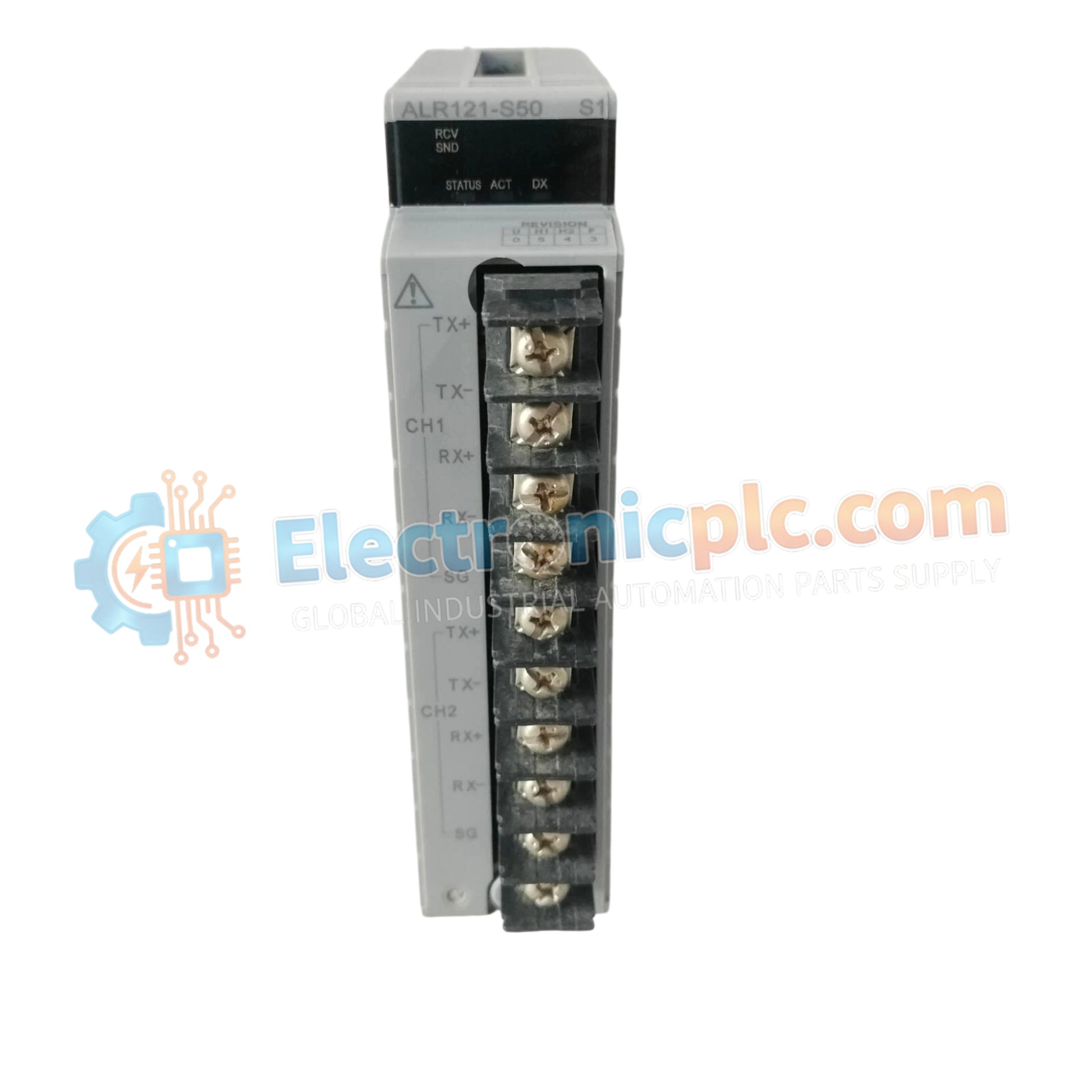

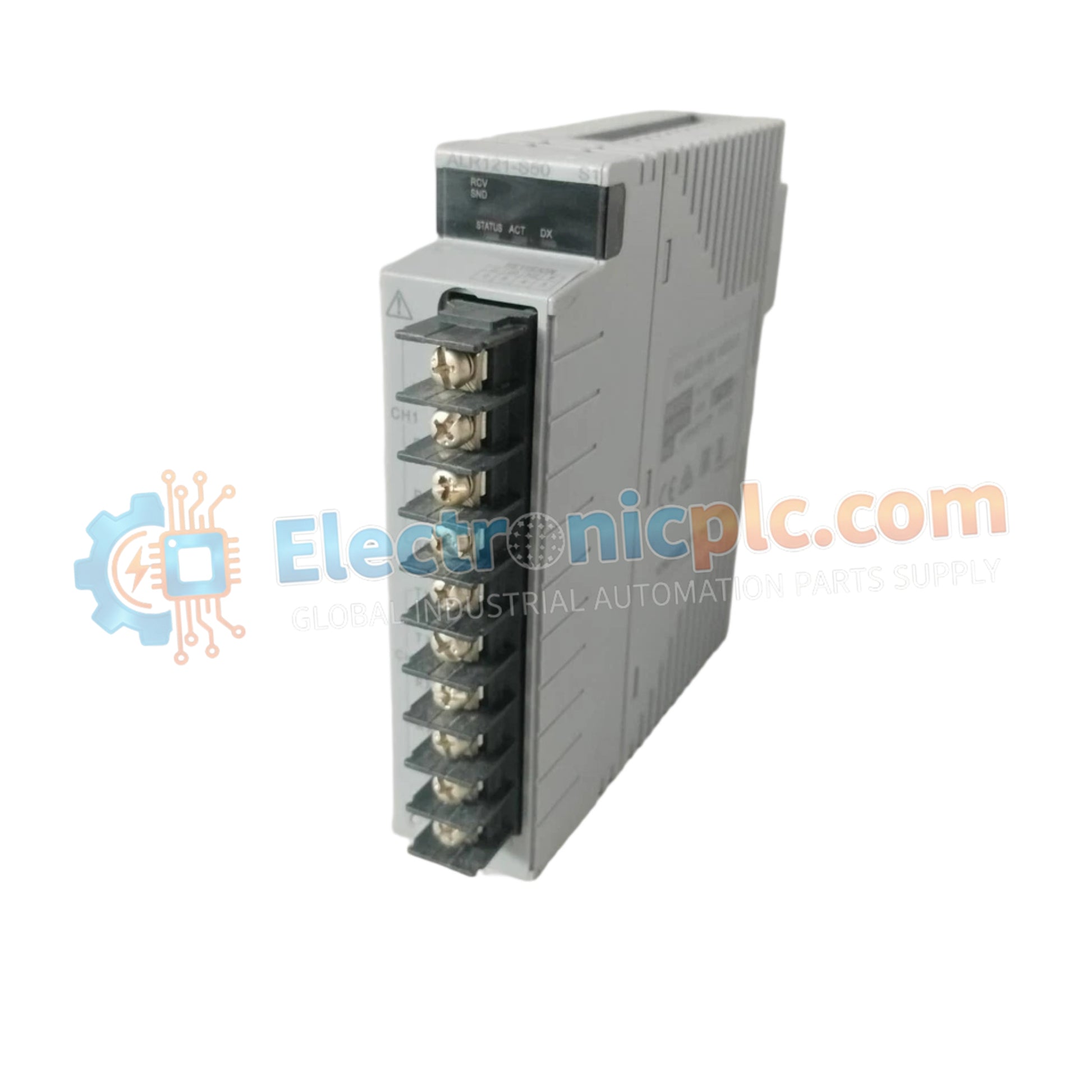

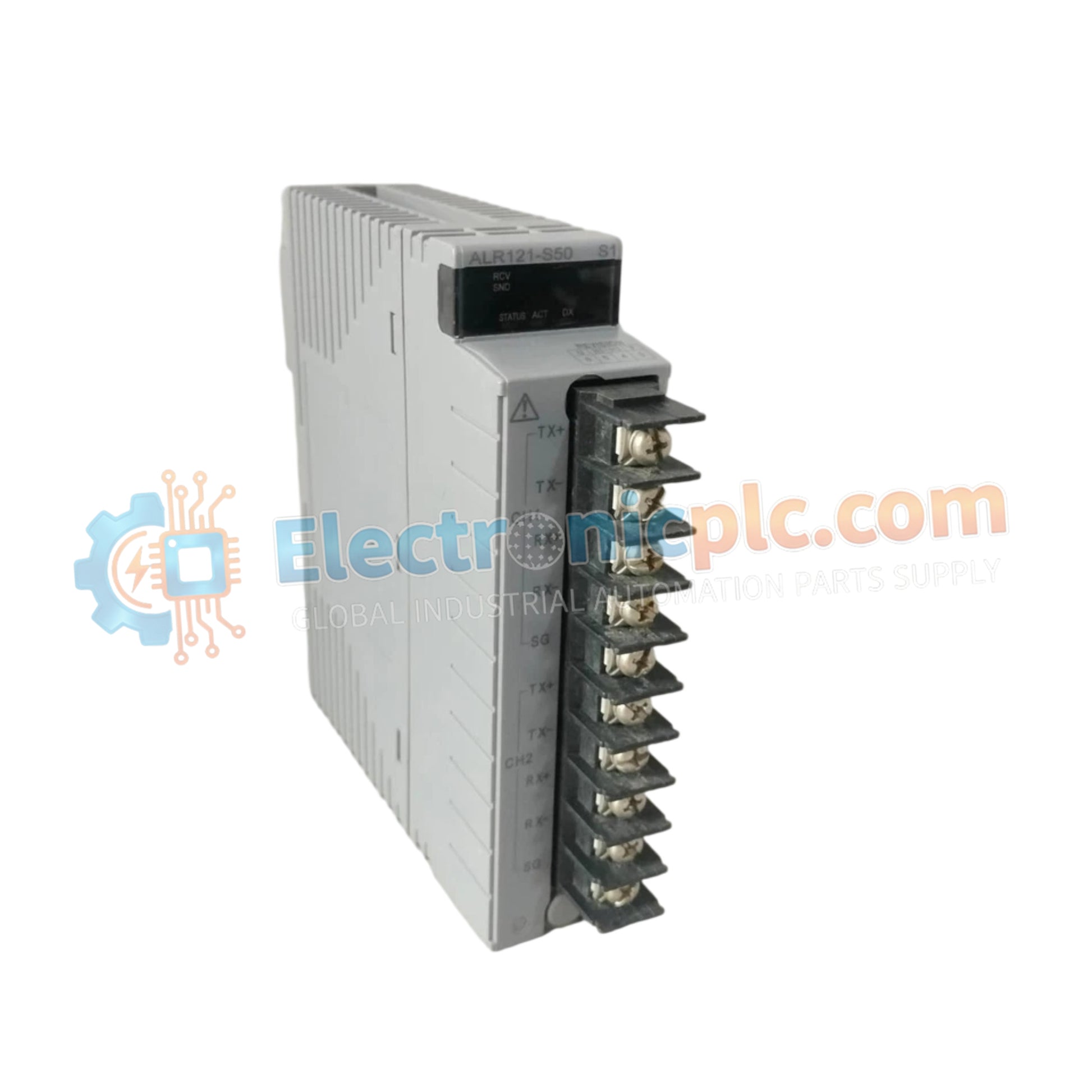

The Yokogawa ALR121-S50 S1 serves as the primary ALR121-S50 S1 Communication Module utilized to execute serial communication and subsystem interfacing across distributed control system platforms.
| Parameter | Specification |
|---|---|
| Model | ALR121-S50 S1 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.5 kg |
| Dimensions | 2.2 cm x 12.4 cm x 12.6 cm |
| Operating Temp | Standard Industrial Rating |
| Power Consumption | Standard Backplane Power |
| Interface Type | Serial Communication Module |
| Port Configuration | Dual RS-422 / RS-485 ports |
The hardware configuration maintains strict electrical isolation across communication ports to eliminate ground loop interference and suppress transient voltage surges from external field devices. Integration with standard process control communication protocols and serial interface standards ensures deterministic data exchange, high-speed buffering, and transparent command execution without degrading link reliability.
Q: What are the restrictions regarding hot-swapping the ALR121-S50 S1 module?
A: Hot-swapping is restricted unless explicit node redundancy configuration or controller-level maintenance mode activation is engaged to prevent backplane communication errors.
Q: How are external serial devices connected to the communication module?
A: Field cabling is terminated via dedicated front-panel connectors adhering to RS-422 or RS-485 pinout specifications for balanced differential signaling.
Mount the unit directly into the designated slot of the node base, ensuring physical alignment with backplane connectors before engaging securing screws. Route communication cables away from high-voltage power conduits and use shielded twisted-pair cabling to preserve data integrity. Terminate cable shielding and ground drain wires securely to the designated cabinet earth grounding bar.
