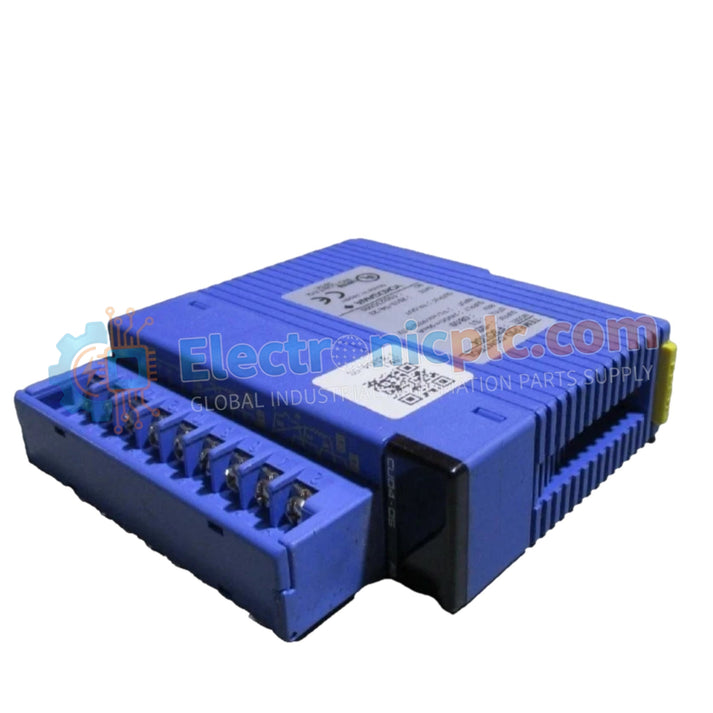

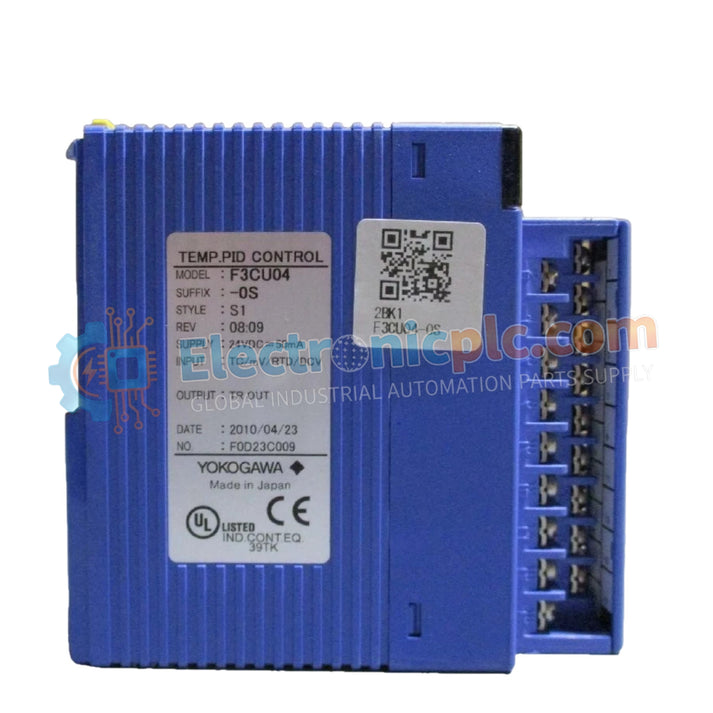

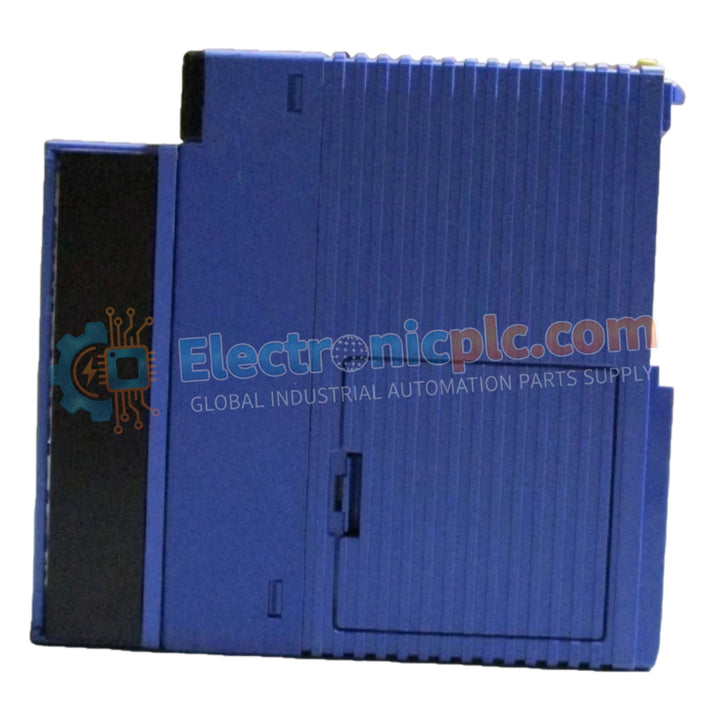

Configured for multi-loop thermal regulation in industrial automation platforms, the Yokogawa F3CU04-0S/Z01 (F3CU04-0S/Z01 Temperature Control and PID Module) provides direct physical/electrical execution.
| Parameter | ...
|---|
| Parameter | Specification |
|---|---|
| Model | F3CU04-0S/Z01 |
| Brand | Yokogawa |
| Origin | Standard Industrial Specification |
| Weight | 0.5kg |
| Dimensions | Single-slot size module |
| Operating Temp | Standard Industrial Rating |
| Power Consumption | 24 VDC, 50 mA |
| Control Loops | 4 loops (200 ms update cycle) |
| Input Accuracy | 0.1% of full scale |
The hardware configuration maintains strict electrical isolation across input channels to eliminate ground loop interference and suppress transient voltage surges from connected thermal sensors. Integration with dynamic auto-tuning algorithms and standard process control communication protocols ensures continuous setpoint regulation, high-precision conversion accuracy, and transparent PID loop execution without signal degradation.
Q: What are the restrictions regarding slot placement for the F3CU04-0S/Z01 module within a rack?
A: The module occupies a single-slot size and must be installed into designated base rack slots that support internal 24 VDC power distribution and backplane communication.
Q: How does the module handle control loop timing during multi-channel operation?
A: The module executes control algorithms across all 4 loops within a total update cycle of 200 ms, ensuring deterministic thermal response times.
Mount the unit directly into the designated base rack slot, ensuring physical alignment with backplane connectors before engaging securing latches. Route sensor inputs and control wiring away from high-voltage power conduits and use shielded twisted-pair cables to preserve measurement accuracy. Terminate cable shielding and ground drain wires securely to the designated cabinet earth grounding bar.
