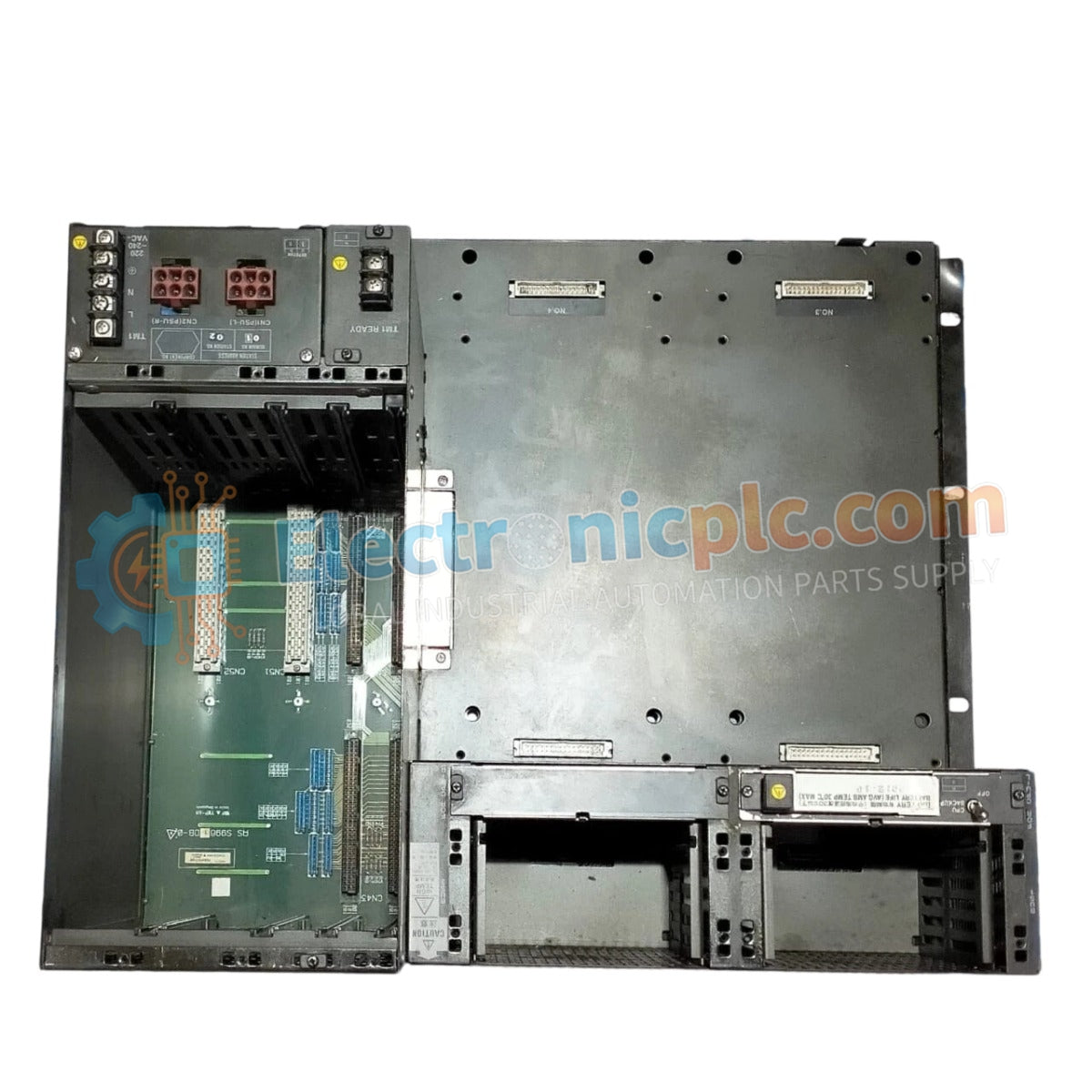

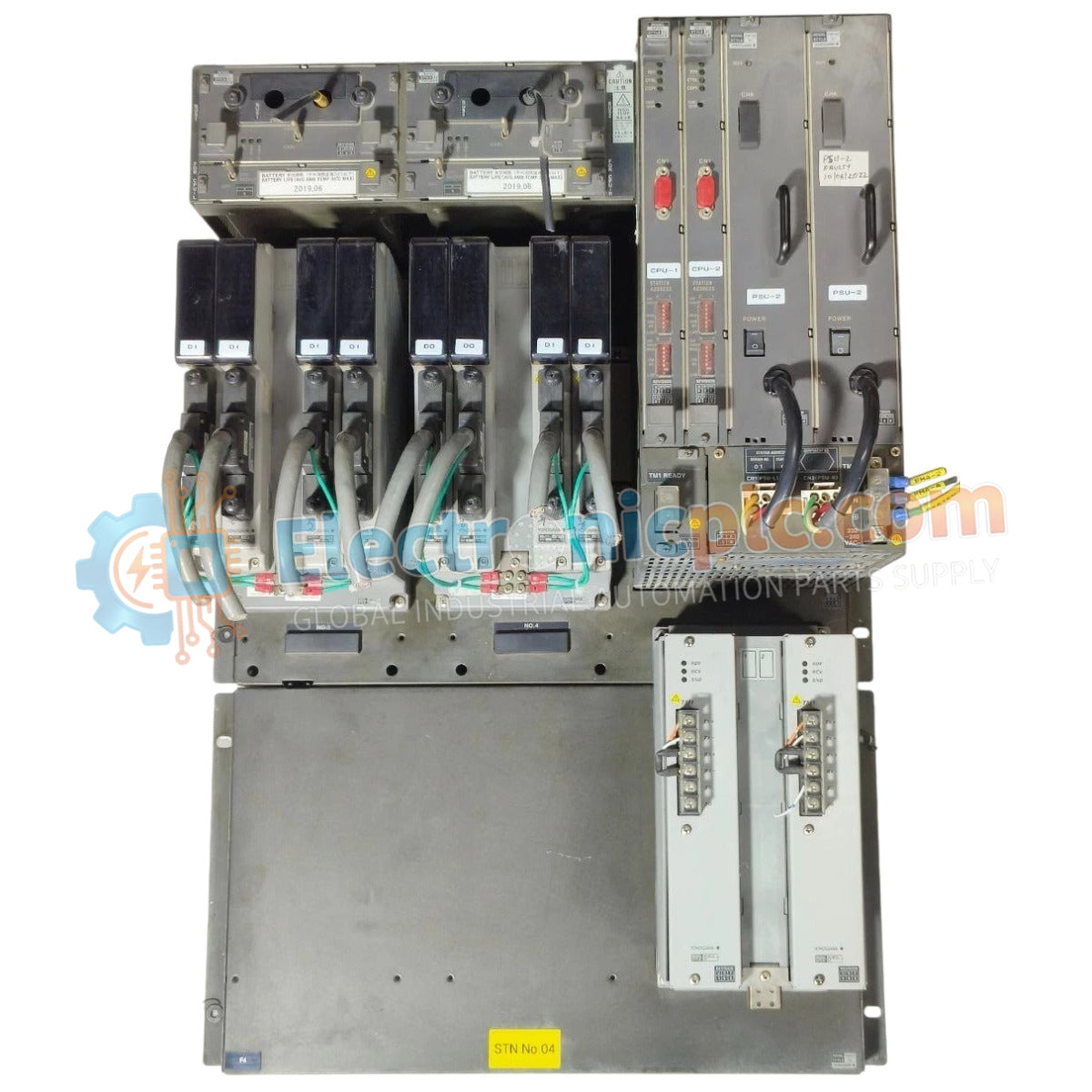

The Yokogawa PFCD-E5521 serves as the primary PFCD-E5521 Duplexed Field Control Station utilized to execute high-reliability process control and distributed automation across industrial networks.
| Parameter | Specification |
|---|---|
| Model | PFCD-E5521 |
| Brand | Yokogawa |
| Origin | japan |
| Weight | 3.5kg |
| Dimensions | Standard Rack Enclosure |
| Operating Temp | Standard Industrial Rating |
| Power Consumption | 100 to 120 VAC (200 VA), 220 to 240 VAC (300 VA), 24 VDC (9 A) |
| Processor | R4300 |
| Communication | V net Interface (dual-redundant or single) |
The hardware configuration maintains strict electrical isolation across internal bus communication and signal channels to suppress common-mode electrical noise and prevent ground fault propagation between node loops. Integration with standard 4-20 mA HART loop protocol parameters and V net communication interfaces ensures transparent transmission of process data streams directly to supervisory monitoring stations without signal degradation.
Q: What are the memory backup limitations during sudden power failure events on the PFCD-E5521?
A: Main memory is battery-backed to sustain data retention for up to 72 hours, requiring a minimum recharge time of 48 hours following full discharge.
Q: How does the FCS status contact output behave during a controller failure state?
A: The dual status contact terminals (NC, C) open automatically upon detecting an FCS failure, operating within a maximum contact rating of 30 VDC and 0.3 A.
Mount the control station securely into the designated industrial cabinet rack, ensuring proper mechanical fastening and clearance for internal cooling airflow. Route power supply lines, communication cabling, and field I/O wiring away from high-voltage conduits and use shielded twisted-pair cables to preserve signal integrity. Terminate cable shielding and ground drain wires securely to the designated cabinet earth grounding bar.
