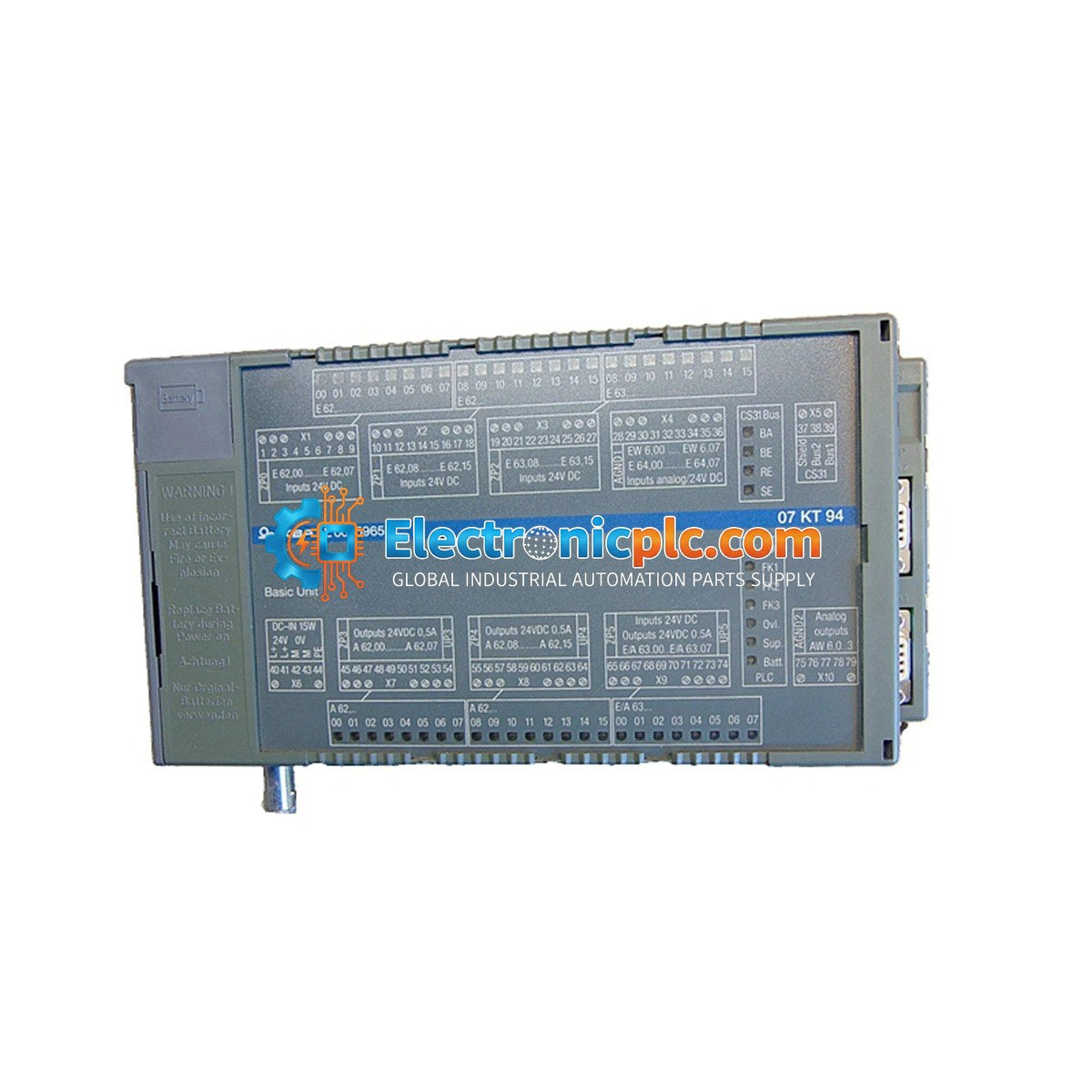

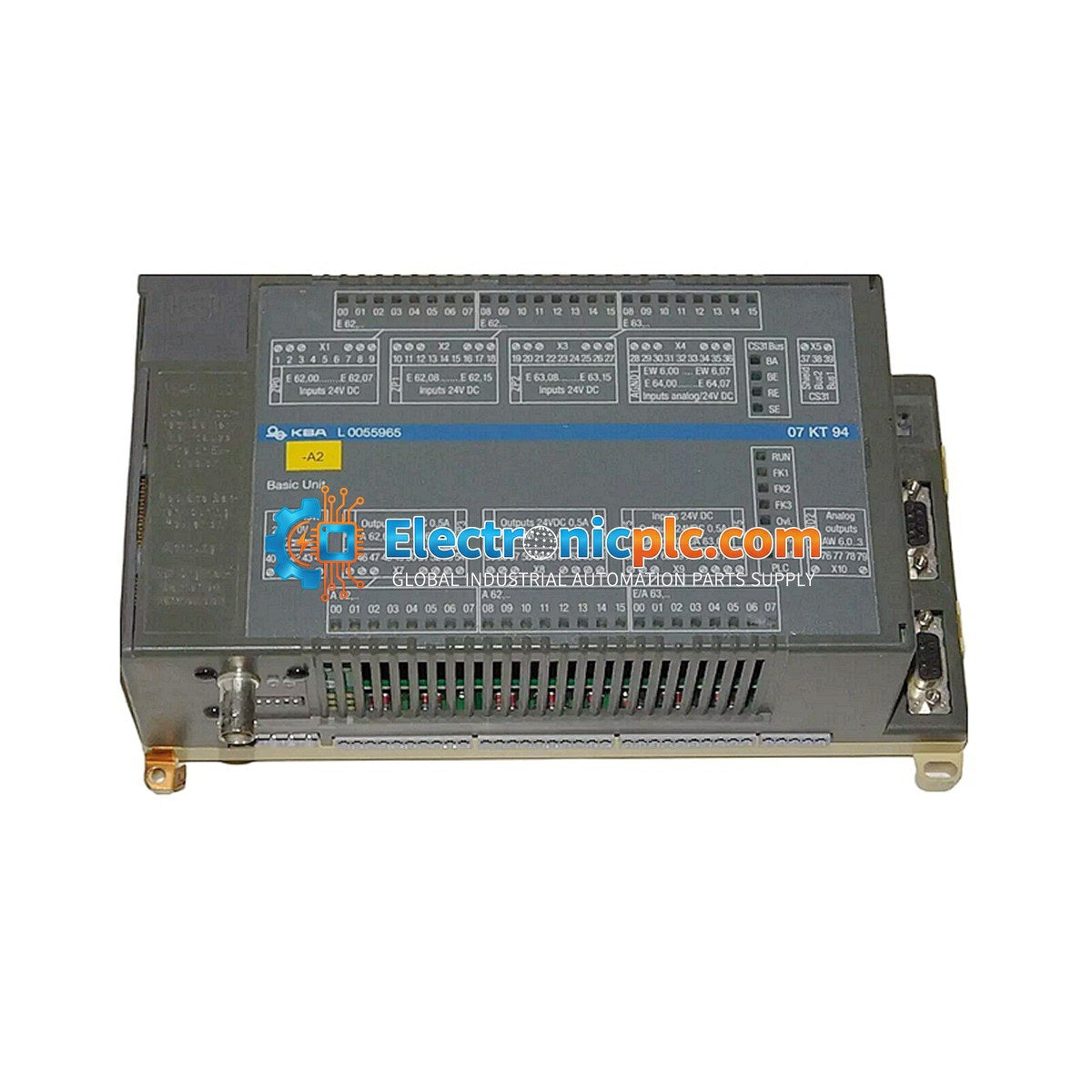

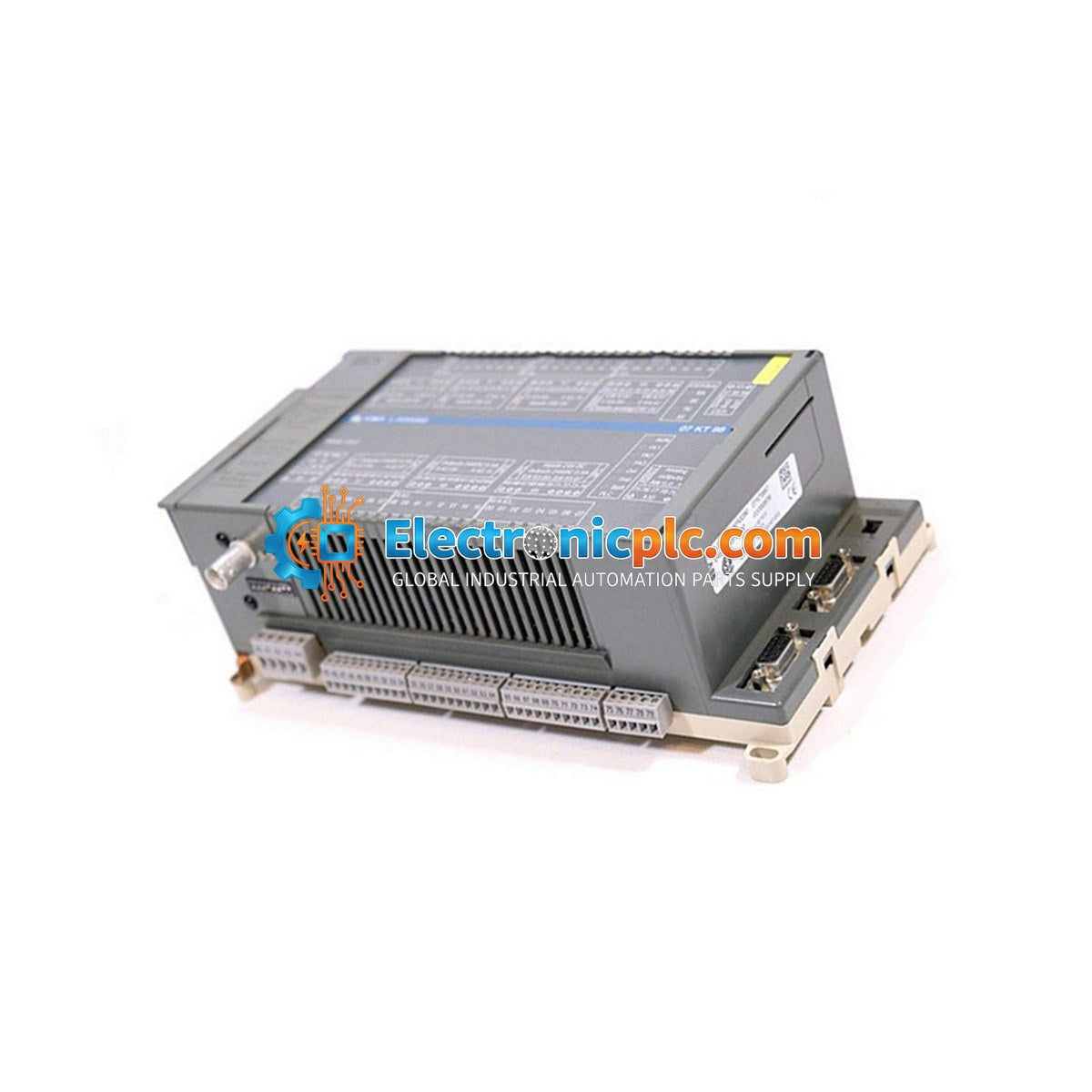

ABB 07KT94 GJR5252100R3261 Advant Controller 31 Basic Unit

ABB 07KT94 GJR5252100R3261 Advant Controller 31 Basic Unit

Description

The ABB 07KT94 (GJR5252100R3261) is a high-performance Basic Unit for the Advant Controller 31 (AC31) series. This compact controller is designed for industrial automation tasks requiring integrated logic control, analog...

15 people are viewing this right now

Availability: Low stock: 5 left

SKU: GJR5252100R3261
Vendor: ABB
Category: PLC Controller Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB 07KT94 (GJR5252100R3261) is a high-performance Basic Unit for the Advant Controller 31 (AC31) series. This compact controller is designed for industrial automation tasks requiring integrated logic control, analog signal processing, and robust communication capabilities. It serves as a central processing component in distributed control systems, offering a balance of digital and analog I/O to handle diverse field signals directly.

Features

  • Integrated I/O configuration: 24 digital inputs, 16 digital outputs, and 8 configurable digital I/O channels.
  • Advanced analog processing: Includes 8 analog inputs specifically for PT100 temperature sensors and 4 analog outputs (20 mA).
  • Memory capacity: Equipped with 240 kB of flash program memory and 120 kB of RAM for data storage.
  • Communication: Features built-in ARCNET connectivity for reliable fieldbus communication.
  • Power efficiency: Operates on a 24 VDC supply with low power consumption.

Technical Specifications

Product Model 07KT94 (GJR5252100R3261)
Supply Voltage 24 VDC
Digital Inputs 24 x 24 VDC
Digital Outputs 16 x 24 VDC
Analog Inputs 8 x PT100
Analog Outputs 4 x 20 mA
Program Memory 240 kB Flash
Data Memory 120 kB RAM
Isolation 500 V
Operating Temperature 0 to +55 degC
Storage Temperature -40 to +85 degC
Humidity 5 to 95% RH (non-condensing)

Installation Guidelines

  • Ensure the controller is mounted in a clean, dry environment protected from excessive vibration and dust.
  • Maintain proper ventilation to ensure the ambient temperature remains within the specified 0 to +55 degC range.
  • Use shielded cables for analog signals to minimize electromagnetic interference (EMI).
  • Ensure all power is disconnected before installing or removing the module from the rack or DIN rail.
  • Verify that the 24 VDC power supply is stable and correctly polarized before energizing the unit.
  • Follow standard ESD precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the primary function of the 07KT94?

The 07KT94 is a basic controller unit for the ABB Advant Controller 31 system, used to manage digital and analog I/O signals and execute control logic in industrial applications.

Can this unit handle temperature sensors directly?

Yes, the unit features 8 dedicated analog inputs designed for PT100 resistance temperature detectors, allowing for direct temperature monitoring without external signal converters.

What communication protocol does this controller support?

This model supports ARCNET communication, which is standard for the AC31 series to facilitate data exchange within the control network.
