Description

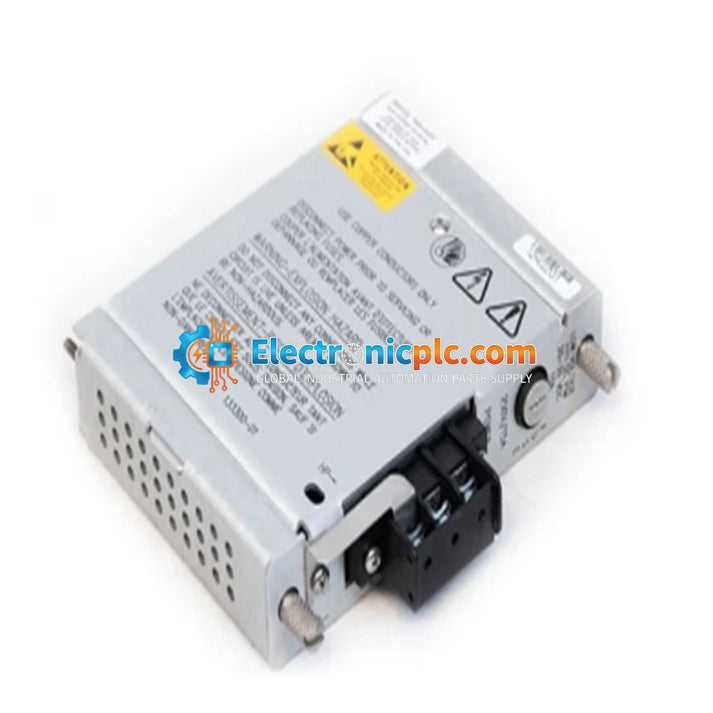

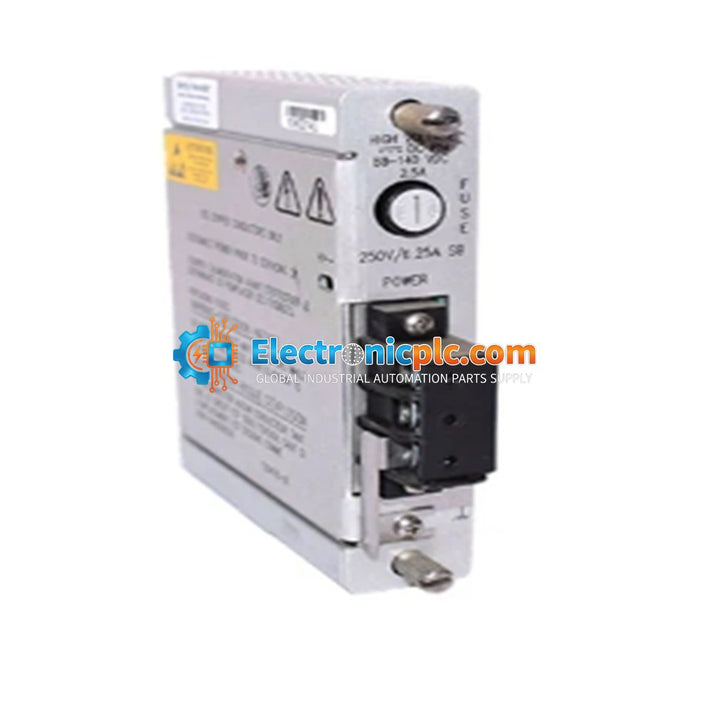

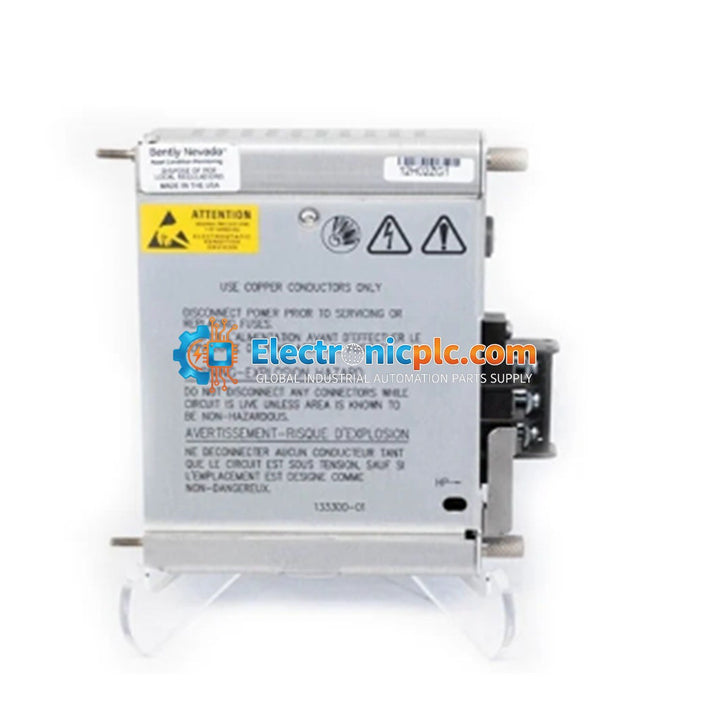

The Bently Nevada 129478-01 is a High Voltage DC Power Input Module designed for the 3500/15 Power Supply series. This module provides regulated high-voltage DC power to the 3500 machinery protection rack system, ensuring the stable operation of critical monitoring modules in industrial environments such as turbines, compressors, and other rotating equipment. The module is engineered for high-availability applications, supporting redundant power supply configurations to maintain continuous system monitoring even in the event of a single supply failure.

Features

• Designed for integration into the 3500 rack system, occupying half-height slots on the left side of the chassis.
• Supports redundant power configurations where two modules can be installed to provide seamless backup.
• Accepts a high voltage DC input range of 180 to 350 VDC.
• Provides regulated outputs to power all modules within the 3500 rack.
• Compatible with various 3500/15 power supply configurations.

Applications

This power input module is intended for use in Bently Nevada 3500 series machinery protection systems. It is commonly deployed in power generation, oil and gas, and petrochemical facilities to ensure reliable power for vibration and process monitoring instrumentation on critical rotating machinery.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is de-energized before inserting or removing the power module.
• The module is designed for installation in the designated half-height slots on the left side of the 3500 rack.
• Verify that the input voltage source matches the 180-350 VDC range before connection.
• Ensure proper grounding of the 3500 rack system to prevent electrical noise and interference.
• Handle with care to avoid electrostatic discharge (ESD) damage to internal components.

Compliance and Certifications

• Safety: EN 61010-1, LV Directive 2014/35/EU
• EMC: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions)
• Hazardous Area: CSA/NRTL/C Class I, Zone 2
• Environmental: RoHS Directive 2011/65/EU compliant

FAQ

Is this module compatible with AC power supplies?

The 129478-01 is specifically a High Voltage DC input module. While it resides in the same 3500/15 power supply family, it is designed for DC input. Please verify your system requirements and existing power supply modules before installation.

Can this module be used in a redundant configuration?

Yes, the 3500 rack system supports dual power supply configurations. You can install two modules to provide redundancy, where the lower supply typically acts as the primary and the upper as the backup.
