Description

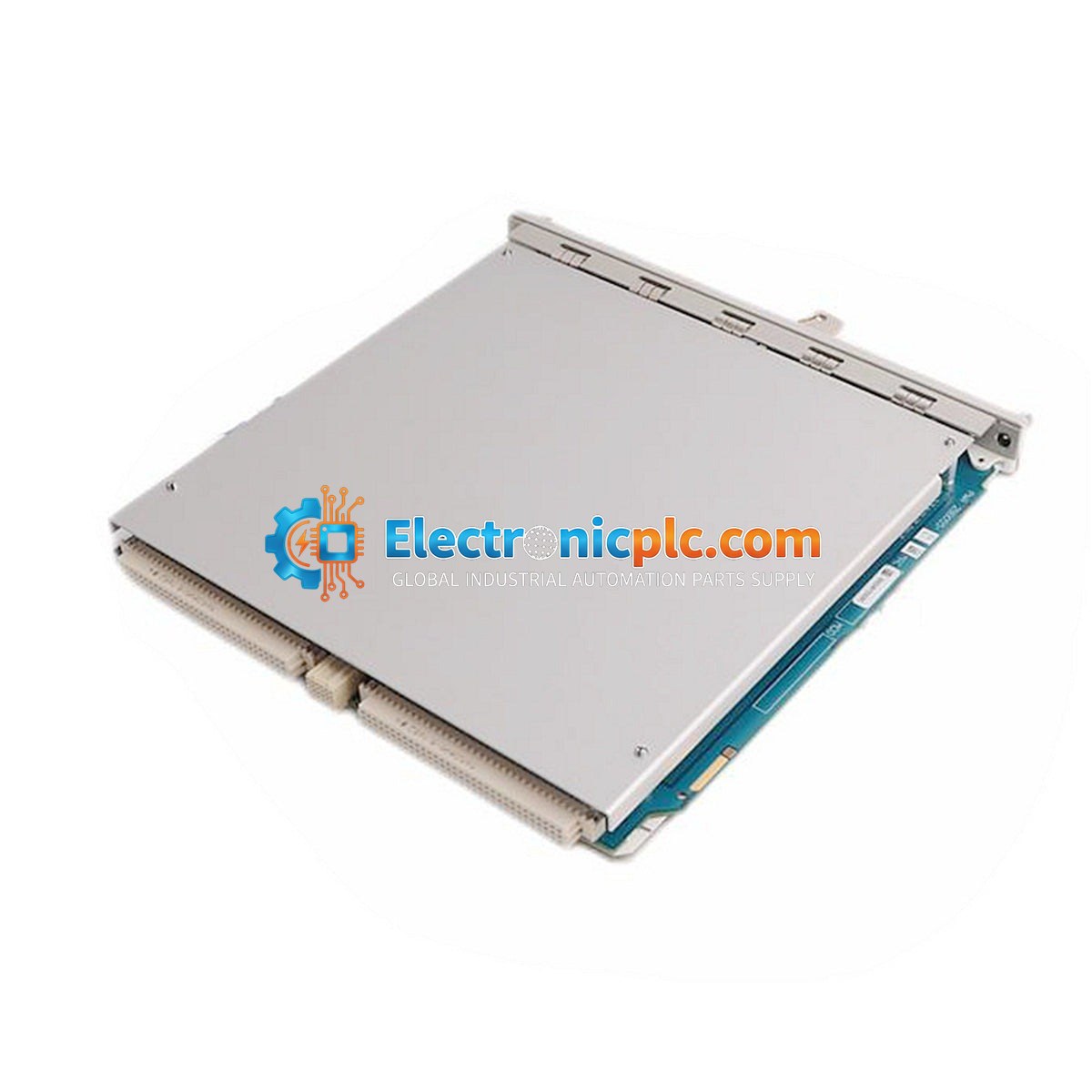

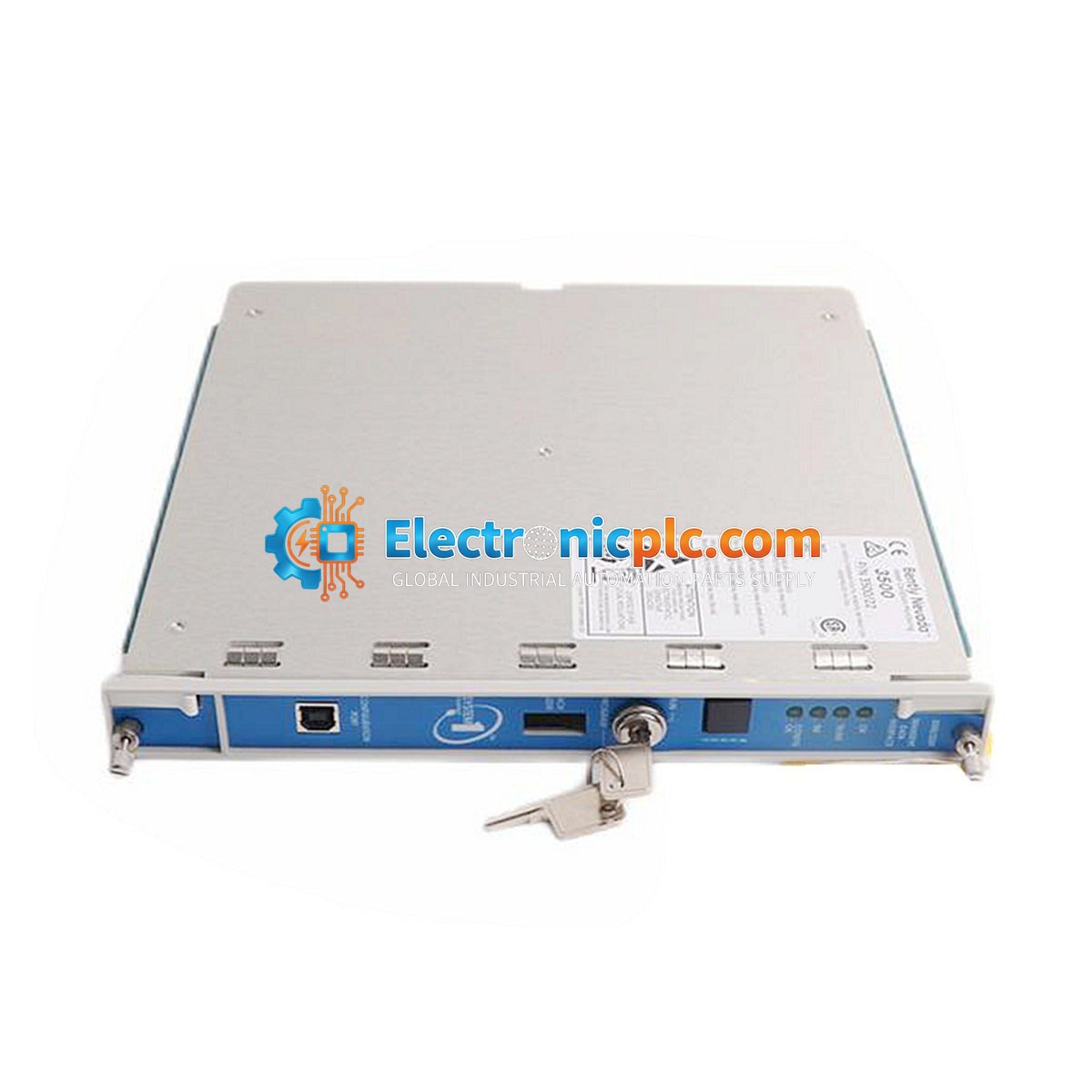

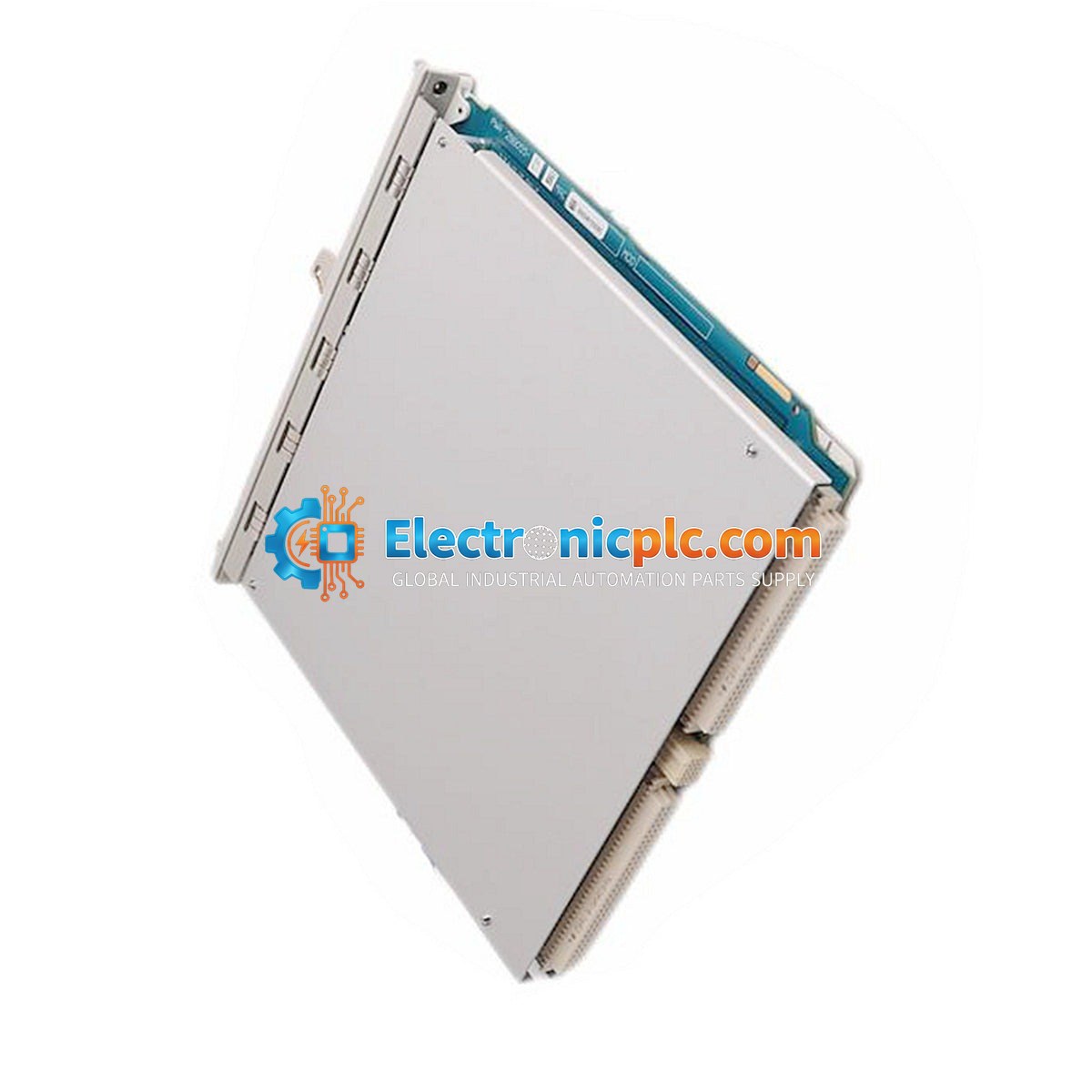

The Bently Nevada 3500/22M 288055-01 is a Standard Transient Data Interface (TDI) module designed for the 3500 Machinery Protection System. It serves as the primary gateway between the 3500 monitoring system and Bently Nevada's System 1 machinery management software. By combining the functionality of a 3500/20 Rack Interface Module (RIM) with the data collection capabilities of a communication processor, the TDI enables the continuous collection of steady-state and transient waveform data.

Features

• Integrates 3500 monitoring system data with System 1 machinery management software.
• Combines the capabilities of a 3500/20 RIM with advanced communication processor functions.
• Supports USB-B front panel connectivity for local configuration and diagnostics.
• Operates in conjunction with M-series monitors (e.g., 3500/40M, 3500/42M) for comprehensive data acquisition.
• Standard static data capture with optional dynamic/transient data capture capabilities.
• Occupies a single rack slot, typically located in Slot 1 adjacent to the power supplies.

Applications

• Power Generation: Monitoring of steam turbines, gas turbines, and large generators.
• Oil & Gas: Critical monitoring for compressors, pumps, and high-value rotating equipment.
• Chemical & Petrochemical: Vibration monitoring for large motors, blowers, and pumps in hazardous environments.
• Heavy Manufacturing: Mechanical vibration monitoring for large-scale industrial machinery.

Technical Specifications

Installation Guidelines

• The 3500/22M module is designed for installation in the designated RIM slot (Slot 1) of a 3500 rack.
• Ensure the rack power is disconnected before inserting or removing the module to prevent electrical damage.
• Handle the module using ESD-safe practices to protect internal circuitry.
• Ensure the module is fully seated and the front panel levers are engaged to ensure proper backplane connection.
• Route communication cables away from high-EMI sources to maintain signal integrity.
• Verify that the rack configuration matches the module settings before commissioning.

FAQ

What is the primary role of the 3500/22M?

The 3500/22M acts as the communication interface that links the 3500 monitoring system to external software, such as System 1, allowing for data collection and system management.

Where should this module be installed in the rack?

The TDI module must be installed in Slot 1 of the 3500 rack, which is the position immediately adjacent to the power supply modules.

Is this module compatible with older systems?

The 288055-01 is the updated version of the Transient Data Interface, replacing older versions such as the 138607-01. It is designed to be backward compatible within the 3500 rack environment.
