Description

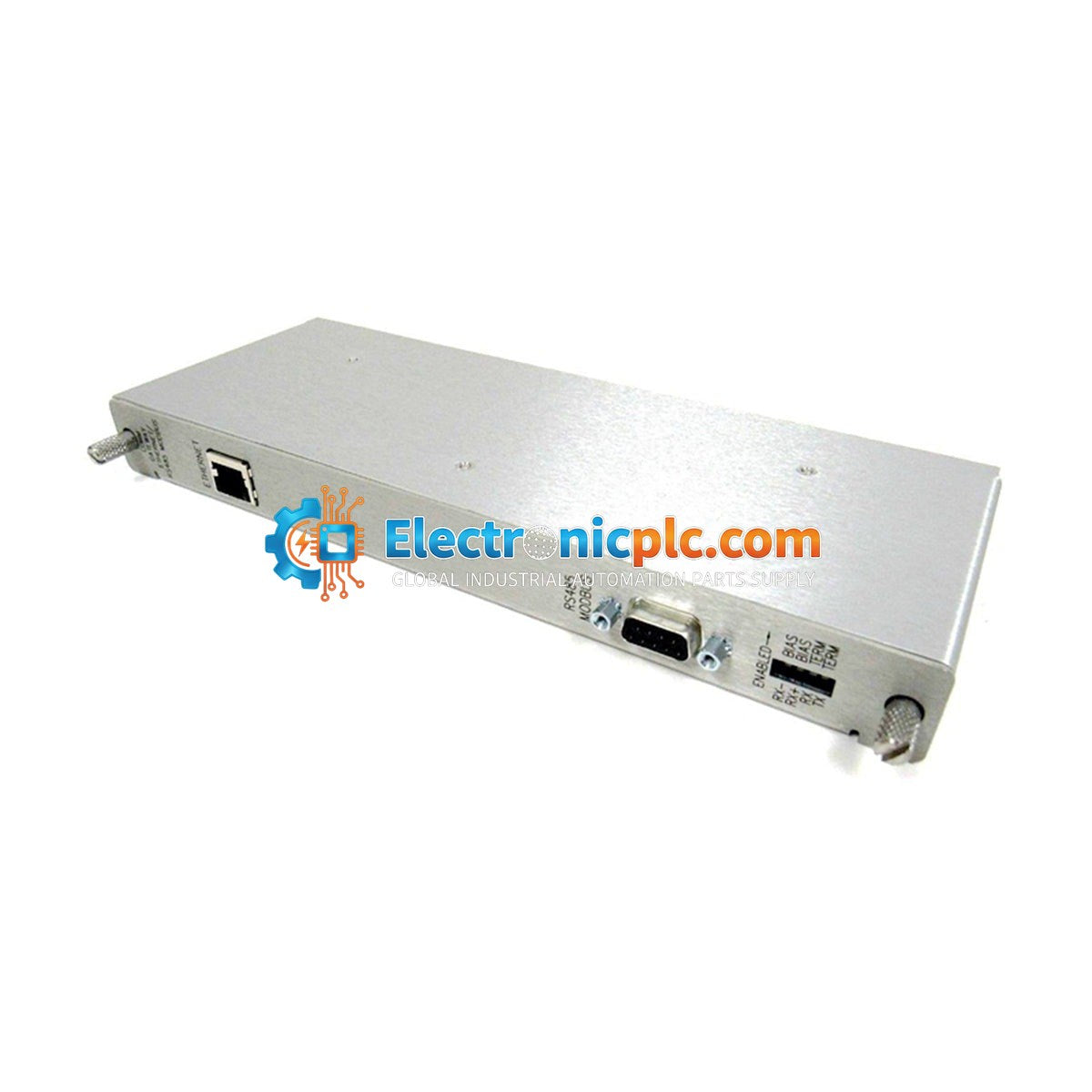

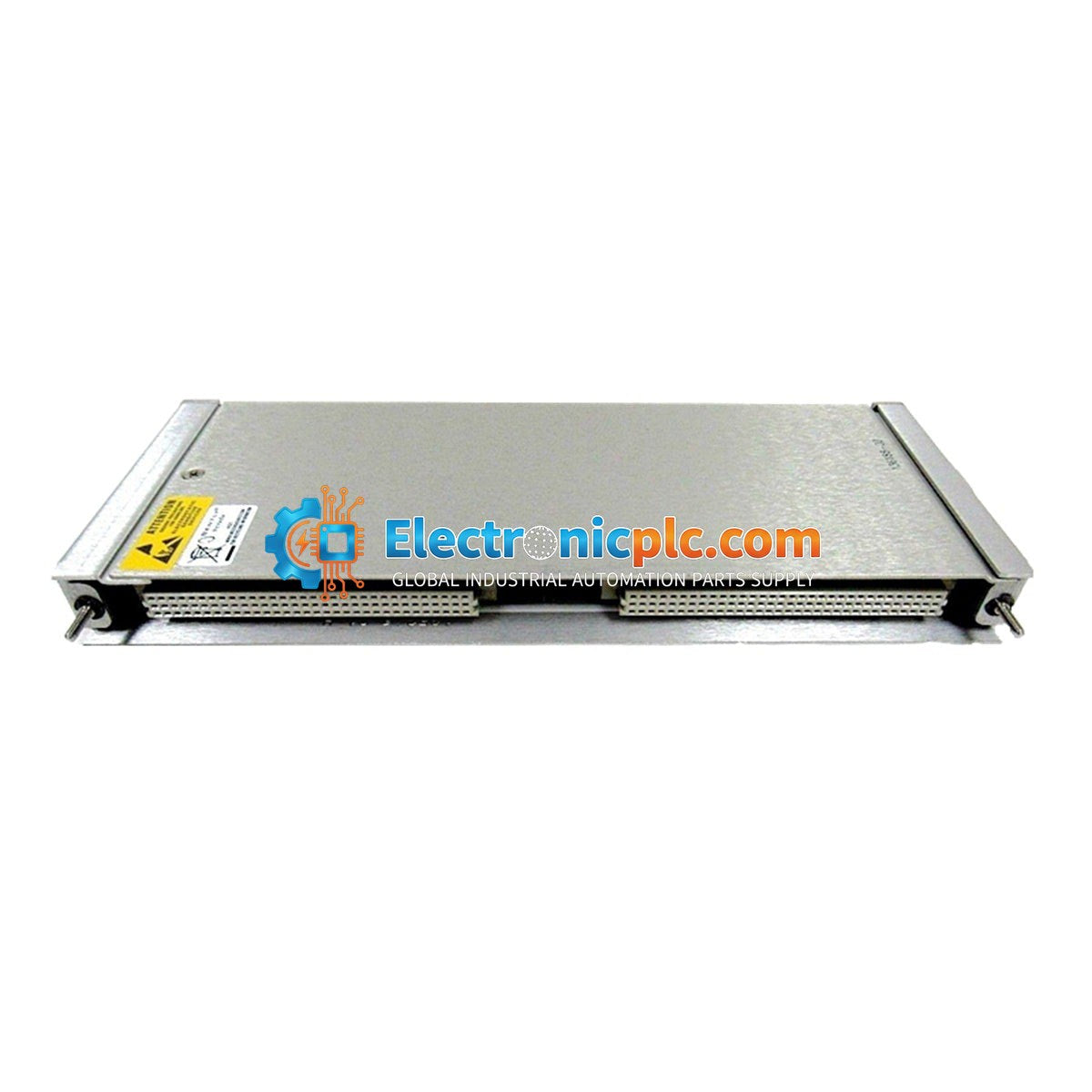

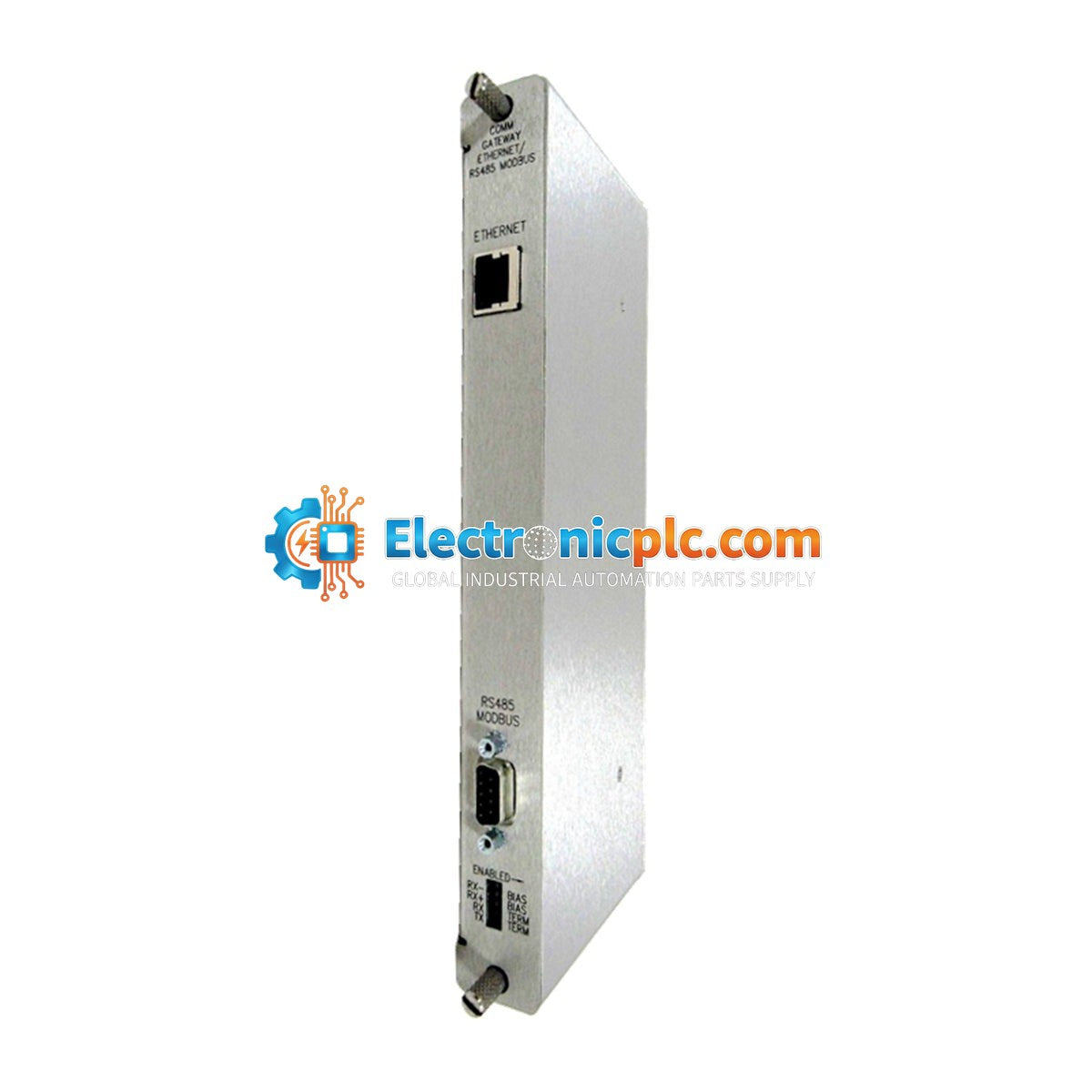

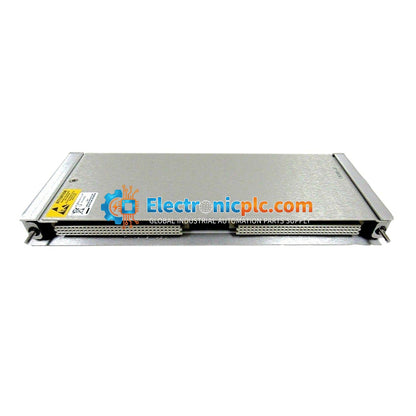

The Bently Nevada 136188-01 is a Communication Gateway I/O Module designed for integration within the 3500 Machinery Protection System. This module serves as a critical interface, enabling data exchange between the 3500 rack and external systems, such as Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), or Human-Machine Interfaces (HMI). It facilitates seamless communication using industry-standard protocols, specifically Modbus, to ensure reliable monitoring and control of rotating machinery.

Features

• Provides high-speed data transfer between the 3500 rack and external host systems.
• Supports Modbus protocol for broad compatibility with third-party automation equipment.
• Integrated Ethernet (10 BASE-T) and RS-232 serial interfaces for flexible connectivity.
• Designed for robust performance in demanding industrial environments with high isolation voltage.
• Low power consumption profile for efficient rack thermal management.

Applications

This communication gateway is typically deployed in power generation, oil and gas, and petrochemical facilities. It is used to transmit vibration, position, and process data from Bently Nevada monitoring racks to plant-wide control networks for centralized monitoring, alarming, and diagnostic analysis.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack power is disconnected before installing or removing the module.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
• Verify that the module is fully seated in the designated rack slot and that the front panel screws are tightened to ensure proper grounding and mechanical stability.
• Use shielded cables for RS-232 and Ethernet connections to minimize EMI (Electromagnetic Interference) in industrial environments.
• Maintain adequate clearance around the rack to facilitate proper airflow and cooling, adhering to the specified operating temperature range.

FAQ

What is the primary function of the 136188-01 module?

The 136188-01 acts as a communication gateway, allowing the Bently Nevada 3500 system to communicate with external control systems like PLCs or DCS using Modbus protocol over Ethernet or RS-232.

Is this module hot-swappable?

The 3500 system modules are generally designed for hot-swapping; however, always consult your specific site safety procedures and the Bently Nevada 3500 system manual before performing maintenance on an active rack.
