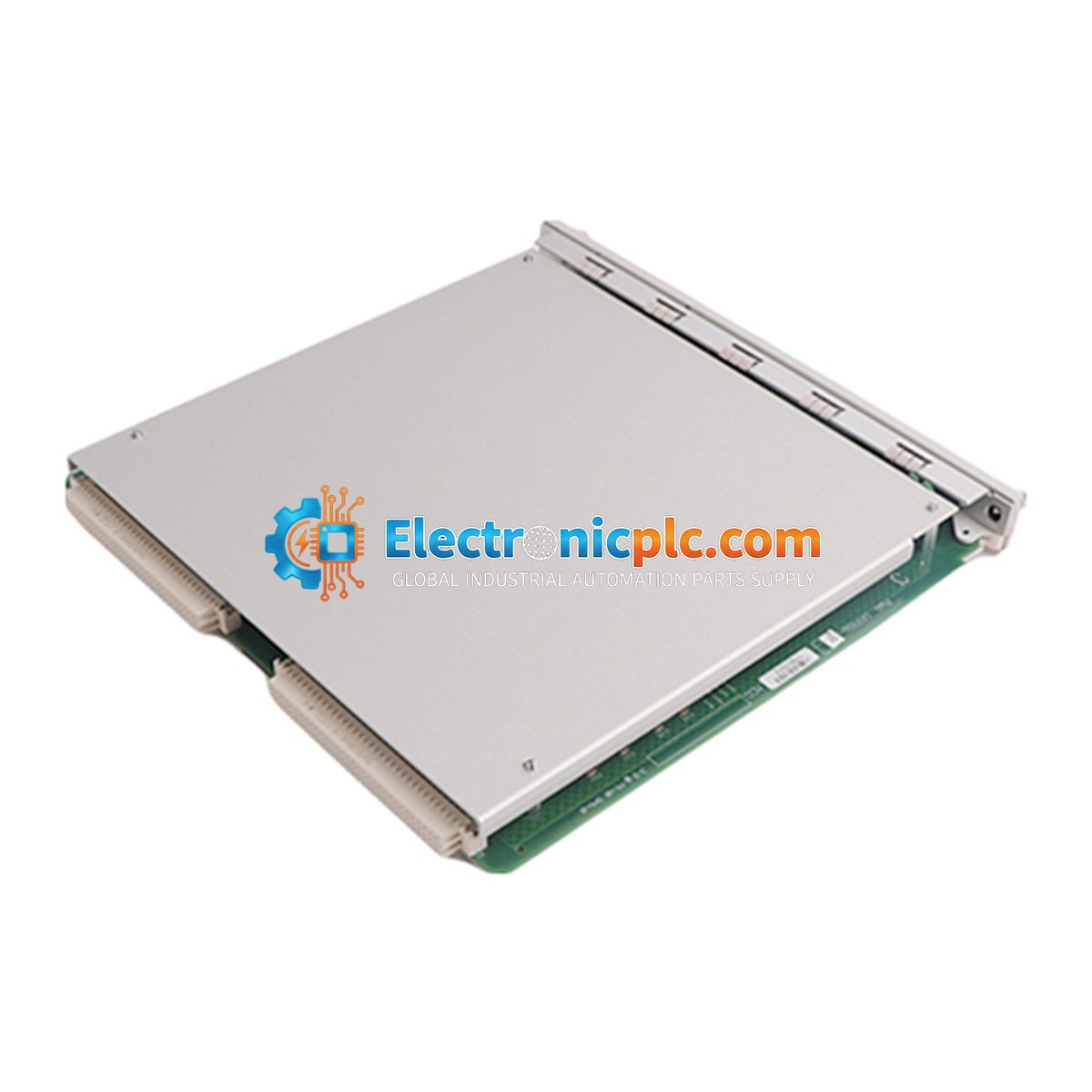

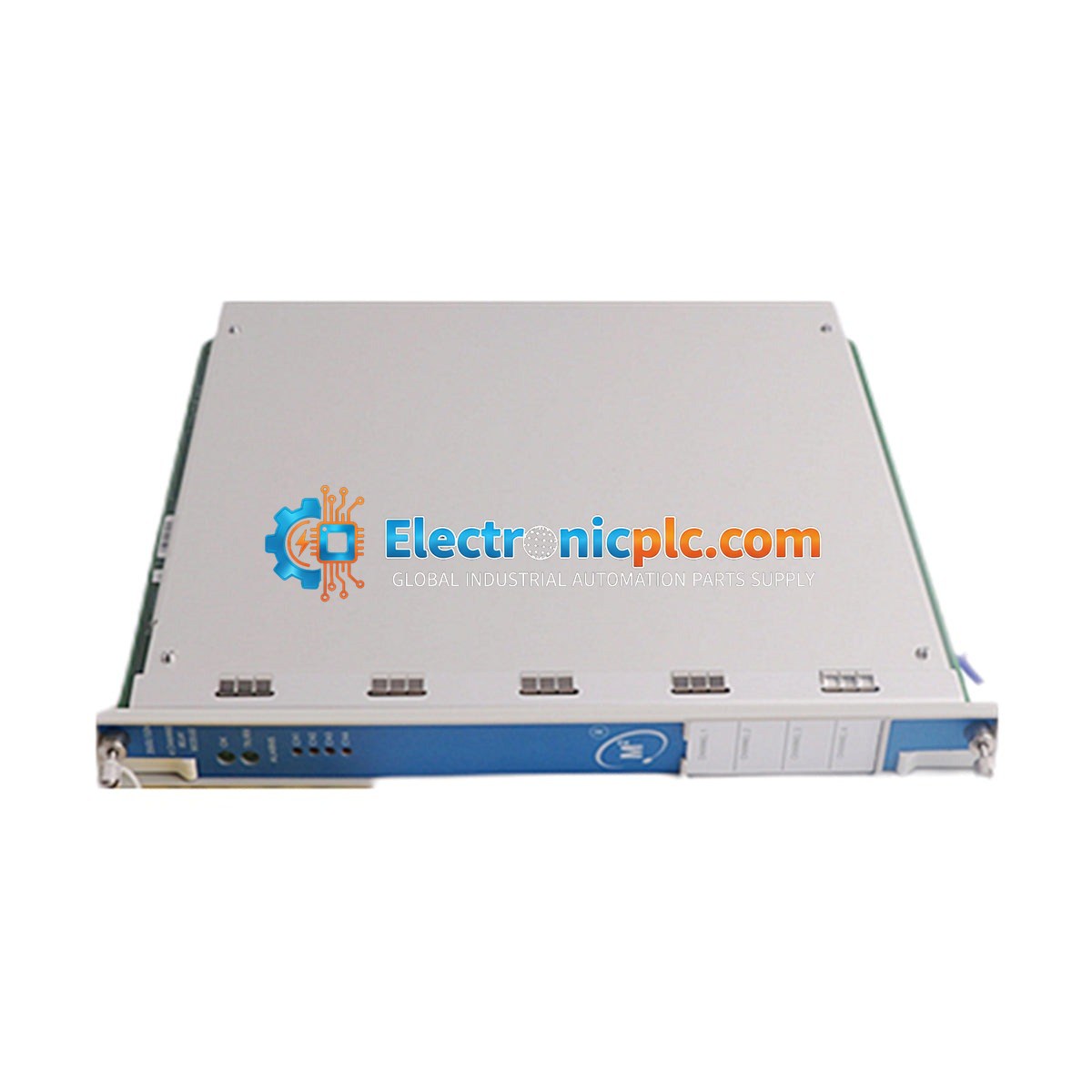

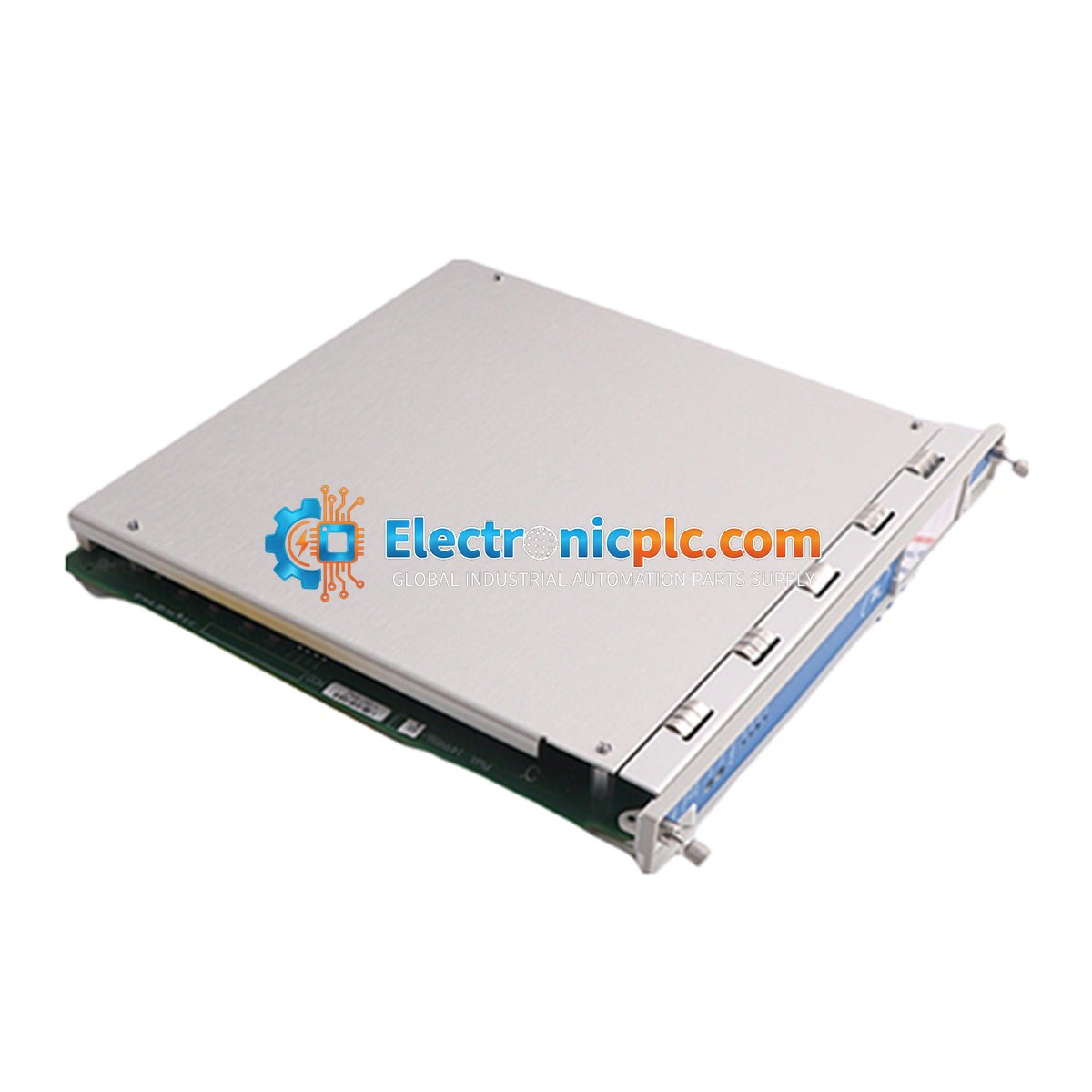

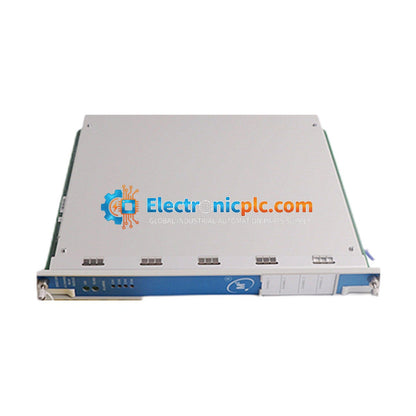

Bently Nevada 3500/32M 149986-02 4-Channel Relay Module

Bently Nevada 3500/32M 149986-02 4-Channel Relay Module

Description

The Bently Nevada 3500/32M (order code 149986-02) is a 4-channel, full-height relay module designed for the 3500 Machinery Protection System. This module provides four independent relay outputs that serve as...

19 people are viewing this right now

Availability: Low stock: 6 left

SKU: 149986-02
Vendor: Bently Nevada
Category: Relay Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 3500/32M (order code 149986-02) is a 4-channel, full-height relay module designed for the 3500 Machinery Protection System. This module provides four independent relay outputs that serve as critical interfaces for alarm and machinery shutdown functions. It requires a 3500/22 Transient Data Interface (TDI) module to operate within the rack and supports complex, user-defined voting logic to ensure reliable machine protection.

Features

  • Full-height module design for 3500 rack integration.
  • Four independent, programmable relay outputs.
  • Supports advanced alarm drive logic using AND/OR gates.
  • Configurable via Bently Nevada 3500 Rack Configuration Software.
  • Epoxy-sealed relay construction for environmental durability.
  • Integrated arc suppression (250 Vrms) for contact protection.

Applications

  • Electric Power: Steam turbine generators, gas turbines, and large water pumps.
  • Oil & Gas: Centrifugal and reciprocating compressors, turbine-driven pumps, and offshore power systems.
  • Petrochemical: Ethylene cracking gas compressors and ammonia compressors.
  • Steel & Metallurgy: Blast furnace blowers and rolling mill motors.
  • Maritime: Main propulsion systems and auxiliary power generation monitoring.

Technical Specifications

Product Model 3500/32M 149986-02
Output Type Single-pole, double-throw (SPDT) relays
Number of Channels 4
Max Switched Voltage 250 Vac / 30 Vdc
Max Switched Current 2 A
Power Consumption 5.8 W (typical)
Contact Life 100,000 cycles @ 5 A, 24 Vdc or 240 Vac
Operating Temperature -30 degC to +65 degC
Storage Temperature -40 degC to +85 degC

Installation Guidelines

  • Rack Placement: Install in any slot to the right of the 3500/22 Transient Data Interface (TDI) module.
  • Safety Warning: Always power down the rack before inserting or removing modules to prevent electrical damage or unexpected signal triggering.
  • Wiring: Use caution when connecting high-voltage field wiring. Ensure no conductors are exposed to prevent shock hazards.
  • Functional Safety: If used in SIL or hazardous area applications, restrict switched voltage to 30 Vdc/Vac to maintain compliance.
  • Handling: Use standard ESD precautions when handling the module to protect internal circuitry.

FAQs

What is the 3500/32M 149986-02?

It is a 4-channel, full-height relay module for the Bently Nevada 3500 Monitoring System, used to provide alarm and control outputs for machinery protection.

Does this module support voting logic?

Yes, each of the four relay outputs can be independently programmed using AND/OR logic gates to trigger based on specific alarm inputs or channel statuses.

Where is this module installed?

The module is installed in the 3500 rack, specifically in any slot located to the right of the 3500/22 Transient Data Interface (TDI) module.
