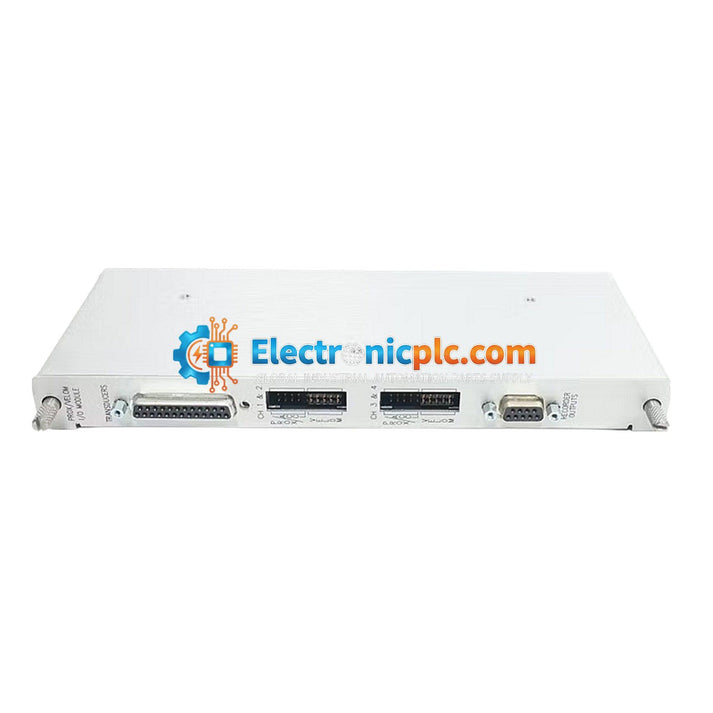

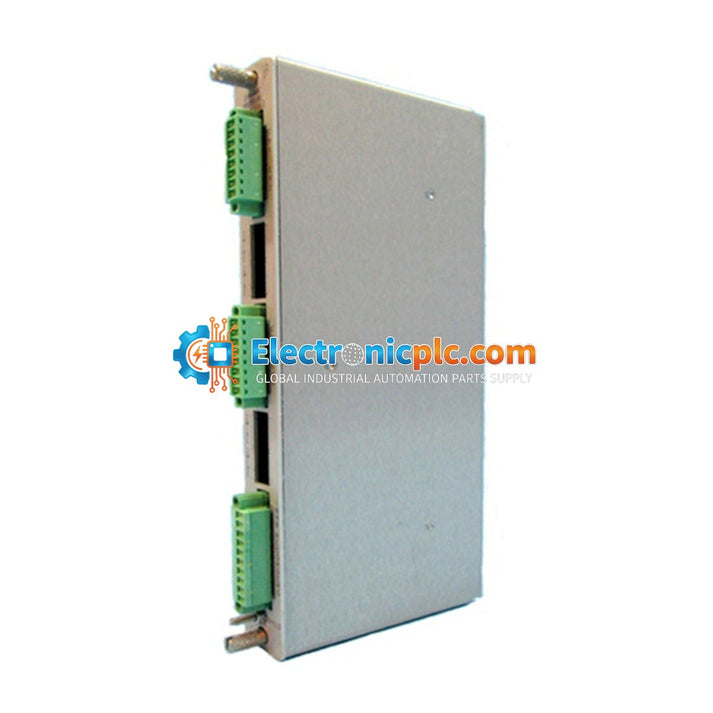

Bently Nevada 140482-01 Prox/Velom I/O Module

Bently Nevada 140482-01 Prox/Velom I/O Module

Description

The Bently Nevada 140482-01 is a Prox/Velom I/O module designed for use within the Bently Nevada 3500 Machinery Protection System. This module acts as the interface between the system's monitoring...

17 people are viewing this right now

Availability: Low stock: 4 left

SKU: 140482-01
Vendor: Bently Nevada
Category: I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 140482-01 is a Prox/Velom I/O module designed for use within the Bently Nevada 3500 Machinery Protection System. This module acts as the interface between the system's monitoring capabilities and the field sensors, specifically supporting proximity and velocity (Velomitor) sensors. This version features external terminations, allowing for flexible field wiring configurations in industrial monitoring racks.

Features

  • Designed for integration with Bently Nevada 3500 series monitoring systems.
  • Supports both Proximitor and Velomitor sensor inputs.
  • External termination design for simplified field wiring and maintenance.
  • Robust operating temperature range suitable for harsh industrial environments.
  • Provides stable sensor supply voltage for consistent signal acquisition.

Applications

This module is primarily used in critical machinery protection applications, including the monitoring of rotating equipment such as turbines, compressors, pumps, and motors. It is essential for vibration analysis and displacement monitoring where proximity and velocity sensors are deployed.

Technical Specifications

Product Model 140482-01
Module Type Prox/Velom I/O Module
Proximitor Input 0-10 Vdc or +/-10 Vdc
Sensor Supply -24 Vdc at 4 mA
Velomitor Input +/-5 V or +/-10 V
Operating Temperature -40 degC to +85 degC
Storage Temperature -55 degC to +90 degC
Humidity 5% to 95% RH (non-condensing)

Installation Guidelines

  • Ensure the 3500 rack power is disconnected before installing or removing the I/O module.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
  • Ensure the module is fully seated in the designated slot and that the external terminal blocks are securely fastened.
  • Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Verify that all field wiring matches the specific pinout requirements for the proximity or velocity sensors being utilized.

FAQ

What is the primary function of the 140482-01 module?
This module serves as an I/O interface for the 3500 system, specifically handling signals from proximity and velocity sensors to support machinery vibration monitoring.

Does this module require external terminations?
Yes, the 140482-01 is specifically designed to work with external termination blocks, which are used to connect field wiring to the 3500 rack.
