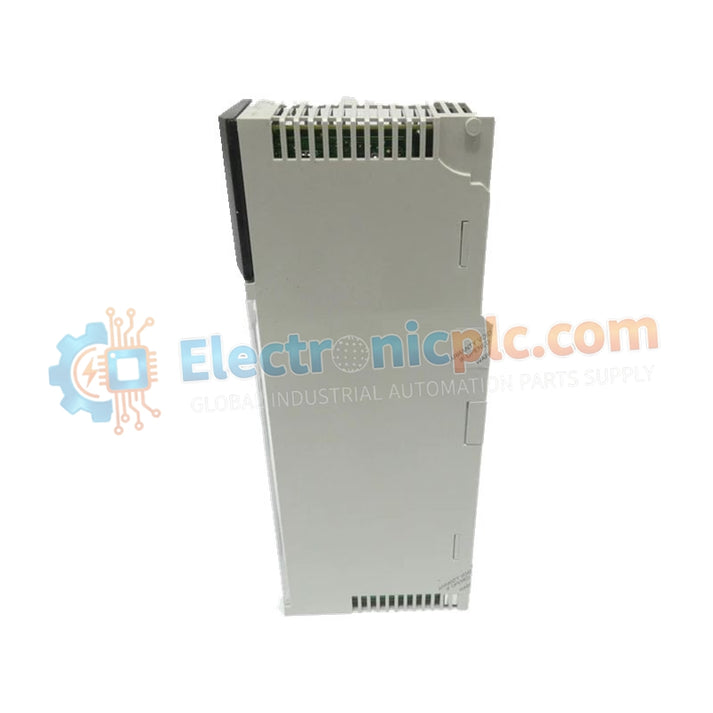

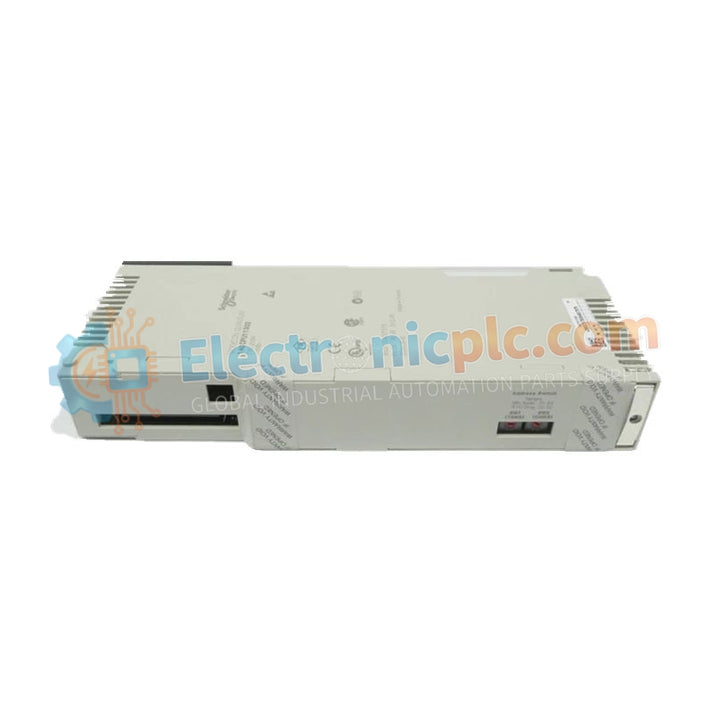

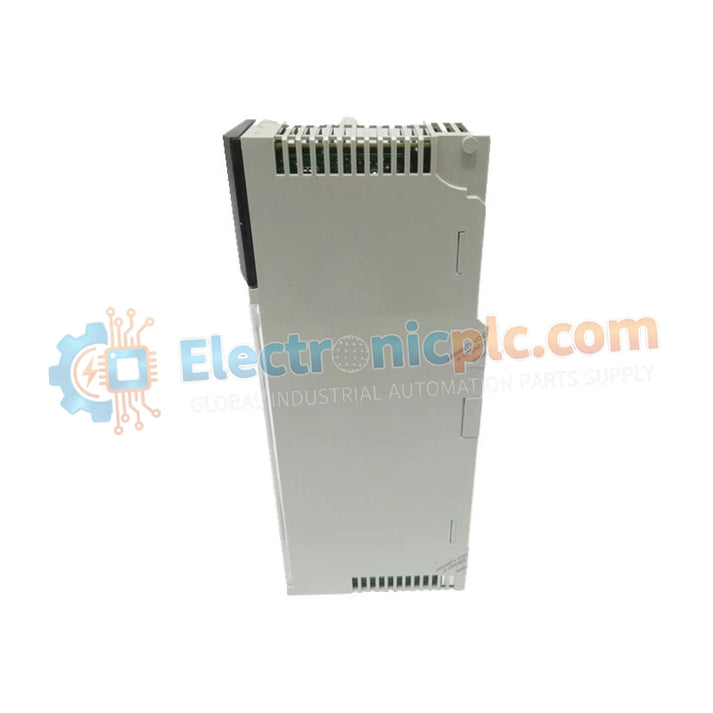

140CPU11302 Schneider Electric PLC Central Processing Unit

140CPU11302 Schneider Electric PLC Central Processing Unit

Product Description

The 140CPU11302 (140-CPU-113-02) is a single-slot central processing unit for the Schneider Electric Modicon Quantum platform. Built on the Intel 80186 architecture, it delivers deterministic logic execution ideal for small-to-medium industrial applications. Optimized for LL984 ladder logic,...

16 people are viewing this right now

Availability: Low stock: 94 left

SKU: 140CPU11302
Vendor: Schneider
Category: PLC Central Processing Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 140CPU11302 (140-CPU-113-02) is a single-slot central processing unit for the Schneider Electric Modicon Quantum platform. Built on the Intel 80186 architecture, it delivers deterministic logic execution ideal for small-to-medium industrial applications. Optimized for LL984 ladder logic, this processor ensures reliable control in manufacturing, material handling, and infrastructure systems.

Operating at 20 MHz, the 140CPU11302 balances computational efficiency with low power consumption. It features a watchdog timer, dual communication ports (Modbus Plus and Modbus RS-232), and supports distributed I/O networks, making it suitable for legacy Quantum installations requiring dependable, low-footprint processing.

Technical Specifications

Parameter Specification
Processor Architecture Intel 80186
Model Number 140CPU11302
Clock Speed 20 MHz
User Memory 109 KB Internal RAM
Logic Execution 0.3 – 1.4 ms per K-instruction (LL984)
Communication Interfaces 1 x Modbus Plus (DB9), 1 x Modbus RS-232 (9-pin)
Watchdog Timer 250 ms
Discrete I/O Support Up to 8,192 In / 8,192 Out
Analog I/O Support Up to 512 In / 512 Out
Operating Temperature 0°C – 60°C (32°F – 140°F)
Weight 0.91kg

Networking and Connectivity

  • Modbus Plus: 1 Mbps peer-to-peer network for global I/O and multi-node communication.

  • Modbus RS-232: Direct point-to-point connection for programming terminals or serial devices.

Engineering FAQ

Which programming software is compatible with the 140CPU11302?
It is compatible with Concept, ProWORX NxT, and ProWORX 32, specifically optimized for LL984 ladder logic.

Can this processor handle high-speed motion control?
No, the 20 MHz clock and 0.3–1.4 ms instruction times are better suited for general automation. For high-speed coordinated motion or high-axis-count applications, a Unity-class Quantum CPU is recommended.
