Product Details

Product Overview

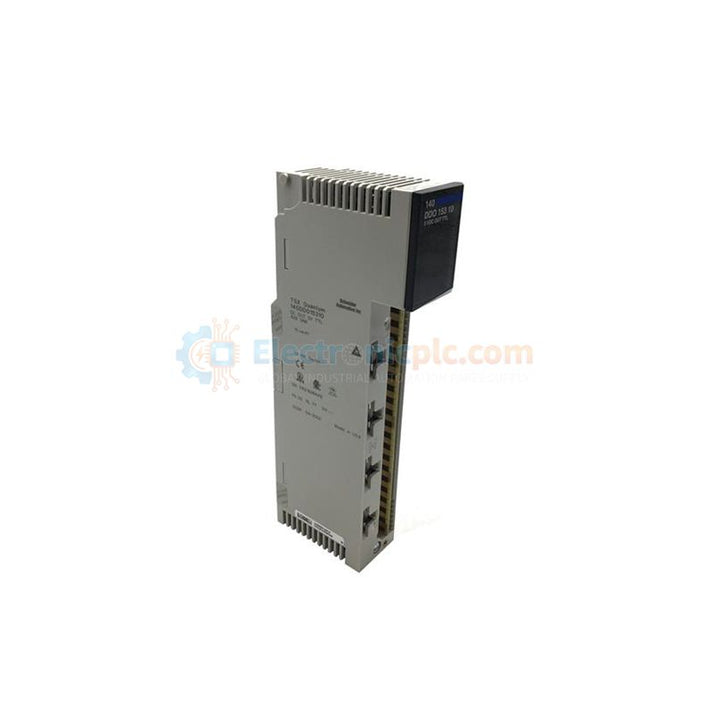

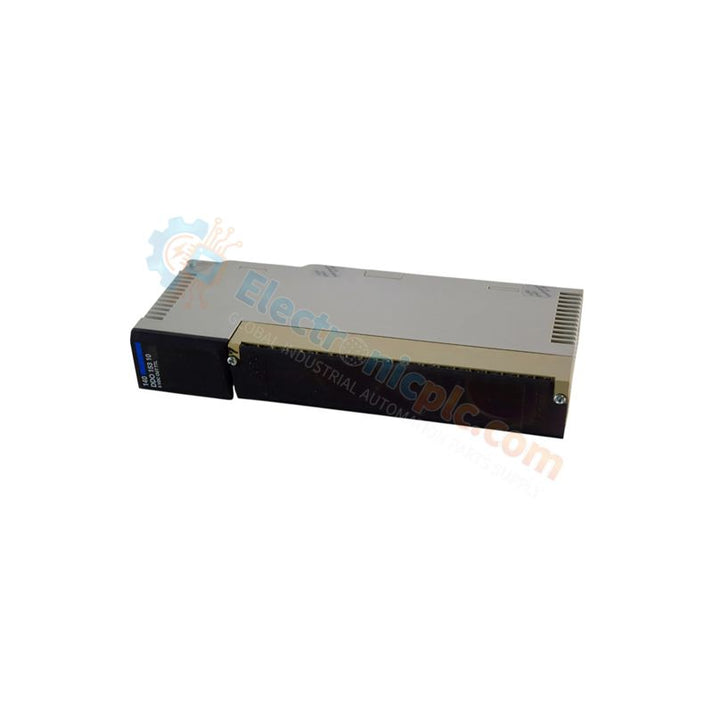

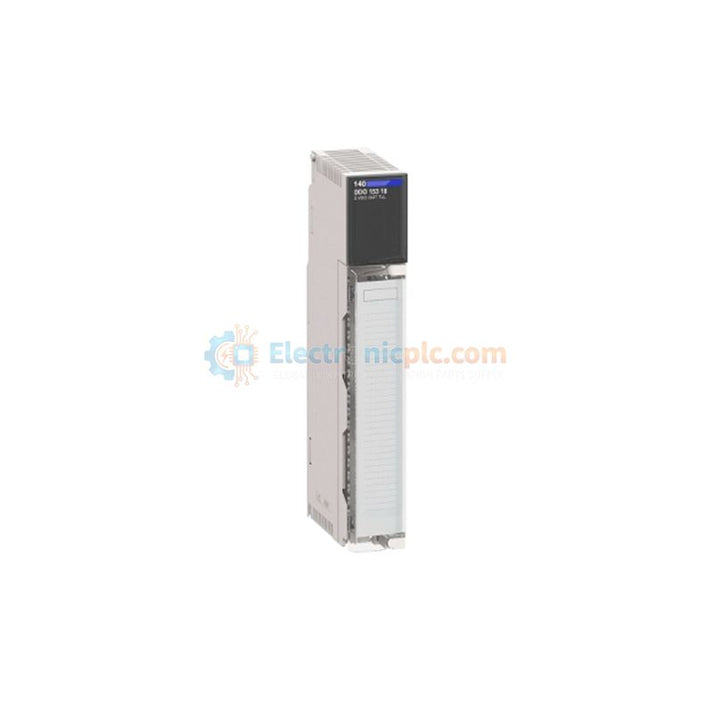

The Schneider Electric 140DDO15310 serves as a high-density digital interface within the Modicon Quantum automation platform. This module provides 32 independent output channels, enabling precise control over low-voltage digital devices. Engineers utilize this unit to bridge the gap between high-level PLC logic and 5V TTL-compatible field equipment. We supply this module as 100% Brand New and Original equipment to ensure maximum system integrity and long-term operational uptime.

Technical Specifications

This module adheres to rigorous industrial standards, offering high-speed performance and electrical isolation.

• Output Channels: 32 (Arranged in 4 isolated groups of 8)

• Logic Type: Positive Logic (Sink) TTL

• Nominal Output Voltage: 5 VDC

• Supply Voltage Range: 4 to 5.5 VDC

• Response Time: ≤ 250 µs

• Maximum Load Current: 75 mA per point / 2.4 A per module

• Isolation: 500 Vrms for 1 minute between groups

• Power Dissipation: 4 W

• Addressing: 2 Output Words

• Diagnostics: 32 Green Status LEDs, 1 Red Fault LED

Engineering Advantages

The 140DDO15310 addresses specific challenges in modern high-speed production environments:

• High-Speed Signal Accuracy: The ≤ 250 µs response time eliminates latency issues in rapid-fire applications like semiconductor handling or high-speed sorting.

• Enhanced Fault Isolation: Each of the four channel groups operates with independent isolation. This design prevents localized electrical noise or wiring faults from cascading across the entire module.

• Direct Logic Interfacing: The 5V TTL output eliminates the need for external signal converters when driving TTL-level integrated circuits or specialized laboratory instruments.

• Robust Maintenance Feedback: The comprehensive LED matrix allows technicians to verify signal status at a glance, significantly reducing troubleshooting hours during system commissioning.

FAQs

• Does this module require a specific terminal block?Yes, the 140DDO15310 requires a standard Quantum 40-pin terminal strip (such as the 140XTS00200) to secure field wiring.

• What happens if a fuse blows within the module?The module features built-in fault detection. If a fuse blows or field power is lost, the red "Fault" LED illuminates, and the system reports the error to the Quantum CPU for immediate action.

• Can I use this module with 24VDC devices?No. This module strictly outputs 5V TTL signals. Connecting 24VDC loads will damage the internal TTL circuitry and void the warranty.

• Is this unit compatible with all Quantum CPUs?The 140DDO15310 maintains broad compatibility across the Modicon Quantum series, provided the rack power supply can handle the 350mA bus current requirement.
