Description

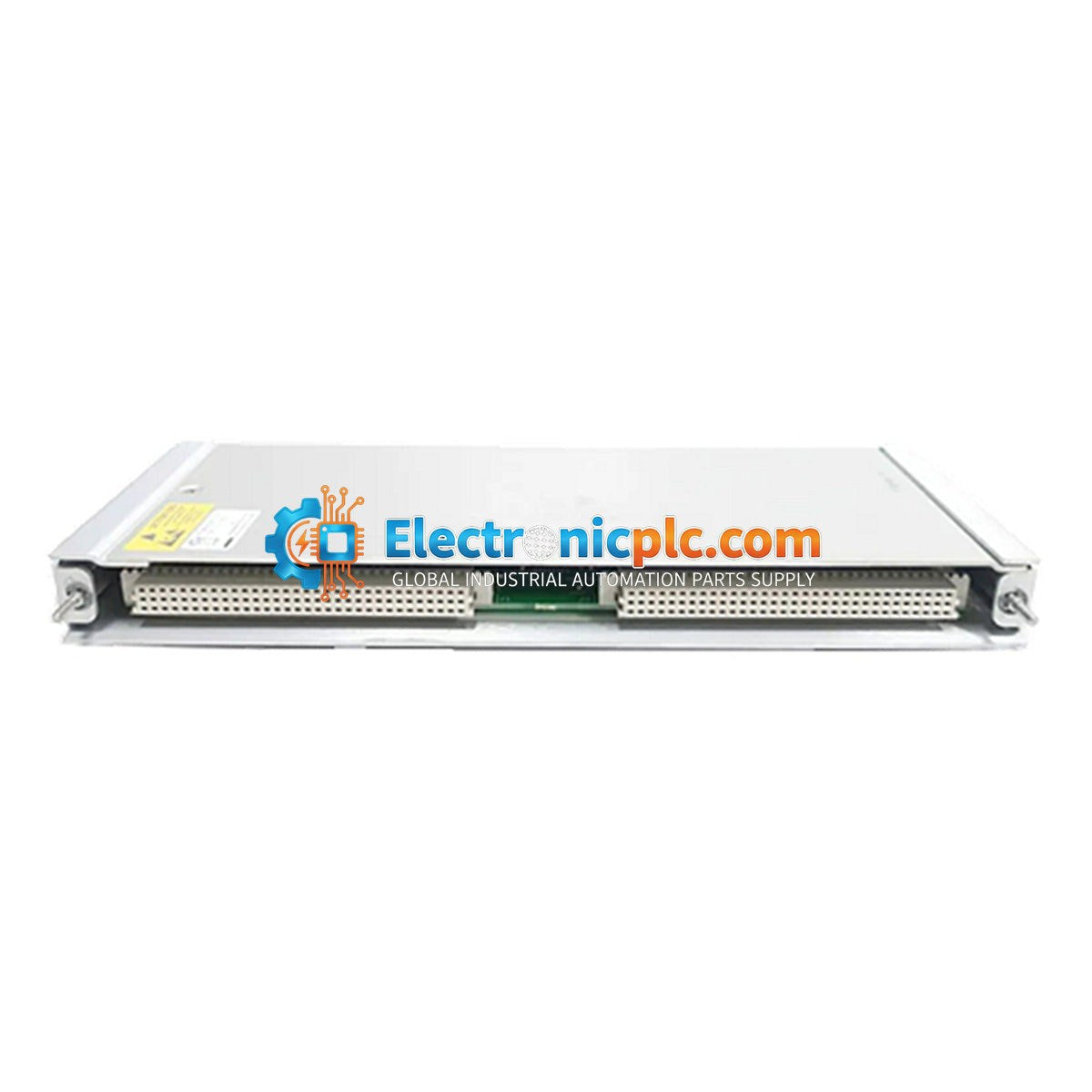

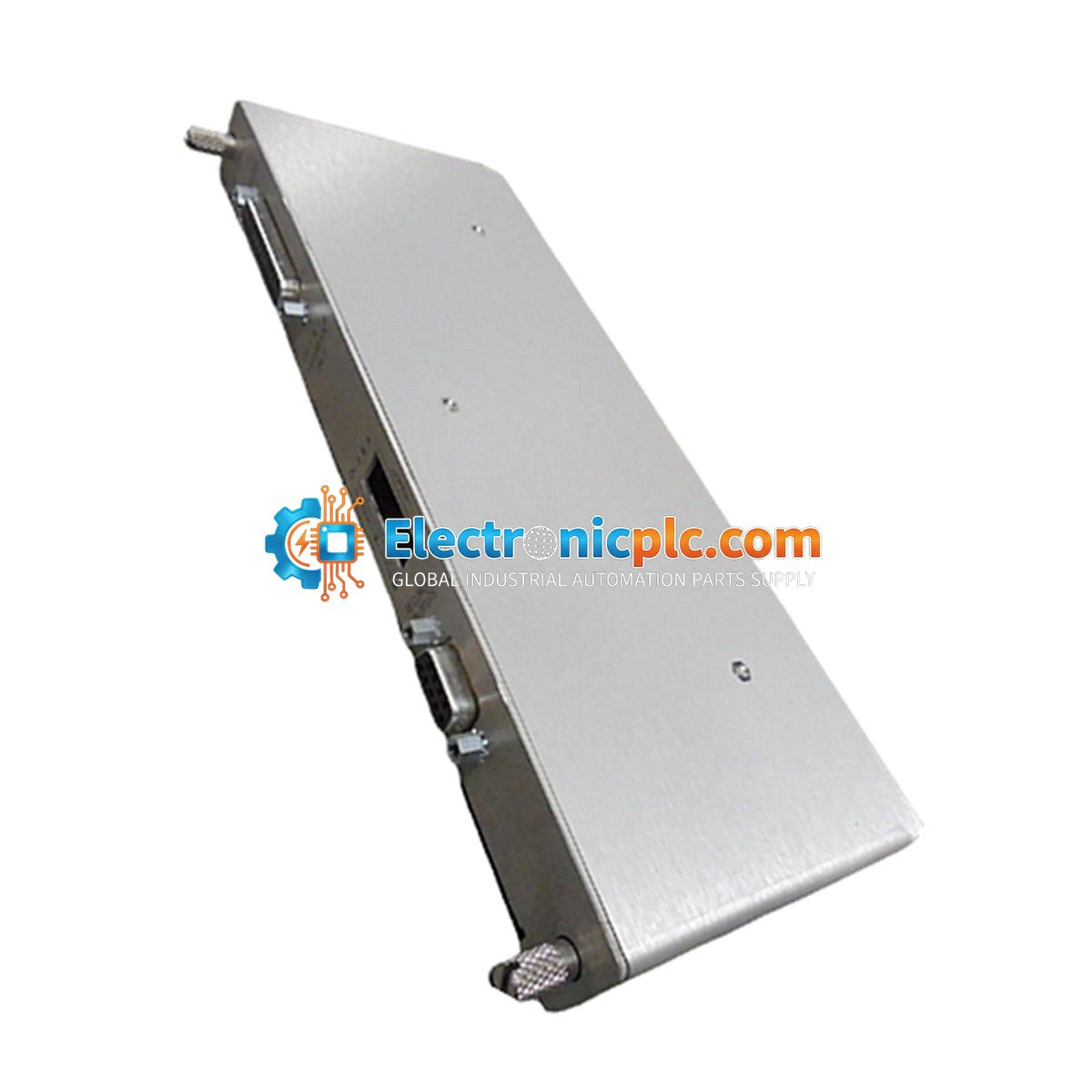

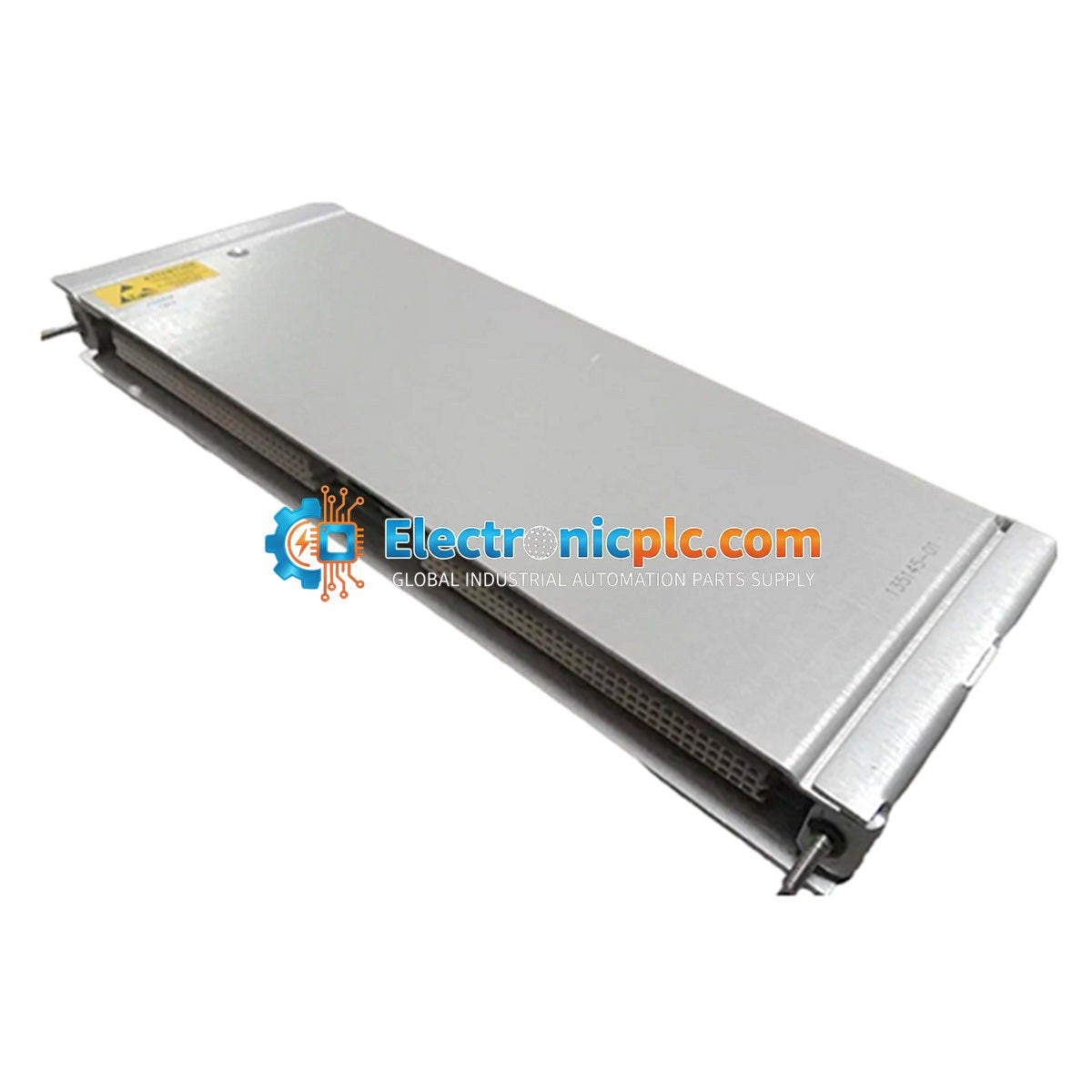

The Bently Nevada 135145-01 is a Position I/O Module designed for the 3500 Series machinery protection system. This module serves as a critical interface for monitoring shaft position and displacement in rotating machinery. By supporting a variety of sensors, including Proximitors, Rotary Position Transducers (RPTs), and DC Linear Variable Differential Transformers (LVDTs), it provides the necessary signal conditioning for accurate position feedback and alarm processing within the 3500 rack environment.

Features

• Designed for seamless integration with Bently Nevada 3500 Series racks.
• Supports diverse sensor inputs: Proximitors, RPTs, and DC LVDTs.
• Features external terminations to simplify field wiring and cabinet organization.
• Provides high-reliability signal conditioning for critical machinery protection and trip functions.
• Suitable for both new OEM installations and system retrofits in industrial environments.

Applications

This module is primarily deployed in critical rotating machinery monitoring, including:

• Industrial gas and steam turbines.
• Centrifugal and reciprocating compressors.
• Large-scale pumps and motors in the energy, petrochemical, and heavy manufacturing sectors.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the I/O module to prevent electrical damage.
• Use proper ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal components.
• Verify that the external termination block is correctly wired according to the specific sensor type (Proximitor, RPT, or LVDT) before applying power.
• Ensure all signal cables are properly shielded and routed away from high-voltage power lines to minimize EMI interference.
• Confirm the module is fully seated in the rack slot and the front-panel screws are tightened to ensure a secure ground connection.

FAQ

Q: Is this module compatible with all 3500 series racks?
A: The 135145-01 is designed for the 3500 series; however, always verify your specific rack configuration and firmware version to ensure compatibility with your existing monitor modules.

Q: Does this module include the internal monitor?
A: No, this is an I/O module designed to provide the physical interface and termination for the corresponding monitor module within the 3500 rack.
