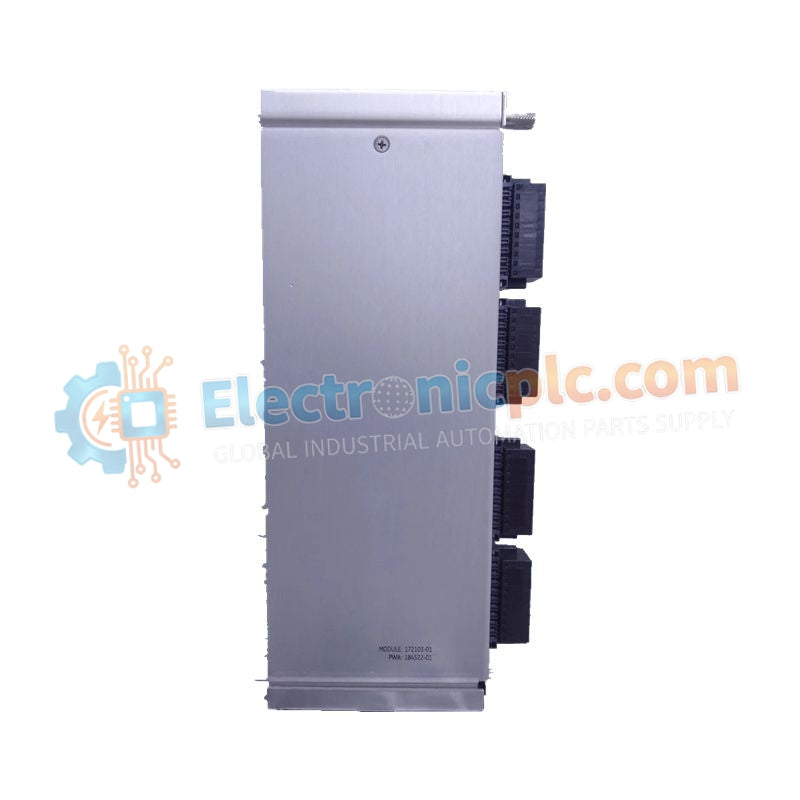

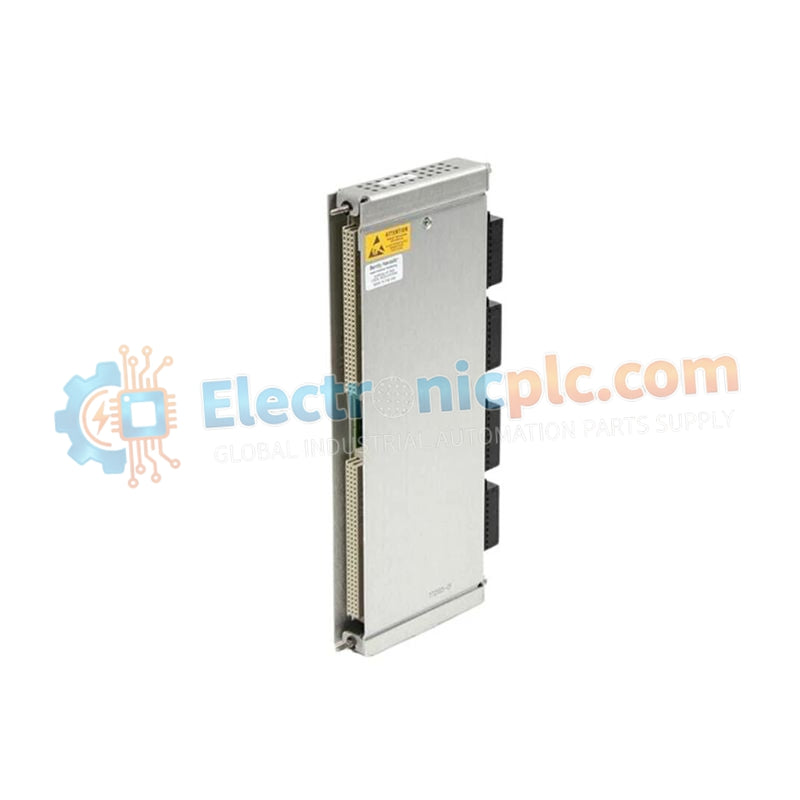

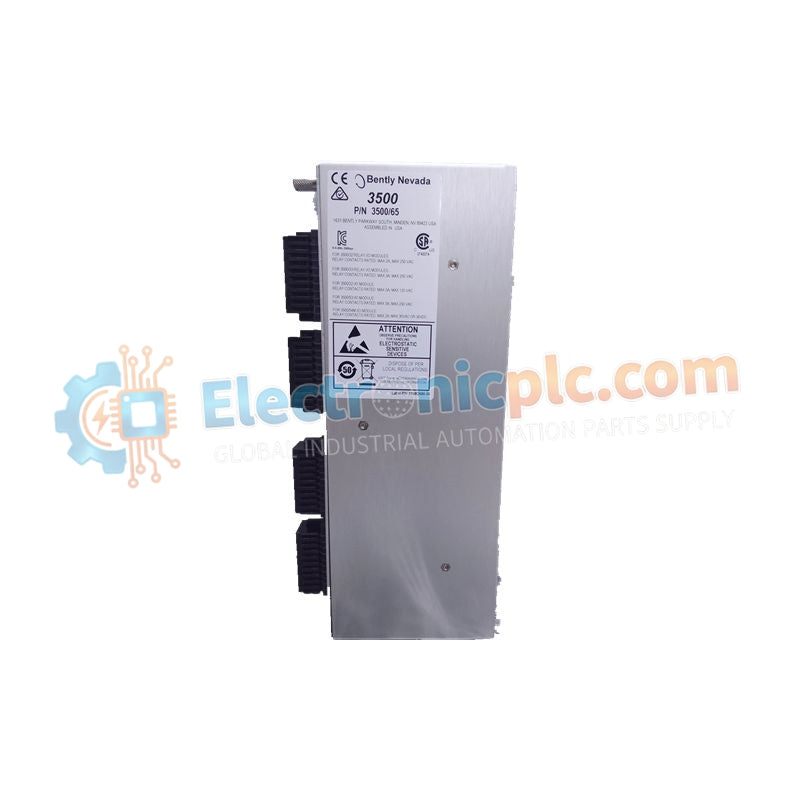

172103-01 3500/65 Bently Nevada Internal Temp I/O Module

172103-01 3500/65 Bently Nevada Internal Temp I/O Module

Product Description

The 172103-01 is a high-density 16-channel Input/Output module designed specifically for the Bently Nevada 3500/65 Temperature Monitor system. Unlike external termination variants, this "Internal Termination" version features onboard...

19 people are viewing this right now

Availability: Low stock: 10 left

SKU: 3500/65 172103-01
Vendor: Bently Nevada
Category: Internal Temp I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 172103-01 is a high-density 16-channel Input/Output module designed specifically for the Bently Nevada 3500/65 Temperature Monitor system. Unlike external termination variants, this "Internal Termination" version features onboard screw terminals, allowing field wiring for RTDs and Thermocouples to be connected directly to the rear of the 3500 rack. This streamlined architecture is ideal for space-constrained cabinets where external termination blocks are not feasible.

Technical Specifications

Specification Details
Channel Capacity 16 independent temperature sensing points
Sensor Compatibility 3-wire RTDs (Pt100, Ni100) and Isolated Tip Thermocouples (Types J, K, E, T, S)
Termination Style Internal (on-module) compression screw terminals
Signal Conditioning Integrated cold-junction compensation for all thermocouple inputs
Isolation Protection 500V AC channel-to-system galvanic isolation
Physical Dimensions 24.0 cm x 11.0 cm x 2.5 cm
Unit Weight 0.38 kg
Operating Temperature -30°C to +65°C (-22°F to +149°F)

Industrial Utility

The 172103-01 provides a direct interface for monitoring thermal health in rotating machinery. By utilizing the 3500 rack's internal backplane, the module sends processed temperature data to the 3500/65 monitor for alarm processing. This is critical for protecting high-value assets like turbine bearings and generator stator windings from overheating.

Engineering FAQ

Q: How does the 172103-01 differ from the 172109-01 I/O module?
A: The 172103-01 features built-in terminal blocks for direct wiring, whereas the 172109-01 is designed for use with an external termination cable and a remote terminal block (such as the 172115-01).
