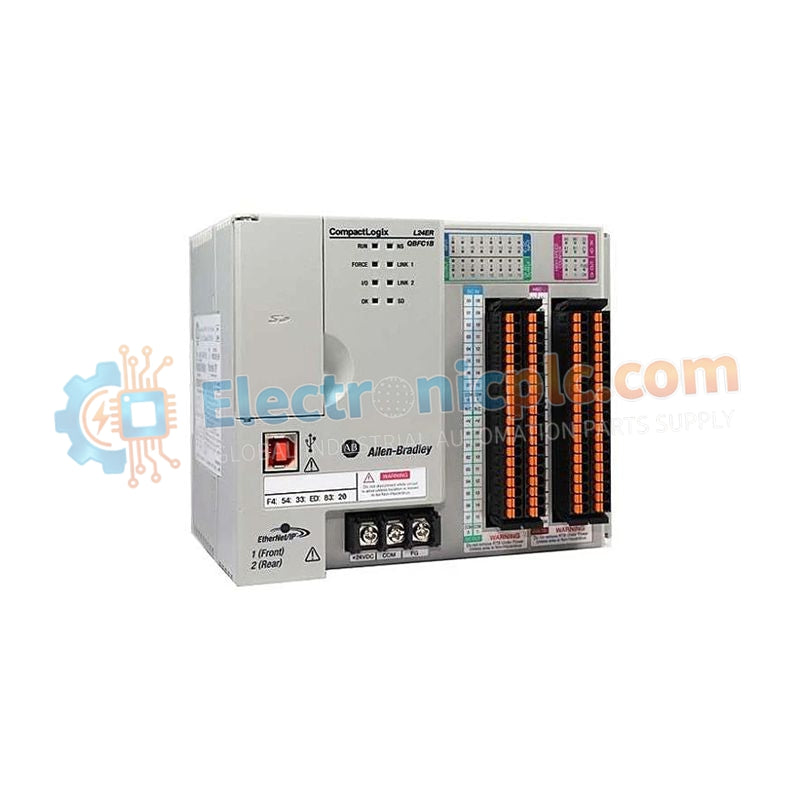

1769-L24ER-QBFC1B Allen-Bradley CompactLogix Controller

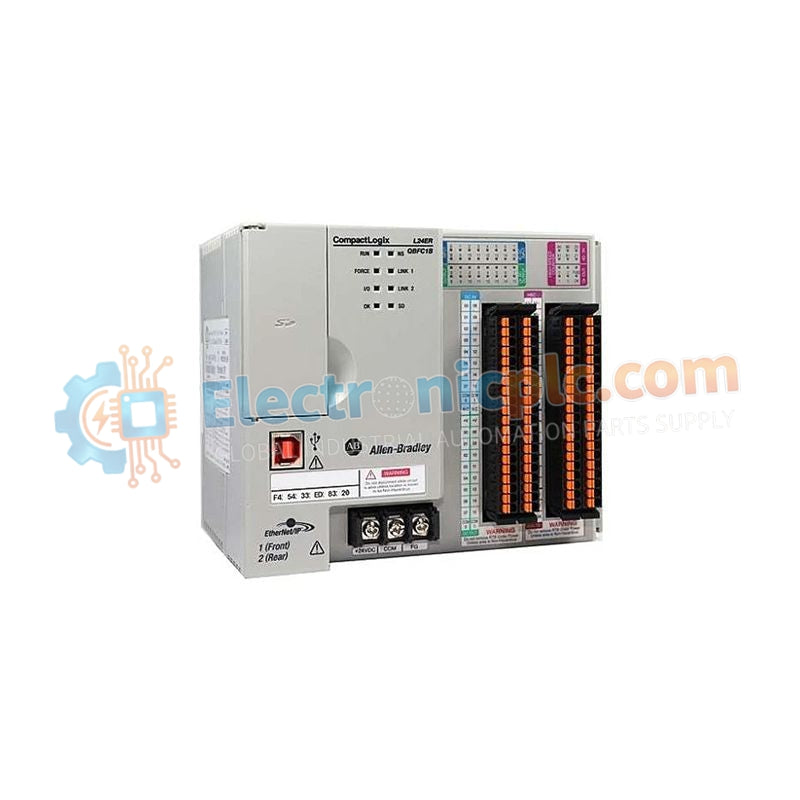

1769-L24ER-QBFC1B Allen-Bradley CompactLogix Controller

Product Description

The 1769-L24ER-QBFC1B (Part Number: 1769-L24ER-QBFC1B) is a highly integrated, "packaged" automation controller within the CompactLogix 5370 L2 family. This all-in-one processor is engineered for space-constrained applications, combining a high-speed logic engine with 16 integrated 24V DC digital...

22 people are viewing this right now

Availability: Low stock: 99 left

SKU: 1769-L24ER-QBFC1B
Vendor: Allen Bradley
Category: Packaged Automation Controller
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 1769-L24ER-QBFC1B (Part Number: 1769-L24ER-QBFC1B) is a highly integrated, "packaged" automation controller within the CompactLogix 5370 L2 family. This all-in-one processor is engineered for space-constrained applications, combining a high-speed logic engine with 16 integrated 24V DC digital inputs and 16 24V DC digital outputs. Additionally, this specific L2 configuration includes embedded high-speed counters and analog capabilities, making it an exceptionally versatile solution for machine-level control.

The controller features dual-port EtherNet/IP connectivity, supporting Device Level Ring (DLR) topologies to ensure network resiliency. Designed for the modern factory, it uses an SD card for non-volatile memory storage, eliminating the need for a battery. The 1769-L24ER-QBFC1B manages integrated motion on EtherNet/IP and supports local expansion via 1769 Compact I/O modules, providing a scalable bridge between standalone machine control and enterprise-wide integration.

Technical Specifications

Specification Details
Digital I/O 16 Sink/Source 24V DC Inputs and 16 Source 24V DC Outputs
Operating Voltage 24V DC nominal (Range: 10V to 28.8V DC for inputs; 20.4V to 26.4V DC for outputs)
Communication Ports 2 x EtherNet/IP (DLR support), 1 x USB 2.0 (Programming/Configuration)
Current Draw 1.54 A at 5V DC; 0.95 A at 24V DC
Output Current Rating 0.83 A per point at 40°C; 0.5 A per point at 60°C
Local Expansion Supports up to 4 additional 1769 Compact I/O modules
Specialty I/O Integrated High-Speed Counters (HSC), Analog Inputs, and Analog Outputs
Non-Volatile Storage Includes 1 GB SD card (up to 2 GB supported)
Maximum Tasks 16 tasks with 1,000 programs per task
Dimensions 115 mm x 105 mm x 118 mm
Weight 0.91 kg

Application Scenarios

The 1769-L24ER-QBFC1B is the preferred choice for small-to-mid-sized machinery requiring precise motion control and integrated analog feedback. Common applications include:

  • Automated packaging equipment

  • Sorting systems

  • Specialized assembly stations

Its compact form factor and powerful functionality make it ideal for environments where DIN-rail space is at a premium.

Frequently Asked Questions

Does this controller require a separate power supply module?

  • No, the 1769-L24ER-QBFC1B features an integrated 24V DC power supply that powers the controller and any locally attached expansion modules.

What is the advantage of the Dual-Port Ethernet?

  • The dual ports allow you to connect the controller in a ring (DLR) or linear daisy-chain configuration. In a DLR configuration, if one cable is damaged, the network automatically reroutes traffic, preventing a system shutdown.
