Emerson 1B30023H01 Ovation I/O Bus Terminator Module

Emerson 1B30023H01 Ovation I/O Bus Terminator Module

Description

The Emerson 1B30023H01 is an I/O Bus Terminator Module designed for use within the Ovation distributed control system (DCS) architecture. This component serves to properly terminate the I/O bus communication...

19 people are viewing this right now

Availability: Low stock: 4 left

SKU: 1B30023H01
Vendor: Emerson
Category: Bus Terminator Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

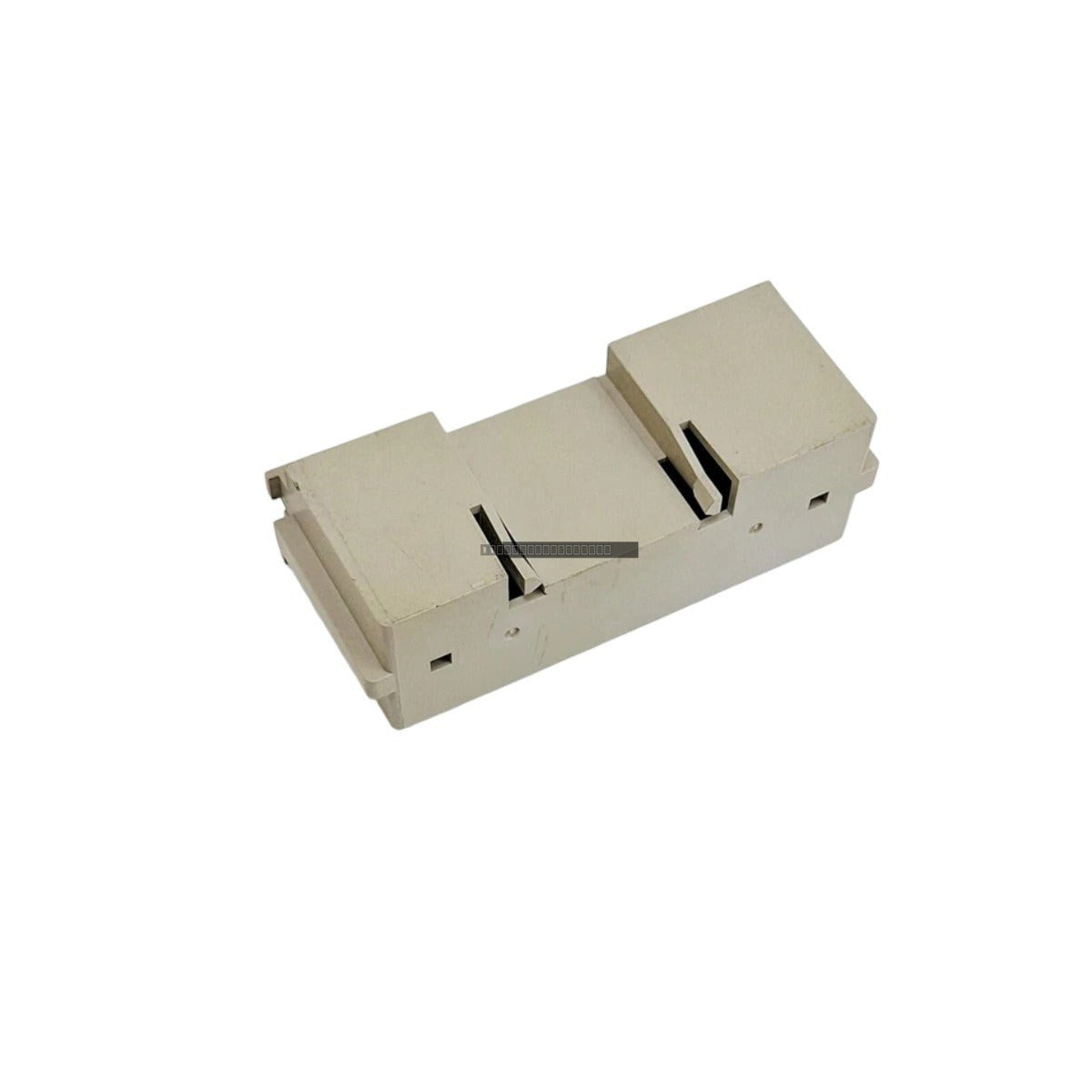

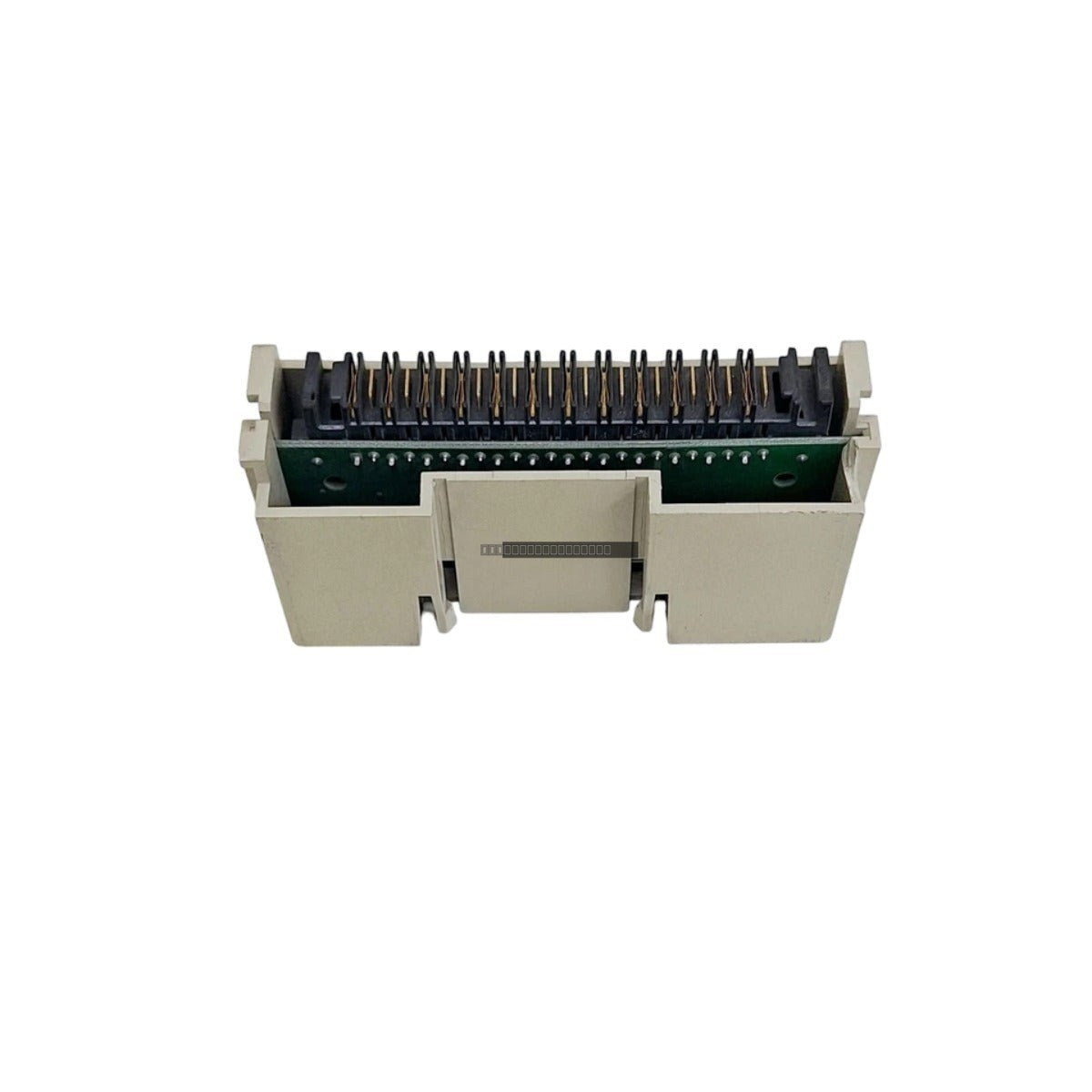

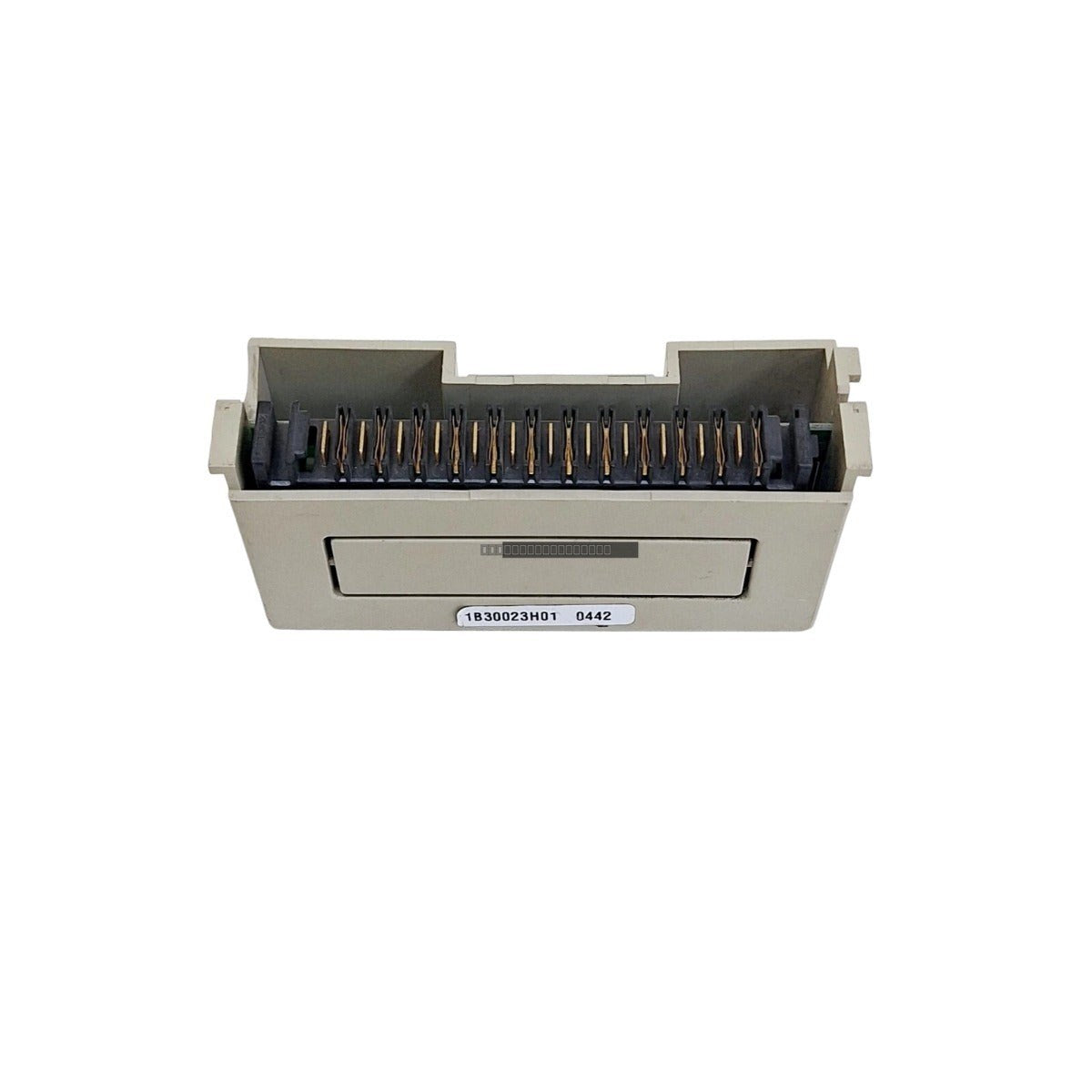

The Emerson 1B30023H01 is an I/O Bus Terminator Module designed for use within the Ovation distributed control system (DCS) architecture. This component serves to properly terminate the I/O bus communication line, ensuring signal integrity and preventing reflections that can cause data errors or communication instability in the control network.

Features

  • Designed for integration with Emerson Ovation control systems.
  • Provides essential bus termination for I/O communication loops.
  • Features a 12-pin interface for secure connection to the system backplane or bus cabling.
  • Robust construction suitable for industrial control environments.

Technical Specifications

Model Number 1B30023H01
Component Type I/O Bus Terminator Assembly
Interface 12-Pin Connector
Manufacturer Emerson
Status Discontinued by Manufacturer

Installation Guidelines

  • Ensure the system power is completely disconnected before installing or removing the module.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
  • Verify that the 12-pin connector is properly aligned and fully seated to ensure reliable contact.
  • Ensure the module is installed in the designated termination slot as specified by the Ovation system cabinet wiring diagrams.
  • Keep communication cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal quality.

FAQ

Is this module still in production?

No, the 1B30023H01 has been discontinued by Emerson. We provide these units as spare parts to support existing legacy installations.

What is the primary function of the 1B30023H01?

This module acts as a bus terminator, which is critical for maintaining the impedance matching required for stable communication across the Ovation I/O bus.
