Description

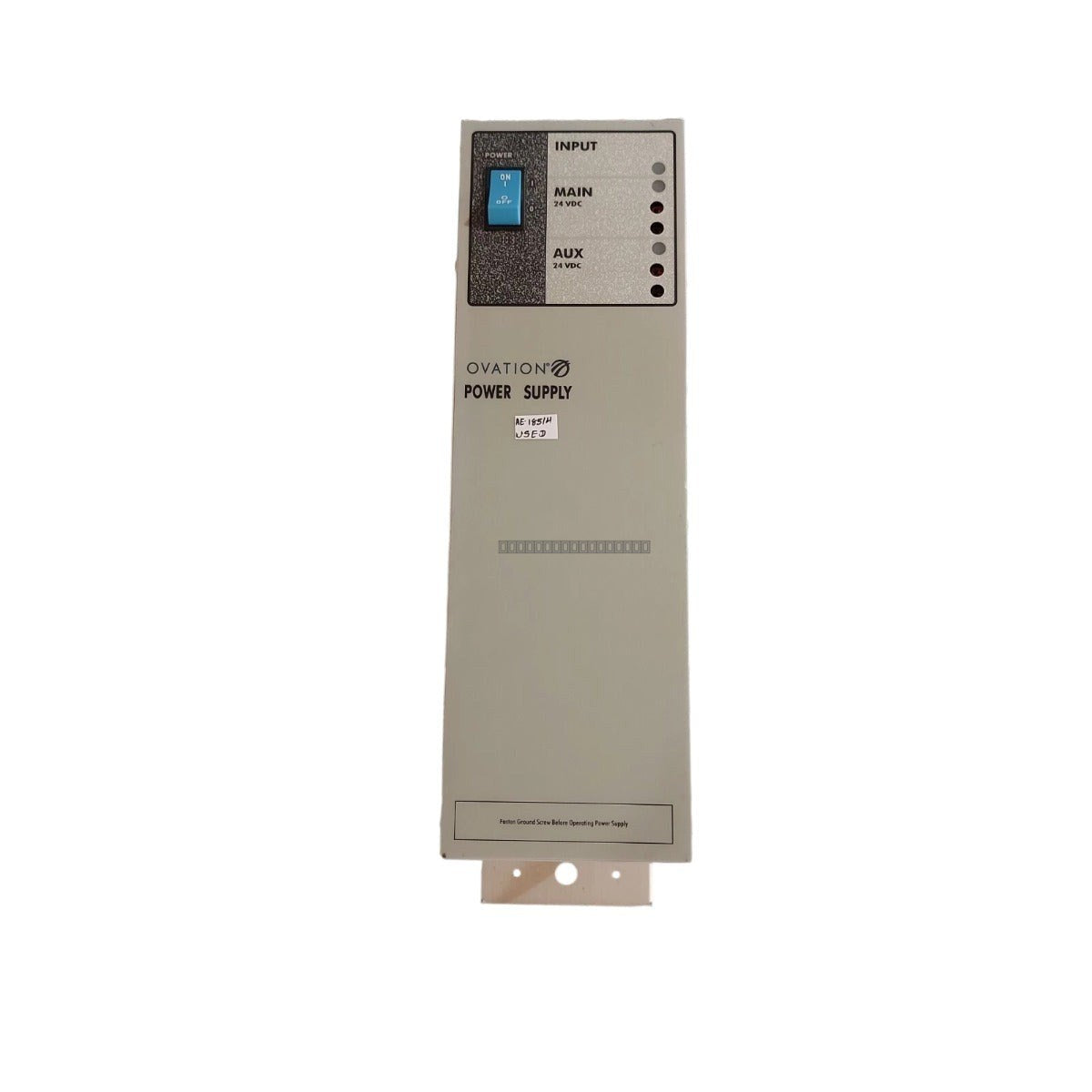

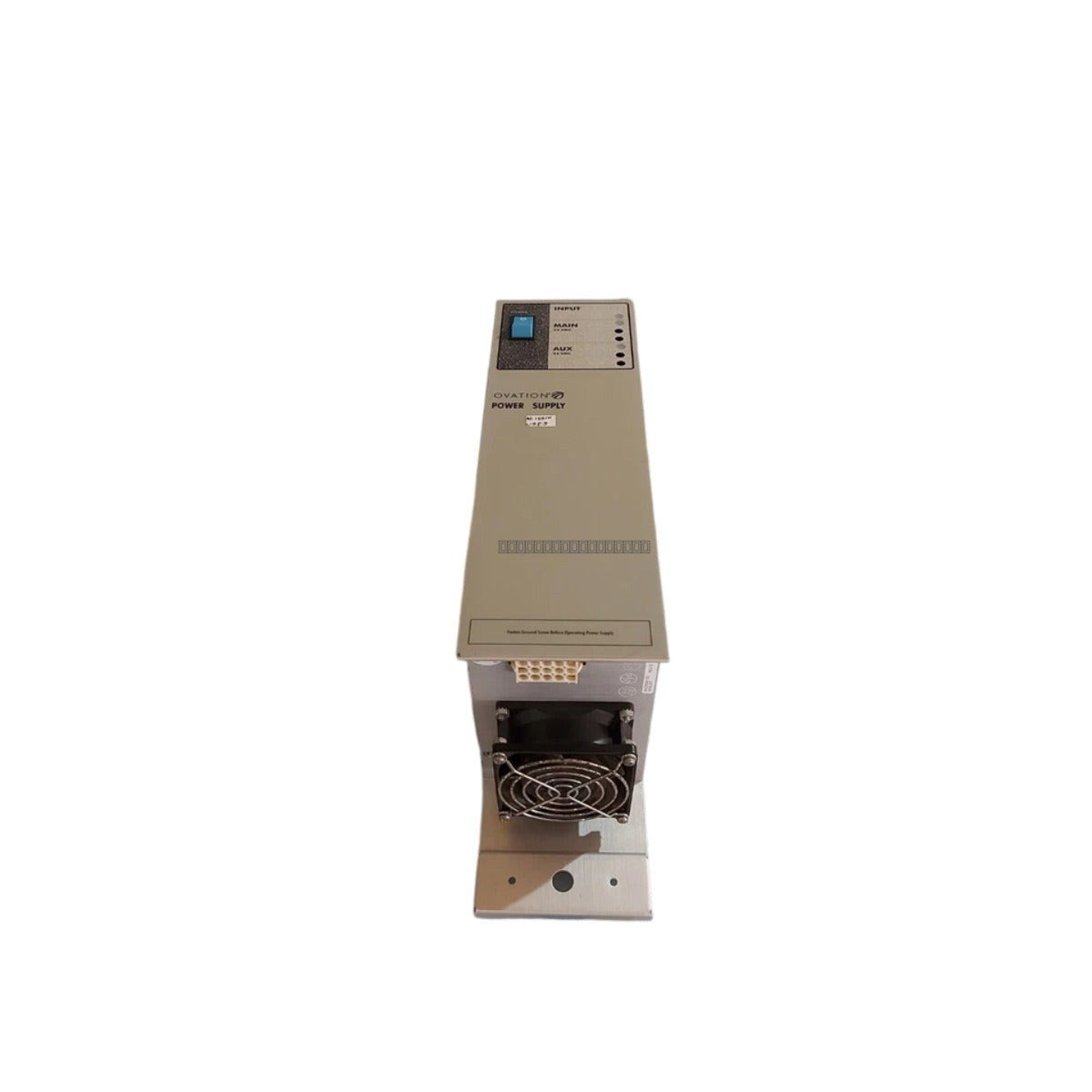

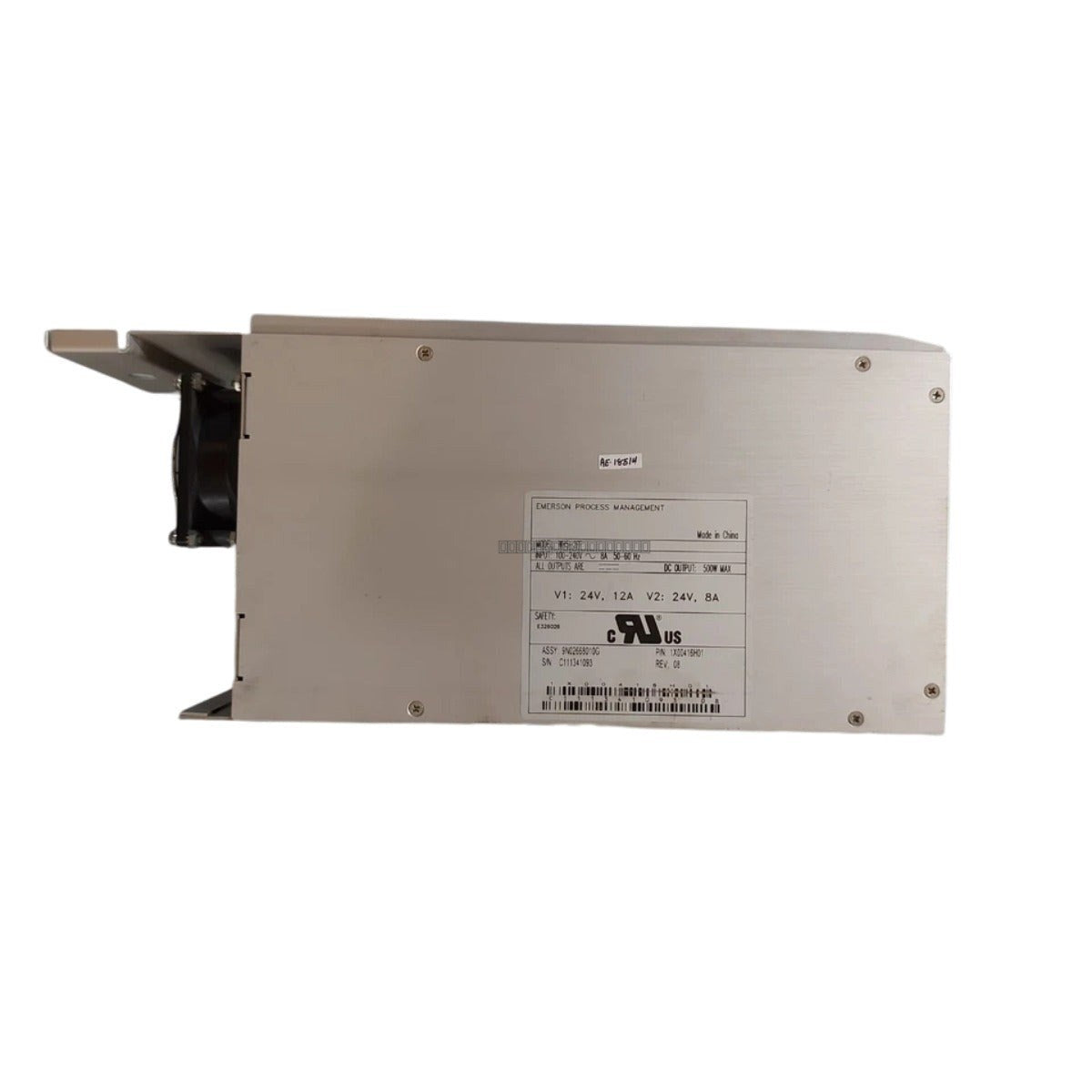

The 1X00416H01 (WH5-2FF) power supply unit is a critical infrastructure component designed for the Emerson Ovation distributed control system (DCS). This module provides stable, regulated DC power essential for the operational integrity of control electronics in high-demand industrial environments, such as power generation facilities, refineries, and water treatment plants. By converting input power into precise voltage rails for I/O modules and controllers, the unit ensures noise-free delivery and protects sensitive logic components from voltage transients and power fluctuations.

Features

• Designed for high-availability Emerson Ovation control platform architectures.
• Supports parallel redundancy configurations for load sharing and system fault tolerance.
• Advanced voltage regulation circuitry maintains tight output tolerance under varying load conditions.
• Optimized for passive heat dissipation to support long-term operational reliability.
• Industrial-grade components, including robust transformers and capacitors, for extended service life.
• Simplified physical interface for rapid field replacement and maintenance.

Applications

This power supply is specifically intended for use within Ovation DCS cabinet configurations. It is commonly deployed in mission-critical automation loops where continuous, stable power is required to prevent system-wide resets and unplanned downtime.

Technical Specifications

Installation Guidelines

• Ensure the Ovation rack is properly grounded before installing the power supply module.
• Power down the rack or relevant power distribution bus before inserting or removing the module to prevent electrical arcing or damage.
• Verify that the module is fully seated in the rack slot and that all locking mechanisms are engaged.
• Ensure adequate ventilation around the module to allow for passive heat dissipation; do not obstruct airflow.
• Route input and output power cabling away from high-EMI sources to maintain signal integrity and prevent noise coupling.
• Handle with standard ESD precautions to prevent damage to internal electronic components.

FAQ

Q: Is this module compatible with all Ovation systems?
A: The 1X00416H01 is designed for specific Ovation cabinet configurations. Please verify your system's hardware manual or the part number on your existing unit to ensure compatibility.

Q: Does this unit support redundant power setups?
A: Yes, this power supply is designed to support parallel redundancy, allowing multiple units to share the load and maintain system uptime in the event of a single module failure.
