Emerson Westinghouse 1X00569H01 Pmod Cavity Insert

Emerson Westinghouse 1X00569H01 Pmod Cavity Insert

Description

The Emerson Westinghouse 1X00569H01 is a Pmod cavity insert designed for integration within industrial control systems. This component serves as a structural and electrical interface element, featuring a blank configuration...

20 people are viewing this right now

Availability: Low stock: 9 left

SKU: 1X00569H01
Vendor: Emerson
Category: Pmod Cavity Insert
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

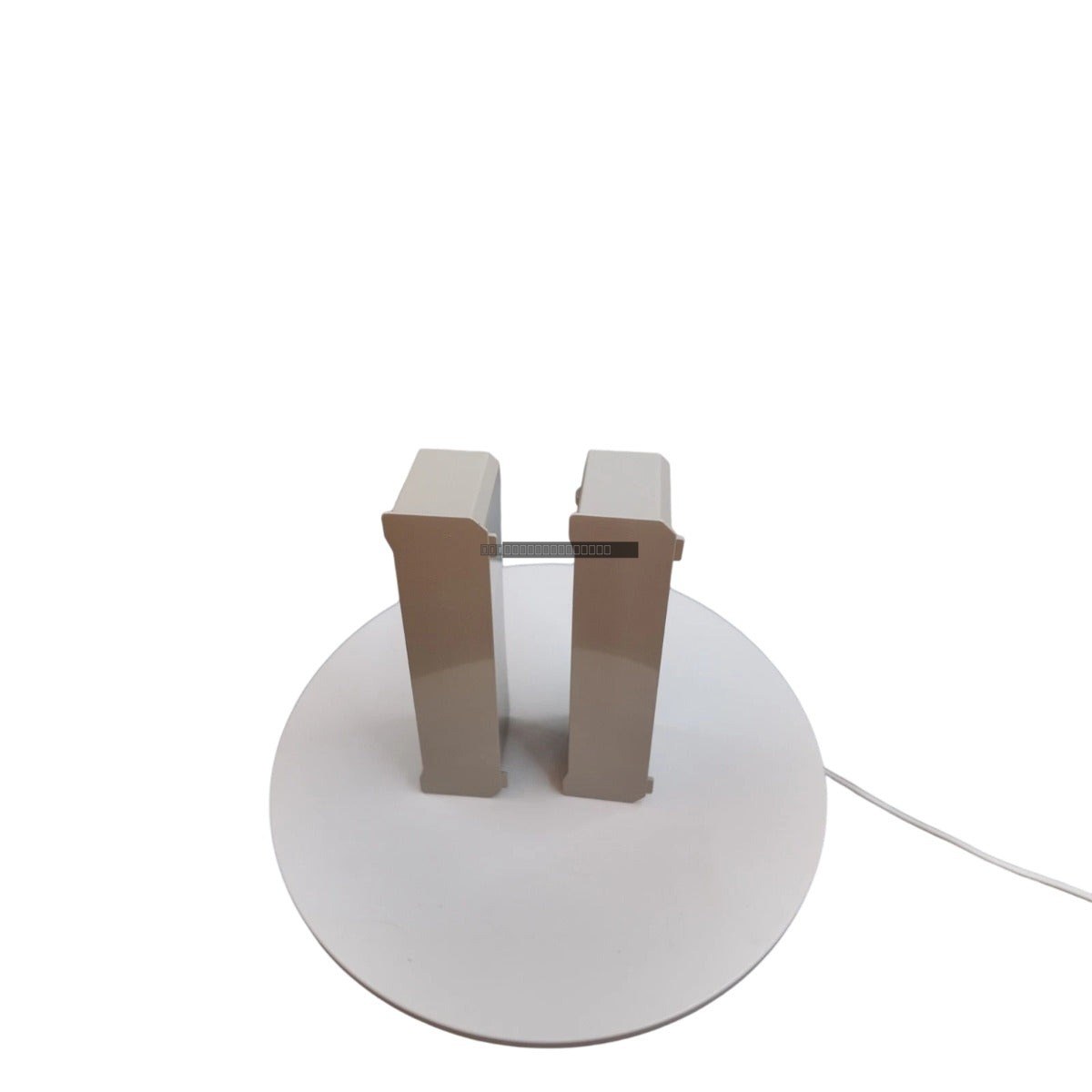

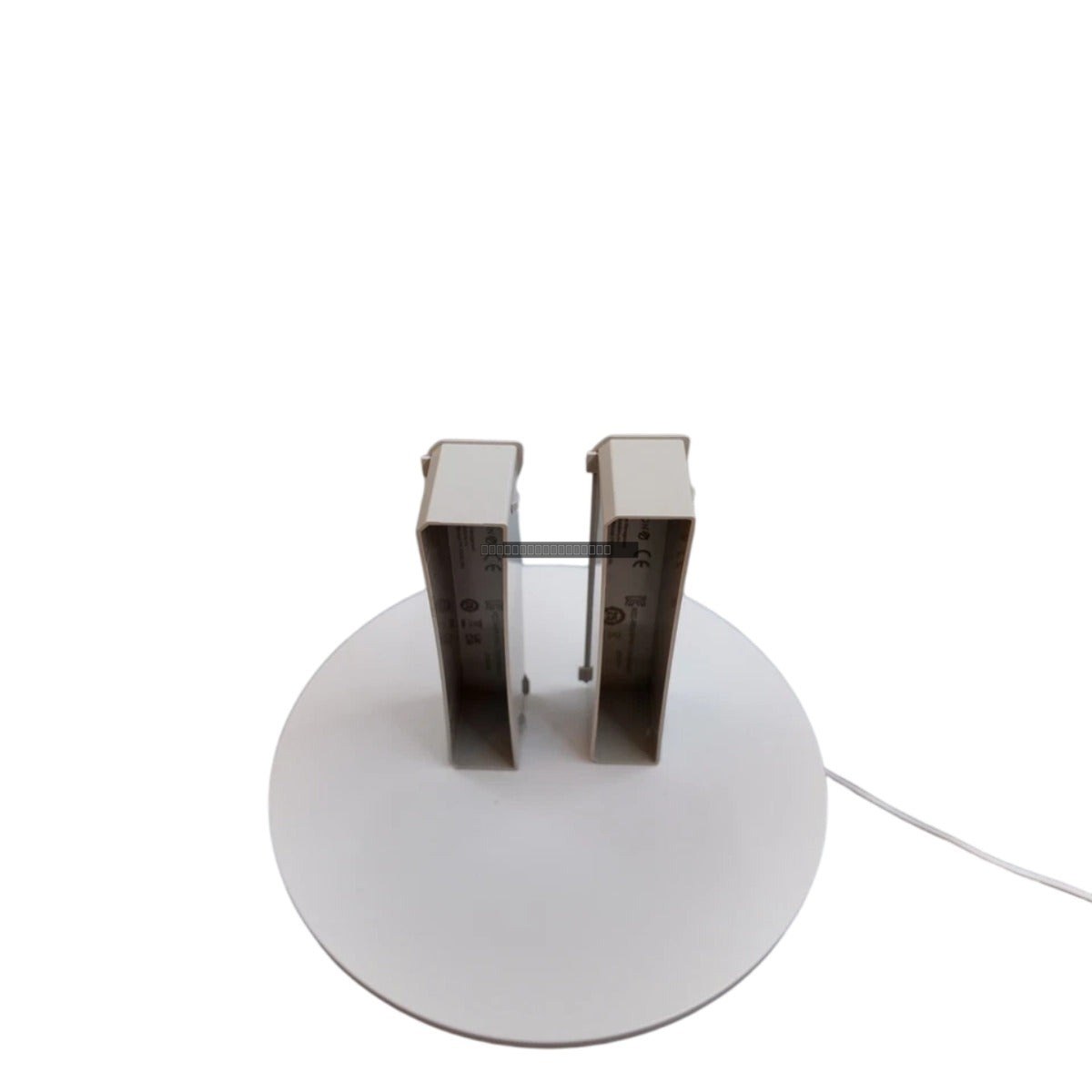

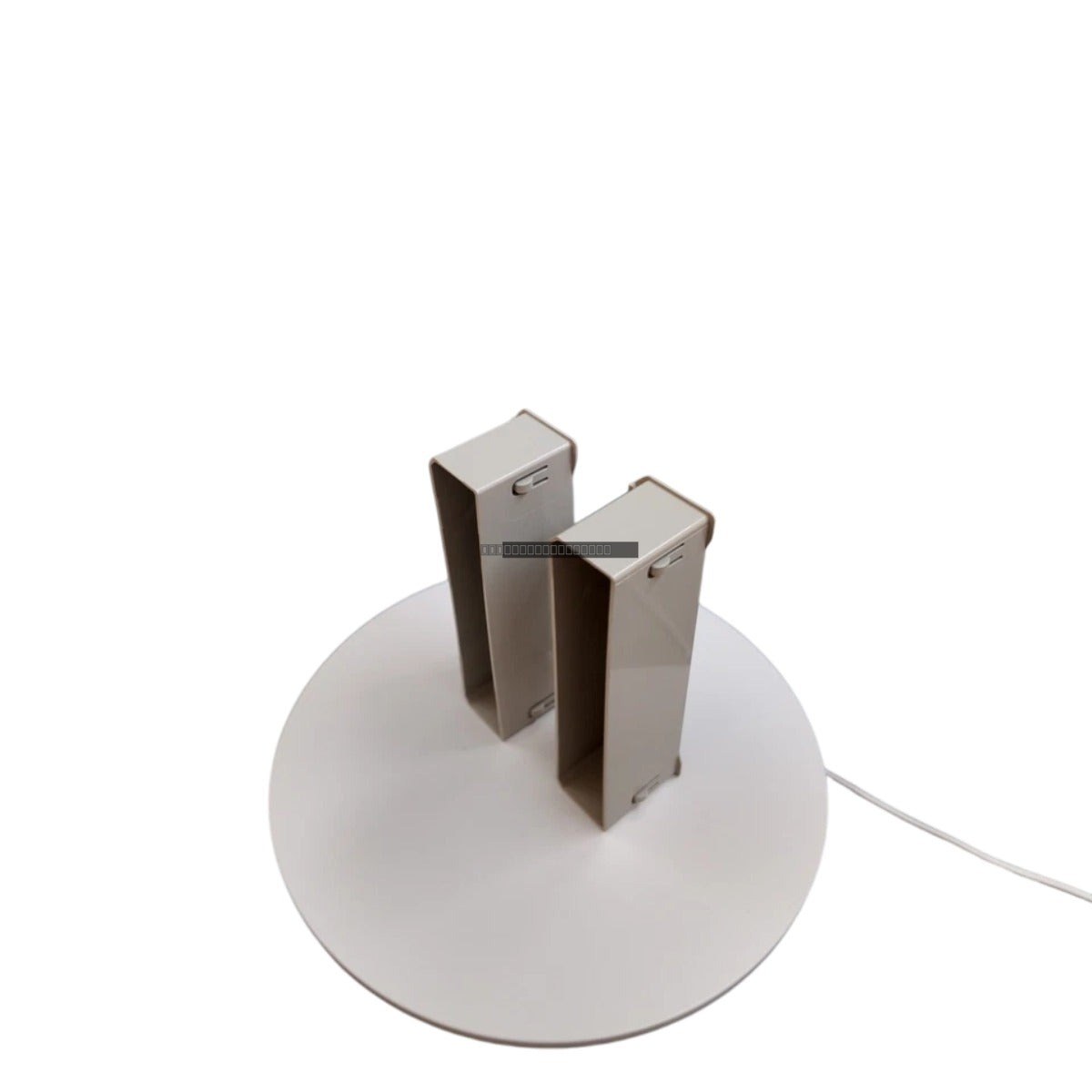

The Emerson Westinghouse 1X00569H01 is a Pmod cavity insert designed for integration within industrial control systems. This component serves as a structural and electrical interface element, featuring a blank configuration with the part number silkscreened on the bottom for clear identification. It is engineered to support high-voltage and high-current environments, ensuring reliable performance in demanding industrial applications.

Features

  • Designed for standard Pmod cavity mounting configurations.
  • Robust construction with a 600VAC voltage rating and 100A amperage capacity.
  • Integrated 32-pin back-plane interface for secure connectivity.
  • Designed for operation in extreme temperatures ranging from -40 degC to +70 degC.
  • High environmental tolerance with non-condensing humidity support up to 95% RH.
  • Includes 500 V DC isolation for enhanced system protection.

Technical Specifications

Model 1X00569H01
Type Pmod Cavity Insert
Voltage Rating 600VAC
Amperage Rating 100A
Interface 32-pin Back-plane
Isolation 500 V DC
Operating Temperature -40 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5 - 95% RH (non-condensing)

Installation Guidelines

  • Ensure the system power is completely disconnected before attempting to install or remove the cavity insert.
  • Verify that the 32-pin back-plane connection is properly aligned to prevent pin damage or improper seating.
  • Handle the unit with standard ESD precautions to protect internal components.
  • Ensure the installation environment remains within the specified temperature and humidity ranges to prevent premature degradation.
  • Check that all mechanical fasteners are secure to maintain structural integrity during operation.

FAQ

What is the primary function of the 1X00569H01?

This component acts as a cavity insert for Pmod systems, providing the necessary mechanical and electrical interface for modular industrial control setups.

Is this part suitable for high-temperature environments?

Yes, the module is rated for an operating temperature range of -40 degC to +70 degC, making it suitable for most industrial cabinet environments.
