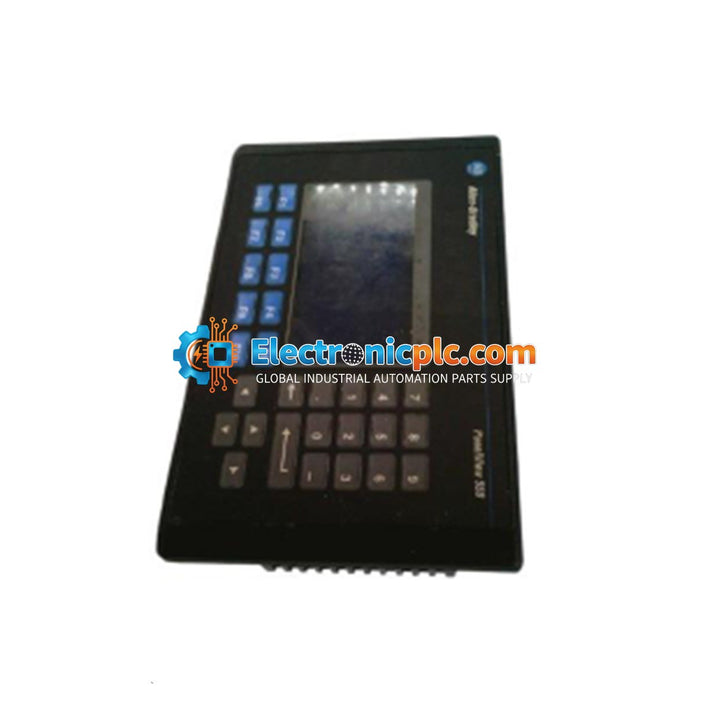

Allen-Bradley 2711-B5A3 PanelView 550 Operator Terminal

Allen-Bradley 2711-B5A3 PanelView 550 Operator Terminal

Description

The Allen-Bradley 2711-B5A3 is a PanelView 550 operator terminal designed for reliable human-machine interface (HMI) applications in industrial environments. This AC-powered unit provides a robust interface for monitoring and controlling...

24 people are viewing this right now

Availability: Low stock: 6 left

SKU: 2711-B5A3
Vendor: Allen-Bradley
Category: Operator Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 2711-B5A3 is a PanelView 550 operator terminal designed for reliable human-machine interface (HMI) applications in industrial environments. This AC-powered unit provides a robust interface for monitoring and controlling automated processes, combining both physical keypad inputs and a touchscreen for versatile operator interaction. It is engineered to withstand demanding conditions in sectors such as water treatment, petrochemical processing, and manufacturing, ensuring consistent communication with PLC systems via the DH-485 network protocol.

Features

  • Hybrid input interface featuring 10 mechanical function keys (F1-F10) and a resistive touchscreen with 128 active cells.
  • 5.5-inch monochrome blue-mode LCD display with 256 x 128 pixel resolution.
  • Integrated DH-485 communication port for multi-node network connectivity.
  • Dedicated RS-232 serial port for local printer support and data logging.
  • Nonvolatile application memory (up to 240 KB on Series E and later).
  • Supports external storage via an ATA memory card slot.
  • Long-life LED backlight rated for 100,000 hours.

Applications

The 2711-B5A3 is suitable for a wide range of industrial automation tasks, including machine control, process visualization, and alarm management. It is commonly deployed in systems requiring a compact, NEMA-rated interface for harsh environments where high-vibration or moisture resistance is necessary.

Technical Specifications

Model 2711-B5A3
Input Voltage 85-264 VAC
Power Consumption Max 45 VA (29 W heat dissipation)
Display Size 5.5 inches
Resolution 256 x 128 pixels
Communication DH-485 and RS-232
Operating Temperature 0 to 55 deg C
Enclosure Rating NEMA 12/13, 4X (Indoor), IP54/IP65

Installation Guidelines

  • Ensure the terminal is mounted in a panel cutout that provides adequate clearance for ventilation to maintain operating temperatures below 55 deg C.
  • Use appropriate gasket seals to maintain the NEMA 4X/IP65 enclosure integrity.
  • Always disconnect power before installing or removing communication cables or memory cards to prevent electrical damage.
  • Route communication cables (DH-485) away from high-voltage power lines and sources of electromagnetic interference (EMI).
  • Ensure the unit is properly grounded according to local electrical codes to protect against surges and noise.

FAQ

Is this model still in production?

No, the 2711-B5A3 is classified as a discontinued or obsolete product by the manufacturer. We provide these units as refurbished or surplus stock to support legacy system maintenance.

What is the primary communication protocol for this terminal?

This unit utilizes the DH-485 protocol for data exchange with Allen-Bradley controllers. It also includes an RS-232 port specifically for printer connectivity.
