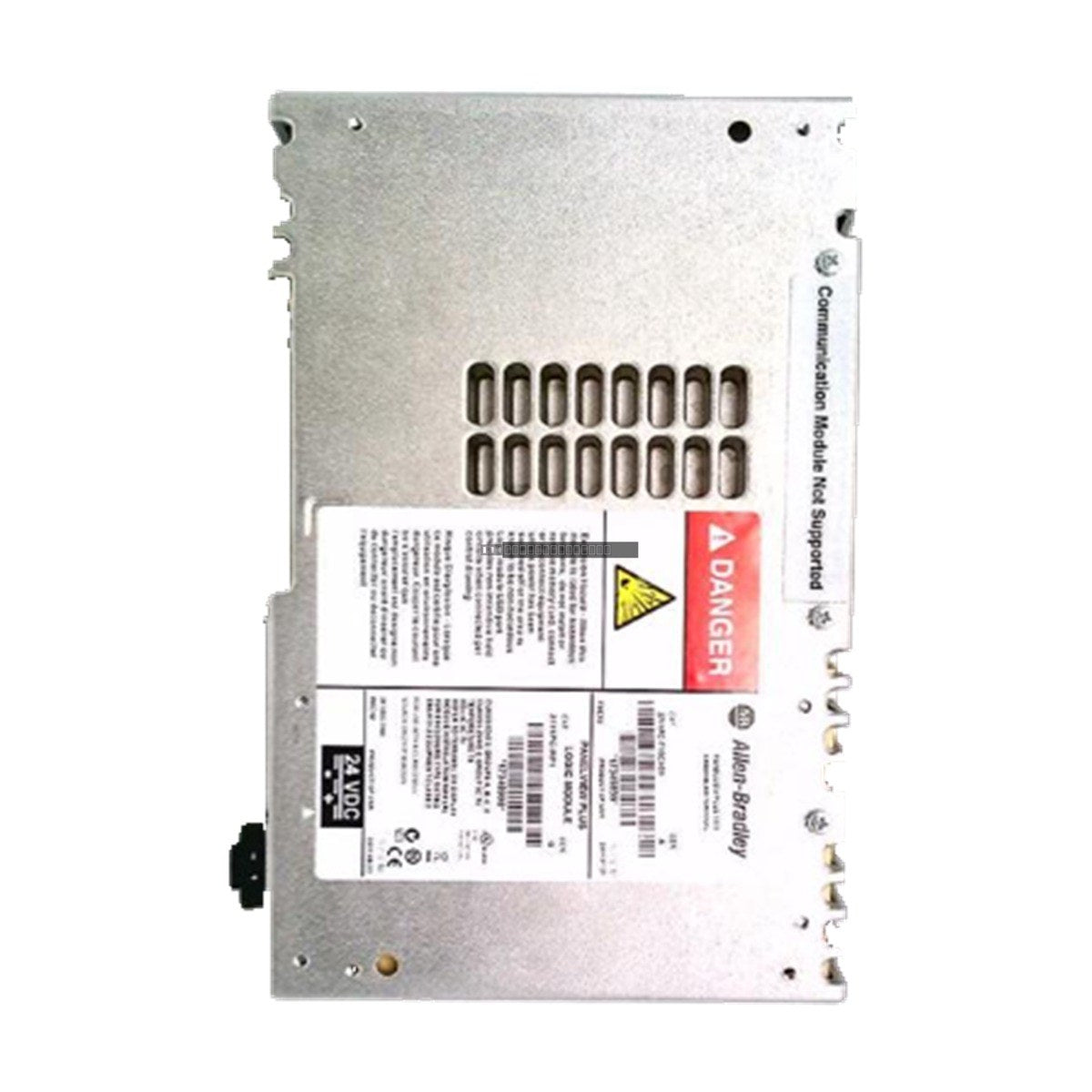

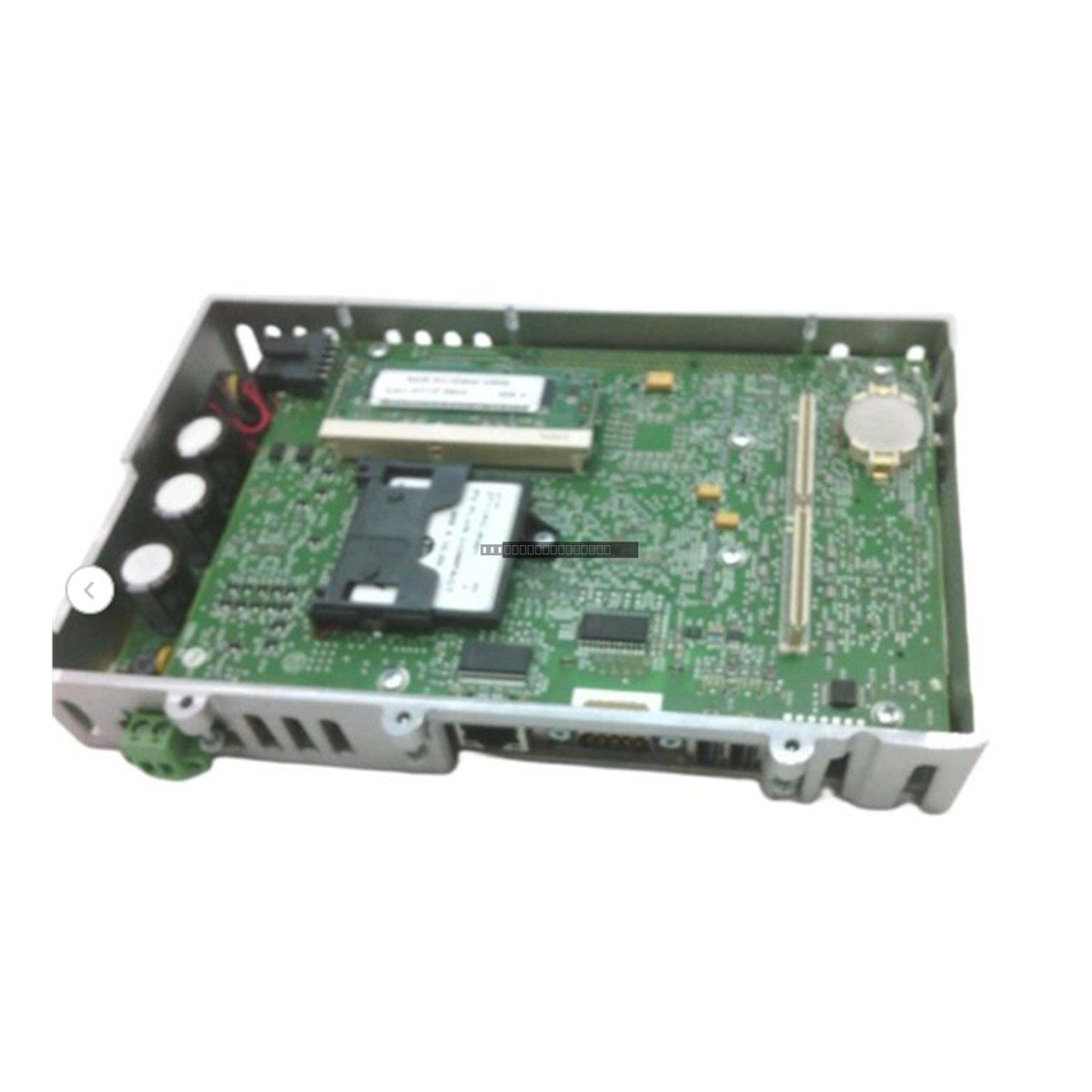

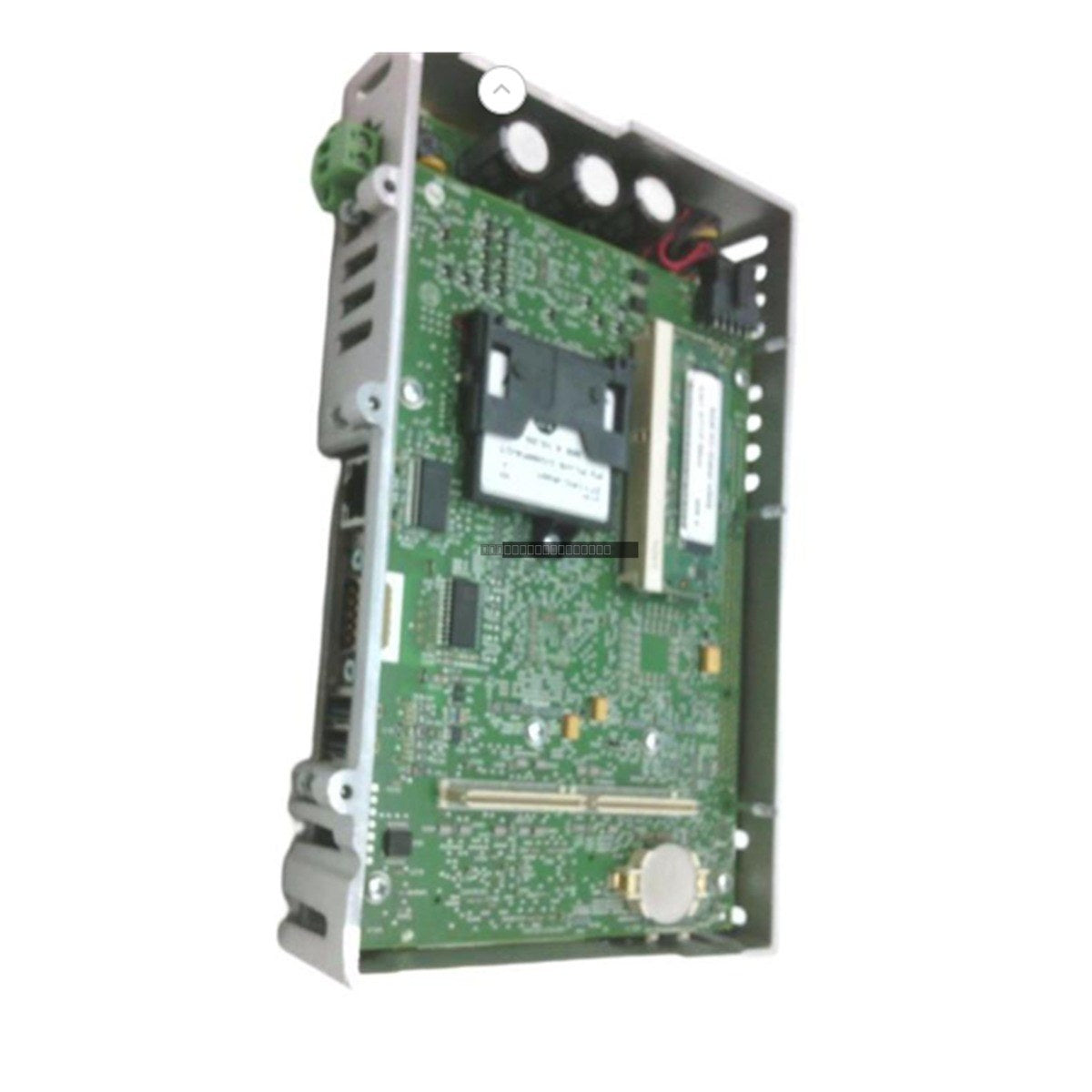

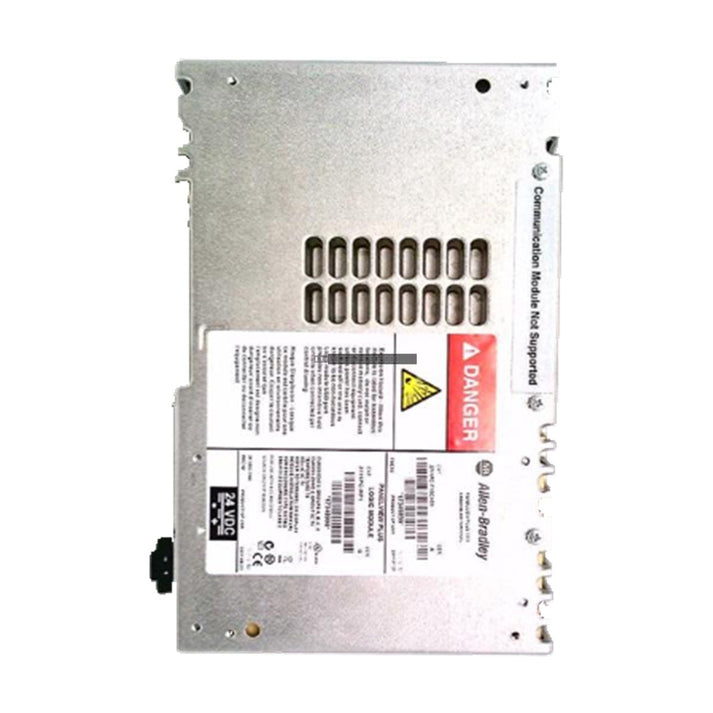

Allen-Bradley 2711PC-RP1 PanelView Plus Logic Module

Allen-Bradley 2711PC-RP1 PanelView Plus Logic Module

The 2711PC-RP1 is a dedicated logic module designed to function as the central processing unit for the Allen-Bradley PanelView Plus Compact 1000 series HMI terminals. This module handles the execution...

16 people are viewing this right now

Availability: Low stock: 8 left

SKU: 2711PC-RP1
Vendor: Allen-Bradley
Category: HMI Logic Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The 2711PC-RP1 is a dedicated logic module designed to function as the central processing unit for the Allen-Bradley PanelView Plus Compact 1000 series HMI terminals. This module handles the execution of graphical interfaces, alarm management, and data logging, facilitating seamless communication between the operator terminal and industrial controllers.

Features

  • Integrated processing core for PanelView Plus Compact 1000 series terminals.
  • Equipped with 64 MB Flash memory and 64 MB system RAM for application storage and runtime execution.
  • Supports FactoryTalk View Machine Edition (v5.10) for robust HMI development and deployment.
  • Native compatibility with ControlLogix and CompactLogix platforms via Ethernet/IP and serial interfaces.
  • Modular design allows for efficient field replacement and maintenance of the HMI processing core.

Applications

This logic module is suitable for demanding industrial HMI environments, including automotive manufacturing, water and wastewater treatment, power generation, and general machine automation where reliable operator interface performance is required.

Technical Specifications

Model 2711PC-RP1
Input Power 24 VDC
Memory (Flash) 64 MB
Memory (RAM) 64 MB
Software FactoryTalk View ME v5.10
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C
Relative Humidity 5-95% non-condensing

Installation Guidelines

  • Ensure the system power is completely disconnected before attempting to install or remove the logic module from the display unit.
  • The module is designed for direct mounting to the rear of the PanelView display; ensure the backplane connection is properly aligned and seated to prevent pin damage.
  • Maintain proper ventilation around the unit to ensure the operating temperature remains within the specified 0 to 55 deg C range.
  • Handle the module using standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.
  • Verify that the input power supply is stable and within the rated 24 VDC range before powering up the system.

FAQ

What is the primary function of the 2711PC-RP1?
The 2711PC-RP1 acts as the logic and processing core for the PanelView Plus Compact 1000 HMI, managing the display, communication, and application logic.

Is this module compatible with other PanelView series?
This module is specifically designed for the PanelView Plus Compact 1000 series. Please verify your specific terminal model before installation.
