Description

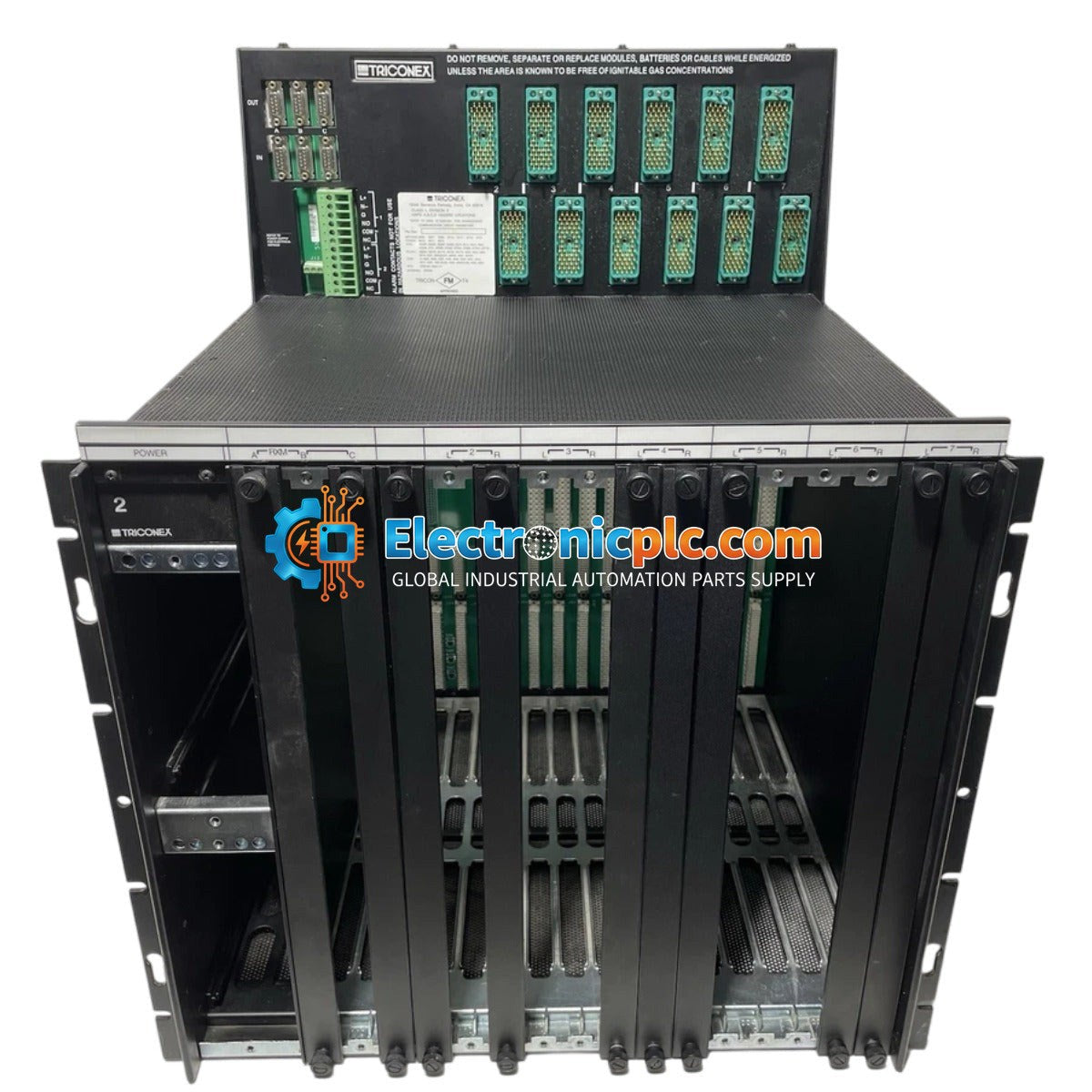

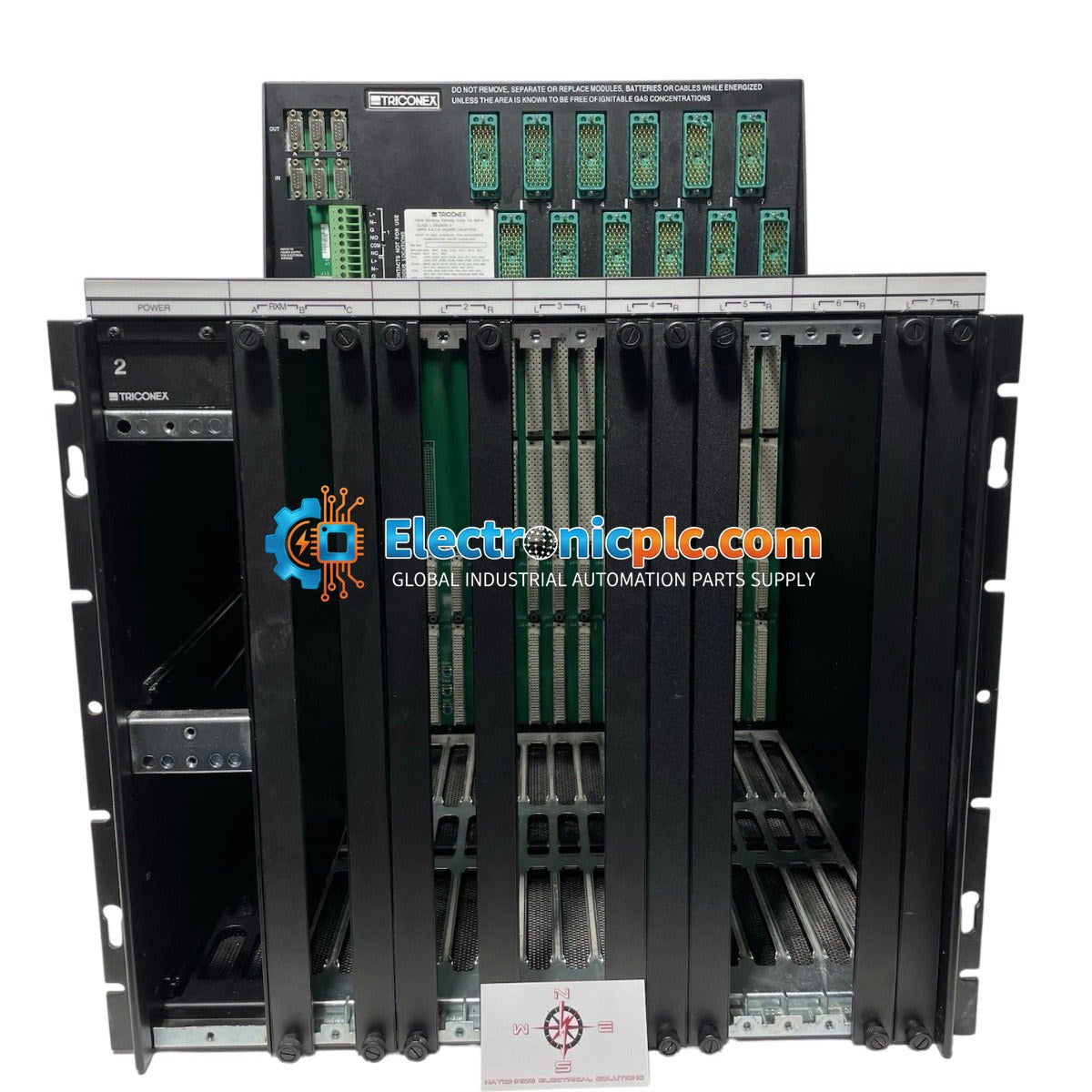

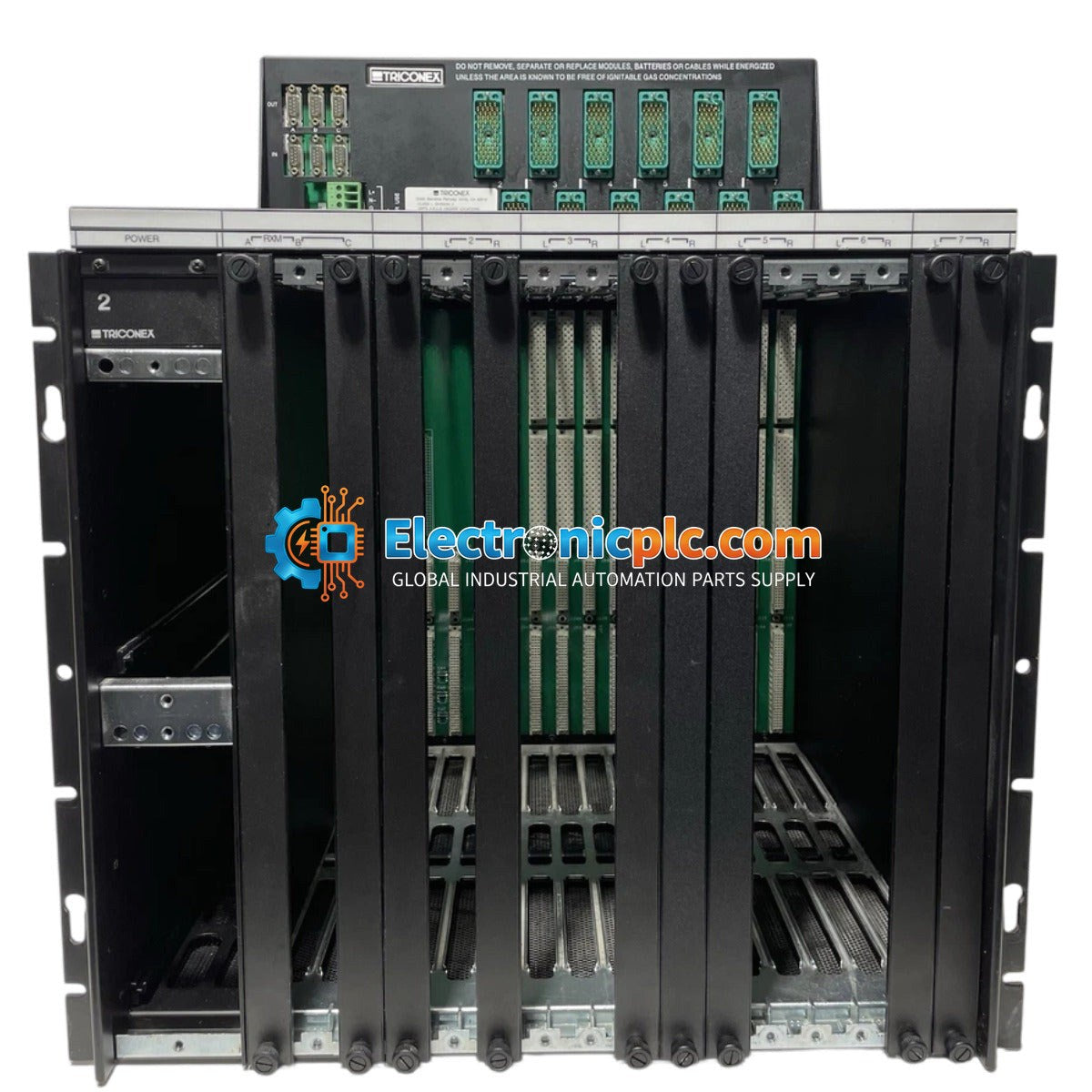

The 3000604-100 serves as a high-density primary or expansion chassis within the Invensys Triconex safety system platform. Engineered for structural integrity, this chassis provides the mechanical and electrical backbone for Triple Modular Redundancy (TMR) modules in mission-critical environments such as oil refineries, offshore platforms, and large-scale mining operations. By maintaining rigid busbar connections and superior thermal dissipation, the 3000604-100 ensures continuous communication between the Main Processors and I/O modules, effectively eliminating hardware-related system failures and reducing unplanned plant downtime.

Chassis Infrastructure and Backplane Design

The internal architecture of the 3000604-100 chassis features a high-speed passive backplane designed to support the Triconex proprietary TMR bus. This dual-power rail design allows for redundant power module installation, ensuring the system remains operational even during a power supply unit failure. Each slot includes localized shielding to minimize electromagnetic interference (EMI) between high-speed logic and field-side signals. The chassis supports a combination of Main Processor modules, Communication Modules, and various I/O modules, providing a flexible, scalable footprint for complex safety instrumented functions (SIF) that require SIL 3 compliance.

Features

• Supports Triple Modular Redundant (TMR) architecture for high-availability safety systems.
• High-speed passive backplane for reliable inter-module communication.
• Dual-power rail design supporting redundant power supply modules.
• Integrated EMI shielding for signal integrity between logic and field I/O.
• Rugged industrial-grade construction for harsh environments.

Applications

This chassis is intended for use in safety-critical industrial automation systems, including:

• Emergency Shutdown Systems (ESD).
• Fire and Gas (F&G) monitoring systems.
• Burner Management Systems (BMS).
• High-integrity process control in oil, gas, and chemical processing facilities.

Technical Specifications

Installation Guidelines

• Ensure the chassis is mounted in a clean, dry, and vibration-free environment within a standard industrial enclosure.
• Verify that the chassis is properly grounded to the cabinet common ground to ensure EMI protection and personnel safety.
• Always power down the system before inserting or removing any modules from the chassis backplane.
• Maintain adequate clearance around the chassis to allow for proper airflow and thermal dissipation.
• Ensure that all power supply modules are securely seated and locked to maintain the integrity of the redundant power rails.

FAQ

Is the 3000604-100 compatible with all Triconex modules?

The 3000604-100 is designed to house standard Tricon series modules. Please verify specific module compatibility with your system revision and documentation before installation.

Does this chassis support redundant power supplies?

Yes, the chassis features a dual-power rail design specifically engineered to support redundant power supply modules for high-availability applications.
