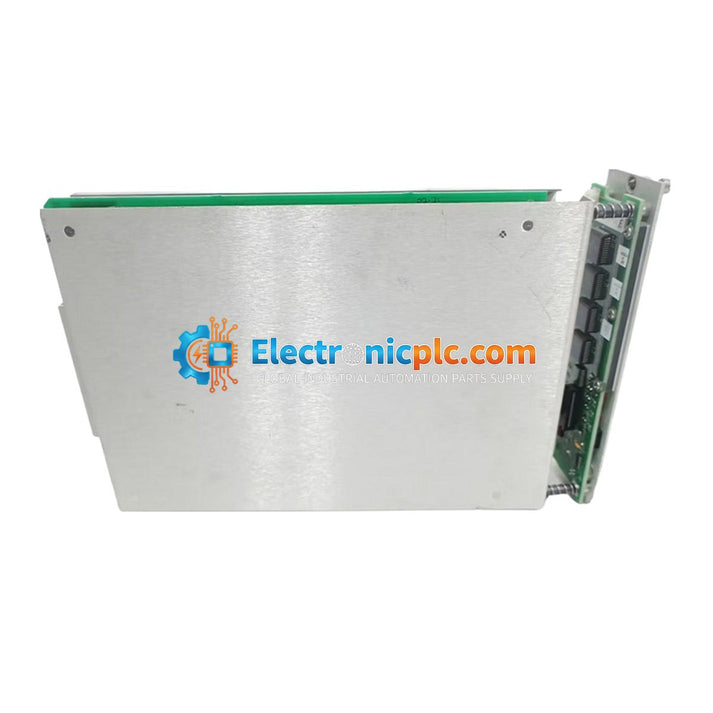

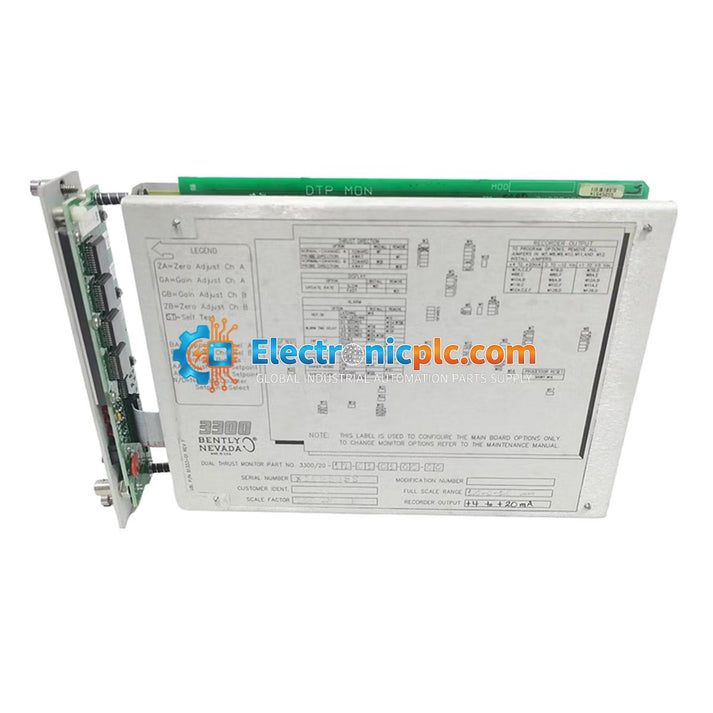

Bently Nevada 3300/20-12-01-01-00-00 Dual Thrust Monitor

Bently Nevada 3300/20-12-01-01-00-00 Dual Thrust Monitor

Description

The Bently Nevada 3300/20 Dual Thrust Monitor is a rack-mounted module engineered for precise axial thrust position measurement in critical rotating machinery, including turbines and compressors. This specific model, 3300/20-12-01-01-00-00,...

24 people are viewing this right now

Availability: Low stock: 9 left

SKU: 3300/20-12-01-01-00-00
Vendor: Bently Nevada
Category: Vibration Monitor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 3300/20 Dual Thrust Monitor is a rack-mounted module engineered for precise axial thrust position measurement in critical rotating machinery, including turbines and compressors. This specific model, 3300/20-12-01-01-00-00, is configured for dual-channel thrust monitoring, providing continuous analysis of axial displacement against defined alarm setpoints. By detecting bearing wear or potential mechanical failure early, the module facilitates effective predictive maintenance strategies and minimizes unplanned downtime.

Features

  • Dual-channel axial thrust monitoring for comprehensive machine protection.
  • Continuous parameter comparison against user-defined Alert and Danger alarm setpoints.
  • Integrated relay outputs for automated alarm actuation.

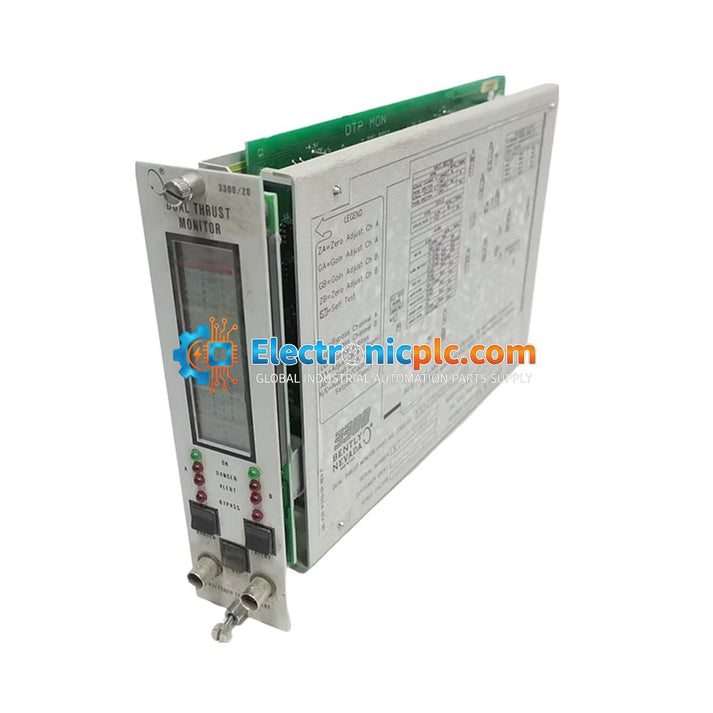

  • Front-panel LED indicators for quick status verification of OK, Bypass, Alert, and Danger states.
  • Configured for use with standard proximity probes and Proximitor sensors.

Applications

  • Axial position monitoring for steam and gas turbines.
  • Thrust bearing wear detection in centrifugal compressors.
  • Critical asset protection in power generation and petrochemical facilities.
  • Integration into existing Bently Nevada 3300 monitoring racks.

Technical Specifications

Model 3300/20-12-01-01-00-00
Brand Bently Nevada
Series 3300
Operating Temperature 0 to 60 degC
Power Consumption ~1.5 W
Input Type Proximity probe signals via Proximitor sensors
Sensitivity 200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm)
Signal Accuracy +/- 0.33% typical, +/- 1% max at 25 degC
Output Signals +4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC

Installation Guidelines

  • Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
  • The module must be seated firmly in the designated rack slot to ensure proper backplane connectivity.
  • Use shielded cabling for all transducer inputs to minimize EMI interference.
  • Verify that proximity probe gaps are calibrated according to the machine manufacturer's specifications.
  • Maintain adequate ventilation around the rack to ensure the ambient temperature remains within the 0 to 60 degC operating range.
  • Handle with standard ESD precautions to protect internal circuitry.

FAQ

What does the 12 suffix denote in this model?

The 12 suffix indicates the dual-channel thrust configuration, allowing the monitor to process two independent axial displacement inputs simultaneously.

Is this module compatible with existing 3300 racks?

Yes, this module is designed for the standard 3300 series rack architecture. Ensure your rack backplane configuration supports the 3300/20 module type.
