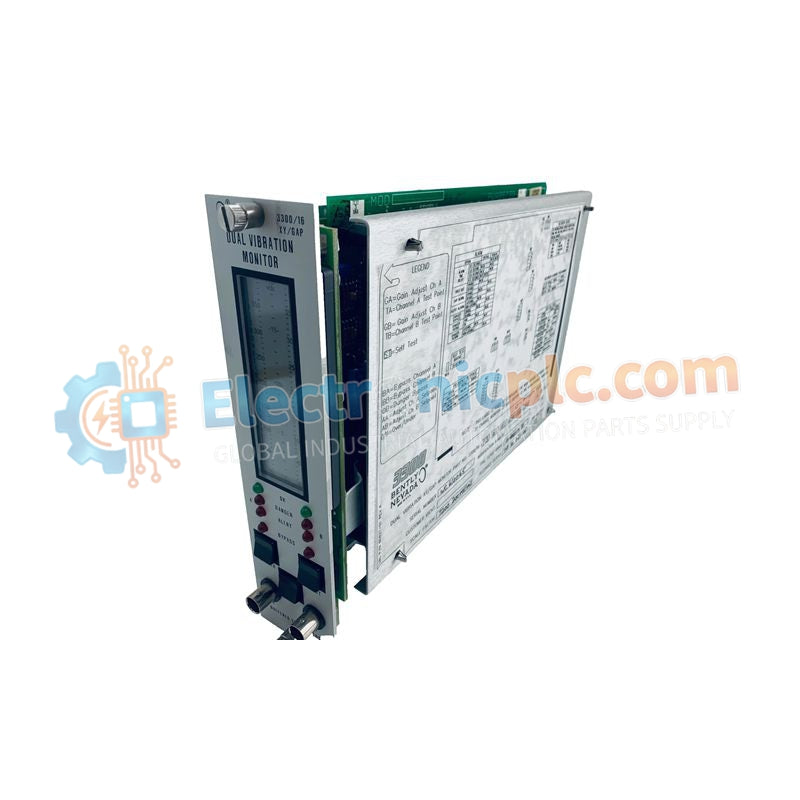

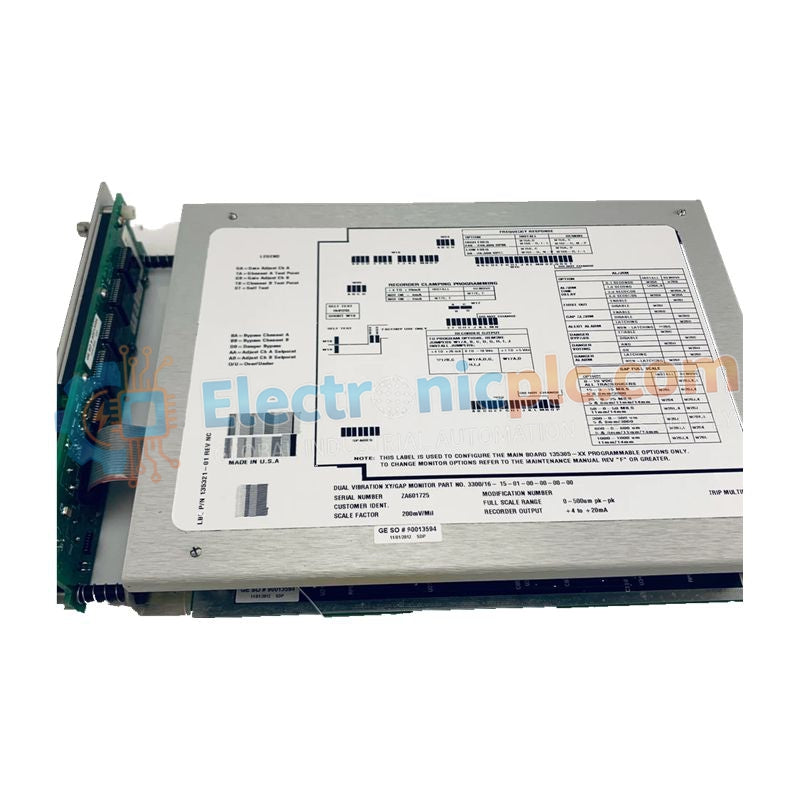

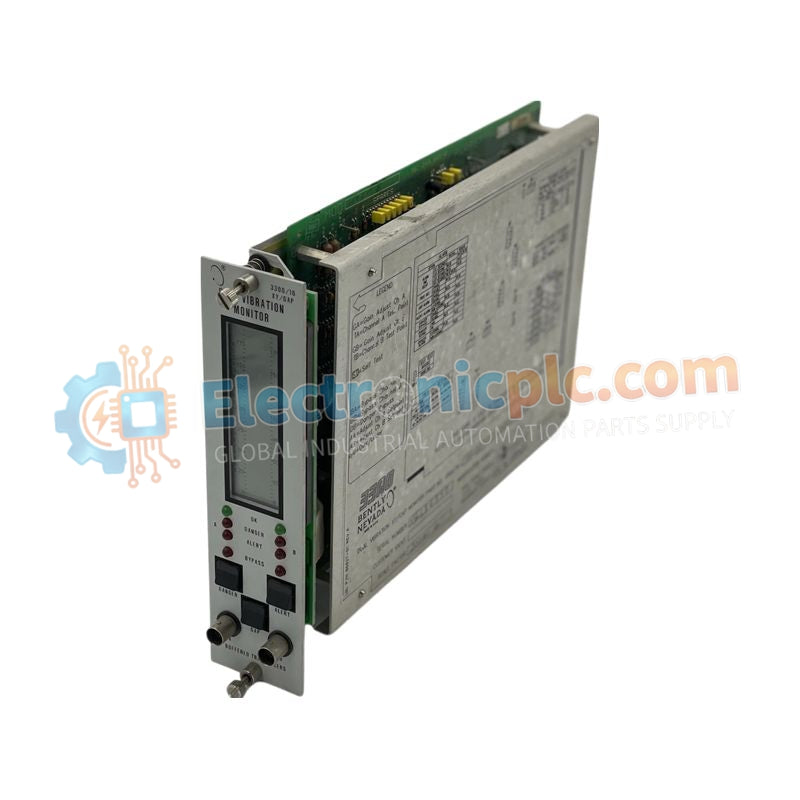

3300/16-14-01-01-00-00-00 Bently Nevada 3300/16 Vibration Monitoring Module

3300/16-14-01-01-00-00-00 Bently Nevada 3300/16 Vibration Monitoring Module

Product Description

The 3300/16-14-01-01-00-00-00 is a high-precision dual-channel vibration and position monitoring module developed by Bently Nevada LLC for use in the 3300 Series machinery protection system.

This module provides continuous real-time monitoring of radial vibration amplitude and shaft...

22 people are viewing this right now

Availability: Low stock: 10 left

SKU: 3300/16-14-01-01-00-00-00
Vendor: Bently Nevada
Category: Vibration Monitoring Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 3300/16-14-01-01-00-00-00 is a high-precision dual-channel vibration and position monitoring module developed by Bently Nevada LLC for use in the 3300 Series machinery protection system.

This module provides continuous real-time monitoring of radial vibration amplitude and shaft gap (axial position) using proximity probe transducers. It is widely used as an early-warning protection layer for rotating equipment such as turbines, compressors, and large industrial pumps.

Each channel operates independently and features advanced signal conditioning circuitry to ensure high measurement accuracy and long-term stability. The module also includes Trip Multiply logic to prevent false alarms during startup or transient machine conditions. The epoxy-sealed relay outputs provide reliable switching performance in harsh industrial environments.

Technical Specifications

Parameter Specification
Model 3300/16-14-01-01-00-00-00
Function Dual-channel vibration & gap monitoring
System Compatibility Bently Nevada 3300 rack system
Transducer Support 1–2 proximity probe inputs
Input Impedance 10 kΩ
Power Consumption 2.0 W
Sensitivity Options 100 mV/mil (4 V/mm) 200 mV/mil (8 V/mm)
Signal Accuracy (@25°C) ±0.33% typical ±1.0% maximum

Application

  • Steam turbine rotor monitoring

  • Centrifugal compressor protection

  • Pump shaft alignment and bearing wear detection

  • Industrial rotating machinery condition monitoring

FAQ

Why is there a 6-second gap alarm delay?
The delay prevents false alarms caused by transient vibration or signal noise during machine start-up or temporary disturbances.

Can non-Bently probes be used?
Yes, provided the probe output meets the module’s voltage and sensitivity requirements.

Is sensitivity hardware-fixed?
No. Sensitivity is software or configuration programmable to support different machine setups.
