Description

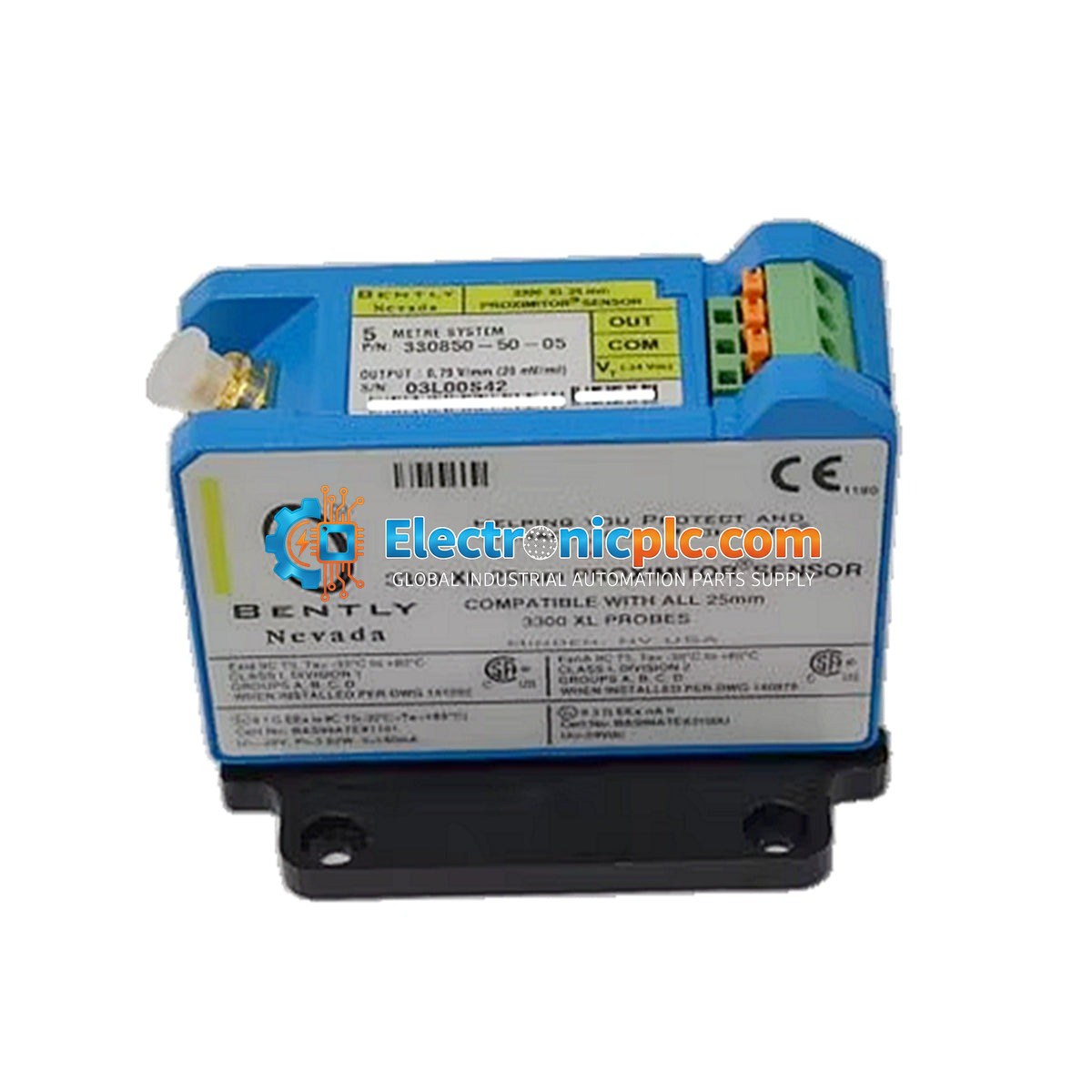

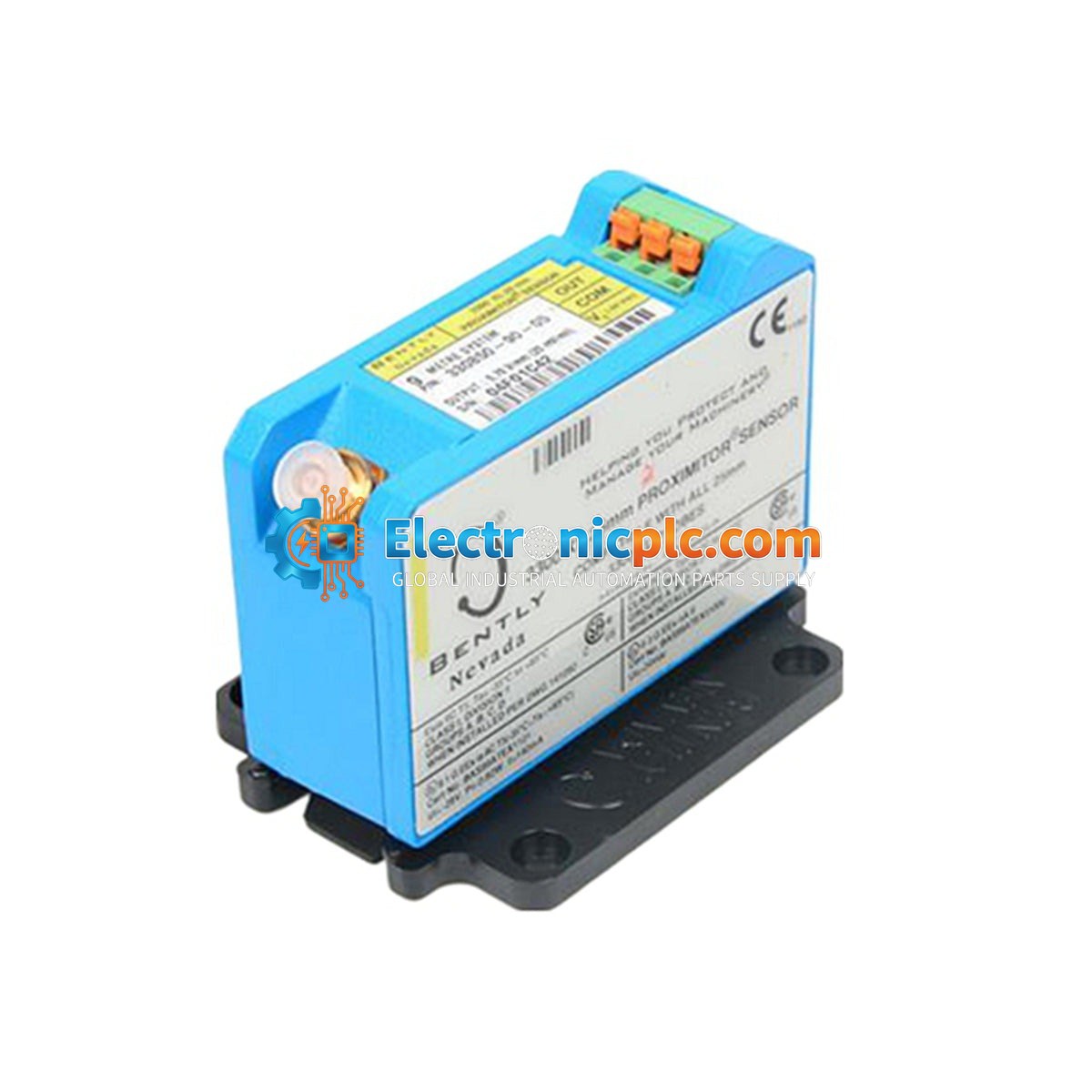

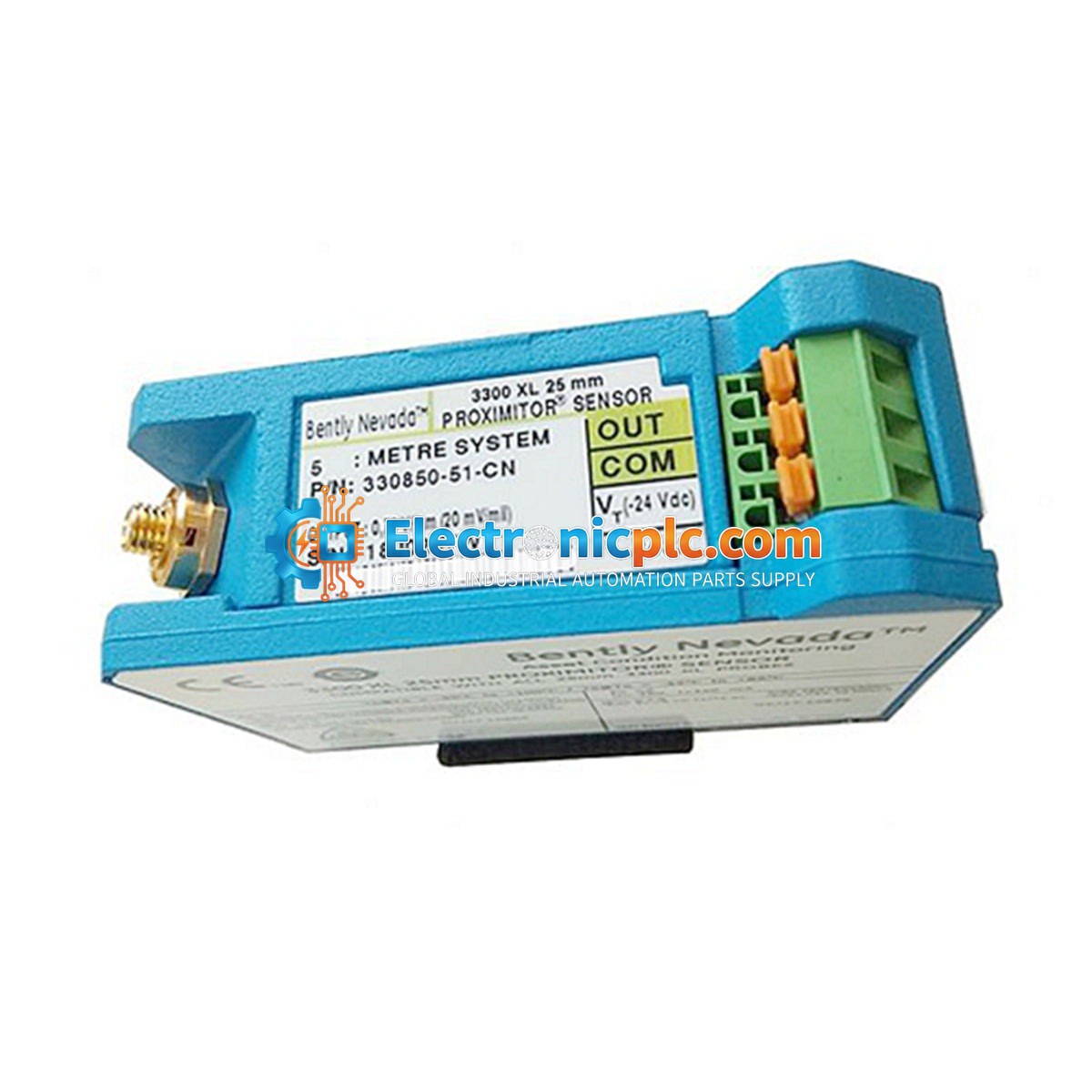

The Bently Nevada 330850-50-05 is a 3300 XL 25 mm Proximitor Sensor designed for high-precision vibration and position monitoring in industrial rotating machinery. This sensor utilizes advanced eddy-current technology to provide reliable displacement measurements. It is engineered to serve as a direct replacement for legacy 7200 25 mm, 7200 35 mm, and 25 mm DE Integral transducer systems, allowing for seamless system upgrades without requiring modifications to existing monitor configurations.

Features

• Versatile Mounting: Supports both high-density DIN-rail installation and traditional panel mount configurations.
• Enhanced Immunity: Improved RFI/EMI immunity ensures stable operation in environments with high-frequency radio signals, meeting European CE mark requirements without special mounting considerations.
• SpringLoc Terminals: Integrated SpringLoc terminal strips facilitate robust, tool-free field wiring connections.
• System Compatibility: Backwards compatible with existing 3300 XL series transducer system components.

Applications

• Power Generation: Continuous monitoring of critical auxiliary rotating equipment, including feed pumps and cooling fans.
• Oil & Gas: Monitoring of high-speed compressors in pipeline transportation and LNG processing plants.
• Petrochemical: Tracking wear and alignment of large-scale centrifuges, mixers, and pumps in refinery operations.
• Water Treatment: Bearing monitoring for large-scale pumps and industrial drying machinery.

Technical Specifications

Installation Guidelines

• Mounting: The unit can be mounted on a DIN-rail or via a traditional panel mount. Ensure the mounting surface is clean and provides adequate grounding.
• Wiring: Utilize the SpringLoc terminal strips for connections. No special tools are required; ensure wires are fully seated to maintain connection integrity.
• Environment: While the sensor features high RFI/EMI immunity, avoid routing signal cables in close proximity to high-voltage power lines or heavy electromagnetic interference sources.
• Handling: As a precision electronic component, handle with care to avoid ESD damage. Always power down the system before inserting or removing the module from the rack.

FAQ

What is the primary function of the 330850-50-05?

This sensor is an eddy-current transducer used to measure shaft displacement, position, and vibration in rotating machinery.

Can this sensor replace older 7200 series systems?

Yes, the 3300 XL 25 mm Proximitor is designed to physically and electrically replace older 7200 25 mm, 7200 35 mm, and 25 mm DE Integral systems, allowing for direct upgrades.

What is the required power supply for this sensor?

The sensor typically operates on a power supply between -17.5 Vdc and -26 Vdc.
